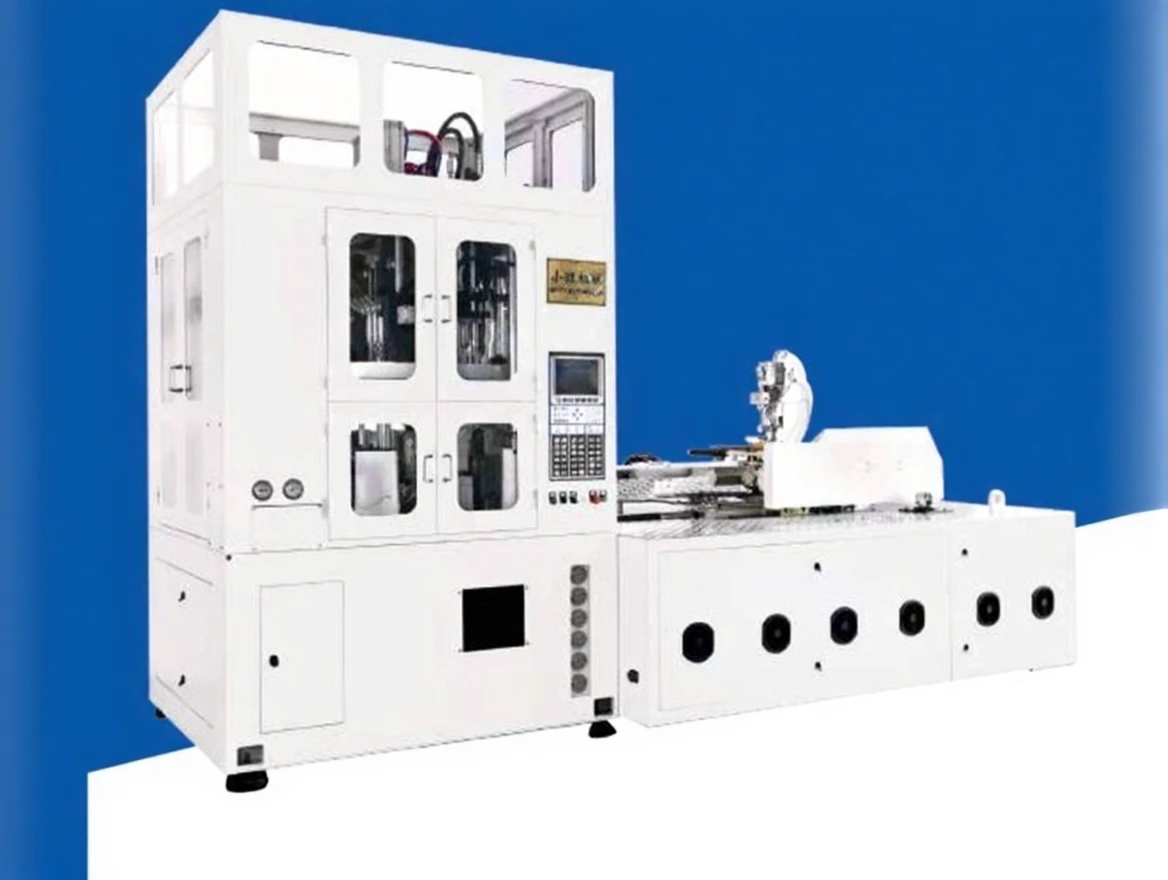

60mm ISBM Pet Blow Molding Machine
| Brand | Kaplan Enjeksiyon |
|---|---|
| Model Type |
BPET-94V3 |
60mm Pet Blow Molding Machine
- Preform injection station
- Heating, cutting, blowing
- Stretch blow molding station
- product exit station

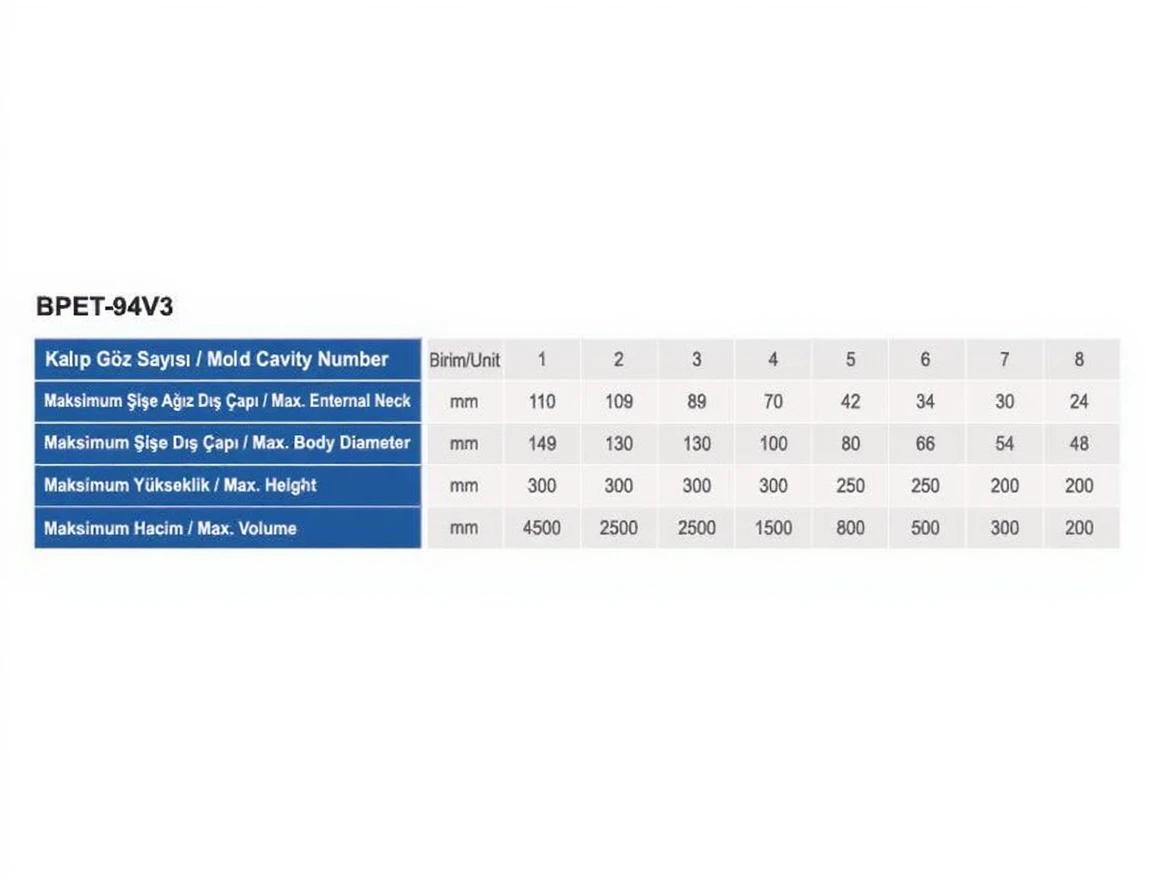

Kaplan Injection BPET-94V3 Technical Specifications
|
Feature / Feature |
Unit |
BPET-70V4 |
BPET-125V4 |
BPET-94V3 |
|---|---|---|---|---|
|
Screw Diameter |
mm |
45 |
60 |
60 |
|
L/D |
– |
24 |
24 |
24 |
|
Injection Capacity / Theoretical Injection Capacity |
cm³ |
380 |
480 |
480 |
|
Injection Clamping Force |
kN |
285 |
685 |
785 |
|
Menge Blow Clamping Force |
kN |
115 |
286 |
298 |
|
Cold Water / Chilled Water |
L/min |
80 |
80 |
80 |
|
Cooling Water Return / Cooling Tower Water |
L/min |
80 |
80 |
80 |
|
Drive Motor Power / Driving Power-rated |
kW |
44KW-380V |
65KW-380V |
65KW-380V |
|
Heater Power-rated |
kW |
8.9KW-220V |
12.5KW-220V |
12.5KW-220V |
|
Oil Tank Capacity |
L. |
460 |
620 |
620 |
|
Machine Dimensions |
L.WH (mm) |
440013502900 |
500020503000 |
480020503000 |
|
Machine Weight |
T |
5.1 |
11.6 |
10.5 |
|
Maximum Air Blowing Pressure / Max. Blow Air Pressure |
MPa |
3.5 |
3.5 |
3.5 |
|
Machine Running Air Pressure |
MPa |
1 |
1 |
1 |
