60W Laser Cutting and Marking Machine
| Brand | Flymark |
|---|---|
| Model Type |
CO2-4060 |
• Interface that can accept many file formats.
• Design with Smoke Extractor output providing a healthy use for the user.
• Wide power range from 50W to 120W.

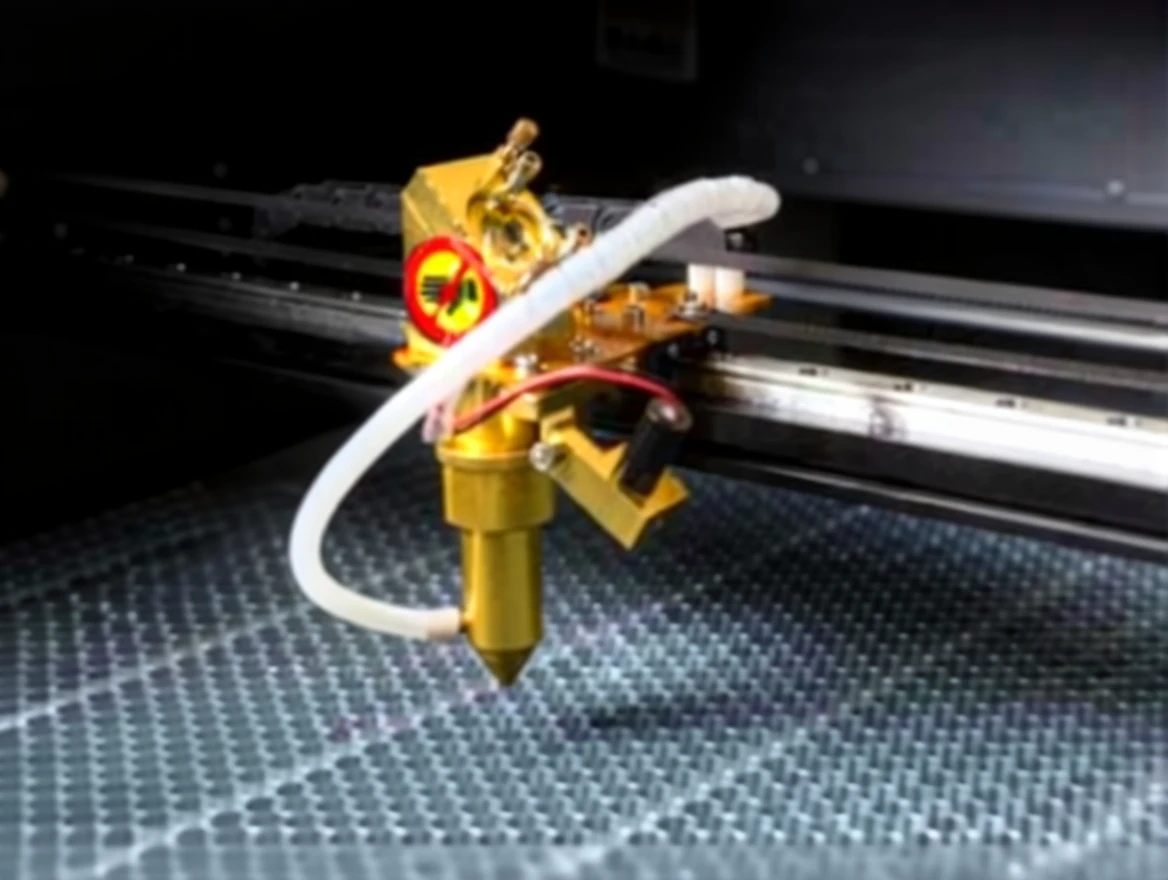

• Cutter or honeycomb design to facilitate cutting and marking.
• Belt design with high-quality belts that do not wear out easily.
• More accurate focusing with American origin lenses, Honeycomb worktable or Cutter Table
• Water cooling pump, air pump, Ruida Controller card, Red light positioning, hydraulic support rod.
• CE Certified
• 2 years warranty

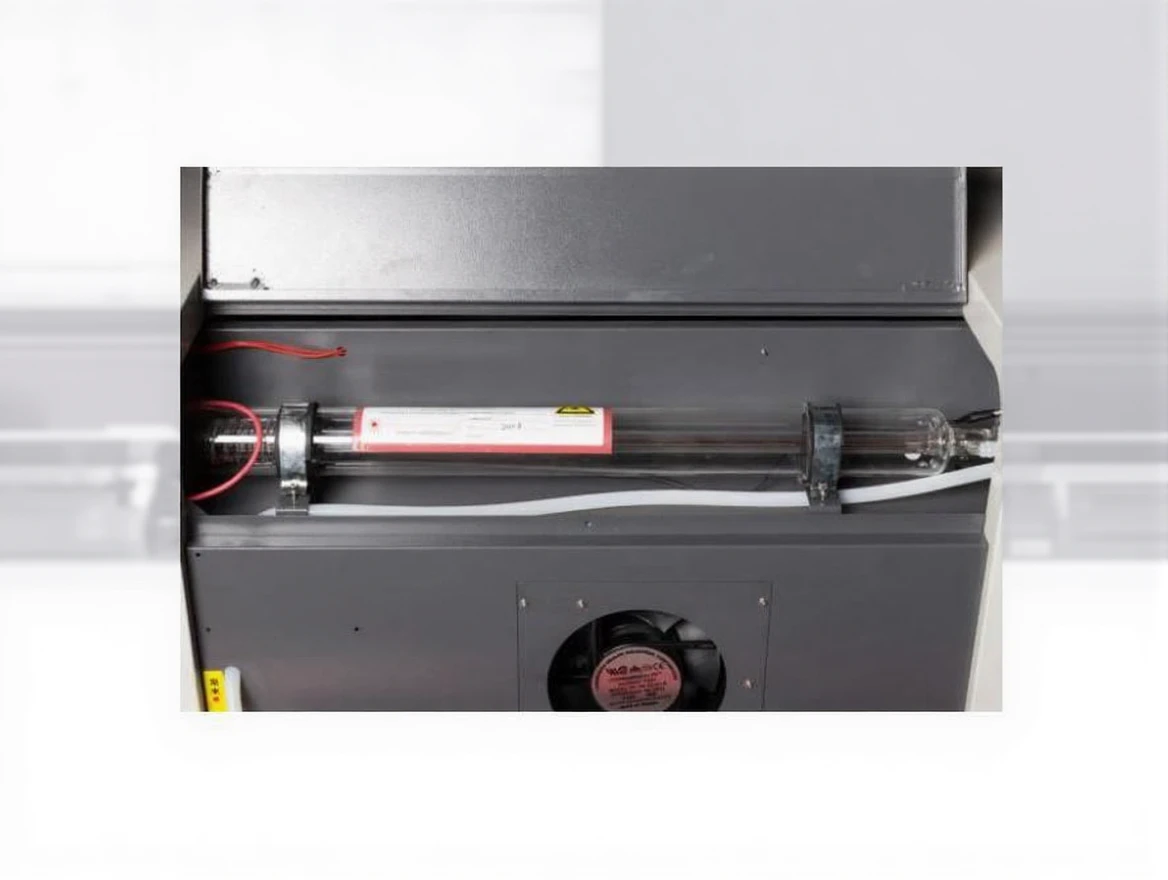

• Tube life of up to 10,000 hours
• Easy focusing and comfortable operation with Z-axis elevator
Configuration Shared – TECHNICAL DATA
Working Area ( X – Y ) 400 mm x 600 mm
Required Voltage – Current Value AC 220V – 50HZ*
Cutting and Marking Speed 100mm/s and 1000mm/s
Laser Welding Output Power 60 W
Laser Welding Life 10,000 hours (RECI)
Positioning Accuracy 0.01 mm
Repeatability 0.02 mm
Resolution 1000dpi
Cooling Type Water Cooled (Supported by Water Pump)
Accepted Output Formats AI, PLT, DXF, BMP, LAS, DXP, DWG
Dimensions 1080 mm (Width) x 760 mm (Depth) x 90 mm (Height)
Minimum Character Size 1mmx1mm
Air Assistant Available (Supported by Air Pump)
Power Consumption 240W (for 30W at 20°C)
Ambient Humidity and Temperature %10 – %80 – 0°C ~ 45°C
Certification and Warranty CE Certified and 2 years Warranty
Focusing System – Elevator Z axis
Communication System Ethernet, USB
ACCORDING TO OUR EXPERIENCE, MATERIAL CUTTING DEPTHS (60W)
Wood – 5.5 mm
Chipboard and MDF – 4.5 mm
Leather – 2.5 mm
Acrylic – 9 mm
PVC – 2.5 mm
Plexiglass – 3.5 mm
Plastic – 1.5 mm
Rubber – 1.5 mm
Fabric, Felt – 1.5 mm
Bamboo – 1.5 mm
Paper (Cardboard) – 0.5 – 5 mm
Foam – 2 mm
