6100 Kg (25.3 Mt.) Vehicle-Mounted Foldable Boom Mobile Crane
| Brand | Palfinger |
|---|---|
| Model Type |
PK 22002 EH |
Description

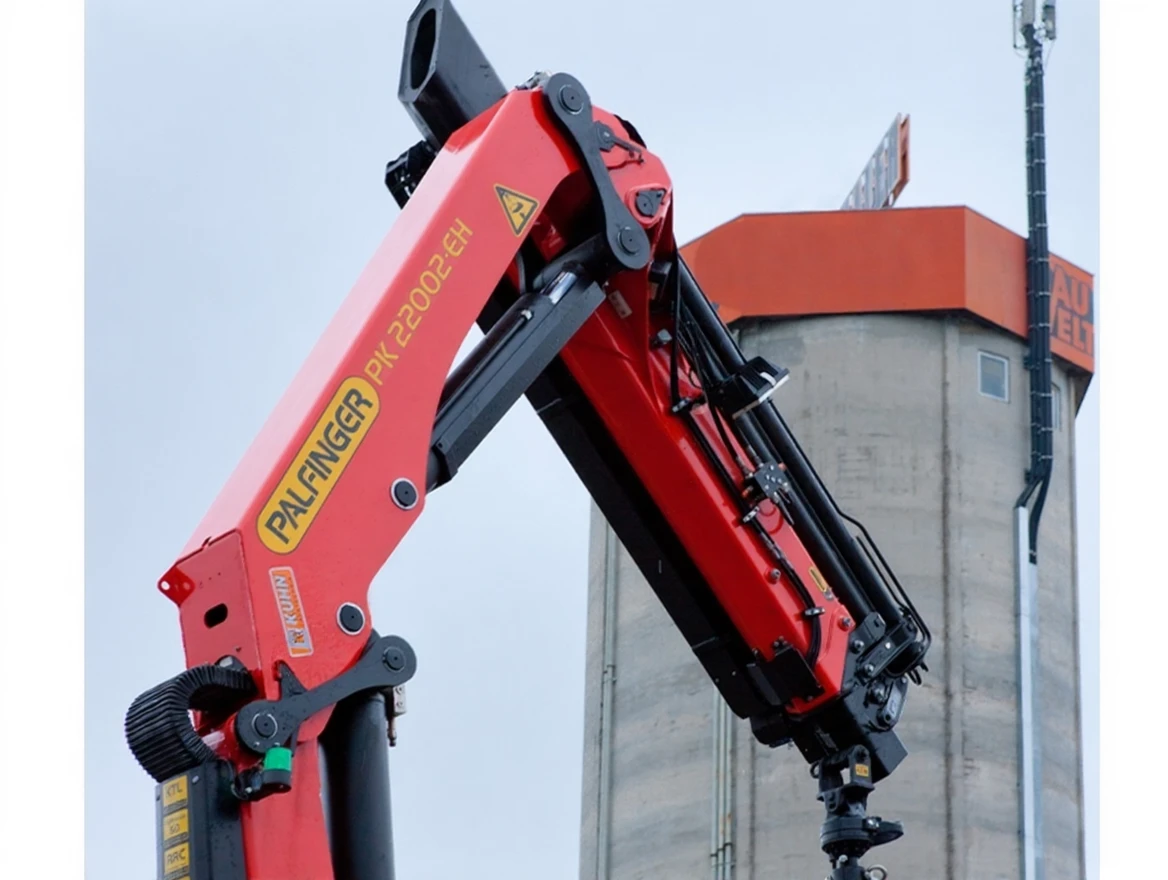

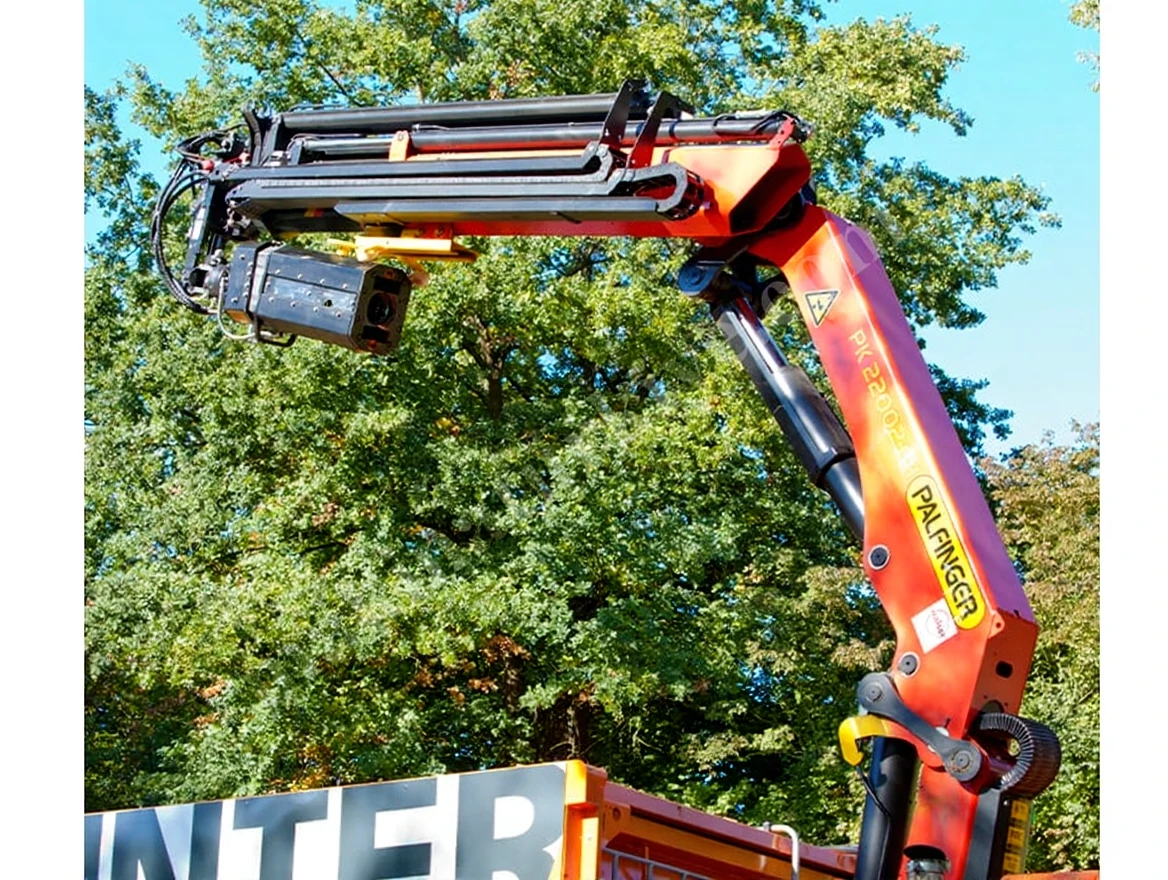

Palfinger PK 22002 EH

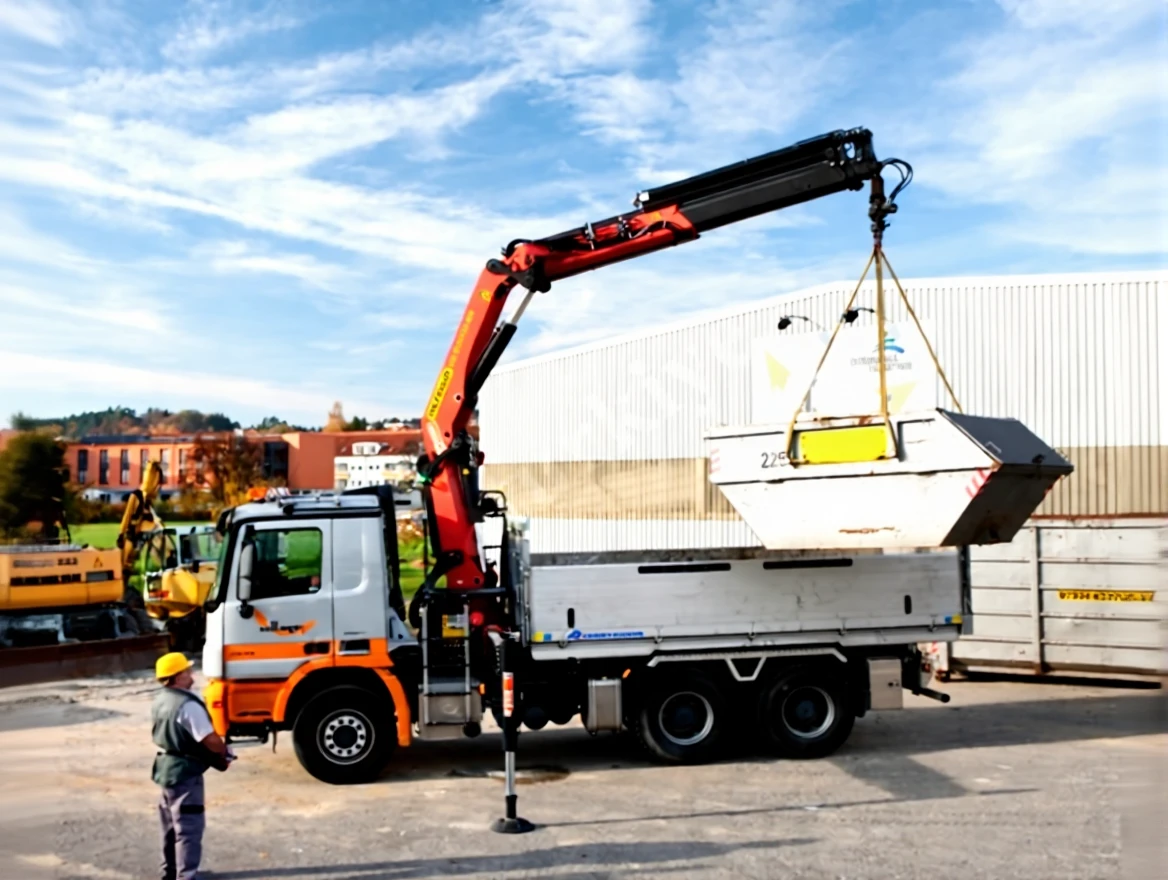

6100 Kg (25.3 Mt.) Vehicle-Mounted Foldable Boom Mobile Crane
Max. Lifting Moment: 20.9 mt
Max. Lifting Capacity: 6100 kg
Max. Reach Distance: 25.3 m
Tower Rotation Angle: 400°
Tower Rotation Torque: 2.3 mt
Max. Operating Pressure: 350 bar
Equipment Weight: 2391 kg
Max. Lifting Capacity: 6100 kg
Max. Reach Distance: 25.3 m
Tower Rotation Angle: 400°
Tower Rotation Torque: 2.3 mt
Max. Operating Pressure: 350 bar
Equipment Weight: 2391 kg
PK22002 EH HIGH PERFORMANCE
Product Group: Medium
With its compact size and lightness, it adapts perfectly to the installation location,
Maximum utilization of the working area thanks to HPSC,
Low operating costs due to low boom lubrication maintenance costs,
Ease of use for the operator with remote control,
Maximum reliability and precision with AOS system. (Optional)
Additional usage areas with Power Link Plus (Strong Boom connections)
