Ø 62 – 250mm Compact Portatif Hat Delme Makinası
| Brand | Elsa |
|---|---|
| Model Type |
SC2 Compact |

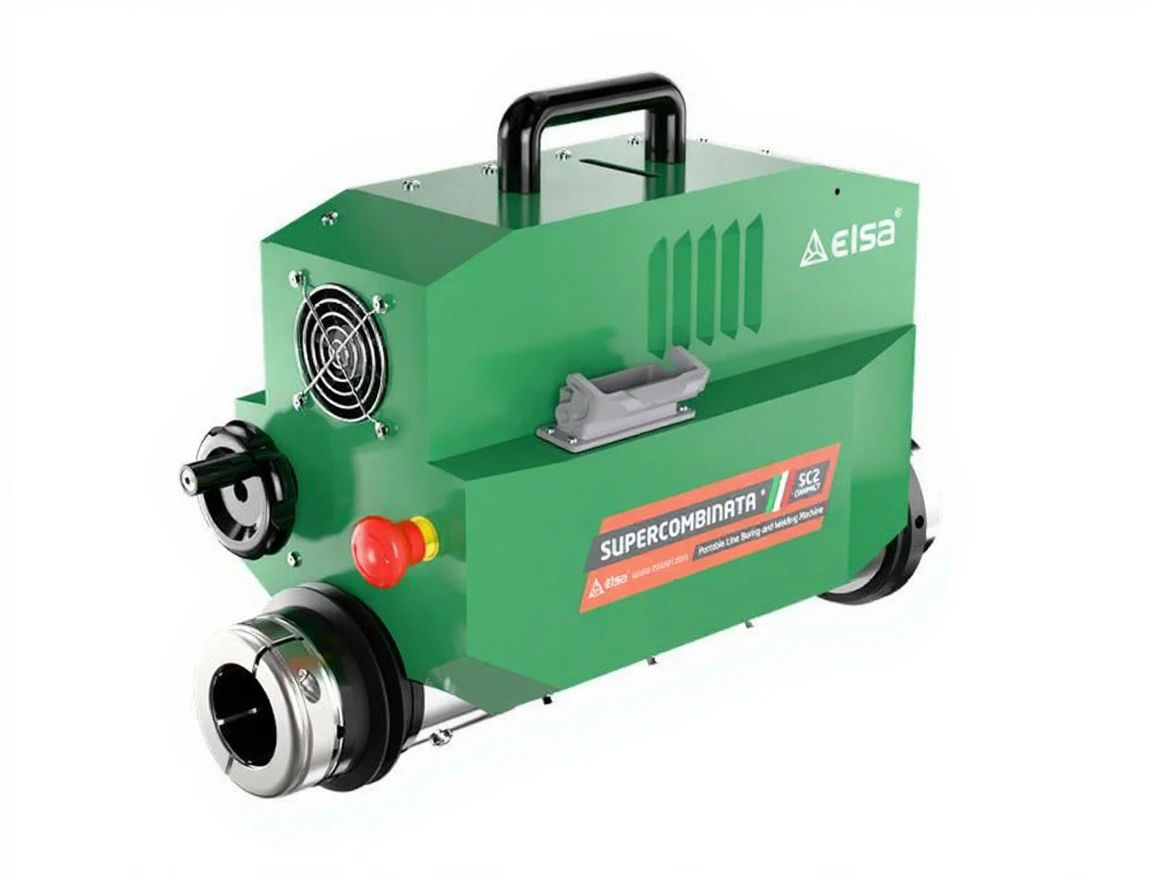

Ø 62 – 250mm Portable Boring Machine
The Supercombinata SC2 Compact is suitable for internal hole drilling and internal overlay welding operations in the range of Ø 62mm to Ø 250mm with its standard equipment (including blind holes).
With its extra kits, it is suitable for external turning, covering vertical surfaces at an angle, and creating washer grooves. With its additional accessories, Supercombinata can meet many different needs of our customers.
|
Technical Specifications |
|
|---|---|
|
Boring Bar Diameter |
: Ø 60×2200 MM |
|
Boring Line |
: Ø 62 – 250 MM |
|
External Turning |
: Extra Kit |
|
Internal Welding |
: Ø 42 – 250 MM |
|
Processing Vertical Surface at Angle |
: Extra Kit |
|
AC Motor |
: Single Phase |
|
Nominal Speed Power |
: 1800 W |
|
Bar Output Torque |
: 100 rpm – 350 NM |
|
1st Speed |
: Maximum 100 rpm (170 NM) |
|
2nd Speed |
: Maximum 340 rpm (50 NM) |
|
Gear Motor |
: DC |
|
Nominal Speed Power |
: 45 W |
|
Max Speed |
: 11 rpm |
|
Feed System |
: Electromechanical |
|
Feed |
: Manual / Automatic |
|
Spiral |
: Follows Changing Step |
|
Welding Machine |
: Compatible with EURO connector MIG/MAG Cable |
|
Welding Technology Feeder Motor Rotary Motor Longitudinal Stroke |
|
|---|---|
|
Length |
: 545 MM |
|
Width |
: 220 MM |
|
Height |
: 380 MM |
|
Center Weight Unit |
: 34 KG |
|
Electronics Control Panel Dimensions |
|
|---|---|
|
Voltage |
: 230 V (50Hz) |
|
Main Switch |
: Available |
|
Emergency Stop Button |
: Available |
|
Inverter Power Supply |
: RH/LH |
|
Inverter Rotary |
: CW/CCW |
|
Speed Regulator |
: Rotary / Feeder |
|
Electricity Consumption |
: 2000 W |
|
Control Panel 110/120 V |
: On Request |
|
Unlimited |
: With 250 MM Interval |
