Ø 62 – 250mm Portatif Hat Delme Makinası
| Brand | Elsa |
|---|---|
| Model Type |
SC2 |

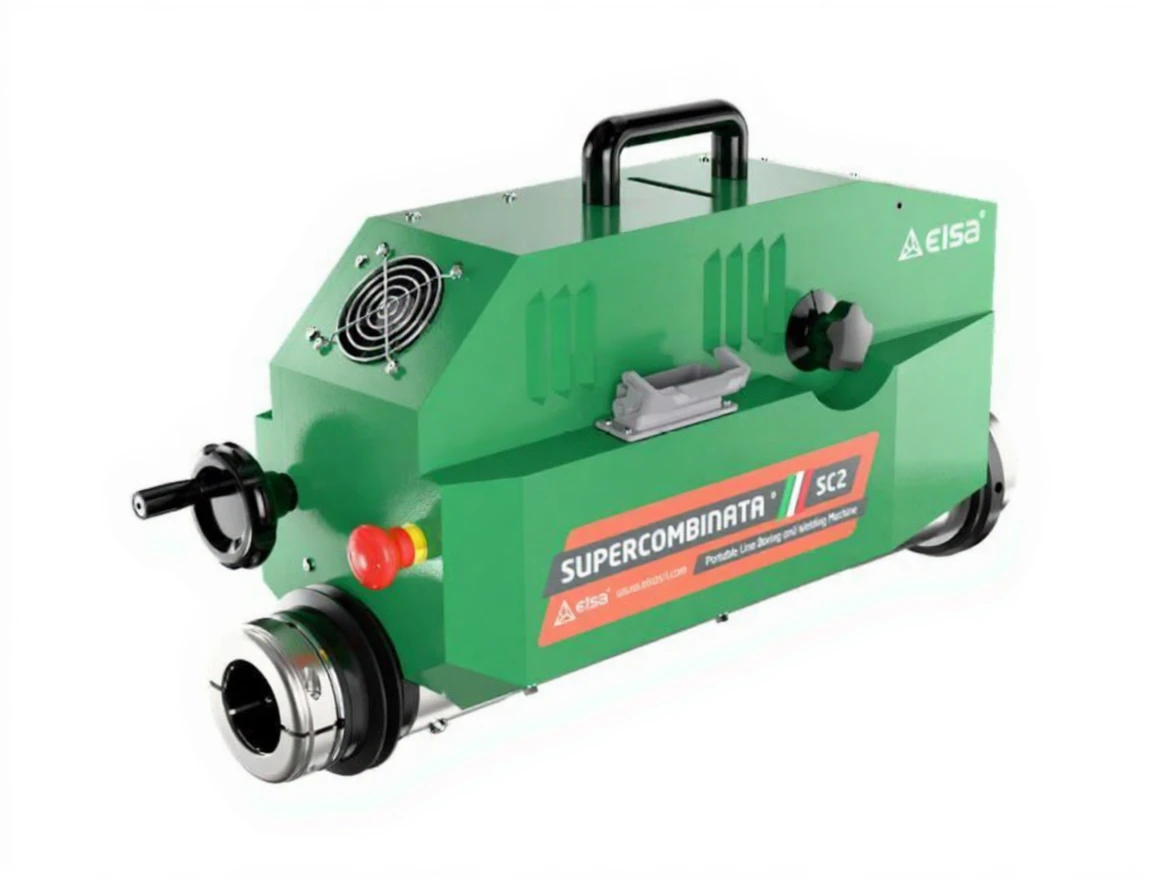

Ø 62 – 250mm Portable Boring Machine
The Supercombinata SC2 Compact is suitable for internal hole machining and internal overlay welding in the range of Ø 62mm to Ø 250mm (including blind holes) with its standard equipment.
With its additional kits, it is suitable for external turning, covering of perpendicular flat surfaces, and creation of washer grooves. With its extra accessories, the Supercombinata can meet the various needs of our customers.
|
Technical Specifications |
|
|---|---|
|
Boring Bar Diameter |
: Ø 60×2200 MM |
|
Chucking Bore |
: Ø 62 – 250 MM |
|
External Turning |
: Extra Kit |
|
Internal Welding |
: Ø 42 – 250 MM |
|
Machining of Perpendicular Surface |
: Extra Kit |
|
AC Motor |
: Single Phase |
|
Rated Power at Nominal Speed |
: 1800 W |
|
Bar Output Torque |
: 100 rpm to 350 NM |
|
1st Gear |
: Maximum 100 rpm (170 NM) |
|
2nd Gear |
: Maximum 340 rpm (50 NM) |
|
Gear Motor |
: Direct Current |
|
Rated Power at Nominal Speed |
: 45 W |
|
Max Speed |
: 11 rpm |
|
Feed System |
: Electromechanical |
|
Feed |
: Manual / Automatic |
|
Spiral |
: Follows Changing Steps |
|
Welding Machine |
: Compatible with EURO connector MIG/MAG Cable |
|
Feed Motor Rotation Motor Longitudinal Stroke |
|
|---|---|
|
Length |
: 545 MM |
|
Width |
: 220 MM |
|
Height |
: 380 MM |
|
Weight Center Unit |
: 34 KG |
|
Electronic Control Panel Size |
|
|---|---|
|
Voltage |
: 230 V (50Hz) |
|
Main Switch |
: Available |
|
Emergency Stop Switch |
: Available |
|
Inverter Supply |
: RH/LH |
|
Inverter Rotation |
: CW/CCW |
|
Speed Regulator |
: Rotation/Feed |
|
Electric Consumption |
: 2000 W |
|
Control Panel 110/120 V |
: Upon Request |
|
Unlimited |
: With 250 MM Interval |
