630 Kg /Day Block Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-BLK / 0.63 T |
630 Kg / Day Block Ice Machine

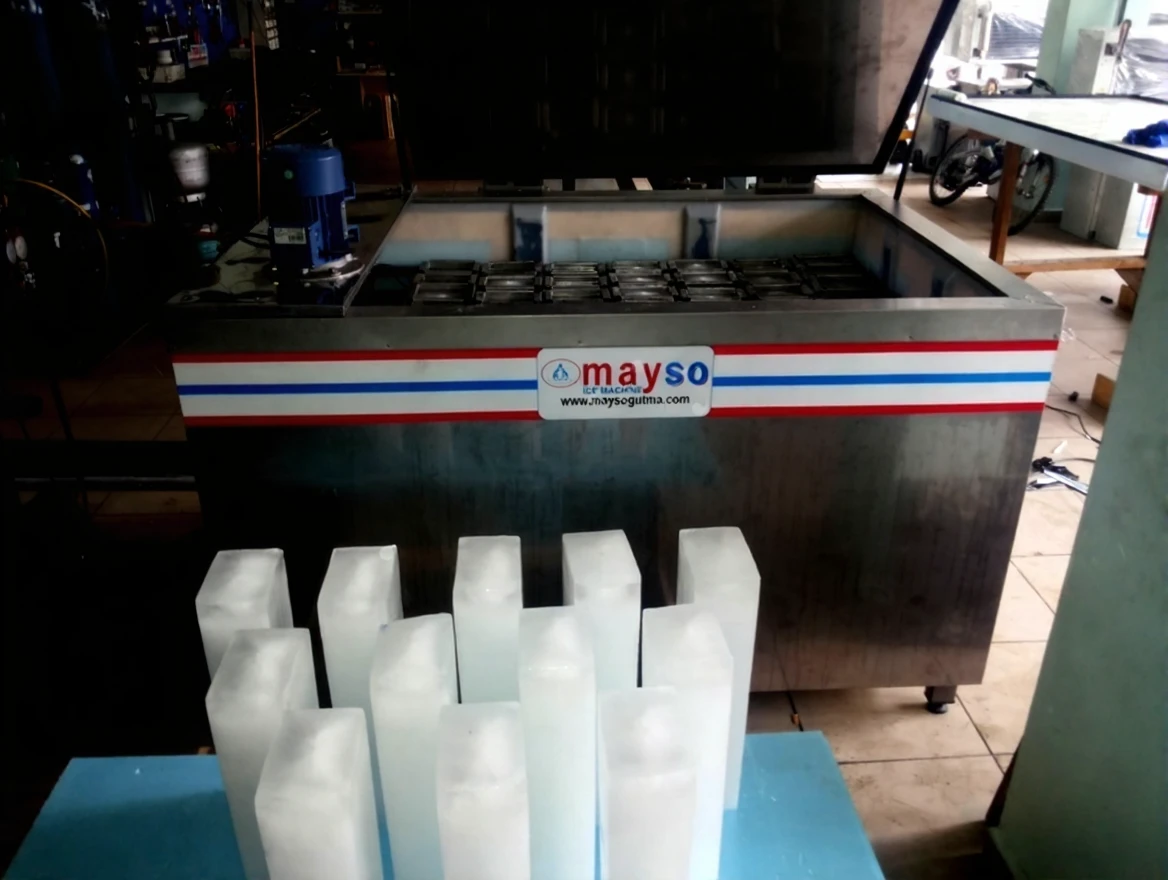

The MYBZ-BLK / 0.63 T Block Ice Machine produced by Mayso Cooling is a refrigeration device that operates with high efficiency and offers excellent results in block ice production. These machines are particularly used in the food sector, logistics, and refrigeration industries.
Features:
-
Capacity: This model has a block ice production capacity of 630 kg / day, making it ideal for businesses that require large amounts of ice daily.
-
Operating Principle: Ice machines operate on the principle of filling brine tanks with fresh water and then ensuring ice formation with -15°C cooling. This provides high-quality and reliable block ice production.
-
Electricity and Water Savings: Mayso Cooling’s block ice machines stand out with high energy efficiency. The design that saves electricity and water offers significant cost advantages to businesses in the long run.
Advantages:
-
High Efficiency: The system provides high efficiency with low energy consumption, reducing electricity costs for businesses.
-
Advanced Design: Designed with brine tanks and special cooling systems, these machines operate efficiently in all climates and are long-lasting.
-
Environmentally Friendly: By saving electricity and water, it offers an environmentally friendly use and contributes to sustainability goals.
Areas of Use:
-
Food Sector: Ice production used in the storage and transportation of food items.
-
Logistics and Transportation: The need for ice in the transportation of food and other products.
-
Fishing and Seafood: Ice production for the storage and transportation of fresh seafood.
The Block Ice Machine stands out from its competitors in the industry with low energy consumption and high efficiency. This machine offers long-term cost advantages to businesses by saving both water and electricity.
Mayso Cooling MYBZ-BLK / 0.63 T Technical Specifications
|
Machine Model |
MYBZ-BLK / 0.63 T |
|---|---|
|
Daily Ice Capacity |
630 Kg / 24h |
|
Block Ice Weight |
10 Kg |
|
Number of Molds |
21 |
|
Daily Number of Ice Molds |
63 Pieces |
|
Ice Production Time |
6 Hours |
|
Ice Exit Temperature |
-10 / -12 °C |
|
Ice Color |
White Matte |
|
Water Inlet Temperature |
20 °C |
|
Cooling Capacity |
4800 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Hermetic |
|
Total Power Consumption |
3.85 kW |
|
Compressor Power |
3 kW |
|
Condenser Fan Power |
0.35 kW |
|
Stirring Motor Power |
0.5 kW |
|
Energy Input |
3P/380V/50Hz or else |
|
Total Amperage Drawn |
6.5 Amp |
|
Evaporator Type |
Copper Coil Immersion |
|
Evaporator Temperature |
-20 °C |
|
Condenser Temperature |
45 °C |
|
Ice Freezing Type |
Brine Water |
|
Machine Dimensions |
104x221x85 cm |
|
Machine Weight |
550 kg |
