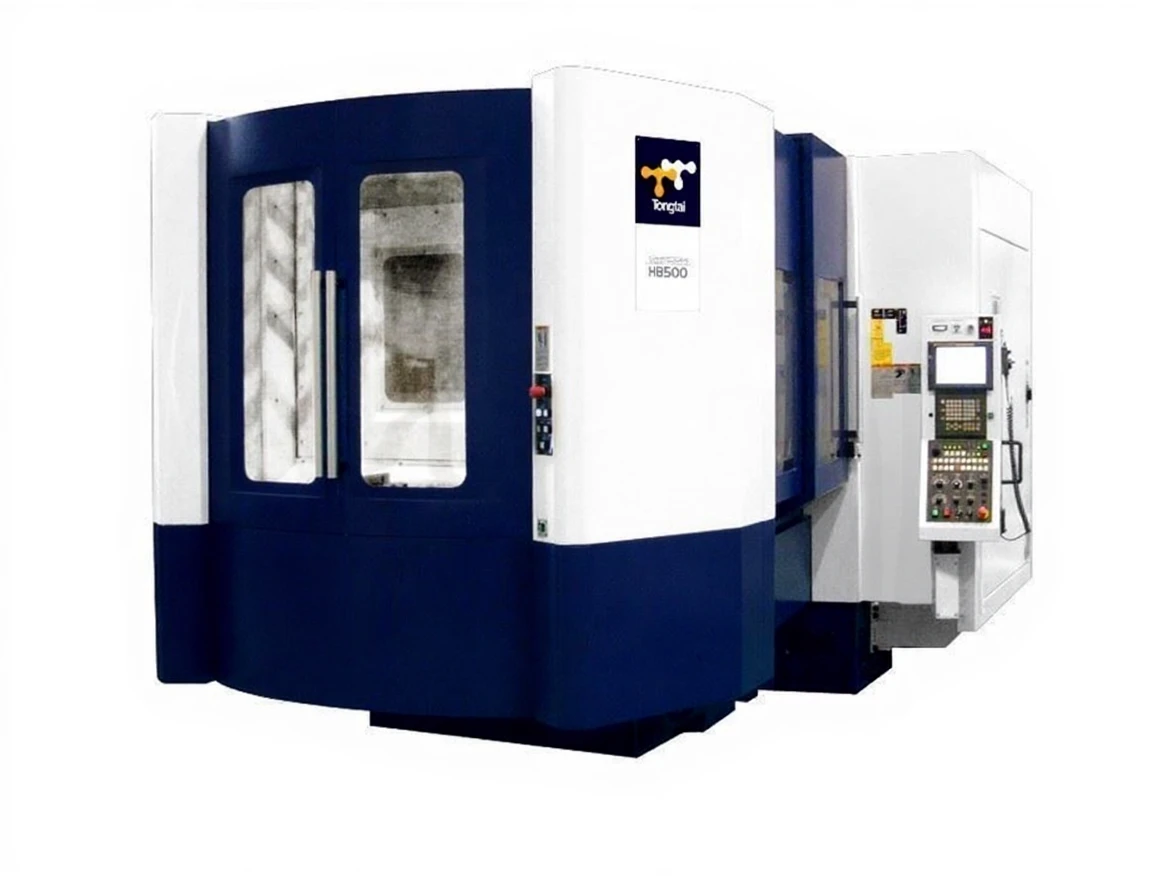

630×630 mm CNC Horizontal Machining Center

PALETTE

Palette Size (WidthxLength) (2 Units) mm 630×630 Maximum Workpiece Weight  kg 1000 Table B Index Angle  degree 1°

WORKING AREA

X Axis Travel mm 1050 Y Axis Travel mm 850 Z Axis Travel mm 970 Distance from Spindle Center to Table mm 100-950 Distance from Spindle Nose to Table Center mm 100-1070

SPINDLE

Spindle Taper ISO 7/24 NO.50 Spindle Diameter mm 110 Spindle Speed rpm 10,000 Spindle Motor Power (50% ED) kw 30 Rapid Traverse Rates m/min 50 Cutting Feed Rate mm/rev. 1-20,000

AUTOMATIC TOOL CHANGE (ATC)

Number of Tools   60 Tool Change Method   Specified Tool Number Tool Holder   BT50 Maximum Tool Length mm 610 Maximum Tool Weight kg 25 Change Method   Rotation Maximum Tool Diameter (with adjacent tool) mm 125 Maximum Tool Diameter (without adjacent tool) mm 250

MACHINE DIMENSION

Width x Length mm 5900×4400 Height mm 3150 Net Weight kg 20000

Equipped with Fanuc OiMD and Standard Accessories.
