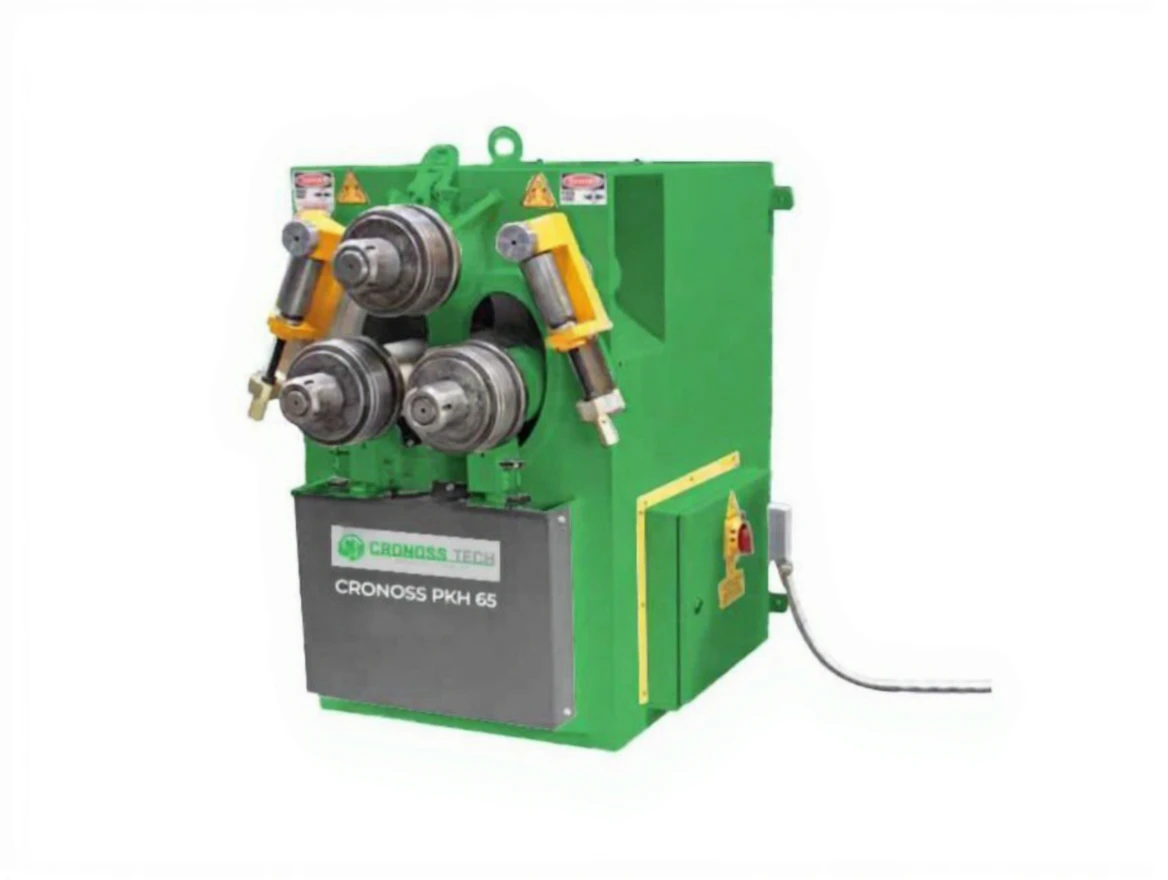

65' Hydraulic Profile and Pipe Bending Machine with 3 Rolls
| Brand | Cronosstech |
|---|---|
| Model Type |
PKH 65 |
Description
| STANDARD EQUIPMENT | ||
| Welded steel construction body | ||
| Three roll motor driven | ||
| Shafts hardened and ground from special high-strength material | ||
| Horizontal and vertical working position | ||
| Hardened standard roll balls | ||
| Movable control panel separate from the body | ||
| Mechanical manual side supports movable in 3 directions | ||
| Precise bending with motor with brake | ||
| Digital indicators (2 pieces) | ||
| OPTIONAL EQUIPMENT | ||
| Roll balls for pipe and profile bending | ||
| Optional 2-axis hydraulic side supports | ||
| Automation with NC control | ||
| TECHNICAL SPECIFICATIONS | ||
| Upper Shaft Diameter | : | 60 mm |
| Lower Shaft Structure | : | 50 mm |
| Roll Ball Diameter | : | 180 mm |
| Working Speed | : | 6 m/min |
| Motor Power | : | 3.75 kw |
| Length | : | 1200 mm |
| Width | : | 850 mm |
| Height | : | 1200 mm |
| Weight | : | 955 kg |
