65 m³/s Capacity (850 kg) Oil Pumping Station
| Brand | ErichHahn |
|---|---|
| Model Type |
OPS-65 |
ErichHahn OPS-65 Oil Pumping Station
Oil pumping stations up to 150 m3/h capacity are designed to increase the pressure of the heat transfer fluid in pipeline systems and to maintain various temperature conditions in certain parts of the oil heating system.
ErichHahn OPS Advantages
The pumping station is designed in compliance with the European standard EN 809 + A1:2009 + AC:2010 (pumps and pump units for liquids – General safety requirements) and is equivalent to the Russian GOST EN 809-2017 standard.
Purpose of Use

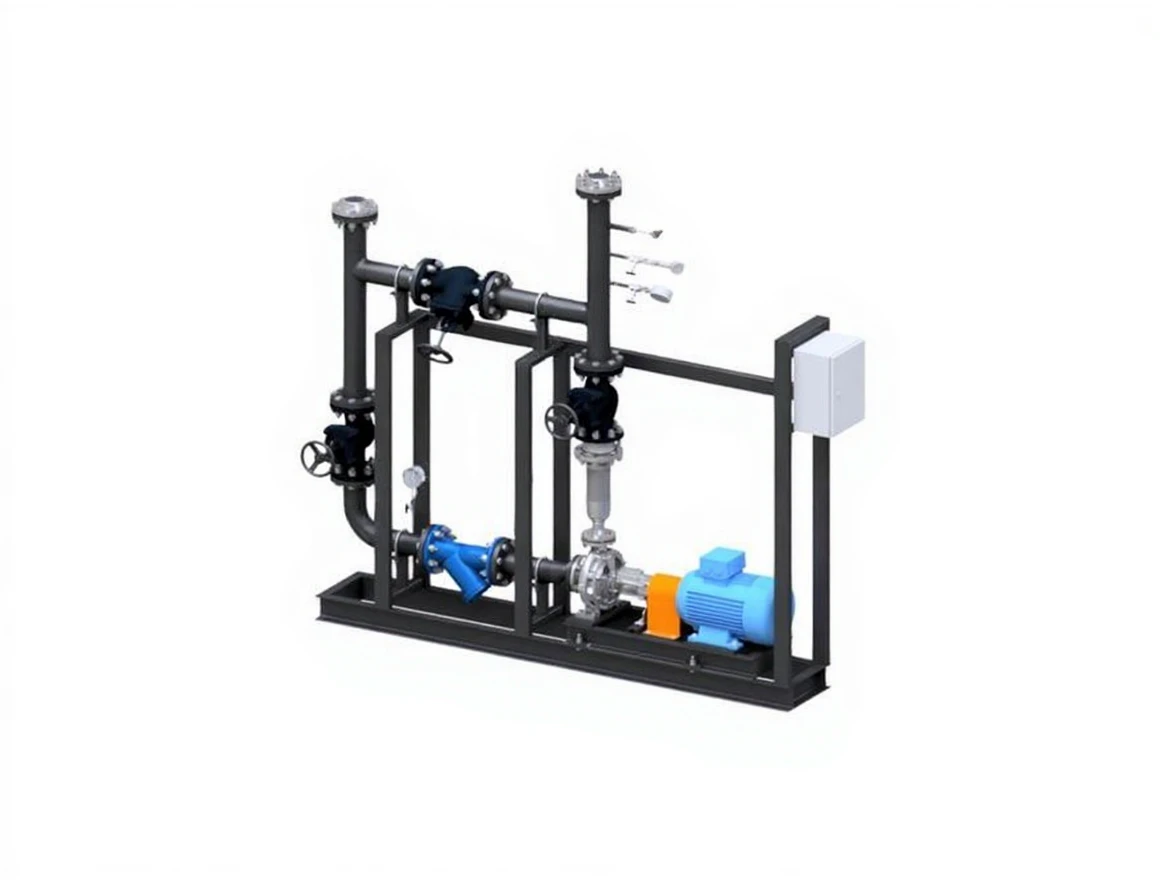

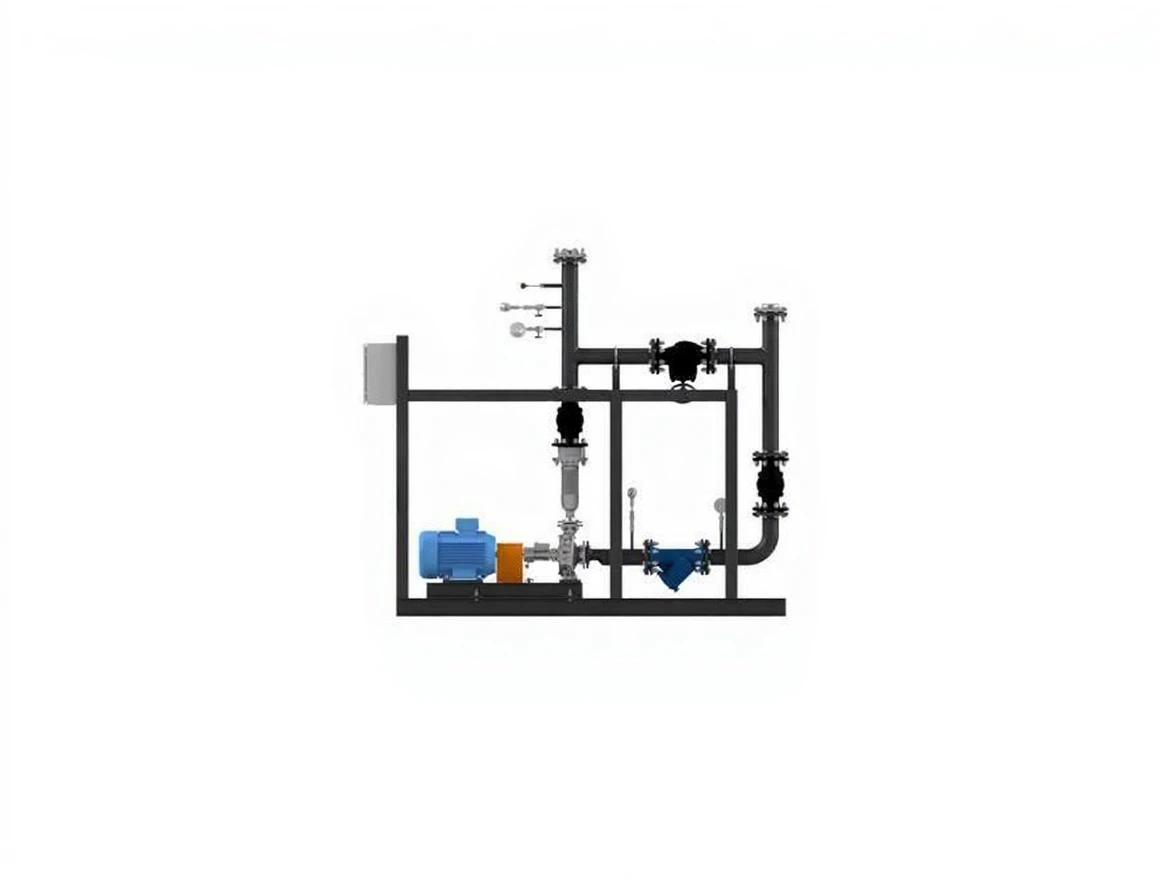

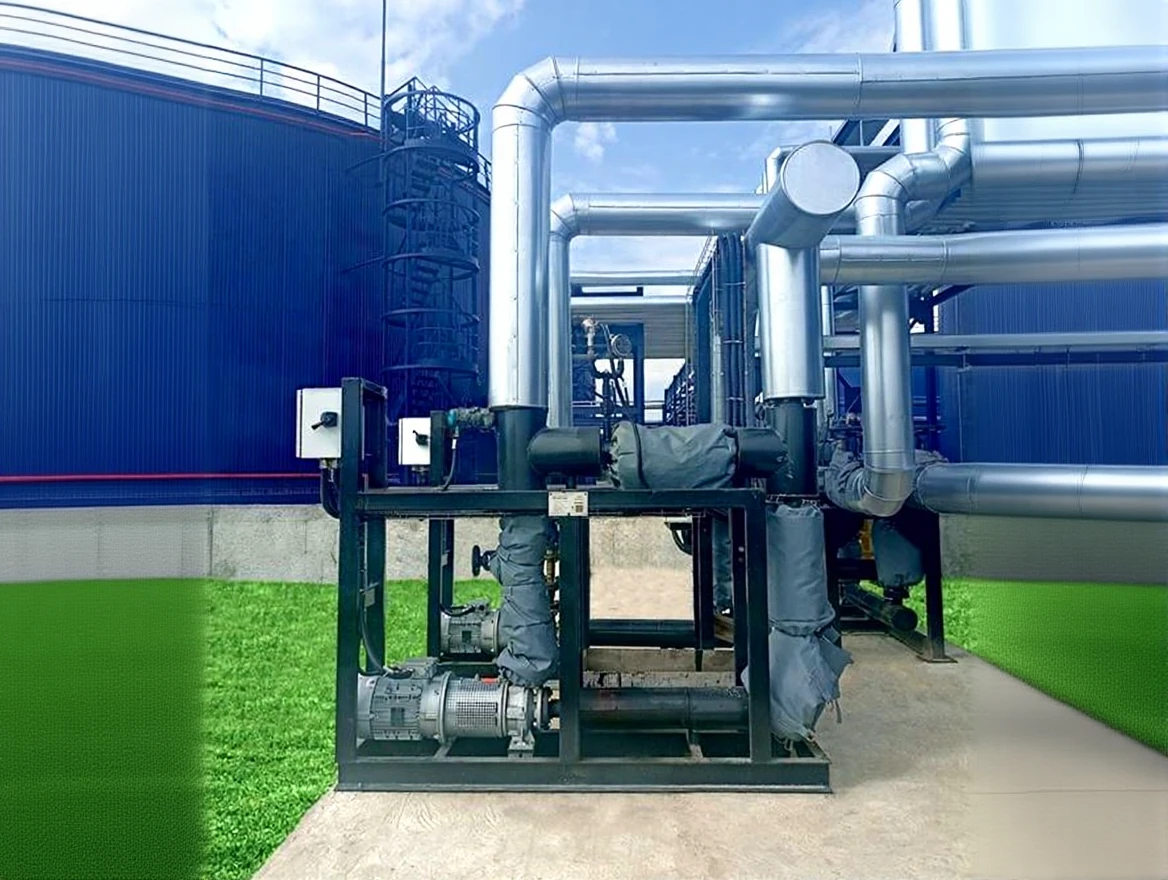

The station consists of a pump unit, pipe filter (mesh filter), shut-off and control valves, measuring devices, and a control cabin. All equipment is mounted compactly on a frame with safety protections. Removable thermal insulation is provided.
Pump Unit
The pump unit is a centrifugal pump mounted on the base plate of the station. The unit is operated by a 3-phase asynchronous motor. The pump capacity is controlled by a frequency converter.
A filter is used to filter the pumped product.
Measuring Devices
The unit is equipped with pressure gauges along with pressure and temperature transducers. These devices are used in process control.
Control Valve
The control valve is used to automatically control the temperature of the heat transfer fluid according to process conditions.
Control Panel
The monitoring and control modes of the pumping station are carried out using indicators, buttons, and switches on the front panel of the local control cabin. The remote control mode is provided based on digital interfaces.
OPS Quality Standards
ErichHahn OPS-65 Technical Specifications :
|
Operating Environment |
Viscous and solidifying liquids |
|
External Environment Conditions |
Moderate |
|
Environment Temperature, °C |
-40 to +40 |
|
Pumped Material Viscosity, NMT, cSt |
10 |
|
Operating Temperature, NMT, °C |
200 |
|
Capacity, m³/hour |
65 |
|
Nominal Power Input, kW |
15 |
|
Process Pressure, MPa |
0.6 |
|
Pump Connection, DN, mm |
100 |
|
Pump Type |
Centrifugal |
|
Motor Power, kW |
15 |
|
Nominal Capacity, m³ |
50 |
|
Frequency, Hz |
50 |
|
Electric Voltage, V |
380 |
|
Filter Type |
Heavy Material Y Filter |
|
Filter Mesh Size, mm |
1 |
|
Thermal Insulation |
|
|
High-Density Thermal Wool Insulation, mm |
100 |
|
Protective Coating, mm |
0.5 |
|
Control Valve |
– |
|
Control Cabin |
Provided |
|
Protection Class (IP) |
IP 65 |
|
Overall Dimensions |
|
|
Length (L), mm |
2750 |
|
Width (W), mm |
1150 |
|
Height (H), mm |
2400 |
|
Product Weight, NMT, kg |
850 |
|
Service Life, NLT, years |
10 |
|
Country of Origin |
Turkey |
