65 Ton Hydraulic Double Piston Combined Shears

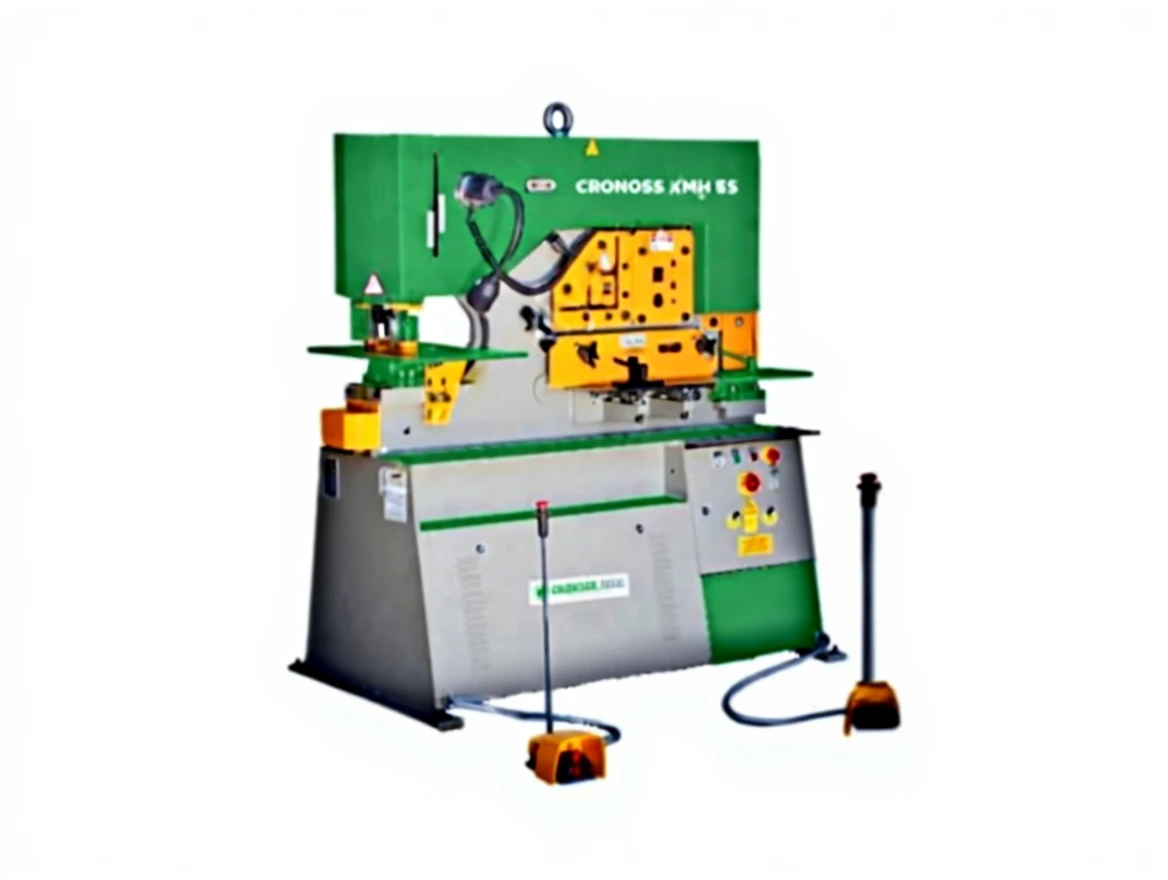

KMH 65 – HYDRAULIC DOUBLE PISTON COMBINED SHEARS

STANDARD EQUIPMENT

PUNCHING MACHINE

• Maximum thickness diameter: Ø 26 × 20 mm

• Diameter × thickness (Ø × t): Ø 57 × 10 mm

• Maximum diameter thickness: Ø 110 × 3 mm

• Stroke length: 55 mm

• Number of strokes: 25

• Groove depth: 305 mm

• Working height: 1030 mm

FULL MATERIAL SHEARS

• Round / Square: Ø 45 / 45 mm

ANGLE IRON CUTTING SHEARS

• Vertical angle iron (90°): 120 × 120 × 12 mm

• Angled angle iron (45°): 70 × 10 mm

• Working height: 1140 mm

SHEET METAL SHEARS (BLADE CUTTING)

• Flat sheet: 300 × 20 mm

• Flat sheet: 375 × 15 mm

• Blade length: 380 mm

• Angled cut: 100 × 15 mm

• Working height: 900 mm

NOTCHING

• Material thickness: 10 mm

• Width: 45 mm

• Depth: 90 mm

• Working height: 900 mm

OPTIONAL EQUIPMENT

SPECIAL DIES

• U–I profile blades (UPN – IPN): 120 × 58 mm

• T profile blades: 90 × 11 mm

SPECIAL NOTCHING TOOL

• 100 × 100 × 10 mm

V BENDING

• Blade bending (max.): 250 × 15 mm

• Sheet bending (max.): 500 × 3 mm

PUNCH IN NOTCHING SECTION

• Jaw depth: 125 mm

• Sheet punching: Ø 38 × 8 mm

TECHNICAL SPECIFICATIONS (HKM 65)

• Motor power: 5.5 kW

• Pressure: 65 tons

• Machine weight: 1600 kg

• Machine dimensions (W × D × H): 1700 × 950 × 1880 mm

GENERAL EQUIPMENT AND STRUCTURE

• 2 separate hydraulic pistons and 2 separate foot controls that can be operated by two people simultaneously

• Possibility of serial operation with adjustable piston stroke distance

• Central lubrication system

• Electric switchable rear support

• Working lamp

• On the same body, 5 separate workstations:

  • Ø22 mm punch and die / standard hole drilling apparatus

  • Full round and full square cutting blade set

  • Angle iron cutting blade set

  • Blade and sheet cutting blade set

  • U-notch opening blade set
