650 Litre Modular Ultrasonic Cleaning Machine

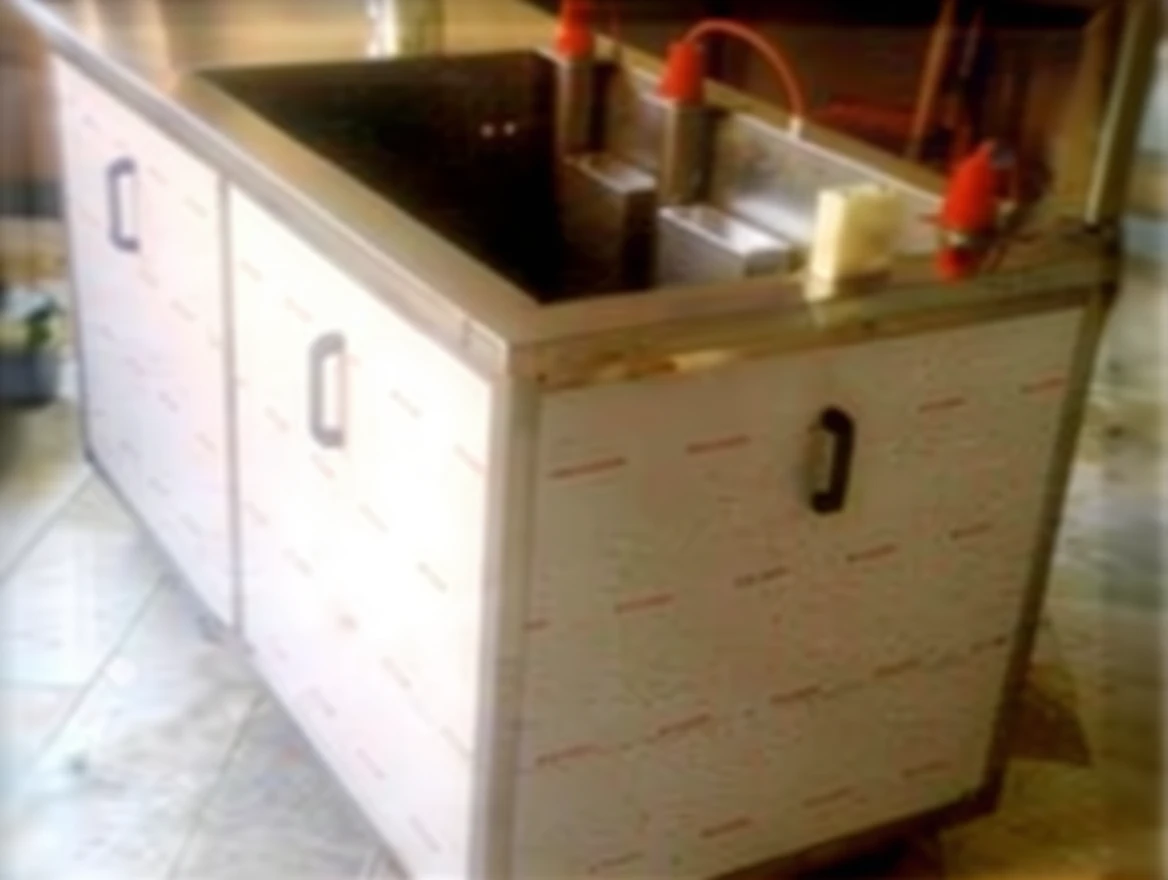

Mercury MERCURY650L Modular Ultrasonic Cleaning Machine

It is a high-efficiency modular system specially designed for parts requiring precise cleaning on an industrial scale. With its 650-liter large tank capacity and 8000 Watt ultrasonic power, it cleans large-volume metal parts, molds, and production equipment thoroughly and homogeneously.

The machine has a stainless steel tank with dimensions of 1200 × 600 × 900 mm and a spacious cabin structure measuring 1700 × 800 × 1000 mm. Its durable body structure and 50 mm thermal insulation provide energy savings and ensure safe operation at high temperatures.

The 10,000 Watt heating power used in the system keeps the cleaning liquid at an optimum temperature. Thus, oil, grease, carbon, and oxide residues are effectively dissolved. Additionally, thanks to the step-controlled structure, the ultrasonic power can be adjusted in stages, and the mobile system (optional) feature supports part transport and vibrational operation.

Technical Specifications

• Model: Mercury MERCURY650L

• Tank Volume: 650 Liters

• Tank Dimensions: 1200 × 600 × 900 mm (Width × Length × Depth)

• Cabin Dimensions: 1700 × 800 × 1000 mm

• Ultrasonic Power: 8000 Watt

• Heating Power: 10000 Watt

• Insulation: 50 mm thermal insulated body

• Type: Modular system

• Step Control: Yes

• Mobility Feature: Optional (vibrational or automatic transport system)

• Material: Stainless steel body and tank

Areas of Use

• Automotive and defense industry

• Foundry, mold, and metal processing sectors

• Energy, medical, and aerospace industry

• Industrial maintenance and production lines

• Highly dirty or complex geometrical metal parts
