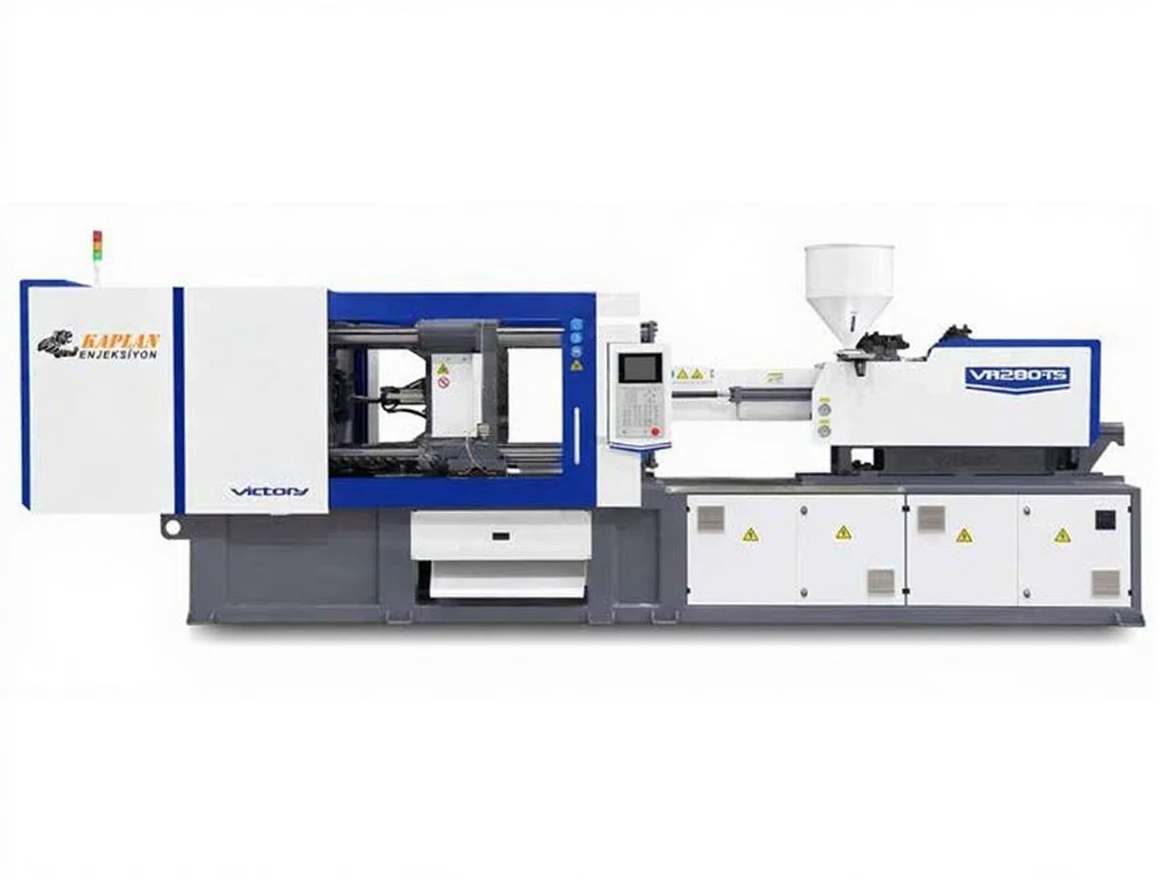

650 Ton Plastic Injection Molding Machine
| Brand | Kaplan Enjeksiyon |
|---|---|
| Model Type |
VR650-T5 |

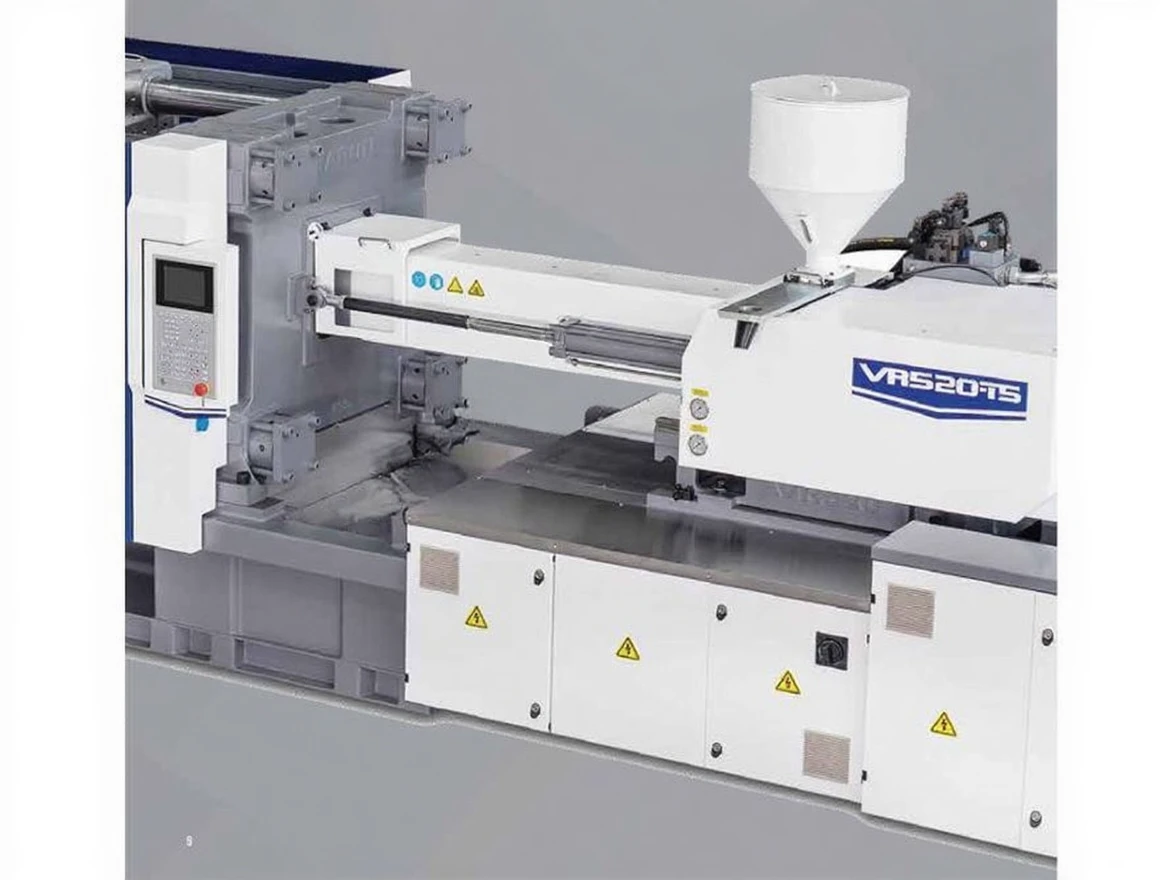

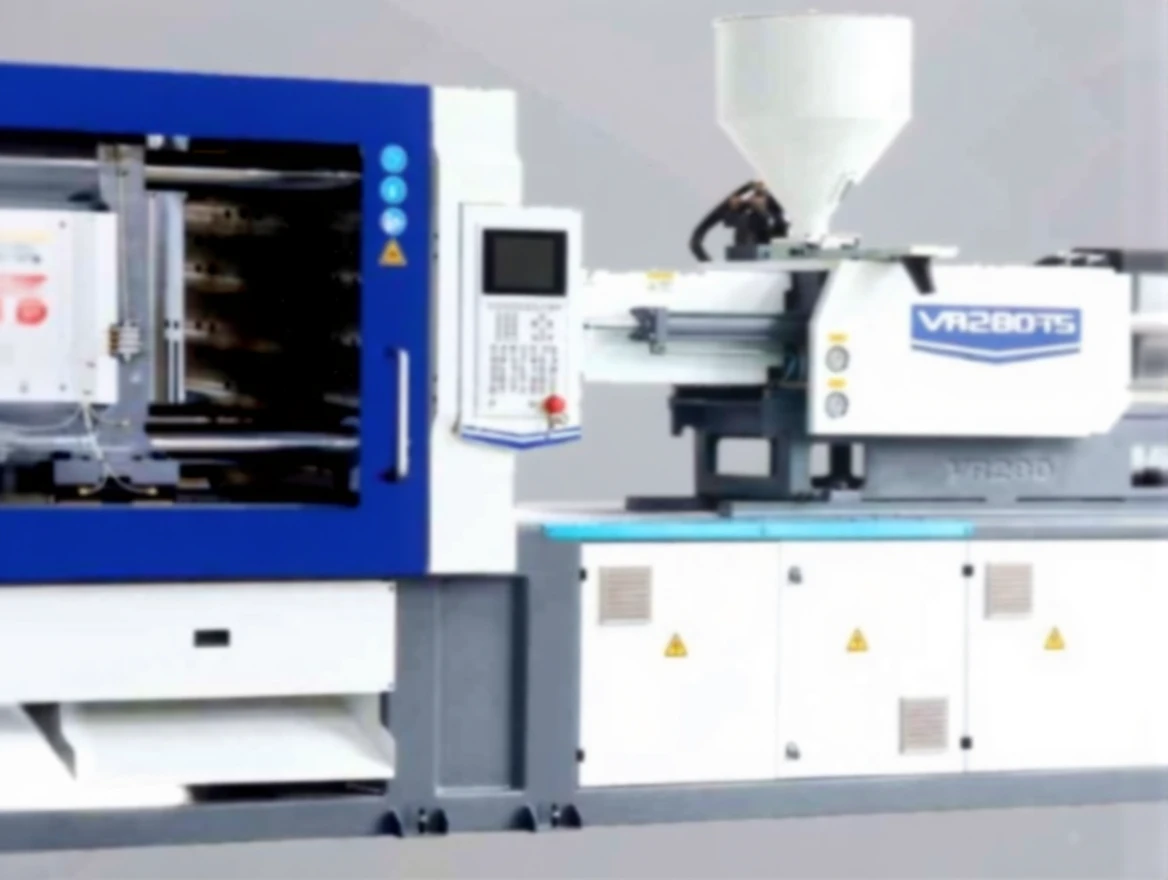

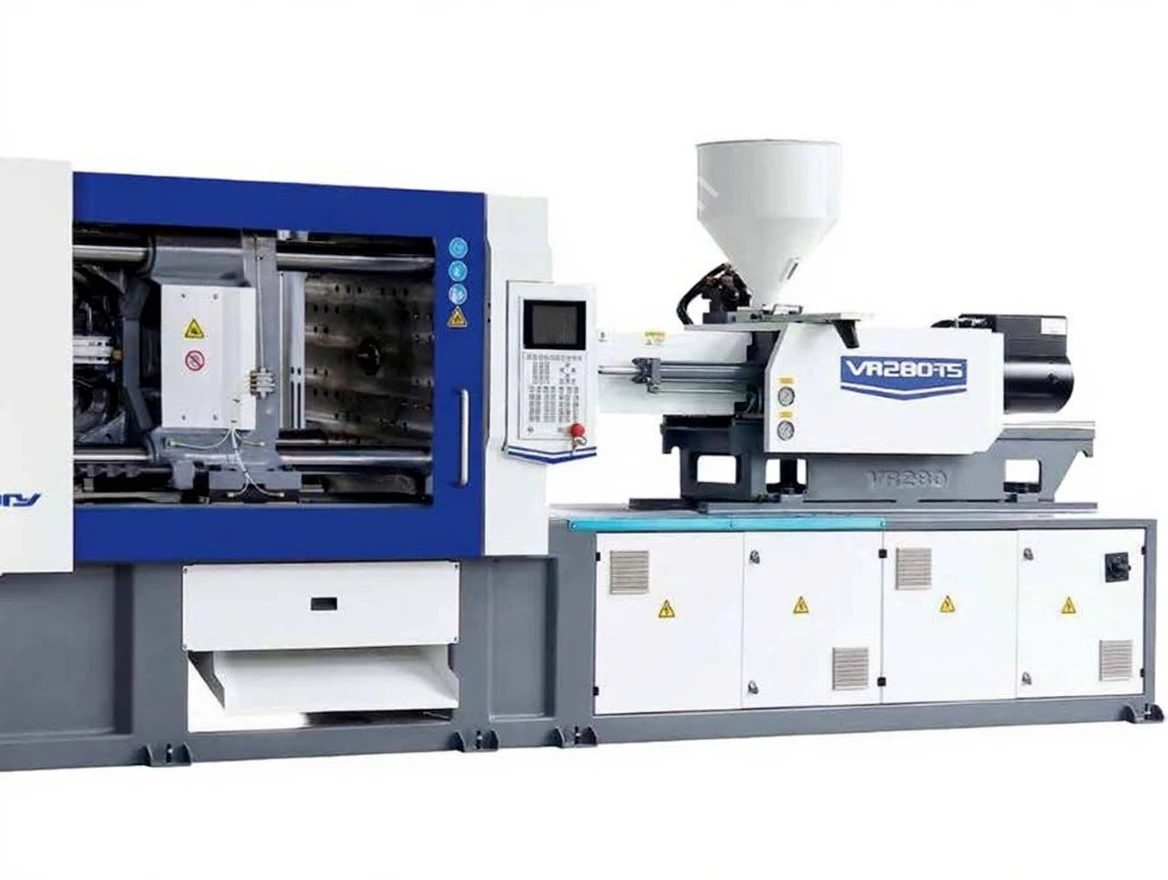

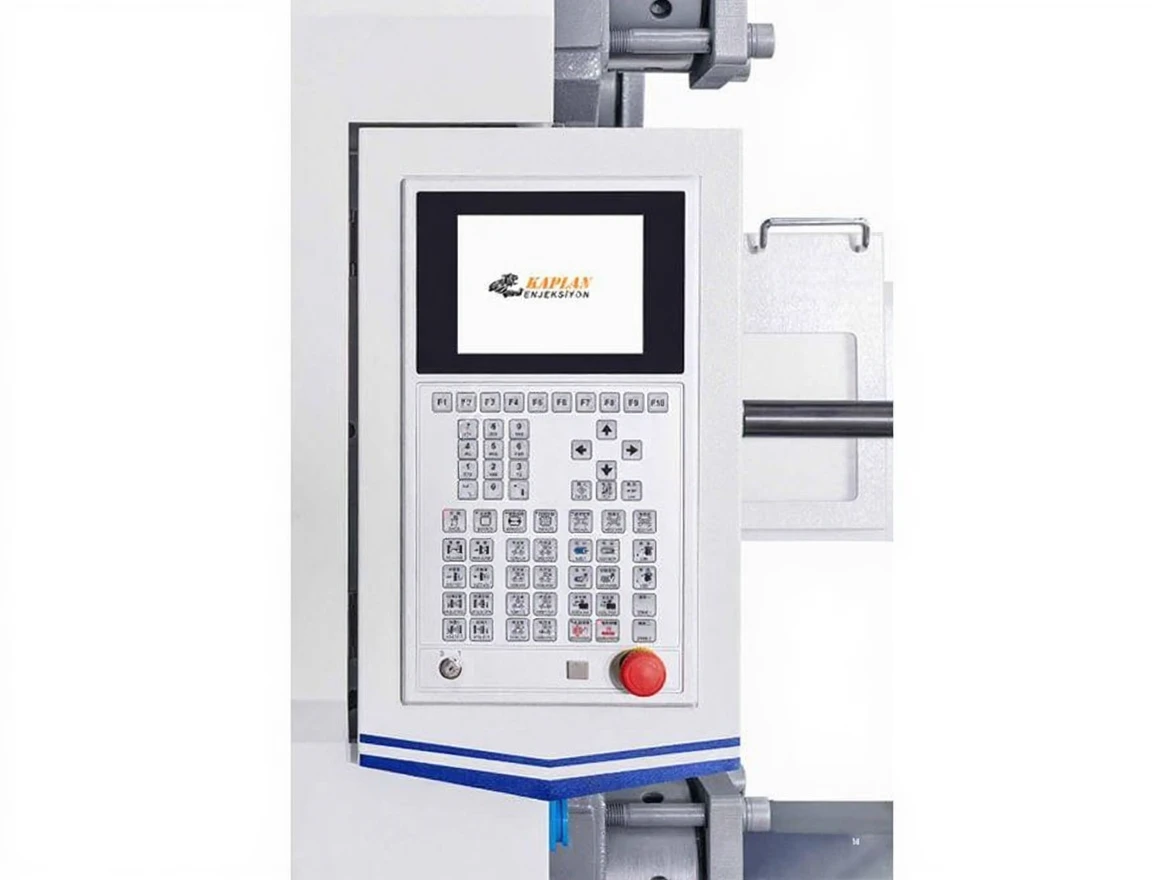

650 Ton Plastic Injection Molding Machine
Kaplan Injection VR650-T5 Technical Specifications
|
EXPLANATION |
DESCRIPTION |
UNIT |
|
VR320-T5 |
|
|
VR360-T5 |
|
|
VR420-T5 |
|
|
VR530-T5 |
|
|
VR650-T5 |
|
|
International Dimension |
Rating International |
size rating |
1840 |
2400 |
2860 |
3600 |
5140 |
||||||||||
|
INJECTION UNIT |
INJECTION UNIT |
|
A. |
B. |
C. |
A. |
B. |
C. |
A. |
B. |
C. |
A. |
B. |
C. |
A. |
B. |
C. |
|
screw diameter |
Screw diameter |
mm |
60 |
65 |
70 |
65 |
70 |
75 |
70 |
75 |
80 |
75 |
80 |
85 |
80 |
90 |
100 |
|
L/D ratio |
Screw L/D ratio |
– |
24 |
22 |
20 |
24 |
22 |
20 |
22.5 |
21 |
20 |
22.5 |
21 |
20 |
23.5 |
21 |
19 |
|
Theoretical injection volume |
Theoretical shot volume |
cm3 |
919 |
1078 |
1251 |
1161 |
1347 |
1546 |
1443 |
1657 |
1885 |
1767 |
2011 |
2270 |
2262 |
2863 |
3534 |
|
Injection grammar |
Shot weight (ps) |
g |
845 |
992 |
1151 |
1068 |
1239 |
1423 |
1328 |
1524 |
1734 |
1626 |
1850 |
2088 |
2081 |
2634 |
3252 |
|
Injection grammar |
Shot weight (ps) |
self |
29.8 |
35.0 |
40.6 |
37.7 |
43.7 |
50.2 |
46.8 |
53.8 |
61.2 |
57.3 |
65.2 |
73.7 |
73.4 |
92.9 |
114.7 |
|
injection pressure |
injection pressure |
MPa |
201 |
173 |
148 |
207 |
179 |
156 |
199 |
173 |
152 |
204 |
179 |
159 |
227 |
180 |
145 |
|
injection rate |
Theoretical injection rate |
cm3/s |
362 |
425 |
493 |
370 |
429 |
492 |
385 |
442 |
503 |
457 |
520 |
588 |
461 |
584 |
720 |
|
Max. screw speed |
[ URL HIDDEN ] speed |
rpm |
|
200 |
|
|
200 |
|
|
155 |
|
|
155 |
|
|
130 |
|
|
injection stroke |
Screw stroke |
mm |
|
325 |
|
|
350 |
|
|
375 |
|
|
400 |
|
|
450 |
|
|
VISE UNIT |
CLAMPING UNIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
closing force |
clamping force |
KN |
|
3200 |
|
|
3600 |
|
|
4200 |
|
|
5300 |
|
|
6500 |
|
|
opening stroke |
Toggle stroke |
mm |
|
610 |
|
|
660 |
|
|
720 |
|
|
840 |
|
|
920 |
|
|
Distance between columns |
Space between tie bars(HxV) |
mm |
|
670×620 |
|
|
720×670 |
|
|
770×720 |
|
|
870×820 |
|
|
930×930 |
|
|
Min. mold thickness |
[ URL HIDDEN ] thickness |
mm |
|
250 |
|
|
280 |
|
|
300 |
|
|
350 |
|
|
350 |
|
|
Max. mold thickness |
[ URL HIDDEN ] thickness |
mm |
|
650 |
|
|
700 |
|
|
750 |
|
|
850 |
|
|
930 |
|
|
Hydraulic pusher stroke |
Ejector stroke |
mm |
|
180 |
|
|
180 |
|
|
210 |
|
|
210 |
|
|
250 |
|
|
hydraulic driving force |
ejector force |
KN |
|
99 |
|
|
99 |
|
|
124 |
|
|
124 |
|
|
182 |
|
|
OTHER |
OTHERS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
hydraulic system pressure |
Hydraulic system pressure |
MPa |
|
17.5 |
|
|
17.5 |
|
|
17.5 |
|
|
17.5 |
|
|
17.5 |
|
|
Pump motor power |
Pump engine power |
kw |
|
47 |
|
|
47 |
|
|
47 |
|
|
56.5 |
|
|
30 37.7 |
|
|
Heating power |
heater power |
kw |
|
22.5 |
|
|
26.1 |
|
|
28.9 |
|
|
32.8 |
|
|
47.2 |
|
|
Oil tank capacity |
Oil tank capacity |
L. |
|
500 |
|
|
550 |
|
|
600 |
|
|
650 |
|
|
850 |
|
|
Machine dimensions |
Machine dimensions(LxWxH) |
mxmxm |
|
6.6×1.6×2.1 |
|
|
7.2×1.7×2.1 |
|
|
7.6×1.8×2.2 |
|
|
8.3×1.9×2.2 |
|
|
9.5×2.1×2.3 |
|
|
machine agring |
machine weight |
Ton |
|
11.3 |
|
|
13.7 |
|
|
16 |
|
|
20.1 |
|
|
29.5 |
|
