6500 m3 / Hour Dust Collection Unit
| Brand | Tasarımak |
|---|---|
| Model Type |
T-TTU01 |
Description
6500 m3 / Hour Dust Collection Unit
Design
- DKP body with electrostatic paint
- Flanged air inlet sockets
- Air distribution bunker

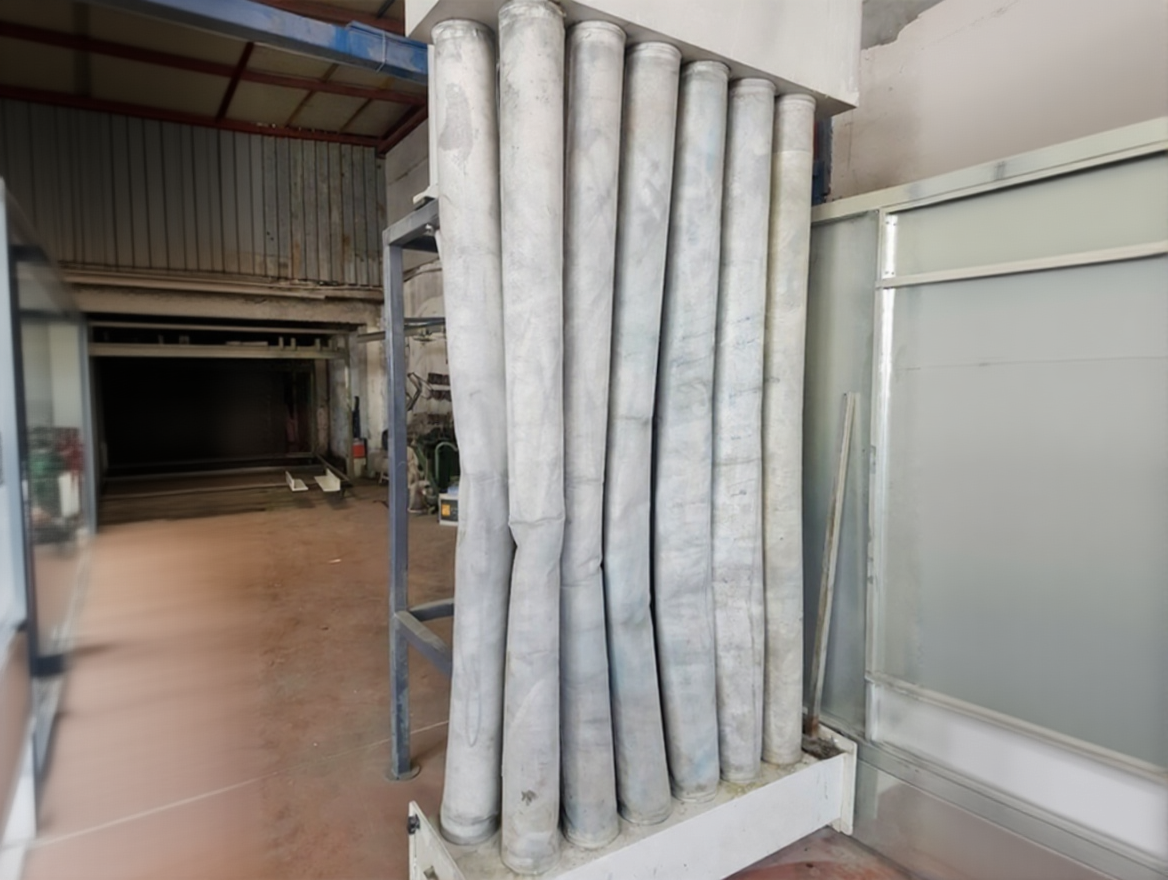

- Replaceable jetpulse filters
- Dust collection bunker
- Cleaning covers
- Completely silent operation
- Maximum filtration
- Total leak-proof
- Aesthetic design
- Easy maintenance and cleaning
- Capacity 2500m³/h
- Motor Power 2.2kw/2hp 3000r/min
- Dust Suction Speed 30m/s
- Number of Filters 6
- Dimensions 563 x 1063 x 2100 mm
- Weight 67 kg
- Capacity 6500m³/h
- Motor Power 7.5kw/10hp 3000r/min
- Dust Suction Speed 32m/s
- Number of Filters 45
- Filter Dimensions Ø160 x 1030 mm
- Filter Surface Area 23.28 m²
- Dimensions 1161 x 2401 x 2173 mm
- Weight 330 kg
- Capacity 6500m³/h
- Motor Power 7.5kw/10hp 3000r/min
- Dust Suction Speed 32m/s
- Number of Filters 45
- Filter Dimensions Ø160 x 1030 mm
- Filter Surface Area 23.28 m²
- Dimensions 1161 x 2401 x 2173 mm
- Weight 330 kg
- 15000 M3 Dust Extraction Machine
- Motor Power 18.5 kw/25 hp 15,000 m3
- Speed 3000
- Capacity 15000 m³ /h
- Suction Pipe Diameter 1×350 mm
- Machine Dimensions 1200×4000 mm
- Machine Height 2700 mm
- Filter Dimensions 1200 mm
- Number of Filters 70
- Dust Collection Units 4
- Weight 650 kg
- Vibration Motor 1
Dust Collection Units; systems designed and produced for filtering and collecting the dust, shavings, pigments, etc. wastes emitted by machines within facilities in sectors such as plastic industry, pharmaceutical industry, automotive, furniture to be filtered and collected at a central point.
