650×650 mm Triming Mermer Ebatlama Makinası

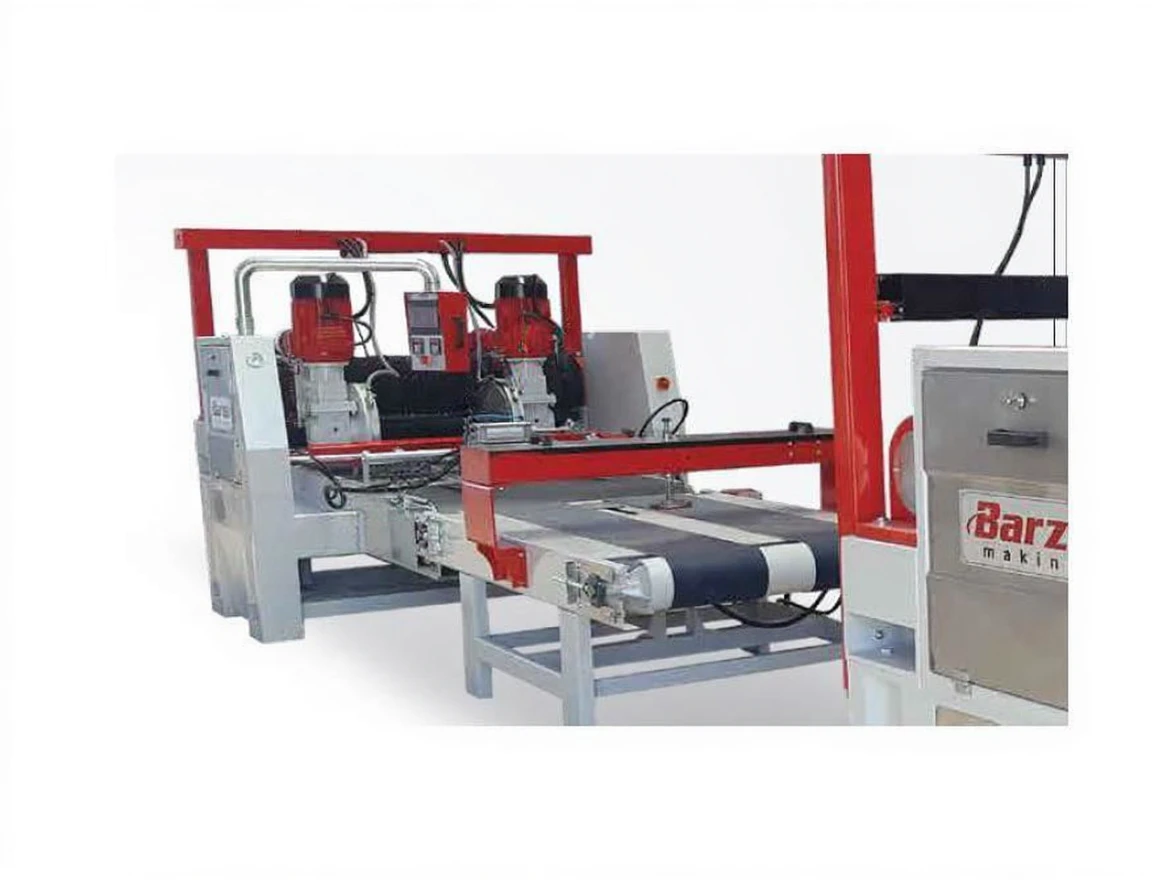

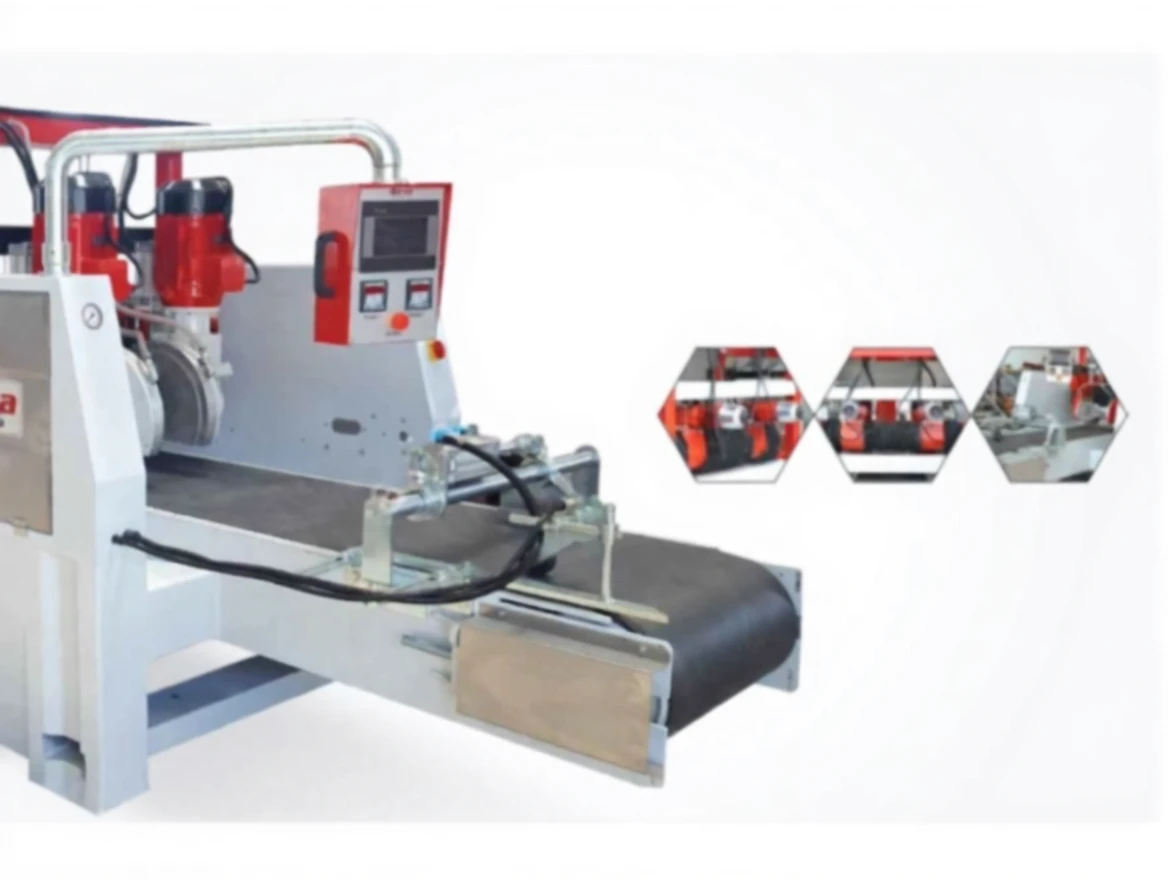

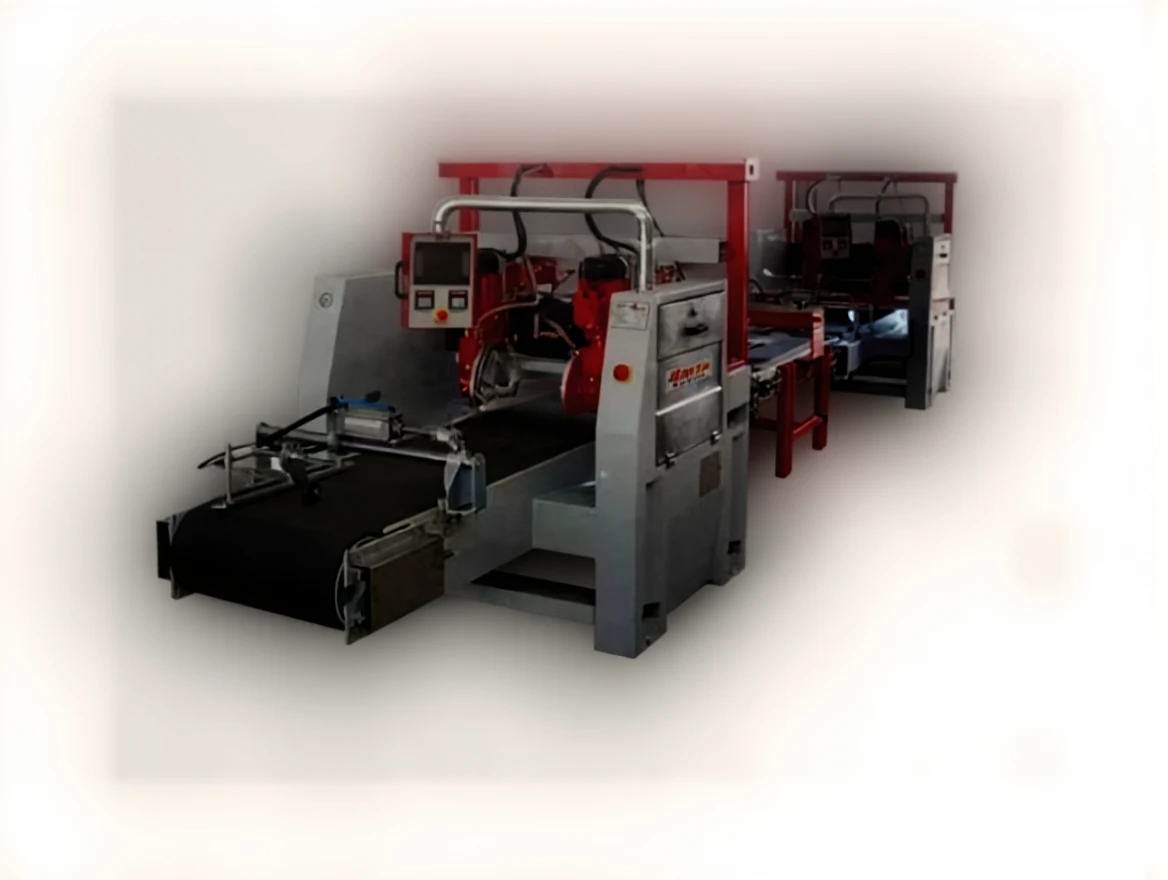

650×650 mm TEH Trimming Dimensioning Machine

It is a powerful and efficient system developed for high precision cutting needs. This machine, powered by a 5.5 kW or 7.5 kW motor, provides superior performance in the cutting process with its 350-400 mm diameter saw blades.

Equipped with a two plus two saw system, this model processes the material flawlessly while the belt speed can be adjusted between 0-5000 mm/min, thus providing flexible adaptation to different production needs. The system, capable of cutting a minimum width of 200 mm, can dimension materials up to 650 x 650 mm.

This model, with a maximum cutting thickness ranging from 30 mm to 50 mm, offers operators easy use thanks to the PLC control system that can be integrated into modern production processes. Standing out with its precision, speed, and powerful motor capacity, the 650×650 mm TEH Trimming Dimensioning Machine provides maximum efficiency in industrial cutting operations.

Technical Specifications
