650×650 mm Trimming Marble Sizing Machine
| Brand | Barza |
|---|---|
| Model Type |
TEH 65×65 |

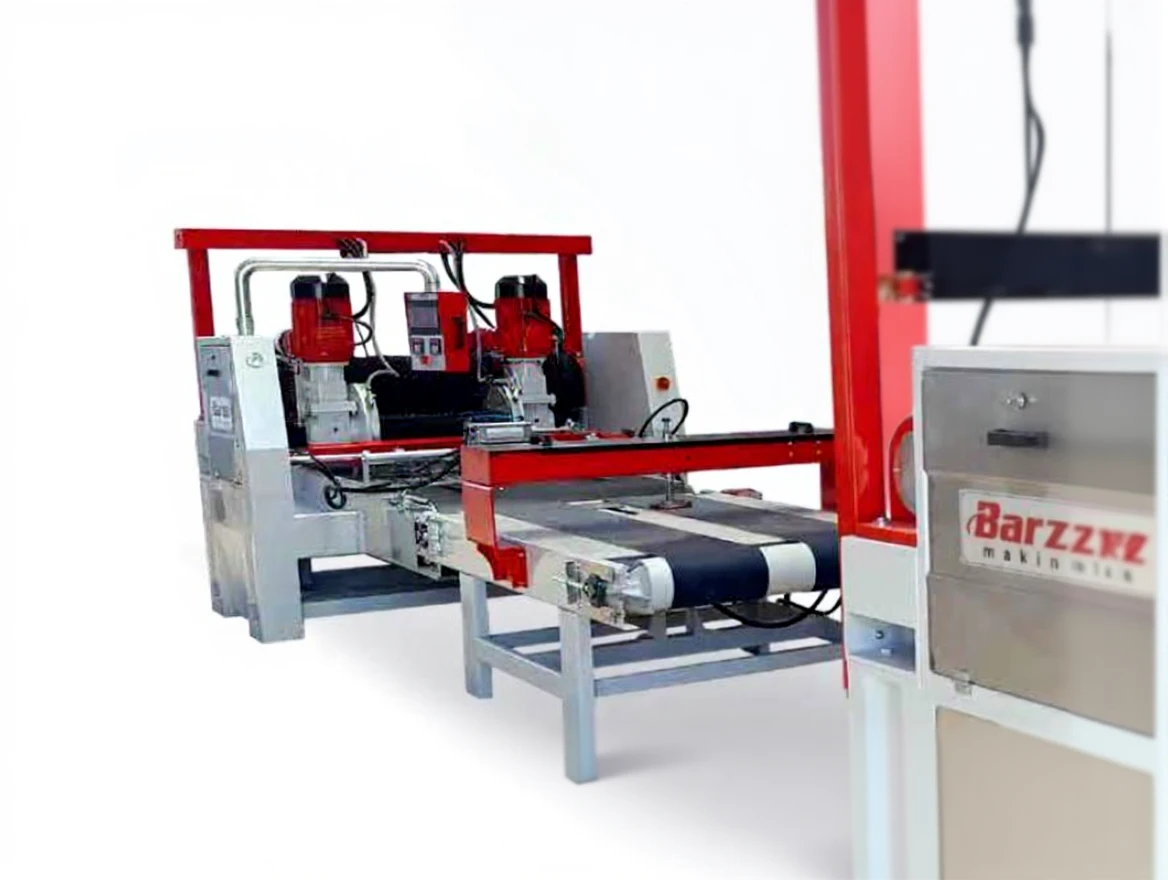

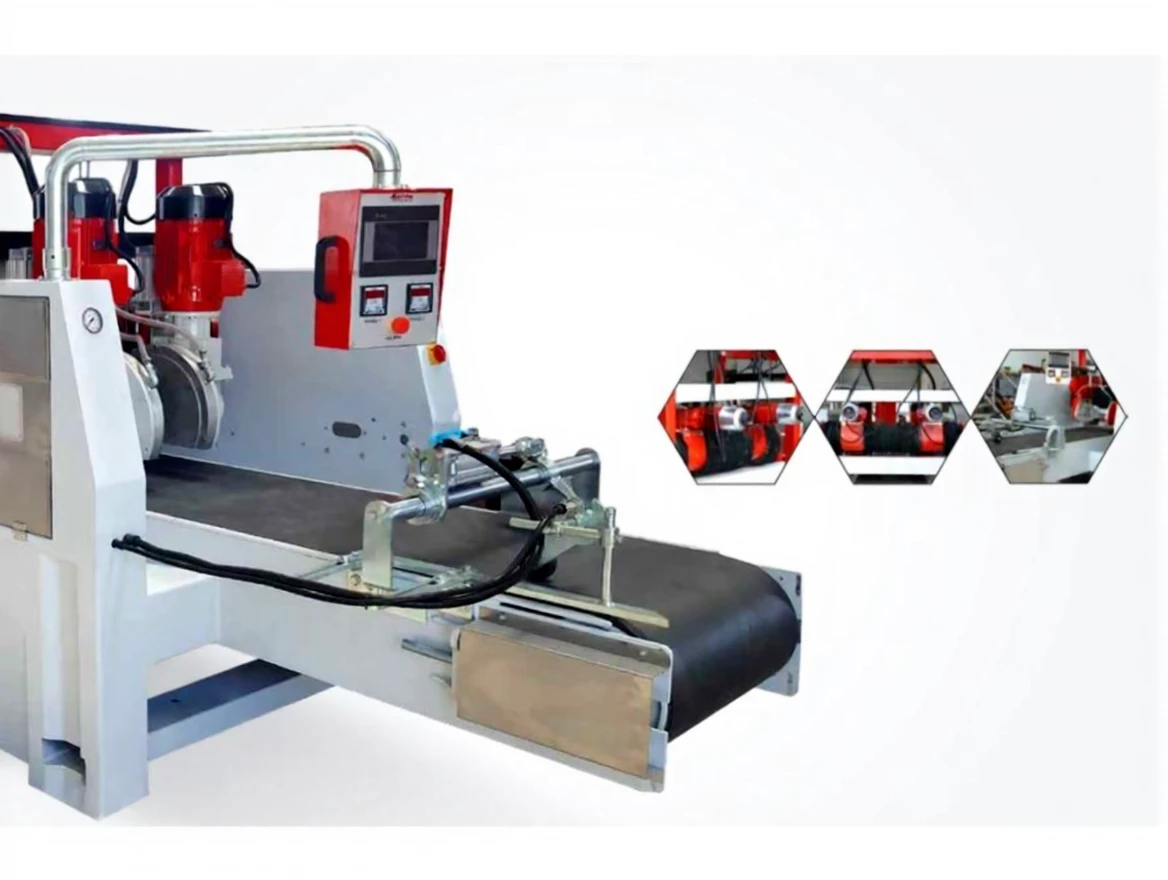

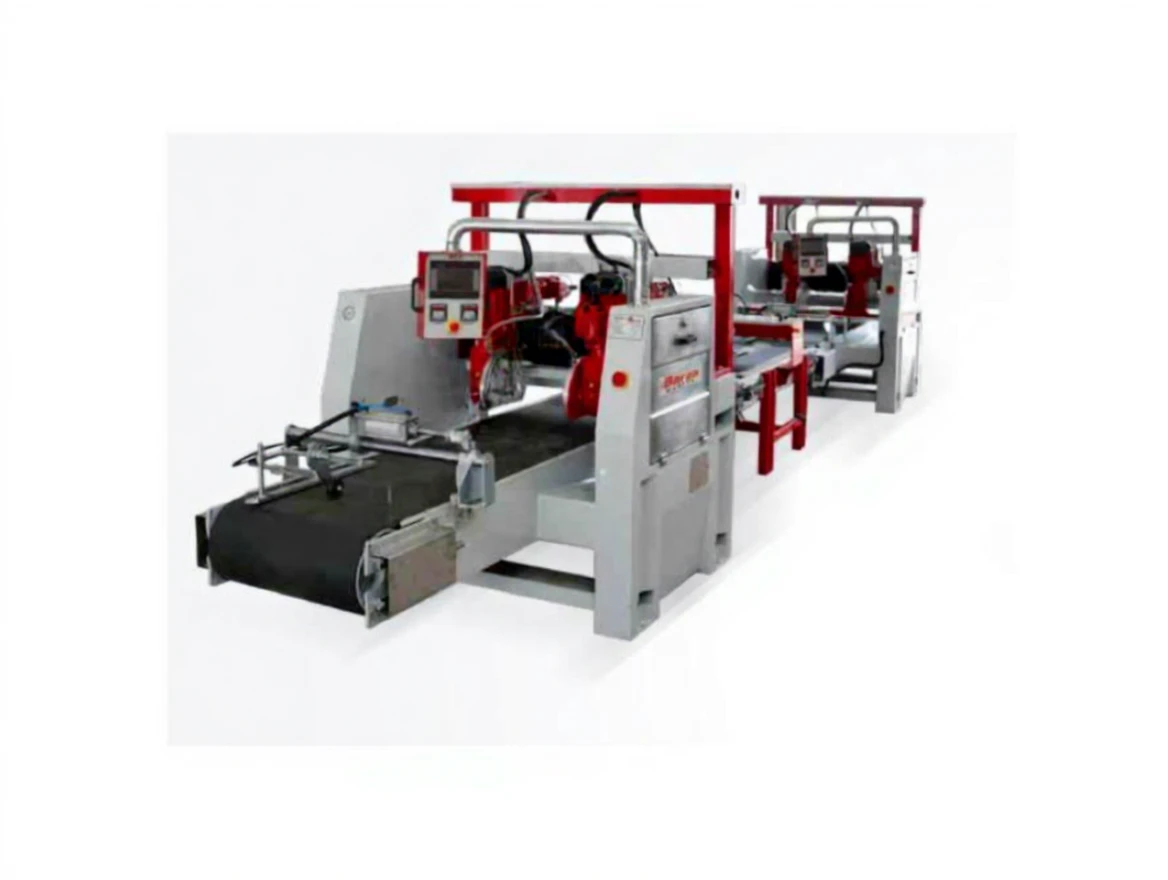

650×650 mm TEH Trimming Sizing Machine
This is a powerful and efficient system developed for high precision cutting needs. Operating with a motor power of 5.5 kW or 7.5 kW, this machine offers superior performance during the cutting process with its saw blades of Ø350-Ø400 mm diameter.
Equipped with a two plus two saw system, this model can adjust the belt speed between 0-5000 mm/min while processing the material flawlessly, thus providing flexible adaptation to different production needs. The system can perform cuts with a minimum width of 200 mm and can size materials up to a maximum of 650 x 650 mm.
The maximum cutting thickness varies between 30 mm and 50 mm, and thanks to the PLC control system that can be integrated into modern production processes, it offers operators ease of use. The 650×650 mm TEH Trimming Sizing Machine stands out with its precision, speed, and powerful motor capacity, providing maximum efficiency in industrial cutting operations.
Technical Specifications
| Feature | Value |
|---|---|
| Blade Motor Power | 5.5 Kw / 7.5 Kw |
| Blade Diameter | Ø350-Ø400 mm |
| Number of Blades | 2 + 2 |
| Belt Speed | 0-5000 mm/min |
| Minimum Cutting Width | 200 mm |
| Maximum Cutting Width | 650 x 650 mm |
| Maximum Cutting Thickness | 30 mm / 50 mm |
| Control System | PLC Control |
