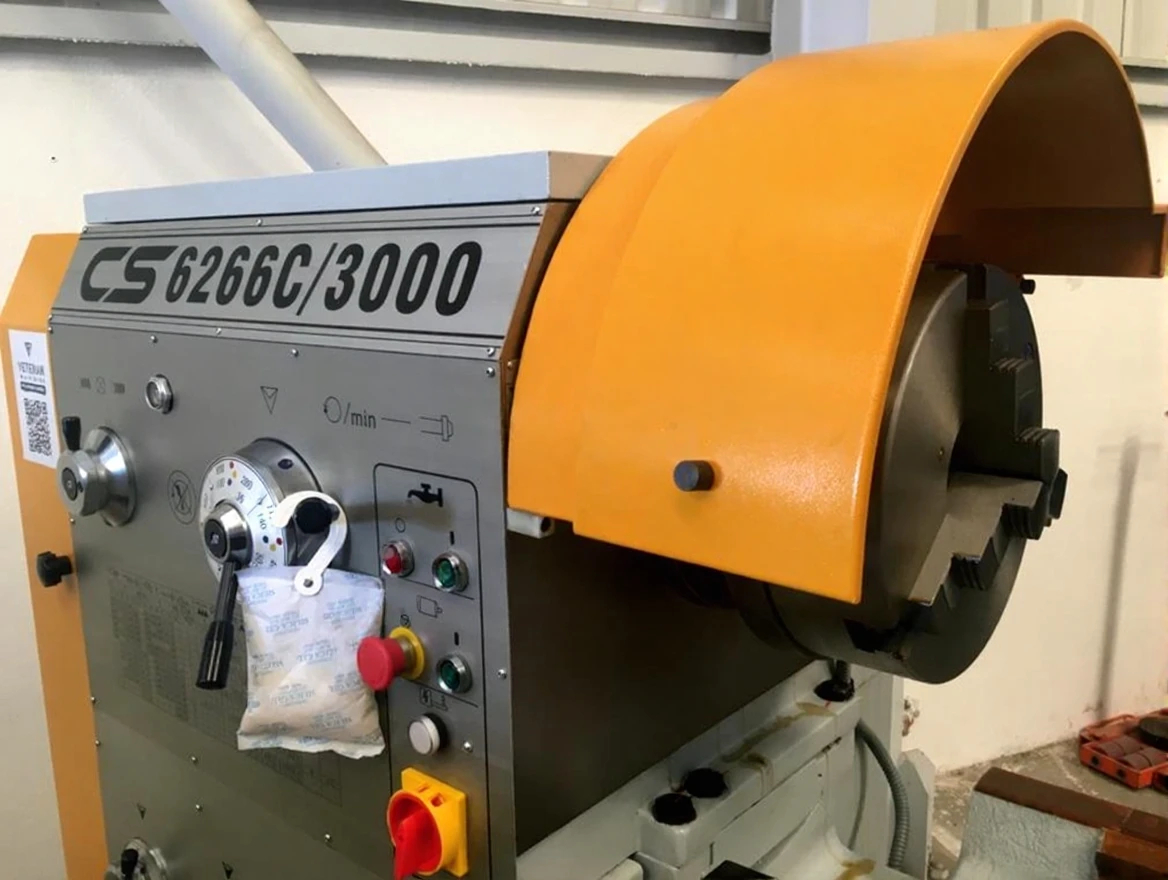

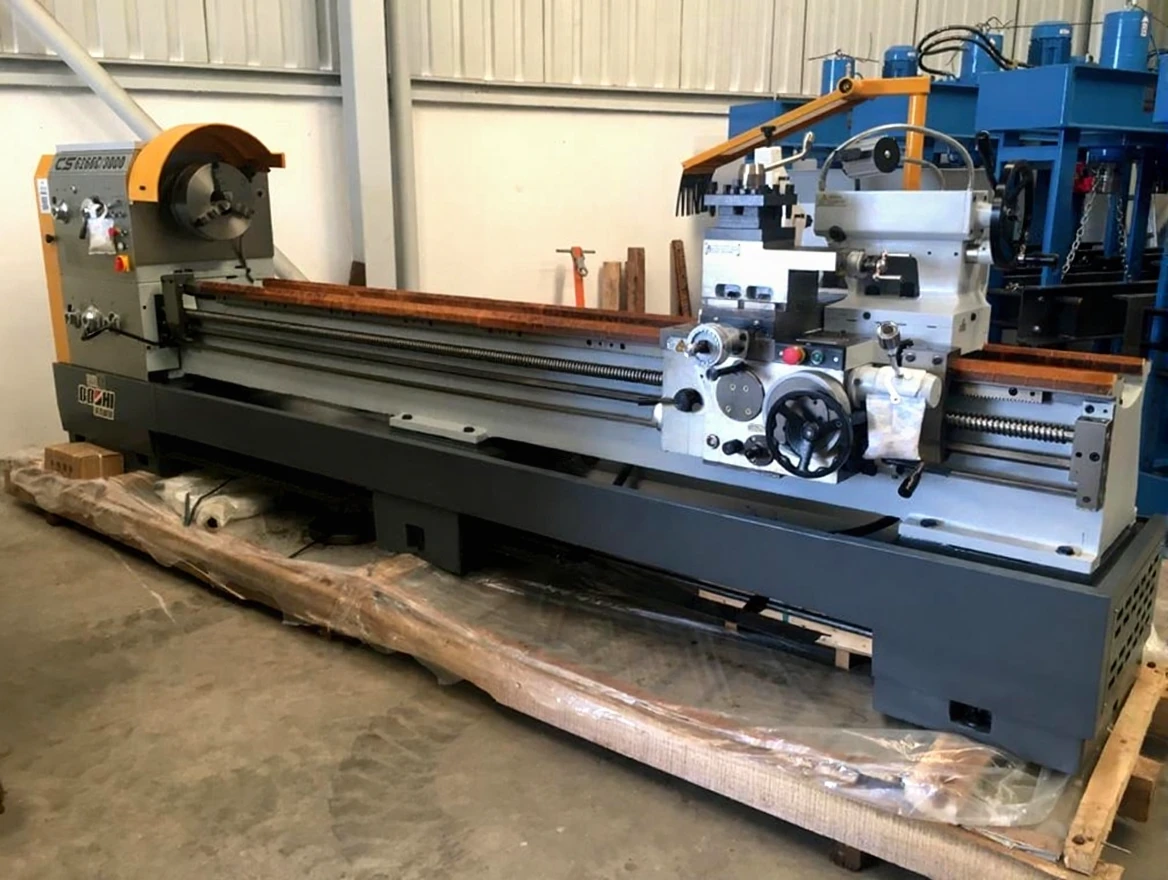

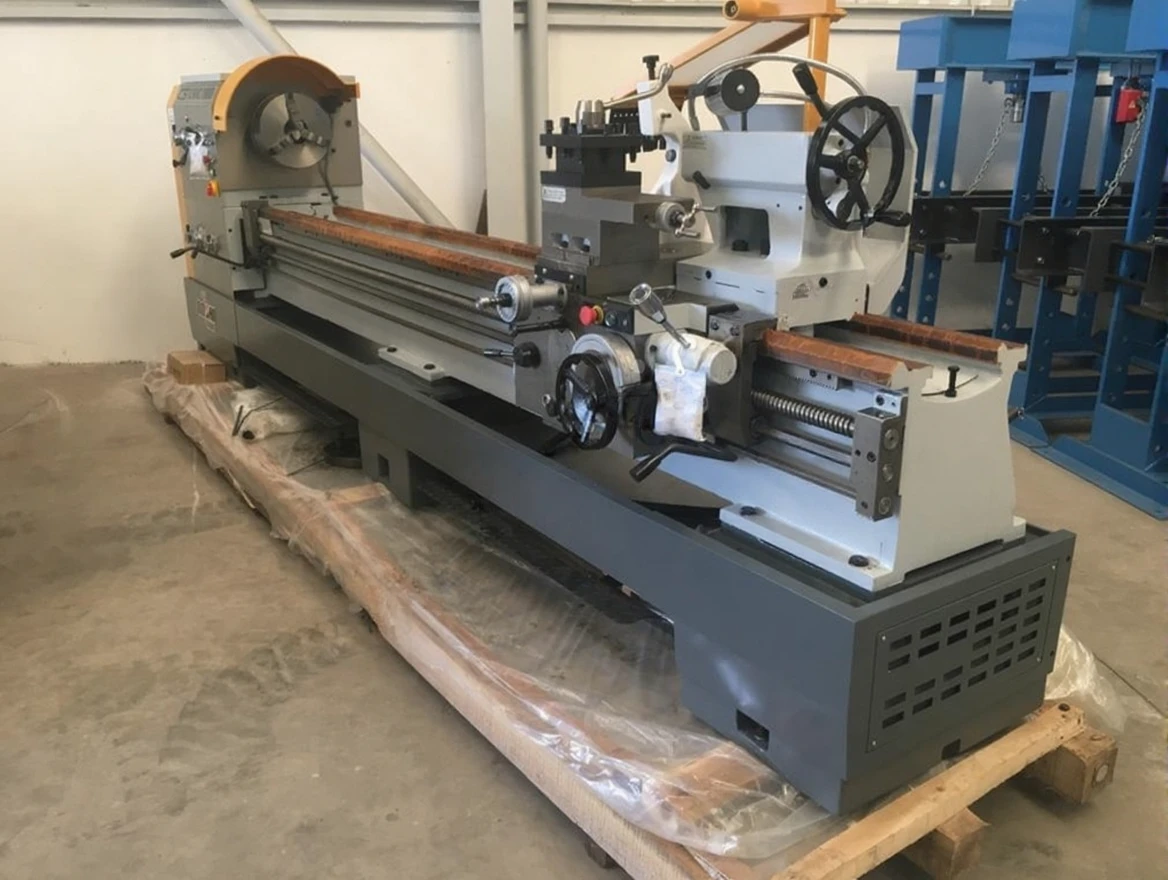

660 Diameter 3 M. 105 Spindle Universal Lathe
| Brand | Baoji |
|---|---|
| Model Type |
CS6266Cx3000 |
660 Diameter 3 M. 105 Spindle Universal Lathe
Baoji CS6266C Universal Lathe Capacity
It has a processing capacity of 660mm over the bed, 420mm over the support, and 870mm in the bridge gap. The spindle is 105mm, and the distance between centers is 3000mm.
Baoji CS6266C Universal Lathe Standard Accessories
3-jaw chuck, Sliding chuck, Free-standing chuck, Swivel chuck, Spare chuck flanges, Traveling center, Fixed center, Lubrication pump, Chip guard, Fixed center, 4-way tool holder Chuck housing, Cooling system, Tailstock taper adjustment, Chuck Tool box, Foot-operated brake pedal.
Technical Specifications Baoji CS6266C Universal Lathe
TECHNICAL SPECIFICATIONS UNIT CS 6266 C
CAPACITY
Turning Diameter Over Bed mm 660
Turning Diameter Over Support mm 420
Turning Diameter When Part is Out mm 870
Part Length mm 240
Distance Between Centers mm 3000
SPINDLE
Spindle Nose mm ISO702/II No:8 camlock
Spindle Hole Diameter mm ø 105
Spindle Taper metric 113
Spindle Speed Range rev/min 36 – 1600
Number of Spindle Speeds 12
FEEDS
Longitudinal Feed Range mm/rev 0.063 ~ 2.52 ; (65 types)
Cross Feed Range mm/rev 0.027 ~ 1.07 ; (65 types)
Metric mm 1 ~ 14 ; (22 types)
Inch t.p.i 28 ~ 2 tpi ; (25 types)
Module mm 0.5 ~ 7 ; (18 types)
DP DP 56 ~ 4 DP ; (24 types)
TAILSTOCK
Cross Feed Distance mm 310
Tool Holder Feed Distance mm 145
Tailstock Size mm 25 x 25
CENTER
Center Pin Diameter mm 75
Center Pin Movement mm 150
Center Pin Taper Morse No:5
OTHER
Main Motor kw 7.5
Fast Motor and Water Motor Power kw 0.3 — 0.12
Length mm [ PHONE HIDDEN ]
Width mm 975
Height mm 1450
Net Weight kg 3500
