660 mm Digital Universal Lathe

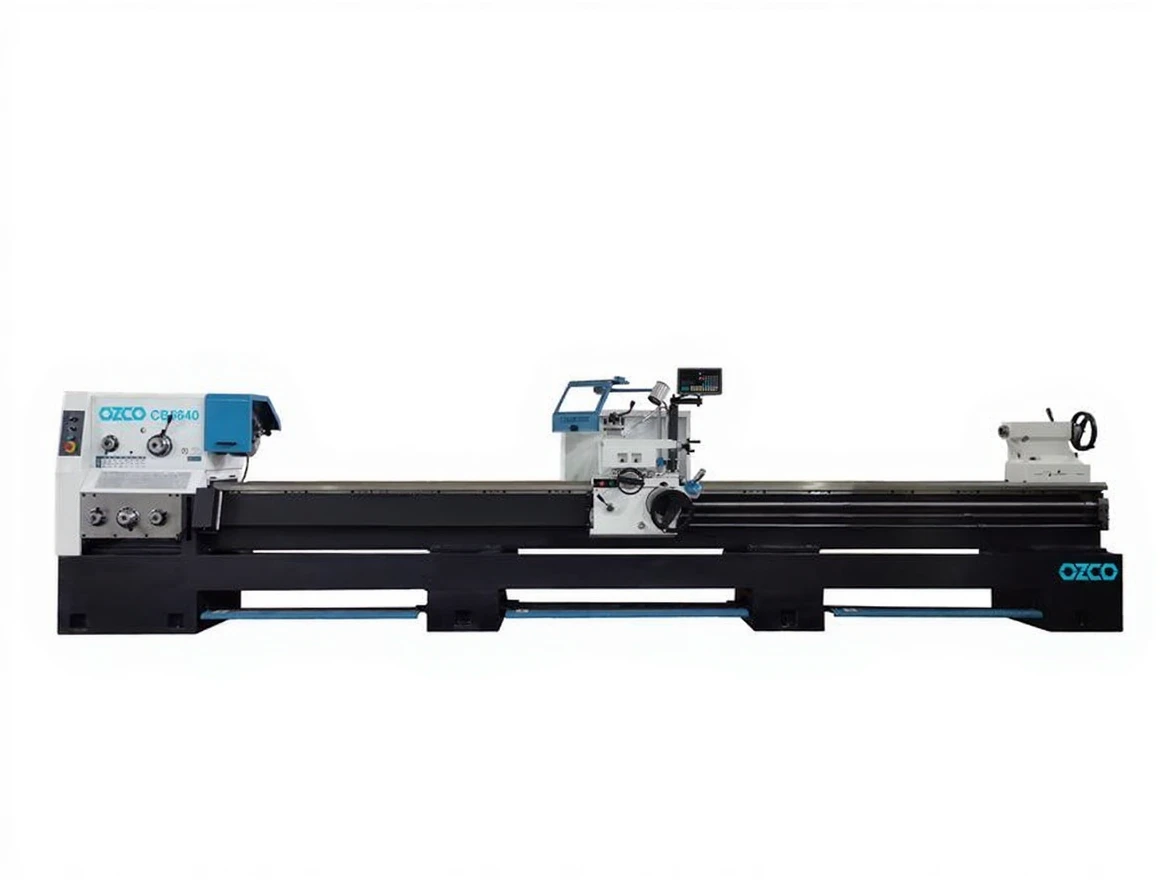

YUNNAN CB6640 Universal Lathe

YUNNAN CB6640 Universal Lathe Capacity

It has a processing capacity of 660 mm on the bench and 430 mm on the support. Spindle is 105 mm, distance between tailstocks is 4000 mm.

YUNNAN CB6640 Universal Lathe Included in Shipment

There is a digital coordinate reader, 3-legged mirror Ø 250 mm, 4-legged mirror Ø 400 mm, Flat mirror 630 mm, Fixed bed 130-260 mm, Traveling bed 20-80 mm, MK5 rotary tailstock, MK5 fixed tailstock, Dental watch, 4-way pen holder, Halogen lamp, Changing gears, Foot brake, Cooling system, Tool holder.

YUNNAN CB6640 Universal Lathe General Features

Compliant with CE norms, Mechanical clutch system / clutch, Emergency stop button, Mirror visor with safety switch, Joystick allowing easy movement, Schneider electrical system, Cooling system and foot brake, Mirror and pen holder visor.

Technical Specifications YUNNAN CB6630 Universal Lathe

Engine Power 11 kW, 400 Vw

Diameter above bench: 660 mm

Diameter on Cart: 430 mm

Bench Width 390 mm

Distance Between Centers 4000 mm

Maximum Material Capacity 350 kg with chuck, 450 kg with chuck tailstock

Speed ​​6-1120rpm

Tier 24

Spindle Taper  1:20

Spindle Nose D8

Spindle Diameter 105 mm

Transverse Support Movement 360 mm

Cross Support Movement 200 mm

Traveling Tailstock Taper MK5

Traveling Tailstock Diameter: 75 mm

Tailstock Travel 150 mm

Linear Feed 0.027-2.73 mm/rev

Transverse Feed 0.063-6.43 mm/rev

Metric Line and Ratio 1-224 (46 pcs.)

Inch Line and Ratio 28/1-8 TPI (42 pcs)

Module Pitch Ratio 0.5-112 (42 units)

Diametric Pitch Ratio 56-1/4 DP (45 pcs)

Pen Holder Dimension 25×25 mm

Machine Dimensions (LxWxH)  5500x1250x1400 mm

Packaging Dimensions 5770x1120x1940 mm

Weight 4100 kg

Gross Weight  5000 kg
