660 mm Universal Lathe

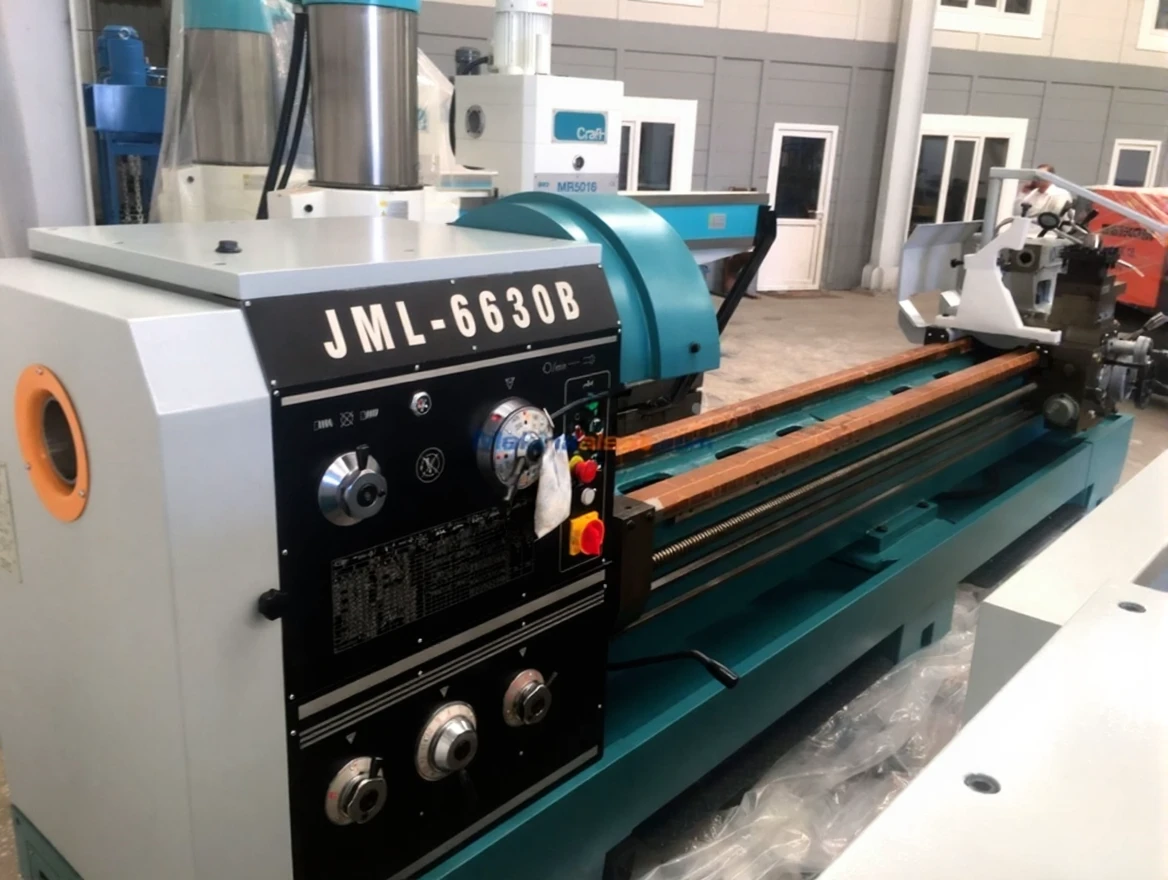

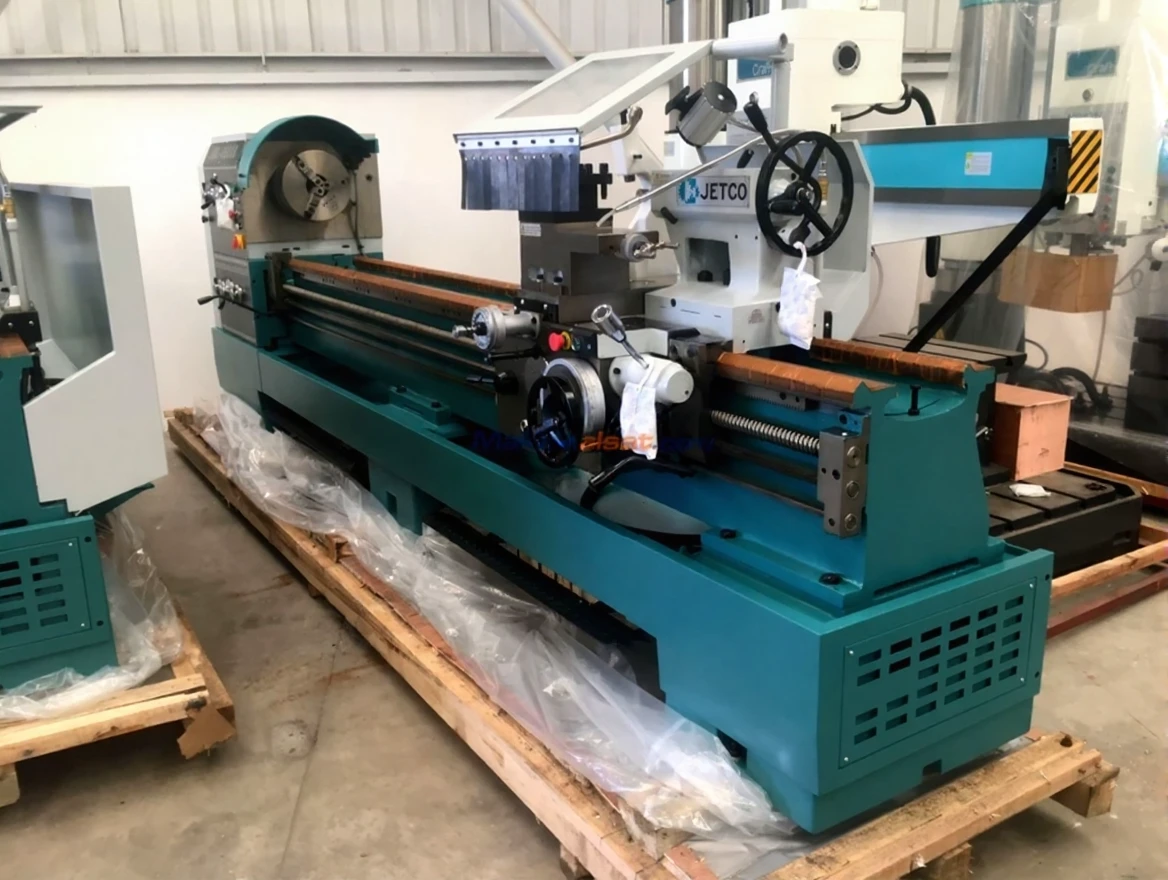

JETCO JML 6630B UNIVERSAL LATHE

Jetco JML 6630B Universal Lathe Capacity:

It has a processing capacity of 660mm over the bed, 420mm over the support, and 870mm in the gap. The spindle diameter is 105mm, and the distance between centers is 3000mm.

Jetco JML 6630B Universal Lathe Standard Accessories

3-jaw chuck, collet chuck, free-standing chuck, rotary chuck, spare chuck flanges, traveling center, fixed center, lubrication pump, chip guard, fixed center, 4-way tool holder, cooling system, tailstock taper adjustment, chuck toolbox, foot-operated brake pedal.

Technical Specifications  Jetco JML 6630B Universal Lathe

Bed Diameter     mm      660

Support Diameter       mm      420

Gap Diameter          mm      870

Bed Width           mm      405

Distance Between Centers            mm      2000/3000

Gap Channel Length           mm      240

Spindle Nose             no         ISO702/II No:8 camlock

Hole Diameter               mm      105

Speed Steps                         12

Speed Range   rev/min              36 – 1600

Main Motor Power          kW        7.01.1900

Longitudinal Feed Range         mm/rev           0.063 ~ 2.52 ; (65 sorts)

Cross Feed Range             mm/rev           0.027 ~ 1.07 ; (65 sorts)

Metric Thread Range       mm      1 ~ 14 ; (22 sorts)

Inch Thread Range            tpi         28 ~ 2 tpi ; (25 sorts)

Module Thread Range       module             0.5 ~ 7 ; (18 sorts)

DP Thread Range DP         56 ~ 4 DP ; (24 sorts)

Cross Support Movement           mm      310

Vertical Support Movement         mm      145

Pin Diameter        mm      75

Pin Tip         metric Morse No:5

Pin Movement             mm      150

Number of Stations                            4

Cross Section Measurement  mm      25 x 25

Water Motor Power             kW        0.06

Length            mm      [ PHONE HIDDEN ]

Width            mm      975

Height         mm      1450

Weight kg         3000
