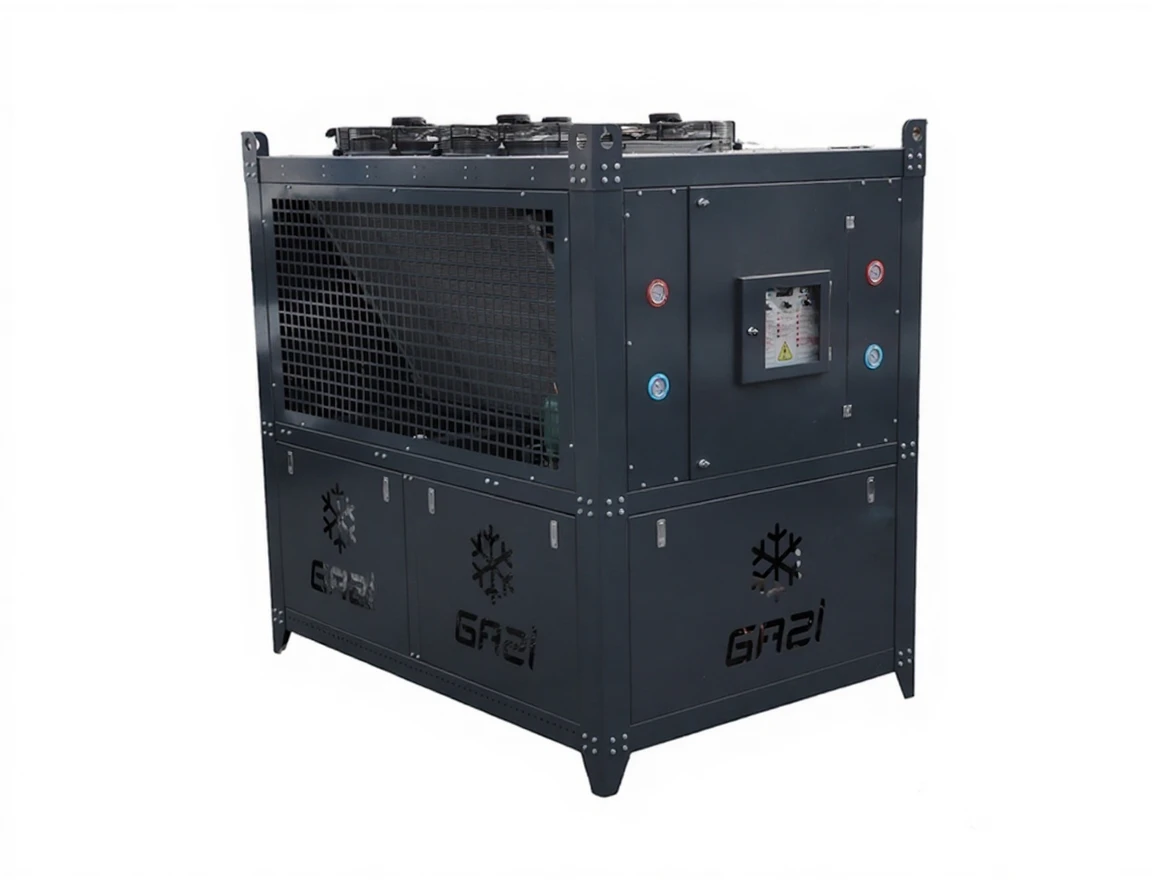

69.144 Kcal/H / 80.4 Kw Air Cooled Chiller



General Features
» 2 independent circuits, hermetic scroll compressor
» Advanced system control with microprocessor
» Environmentally friendly R 410 A refrigerant
» Power and control panel in CE 2006/95/EC standards
» High efficiency, silent axial fan
» Centrifugal water pump
» High security equipment required for the cooling system
» 2 years full warranty

optional
» Winter kit (-20°C)
» Inverter compressor and centrifugal pump
» Inverter fan
» Remote monitoring





TECHNICAL SPECIFICATIONS
Cooling Capacity 7°C/12°C	52.632 kcal/h / 61.2 kW
Cooling Capacity 15°C/20°C	69,144 kcal/h / 80.4 kW
Refrigerant	R-410A
Operating Range	5˚C/ 35˚C
condenser	Aluminum Microchannel Condenser
evaporator	Shell
Compressor	Hermetic type Scroll
Compressor Power	2 units 12 Hp / 8.8 kW
Number of Fans	4pcs. x 500mm
Pump	Centrifugal Pump
Pump Flow	12 m³/h 25 mSS
Pump Pressure	2.2 – 2.7 bar
Pump Power	2.2kW
Tank Volume	154 LT (304 quality stainless and insulated)
Electrical Parts	LG
