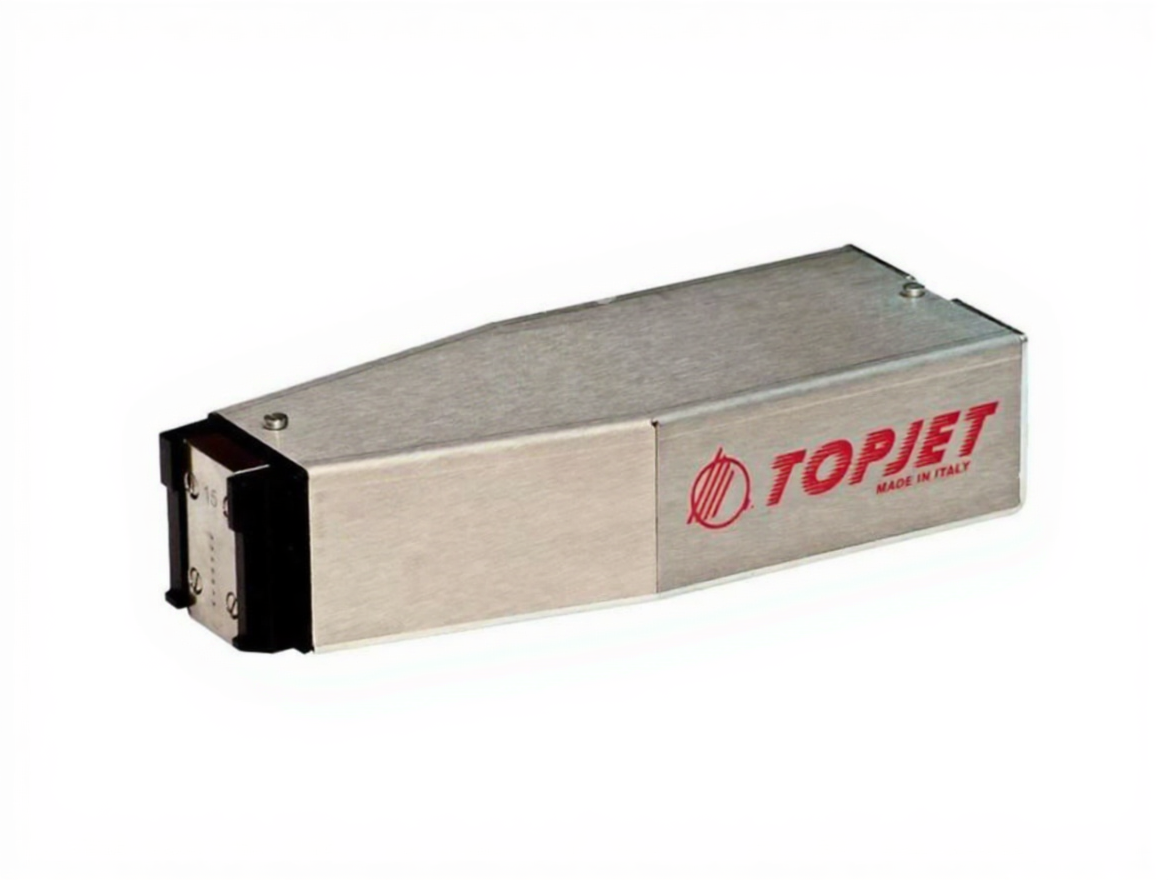

7 Dot Large Character Inkjet Coding Machine
| Brand | Topjet |
|---|---|
| Model Type |
KT7 |
Description
7 Dot Large Character Inkjet Coding Machine
Traditional durable design for high-quality coding.
Easy and space-saving versatile installation options.
1.35 liter steel tank.
Possibility of using Water-based, MEK-based, and Ethanol-based inks.
Eliminates the possibility of motor failure with air pressure operation.
Possibility to extend the distance between the product and the machine up to 30 mm.
Reducing the print width of the device up to 7 mm by inclination.
Cost-effective solutions with significantly lower ink consumption compared to CIJ Inkjet devices.
Printing speeds of 50 meters per minute in a single line.
Low ink costs.
Simple console interface.
Technical Specifications of 7 Dot Large Character Inkjet Coding Machine:
| Specification | Value |
|---|---|
| Marking Width | Different solutions from 7 mm to 160 mm (standard 20 mm) |
| Required Voltage – Current Values | AC 220V – 50HZ* |
| Printer Head Dot Numbers | 1 Dot, 7 Dot, 16 Dot, 32 Dot (standard 20 mm) |
| Required Air Pressure | 0 – 1 bar |
| Tank Capacities | 1.35 liters (filtered) |
| Configurations of Writing Heads with STP700 Console | 7 Dot (4 pcs) – 16 Dot (2 pcs) |
| Writing Matrix Fonts | 5 x 5 Dot, 7 x 5 Dot, 9 x 7 Dot, 16 x 10 Dot, 32 x 10 Dot, 32 x 16 Dot |
| Power Consumption | 240W (for STP700) |
| Environmental Humidity and Temperature | 0 ~ 80% – 0°C ~ 45°C |
| Certification and Warranty Period | CE Certified and 2 Years Warranty |
| Communication Methods | Data can be received via RS232 for suitable marking |
