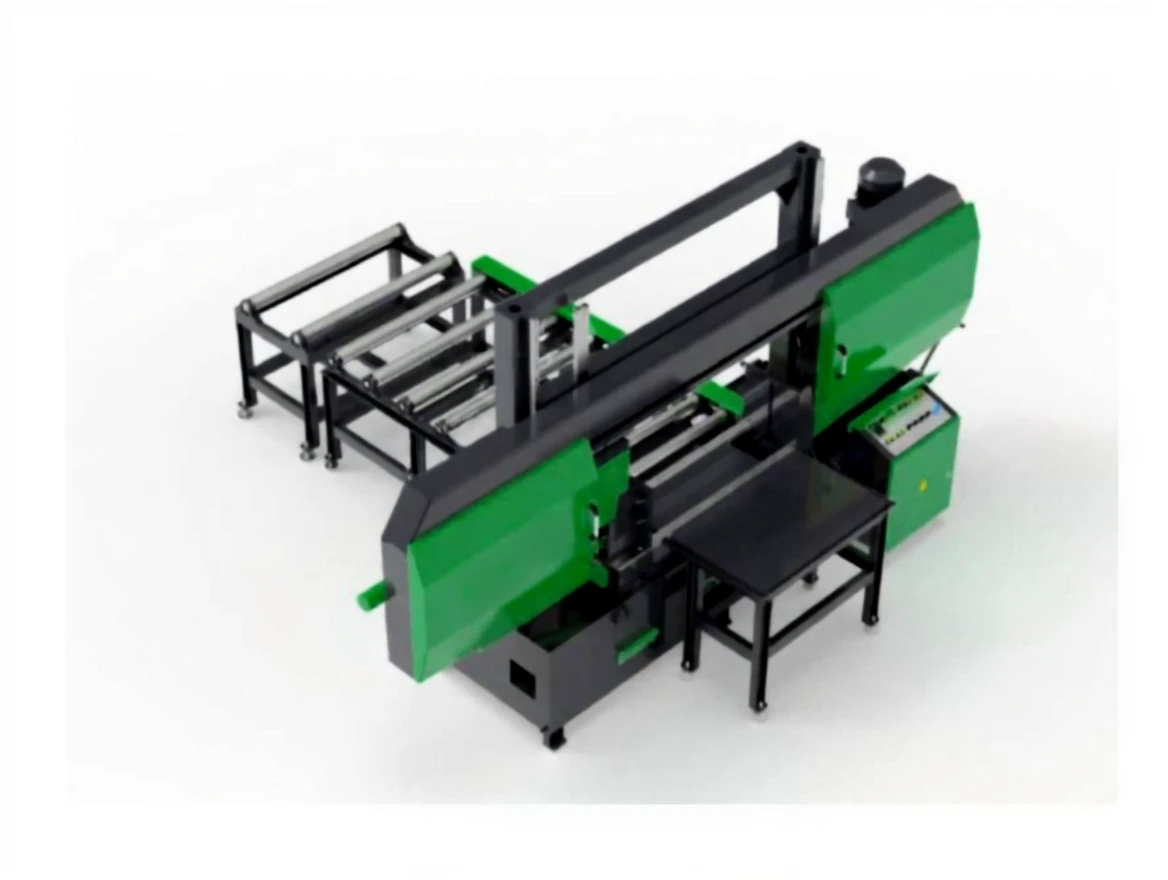

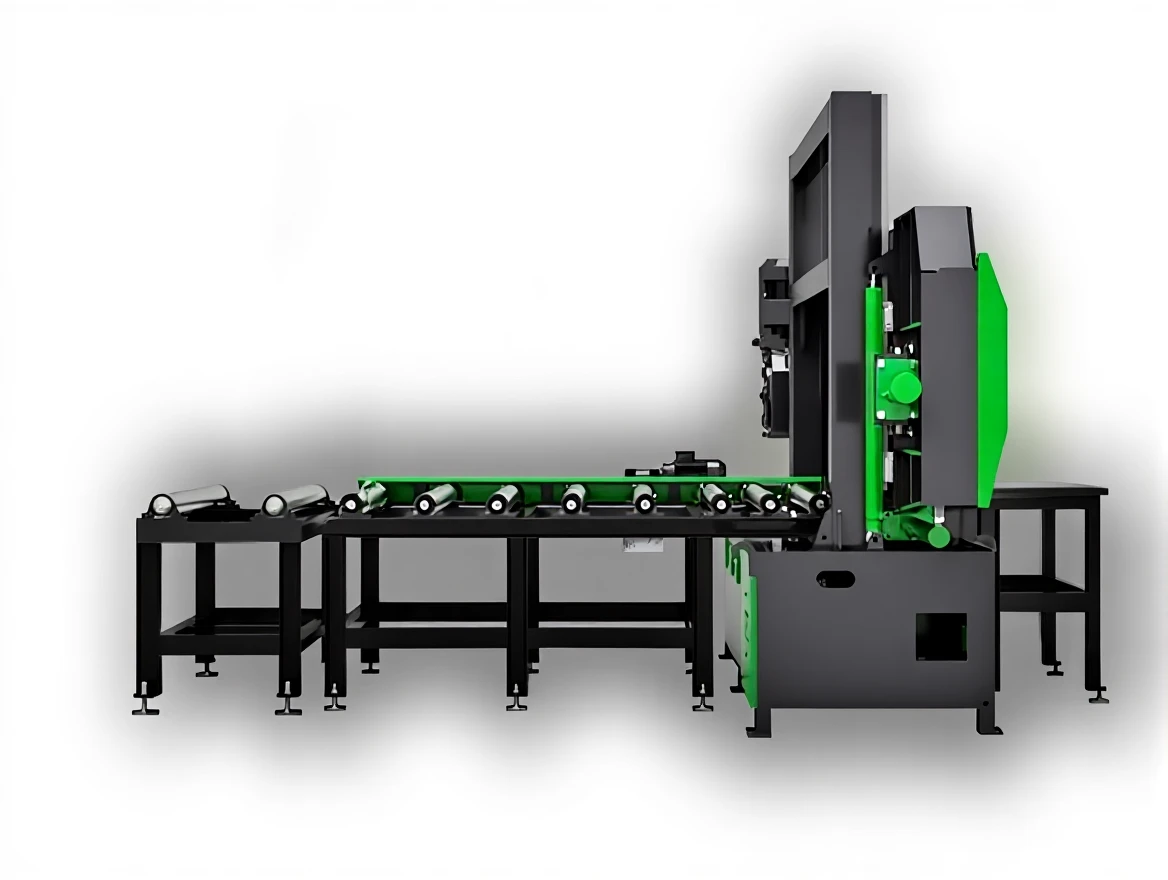

700×1100 mm Column Type Semi-Automatic Band Saw Machine

CRONOSS 700×1100 SY – Column Type Semi-Automatic Band Saw Machine

STANDARD FEATURES:

• Hydraulic vice

• Variable speed control (inverter)

• Motor-driven material feeding table

• Chip conveyor

• Chip cleaning brush

• Hydraulic band saw tensioning system

• 1 saw blade (mounted on the machine)

• Linear descent and ascent system

• CE certified

TECHNICAL SPECIFICATIONS:

• Band Saw Size: 54 × 1.6 × 8900 mm

• Blade Speed: 20–80 m/min

• Main Motor: 7.5 kW

• Drive (Feeding) Motor: 0.55 kW

• Hydraulic Motor: 0.75 kW

• Cooling Motor: 0.09 kW

• Voltage: 3 × 380 V

• Frequency: 50 Hz

• Hydraulic Oil Capacity: 30 lt

• Cooling Water Capacity: 140 lt

• Machine Dimensions (W × L × H): 1280 × 4300 × 2500 mm

• Table Dimensions (W × L × H): 1520 × 990 × 2120 mm

• Working Height: 856 mm

• Machine Weight: 3000 kg

• Table Weight: 1000 kg

• National Voltage & Frequency Change: Optional
