75 Kg Plastic Material Dryer

Description

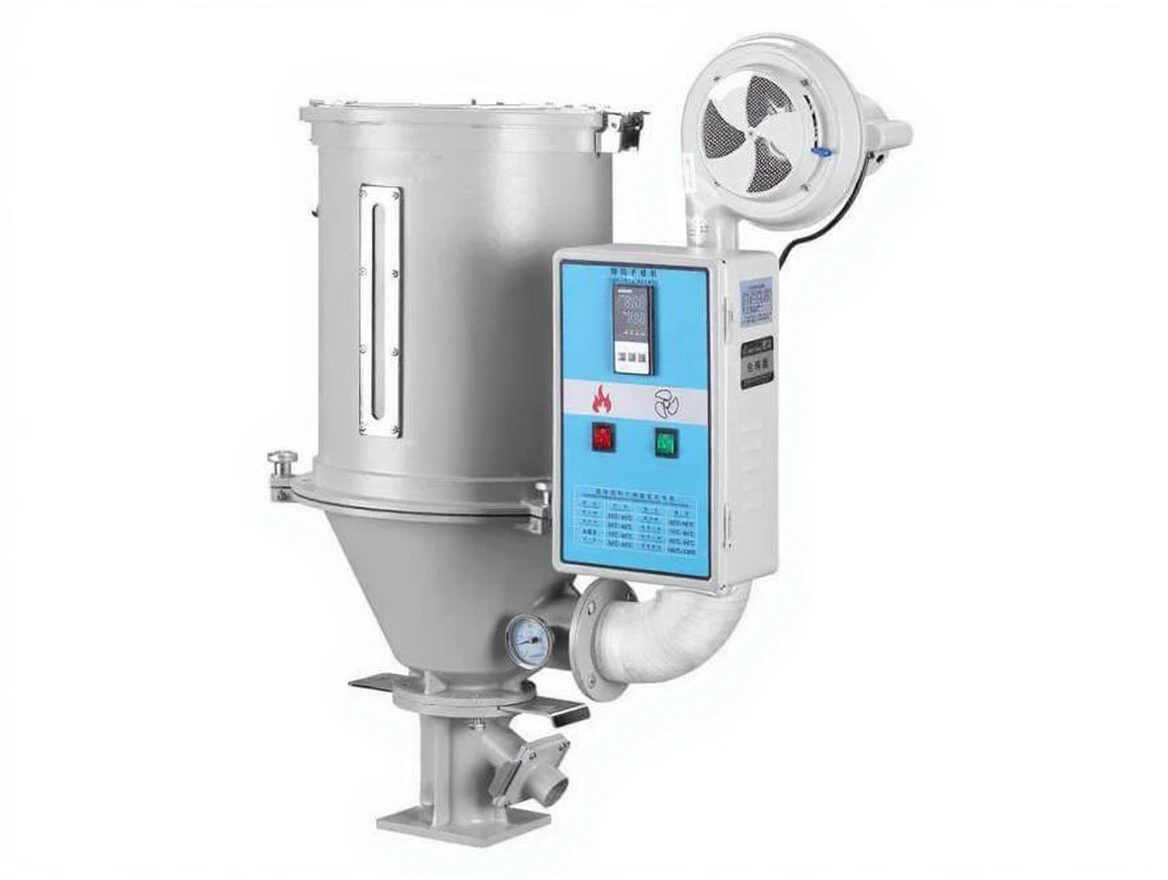

Kaplan Injection 75 kg Plastic Material Dryer

Devices that dry plastic material by heating it up. To dry materials that are less sensitive to moisture, it is sufficient to expose the outer surface of plastic materials to heat for a certain period of time. For this purpose, the air absorbed from the environment is heated by a blower and sent into the raw material silo. Due to the design of these types of dryers, this hot air directed to the lower part of the silo rises and first passes through the raw material at the bottom of the silo and then through the raw materials at the top of the silo before being released outside. Thus, the raw material at the top of the silo newly placed is also subjected to preheating.

    MOTOR POWER (KW)
MODEL CAPACITY (KG) HEATING POWER (KW) MOTOR (KW) MACHINE DIMENSIONS (MM) WEIGHT (KG)
12 KG 12 1.8 50 620x400x820 22
25 KG 25 3 120 800x530x840 33
50 KG 50 4.5 180 900x560x970 39
75 KG 75 5.5 180 970x640x170 45
100 KG 100 6 220 1080x700x1130 60
150 KG 150 7.5 300 1080x720x1290 71
200 KG 200 10 350 1350x890x1440 110
300 KG 300 15 750 1250x900x1590 150
400 KG 400 15 750 1410x1000x1660 230
600 KG 600 20 1100 1580x1160x2380 280
800 KG 800 30 2200 1800x1280x2480 360
1000 KG 1000 30 2200 2000x1400x2480 500
