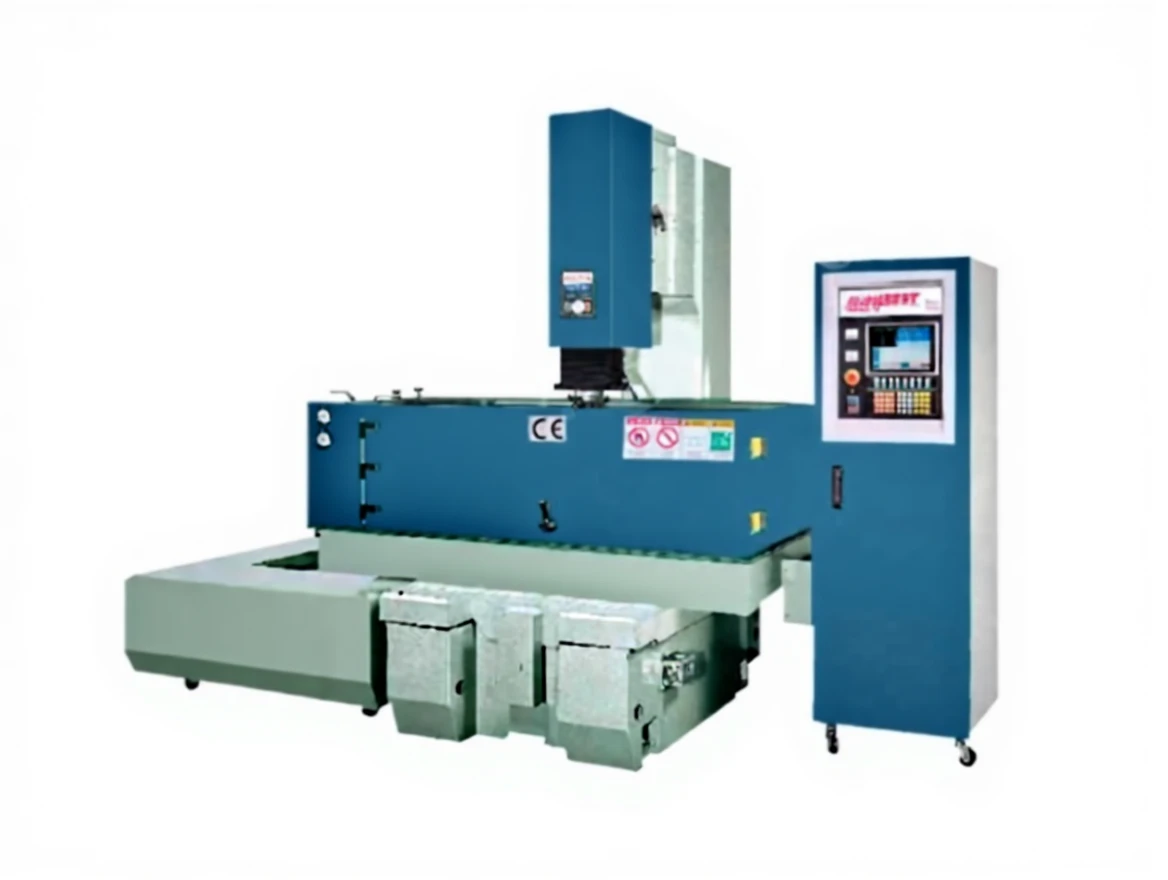

750×420 mm Diving Erosion Machine
| Brand | Best |
|---|---|
| Model Type |
3500 PNC |
Description
Best 3500 PNC
750×420 mm Table Range Diving Erosion Machine
Best 3500 PNC Technical Specifications
|
TABLE SIZE |
750 x 420 mm |
|
X AXIS MOVEMENT |
450 mm |
|
Y AXIS MOVEMENT |
350 mm |
|
Z AXIS MOVEMENT |
200 + 200 mm |
|
MAX. ELECTRODE WEIGHT |
80 kg |
|
MAX. AMPERAGE |
60 A |
|
MAX. CUTTING SPEED |
600 mm3 / min |
|
SURFACE PRECISION |
≤ 0.8 ra |
|
MAX. WORKPIECE WEIGHT |
1,100 kg |
|
DISTANCE FROM TABLE SURFACE TO ELECTRODE HOLDER |
520 mm |
Best 3500 PNC General Features
- 60 Amper
-
Wide working pool
-
Large table
-
Double liquid pump dielectric unit
-
X,Y,Z axis automatic zeroing
-
The machine body is made of FC 35 series material.
-
Multi-functional electrode holder head
-
3 Axis digital coordinate reading (Taiwan patented) system
-
Thanks to PNC control, 24-hour operation feature in multi-eye molds
