760 mm Digital Universal Lathe

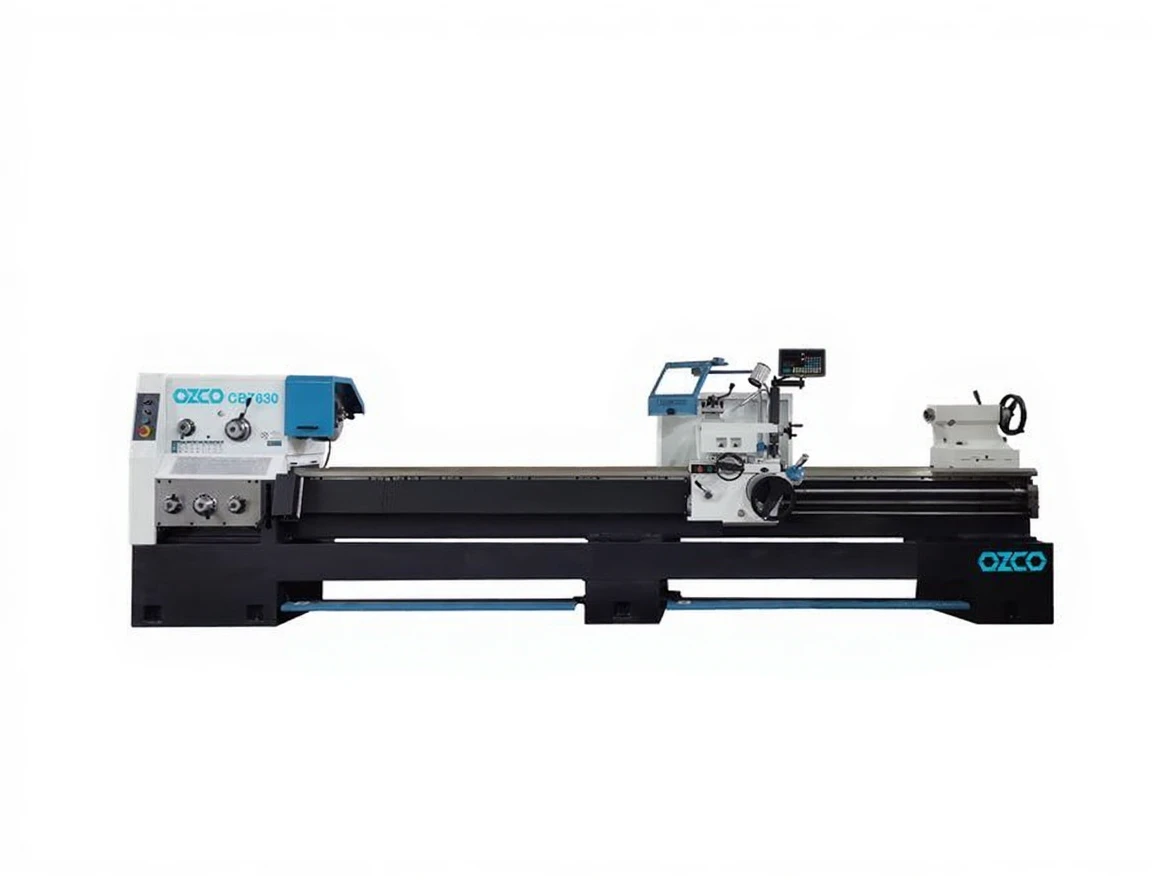

YUNNAN CB7630 Universal Lathe

YUNNAN CB7630 Universal Lathe Capacity

It has a processing capacity of 760 mm over the bench, 530 mm over the support, and 870 mm in the bridge gap. The tailstock spindle is 105 mm, and the distance between centers is 3000 mm.

YUNNAN CB7630 Universal Lathe Shipment Scope

Digital coordinate reader, 3-legged chuck Ø 250 mm, 4-legged chuck Ø 400 mm, Flat chuck 630 mm, Fixed bed 130-260 mm, Movable bed 20-80 mm, MK5 rotating center, MK5 fixed center, Thread gauge, 4-way tool holder, Halogen lamp, Change gears, Foot brake, Cooling system, Tooling is included.

YUNNAN CB7630 Universal Lathe General Features

Compliant with CE standards, Mechanical clutch system, Emergency stop button, Safety switch chuck guard, Joystick providing easy movement, Schneider electrical system, Cooling system and foot brake, Chuck and tool holder guard.

Technical Specifications YUNNAN CB7630 Universal Lathe

Motor Power  11 kW, 400 V w

Bench Diameter  760 mm

Bridge Diameter  870 mm

Carriage Diameter  530 mm

Bench Width  390 mm

Intermediate Piece Length  240 mm

Distance Between Centers 3000 mm

Maximum Material Capacity  350 kg with chuck, 450 kg with chuck + movable center

Speed  6-1120 rev/min

Steps  24

Tailstock Spindle Taper  1:20

Tailstock Spindle End  D8

Tailstock Spindle Diameter  105 mm

Longitudinal Support Movement  360 mm

Cross Support Movement 200 mm

Movable Center Taper  MK5

Movable Center Diameter  75 mm

Movable Center Movement  150 mm

Linear Feed  [ PHONE HIDDEN ] mm/rev

Longitudinal Feed  [ PHONE HIDDEN ] mm/rev

Metric Thread and Ratio  1-224  (46 pieces)

Inch Thread and Ratio  28/1-8 TPI (42 pieces)

Module Thread Ratio  [ PHONE HIDDEN ] pieces)

Diametric Thread Ratio  56-1/4 DP (45 pieces)

Tool Holder Size 25×25 mm

Machine Dimensions (UxGxY)  4500x1250x1400 mm

Packaging Dimensions  4770x1120x1940 mm

Weight 3500 kg

Gross Weight  4300 kg
