760 mm Digital Universal Lathe

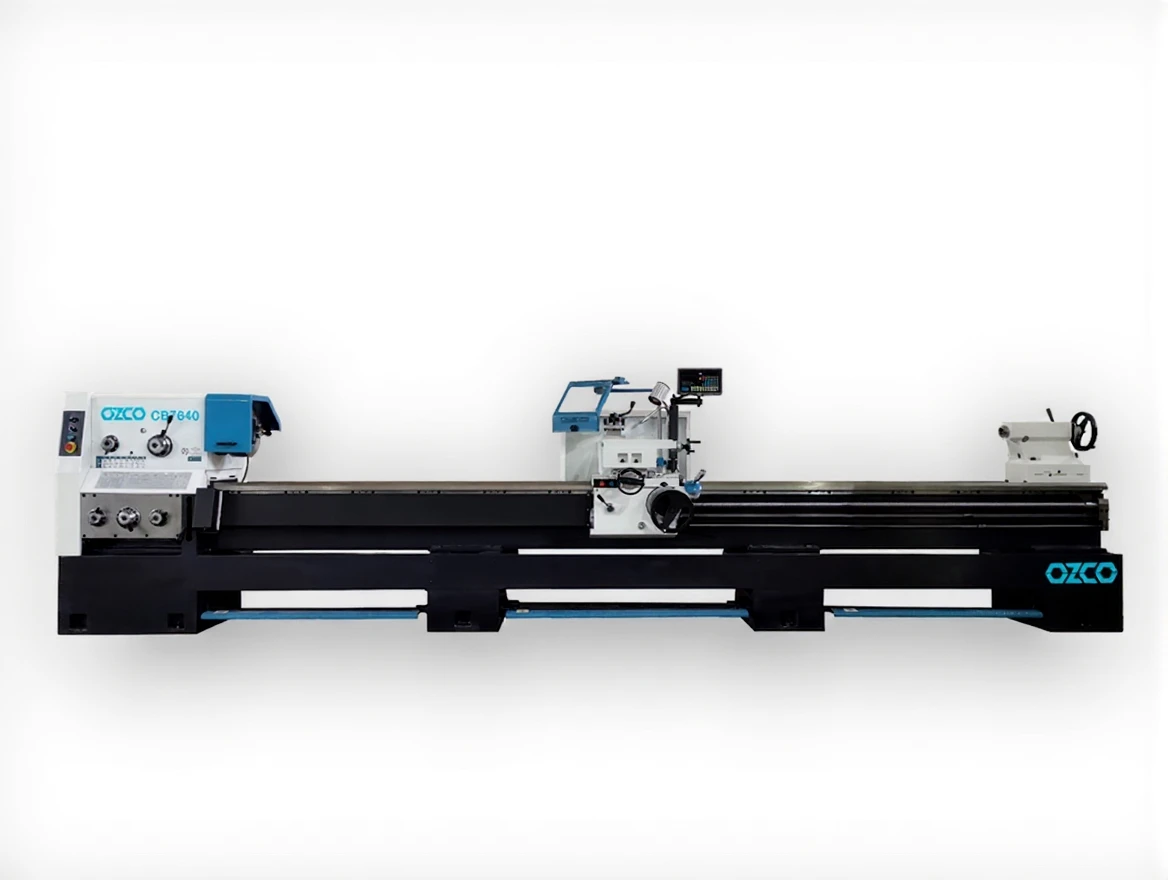

YUNNAN CB7640 Universal Lathe

YUNNAN CB7640 Universal Lathe Capacity

The bench top has a processing capacity of 760 mm, and the support top has a processing capacity of 530 mm. The tailstock spindle is 105 mm, and the distance between centers is 4000 mm.

YUNNAN CB7640 Universal Lathe Shipment Includes

Digital coordinate reader, 3-jaw chuck Ø 250 mm, 4-jaw chuck Ø 400 mm, Flat chuck 630 mm, Fixed bed 130-260 mm, Sliding bed 20-80 mm, MK5 rotating center, MK5 fixed center, Thread gauge, 4-way tool holder, Halogen lamp, Change gears, Foot brake, Cooling system, Tooling included.

YUNNAN CB7640 Universal Lathe General Features

Compliant with CE standards, Mechanical clamping system / clutch, Emergency stop button, Safety switch chuck guard, Joystick for easy movement, Schneider electrical system, Cooling system and foot brake, Chuck and tool holder guard.

Technical Specifications YUNNAN CB7640 Universal Lathe

Motor Power  11 kW, 400 V w

Bench Diameter  760 mm

Carriage Diameter  530 mm

Bench Width  390 mm

Distance Between Centers 4000 mm

Maximum Material Capacity  350 kg with chuck, 450 kg with chuck + sliding center

Speed  6-1120 rev/min

Steps  24

Tailstock Cone  1:20

Tailstock Tip  D8

Tailstock Diameter  105 mm

Cross Support Movement  360 mm

Diagonal Support Movement 200 mm

Sliding Center Cone  MK5

Sliding Center Diameter  75 mm

Sliding Center Movement  150 mm

Linear Feed  [ PHONE HIDDEN ] mm/rev

Cross Feed  [ PHONE HIDDEN ] mm/rev

Metric Thread and Ratio  1-224  (46 pieces)

Inch Thread and Ratio  28/1-8 TPI (42 pieces)

Module Thread Ratio  [ PHONE HIDDEN ] pieces)

Diametric Thread Ratio  56-1/4 DP (45 pieces)

Tool Holder Size 25×25 mm

Machine Dimensions (LxWxH)  5500x1250x1400 mm

Packaging Dimensions  5770x1120x1940 mm

Weight 4200 kg

Gross Weight  5100 kg
