8 Litre Powder Transfer Vacuum Conveyor
| Brand | Thesis Makina |
|---|---|
| Model Type |
TH9-8 LT |
Description

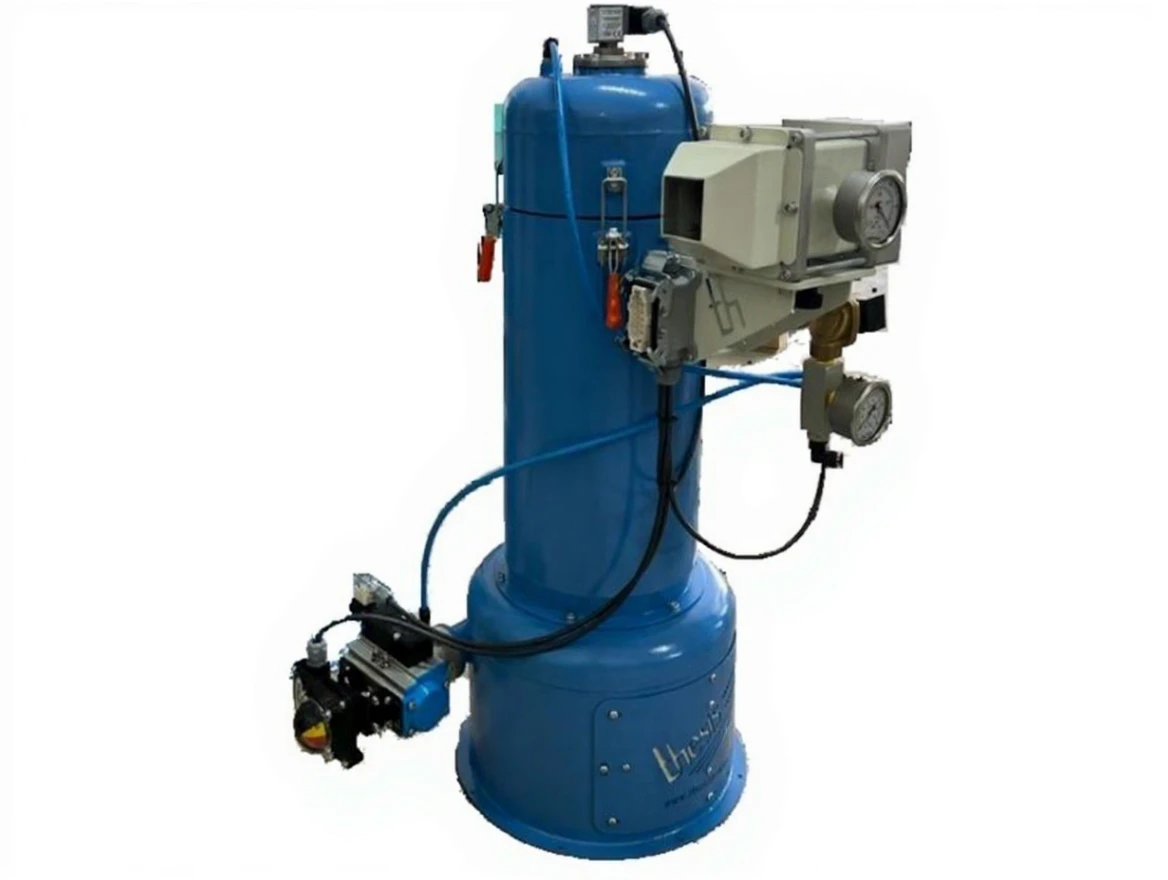

Thesis TH9-8 LT Vacuum Conveyor
• Easy to install and commission turnkey conveyor.
• Can be manually disassembled and cleaned.
• Operates at a low noise level.
• Fully pneumatic system.
• Has a polyester bag filter (0.5 – 5 – 20 micron options available).
• Optionally: hydrophobic or aluminum-coated filter option is available.

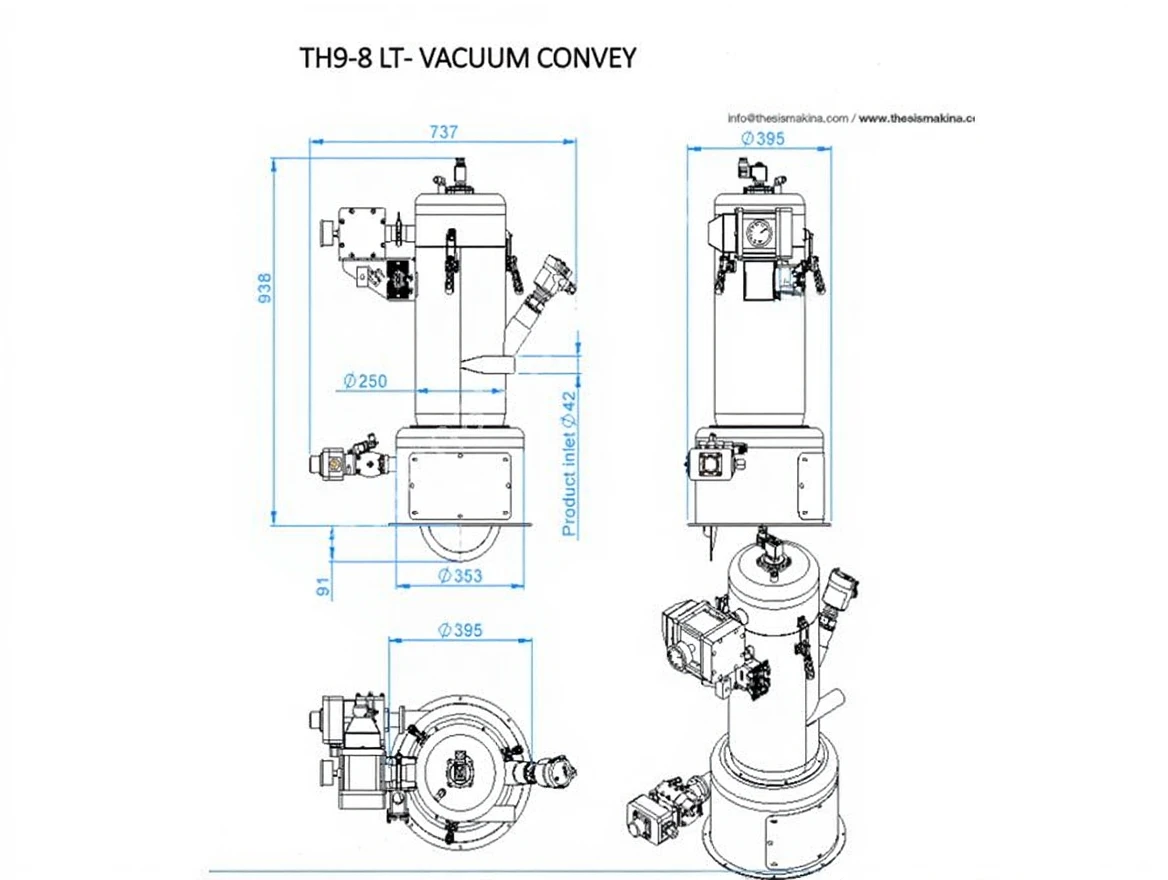

Thesis TH9-8 LT Technical Data
|
Description |
Unit |
Value |
|---|---|---|
|
Feed Pressure Range |
Bar |
4–6 |
|
Air Consumption Range |
Nl/min |
945–980 |
|
Vacuum Range |
-kPa |
60–72 |
|
Material |
— |
DKP Steel or Stainless Steel |
|
Temperature Range |
°C |
0–60 |
|
Filter Area |
m² |
0.25 |
|
Material Batch Volume |
Lt |
8 |
|
Minimum Particle Size |
µm |
5 or 20 |
Capacity at different transport distances (ton/hour)
|
Transport Distance (m) |
Capacity (ton/hour) |
|---|---|
|
5 m |
1.5 |
|
10 m |
0.75 |
|
20 m |
0.5 |
|
30 m |
0.2 |
