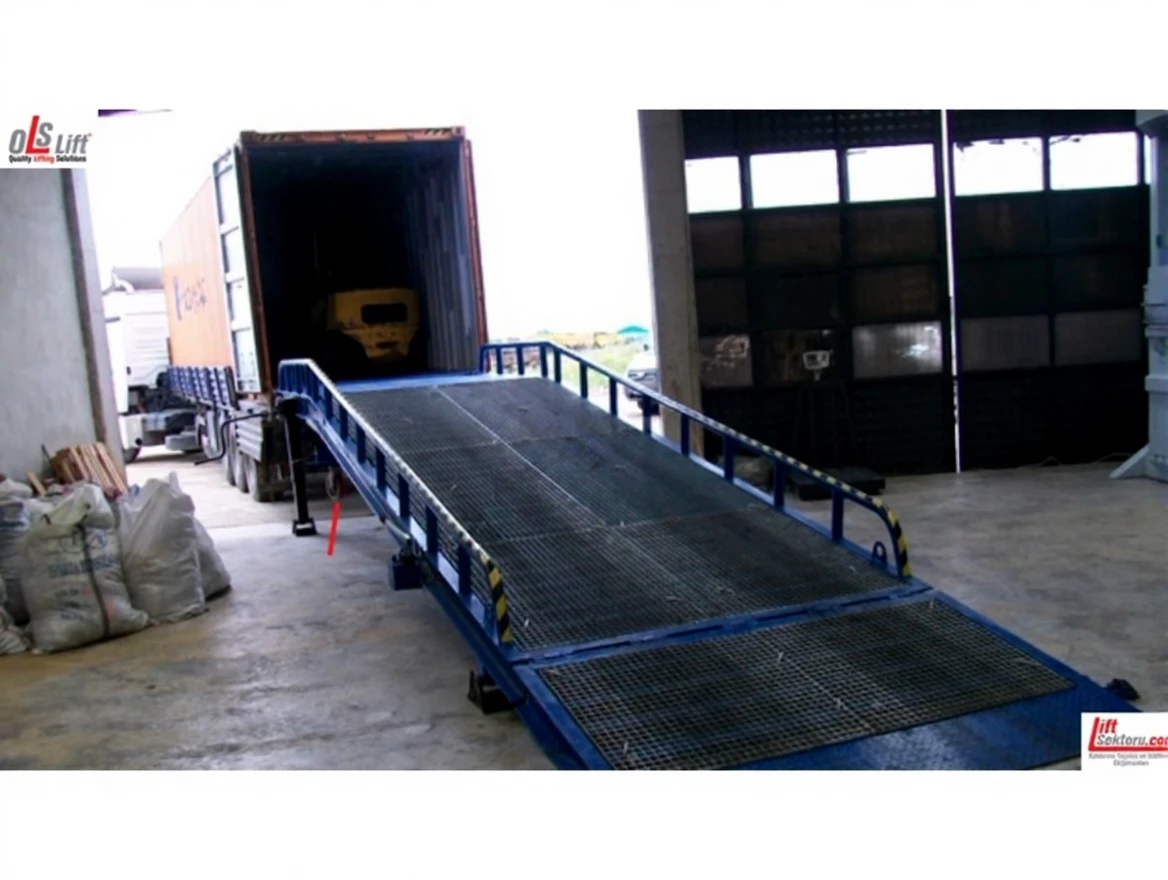

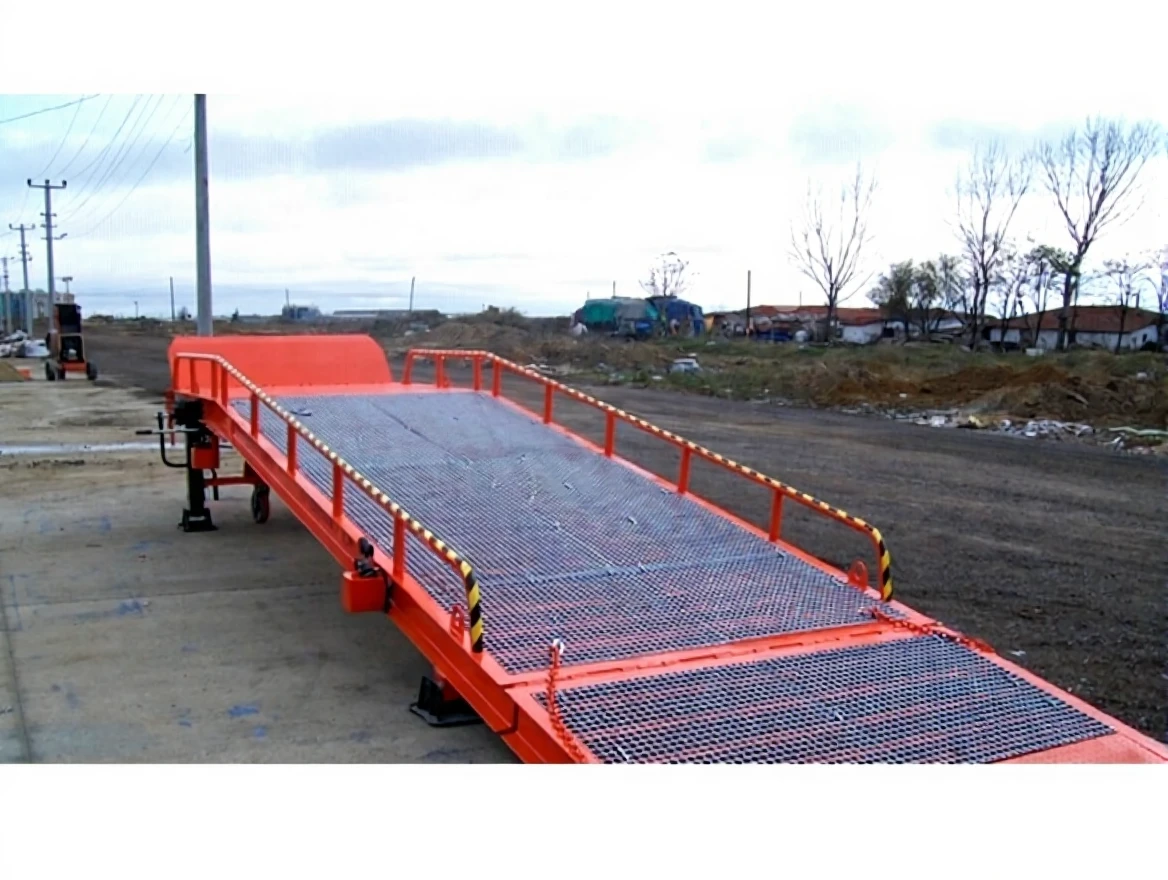

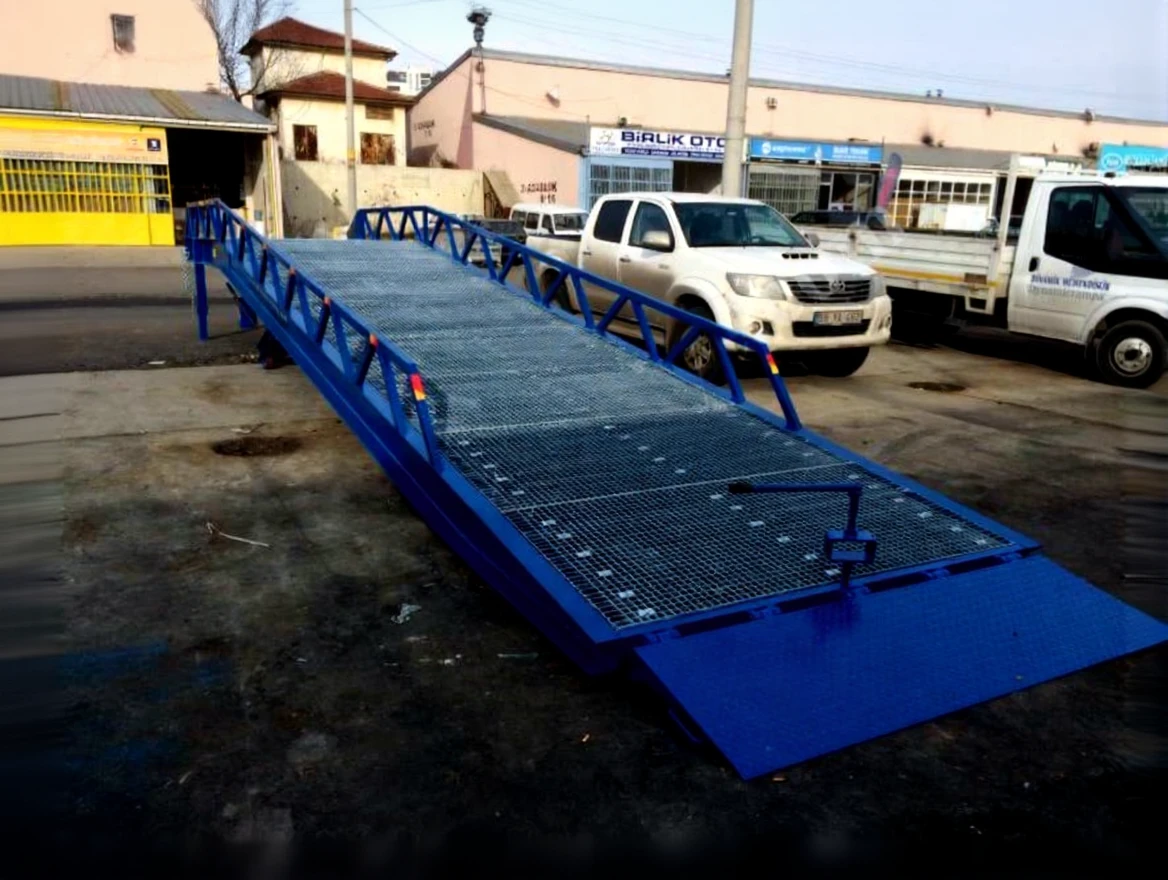

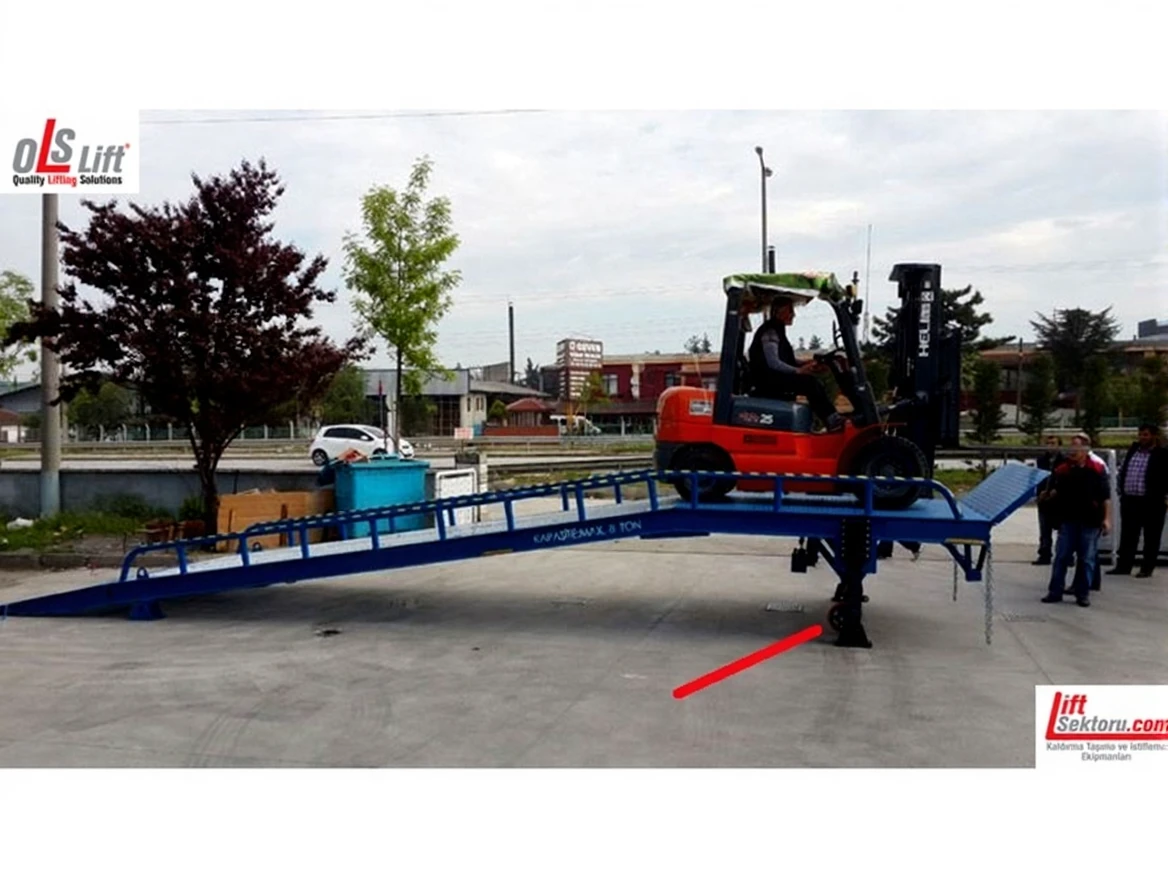

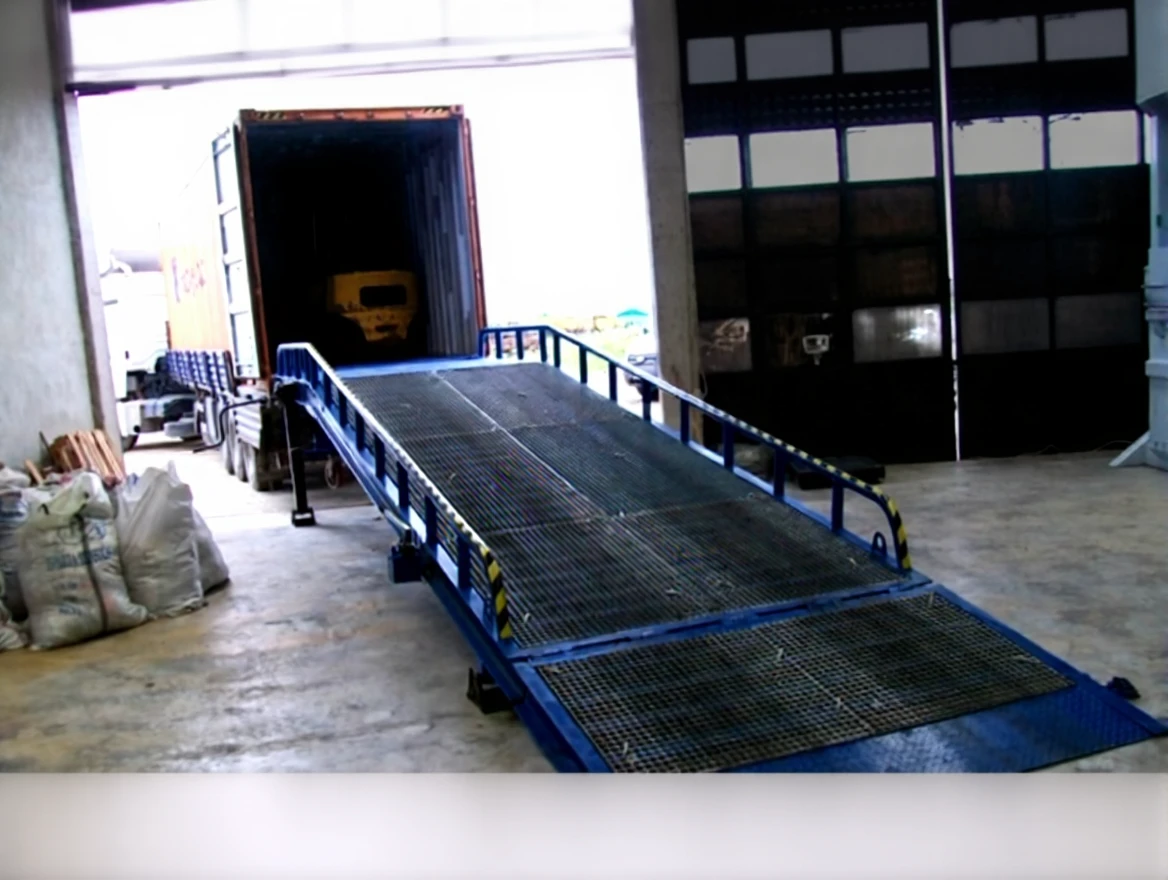

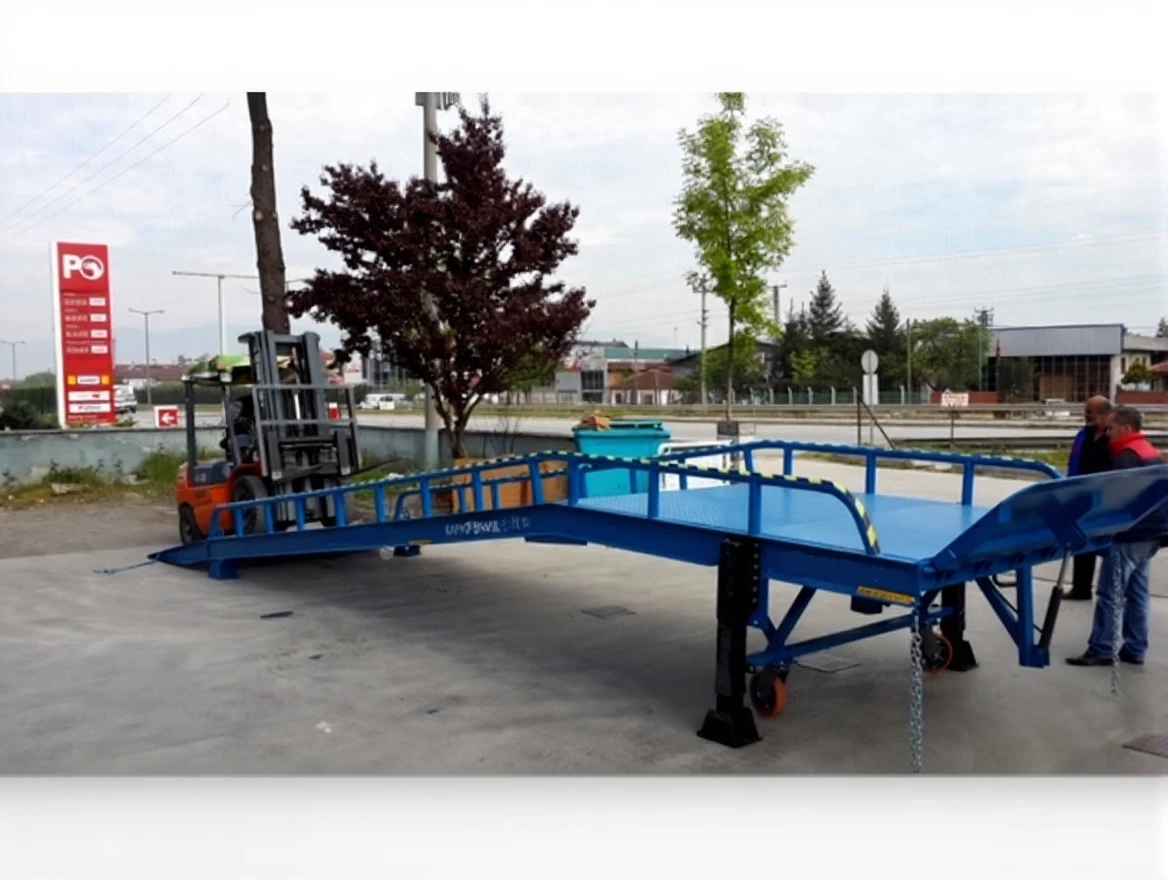

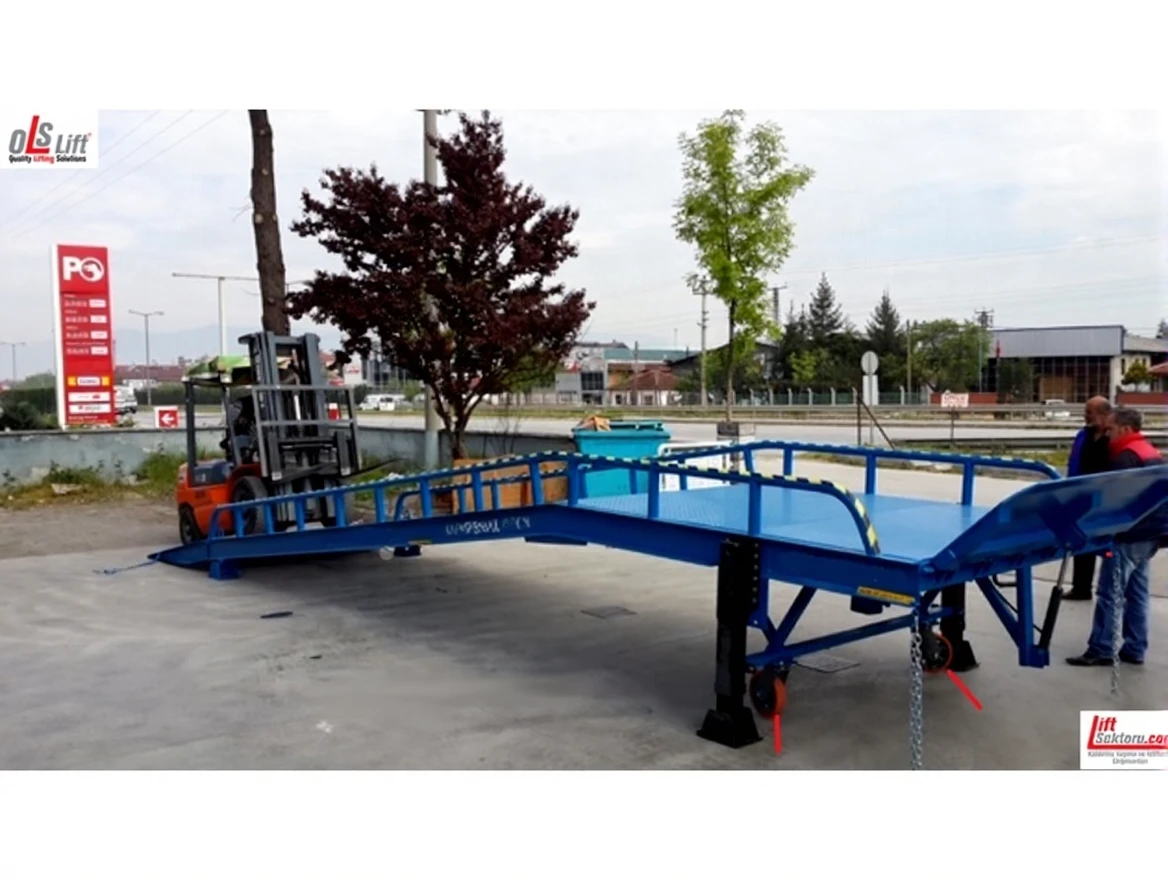

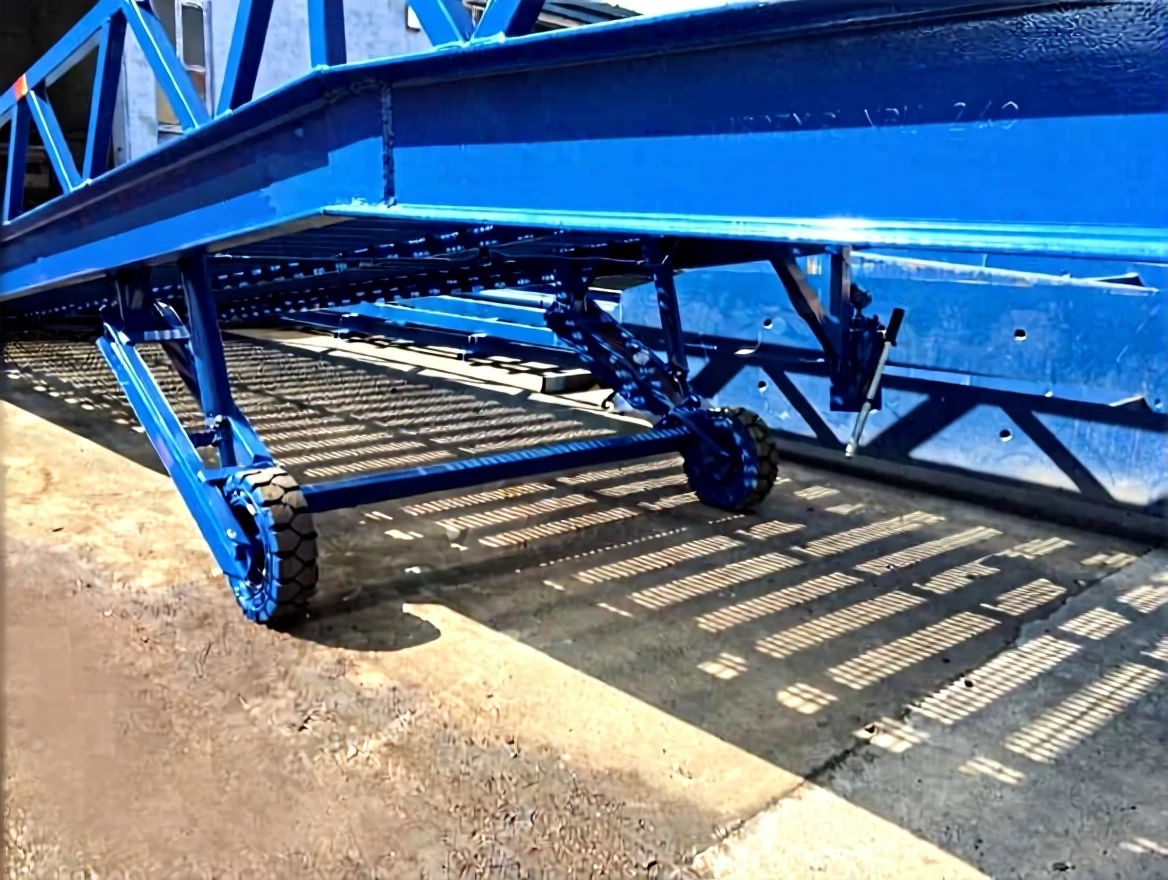

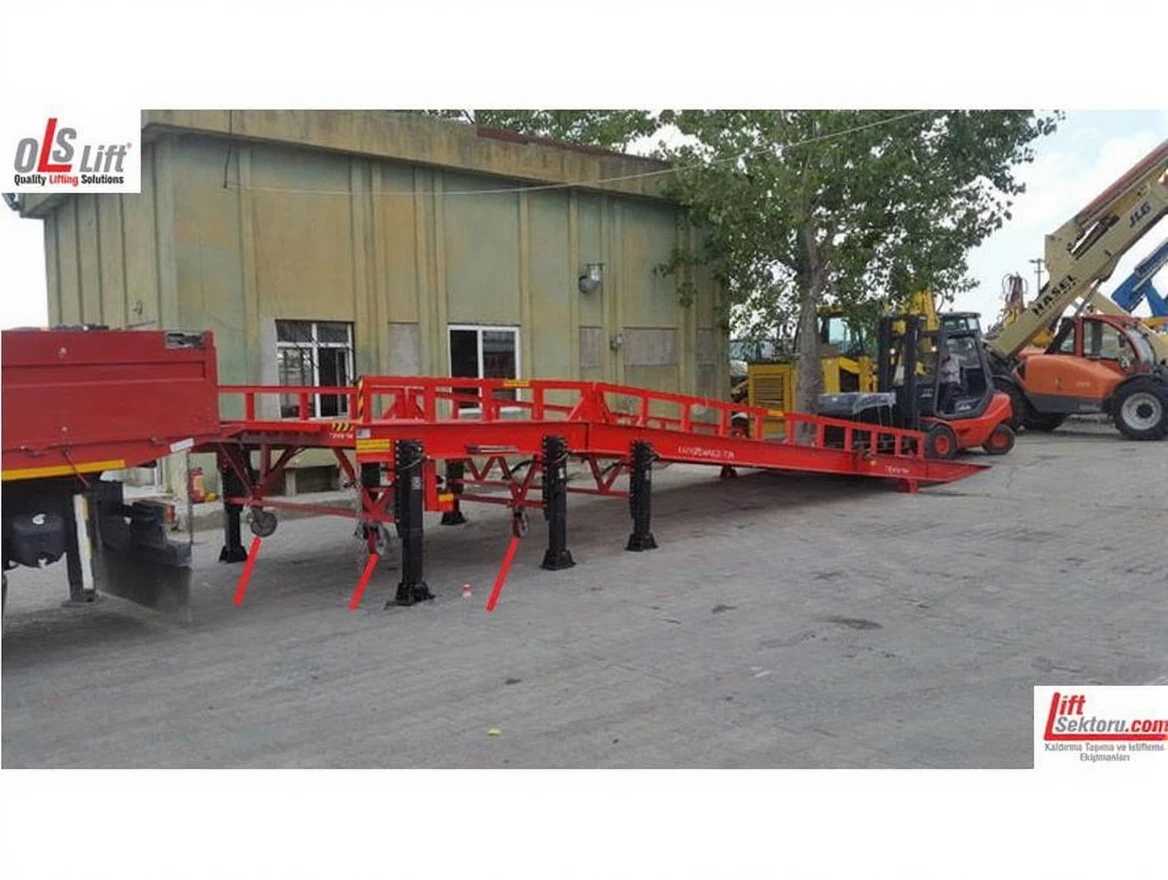

8 Ton Portable Type Loading Ramp
| Brand | Olslift |
|---|---|
| Model Type |
O-YR003 |
Description
Olslift
8 Ton Portable Type Loading Ramp
Ramp dimensions: 2000 X 10,200 MM
Maximum lifting distance: +1600 MM
Minimum lowering distance: +1000 MM
Stroke: 600 MM
Maximum load capacity: 8000 KG
Operating temperature: -10 + 40 DEGREES
Ramp color: Blue
Platform top material: 6/8 eye pattern sheet
Tongue material: 12/13 eye pattern sheet
Tongue movement + Tail Movement: Via hydraulic hand pump
Tongue stroke: +350 mm; -150 mm
Climbing material and flat part: 3 x 30 hot-dip galvanized serrated grid
