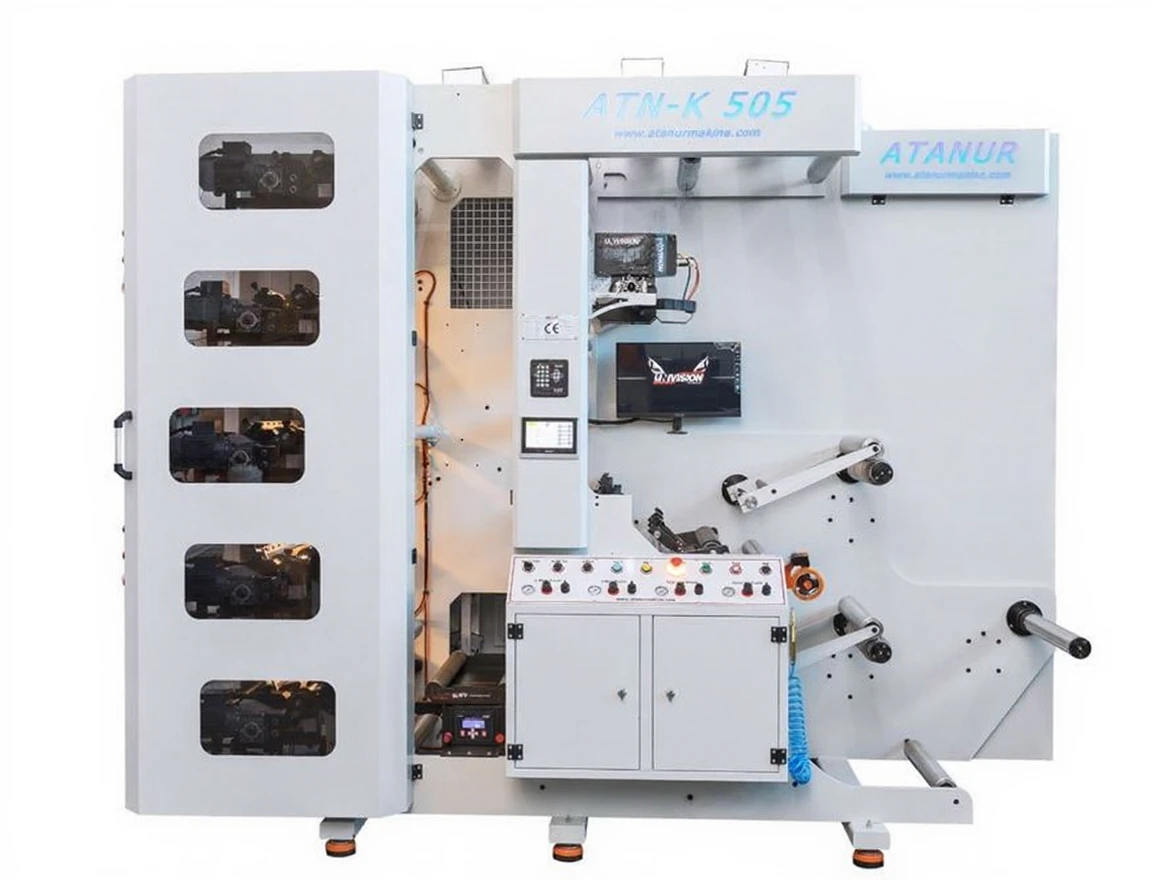

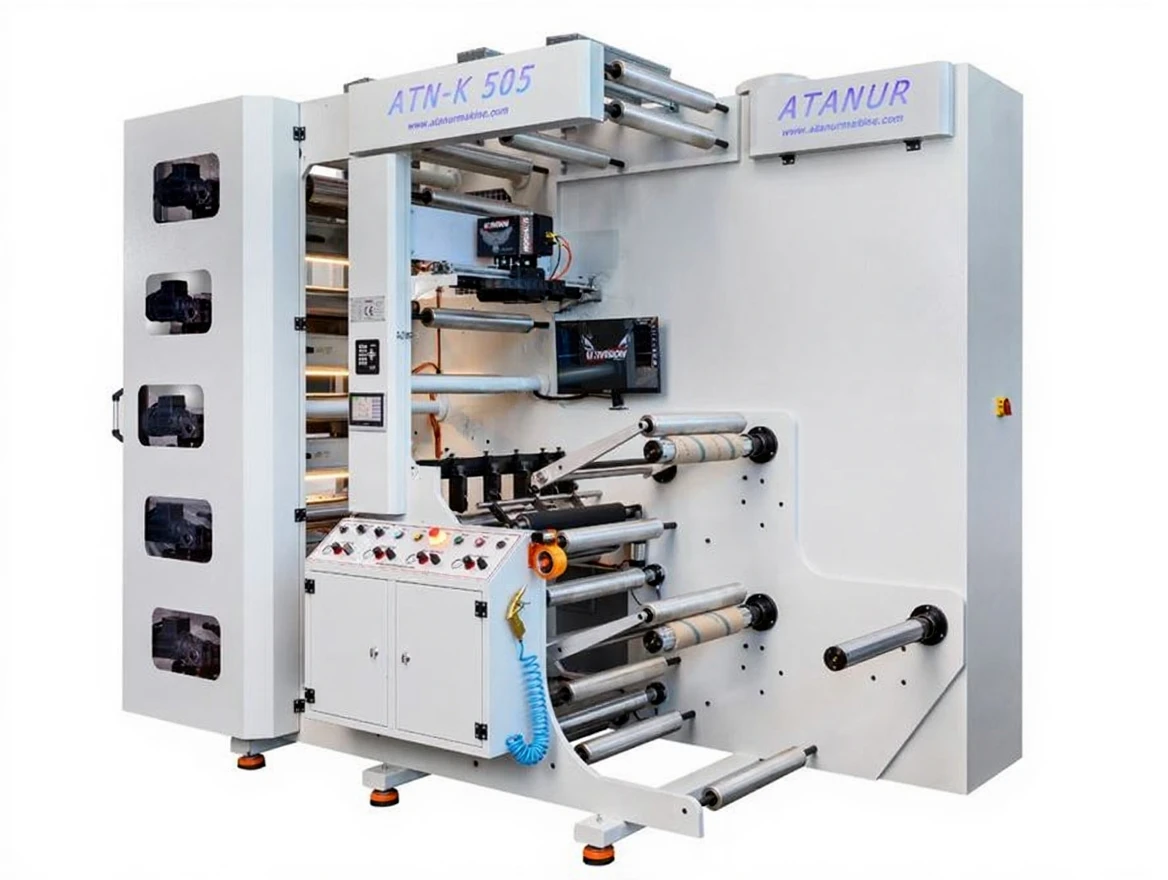

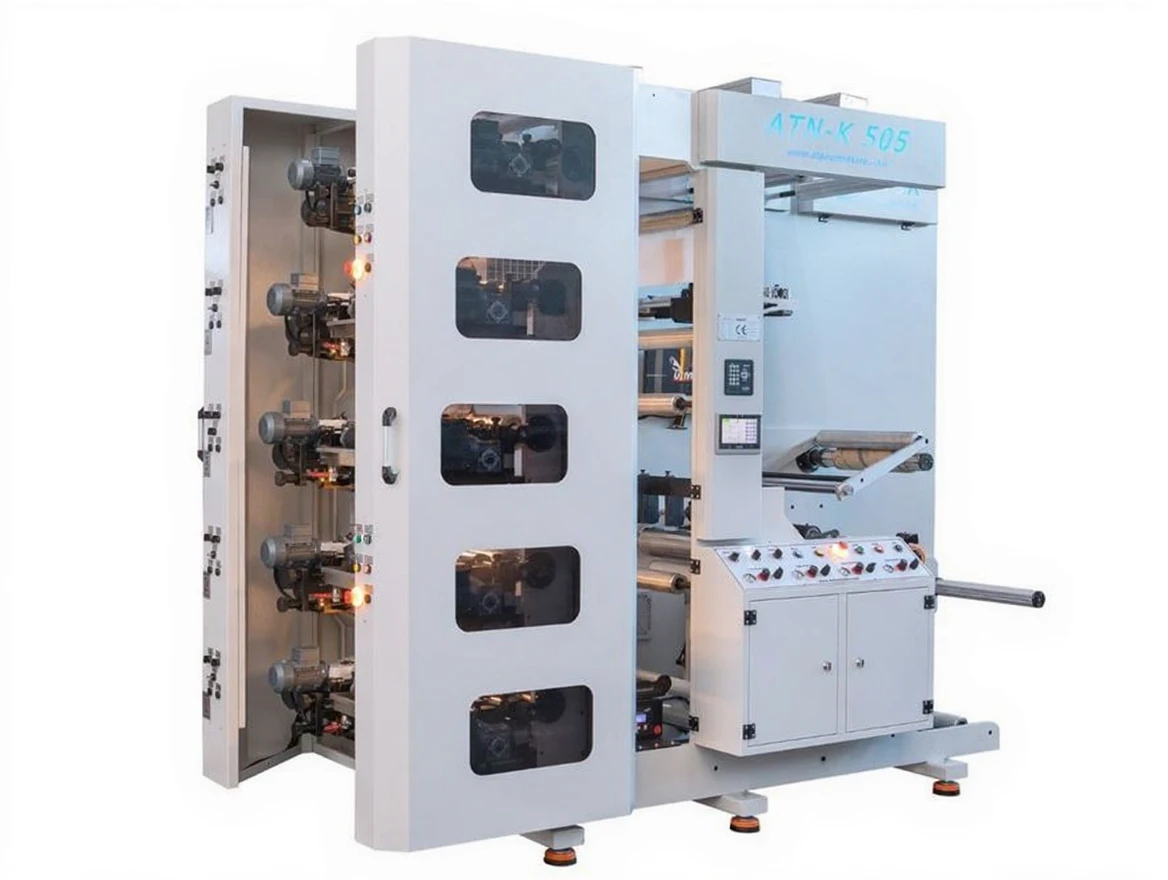

8-Unit Printing Tower Type Flexo Printing Machine

Number of Printing Units: 8 units
Max. Printing Width: [ PHONE HIDDEN ]
Max. Material Width: [ PHONE HIDDEN ]
Printing Capabilities: 8+0

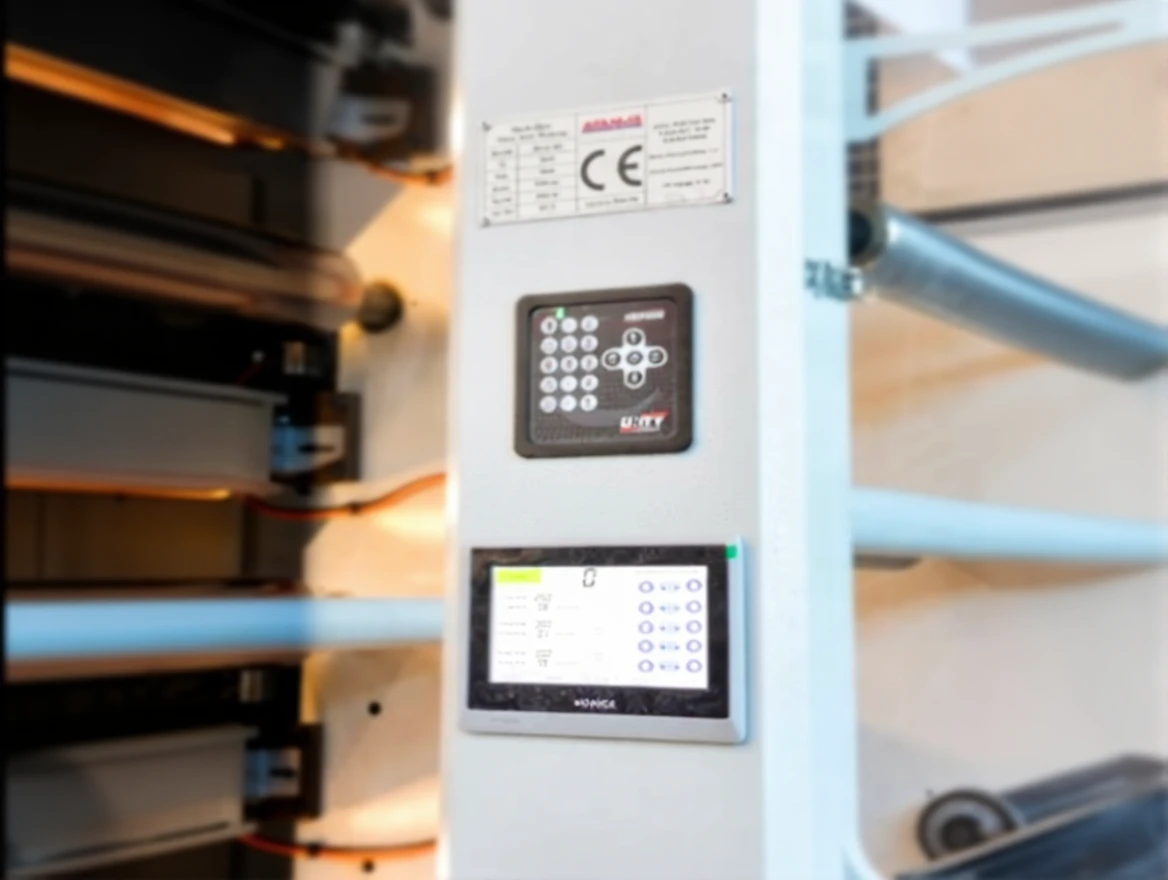

Control Panel: PLC Touch Screen
Camera Control System: Standard
Usable Printing Materials: Paper, OPP, BOPP, HDPL, LDPE, Gelatin, Nonwoven
Loadcell Tension System: Standard
Max. Printing Speed: 150 meters / min
Printing Length: Min: 28 cm, Max: 60 cm

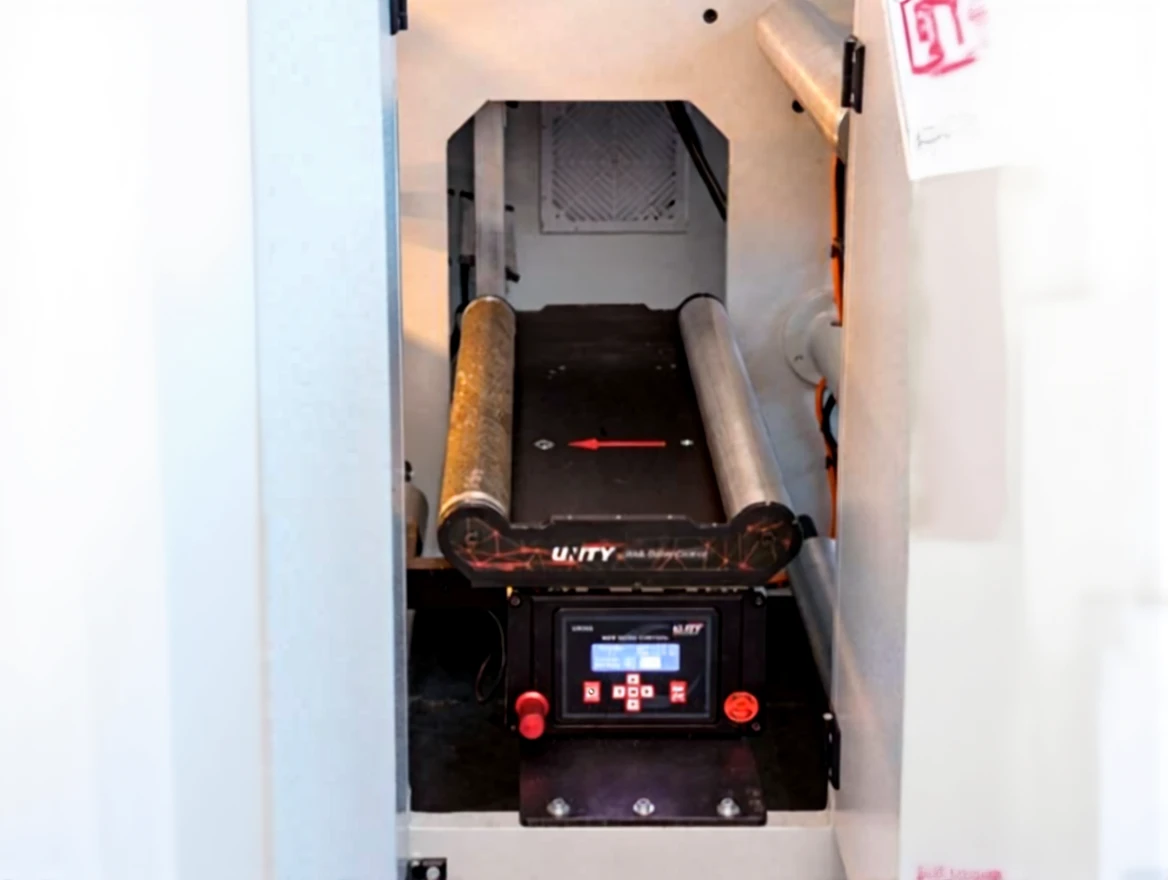

Edge Control System: Automatic
Edge Trimming System: Standard

Solvent Unit

Number of Solvent Units: 1 unit (AC Motor)
Solvent Coil Shaft: 76 mm Air Shaft
Solvent Coil Diameter: Max. 80 cm

Winding Unit

Number of Winding Units: 2 units (AC Motor)
Winding Coil Shaft: 76 mm Air Shaft
Winder Coil Diameter: Max. 60 cm
Weight Roller: Pneumatic System

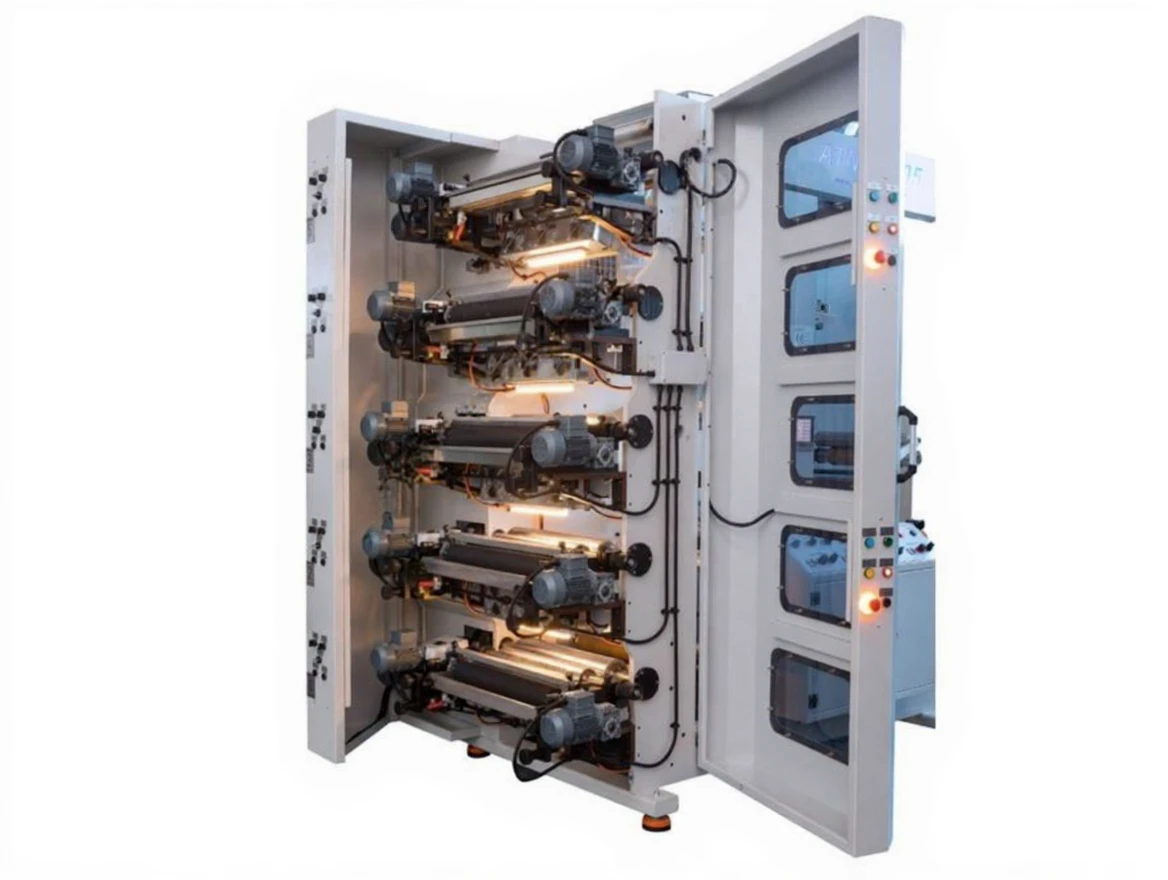

Printing Group

Doctor Blade System: Rubber Roller and Dr. Blade
Drying Unit: Infrared Drying System
Mixer Motor System: 8 units
Output System from Printing: Automatic, 8 units

Roller Group

Pulling Rollers: 2 units (AC Motor)
Plate Roller: 8 units
Ink Roller: Anilox

Installation Requirements

Air Pressure: 8 Bar
Voltage: 380 V, 50 Hz
