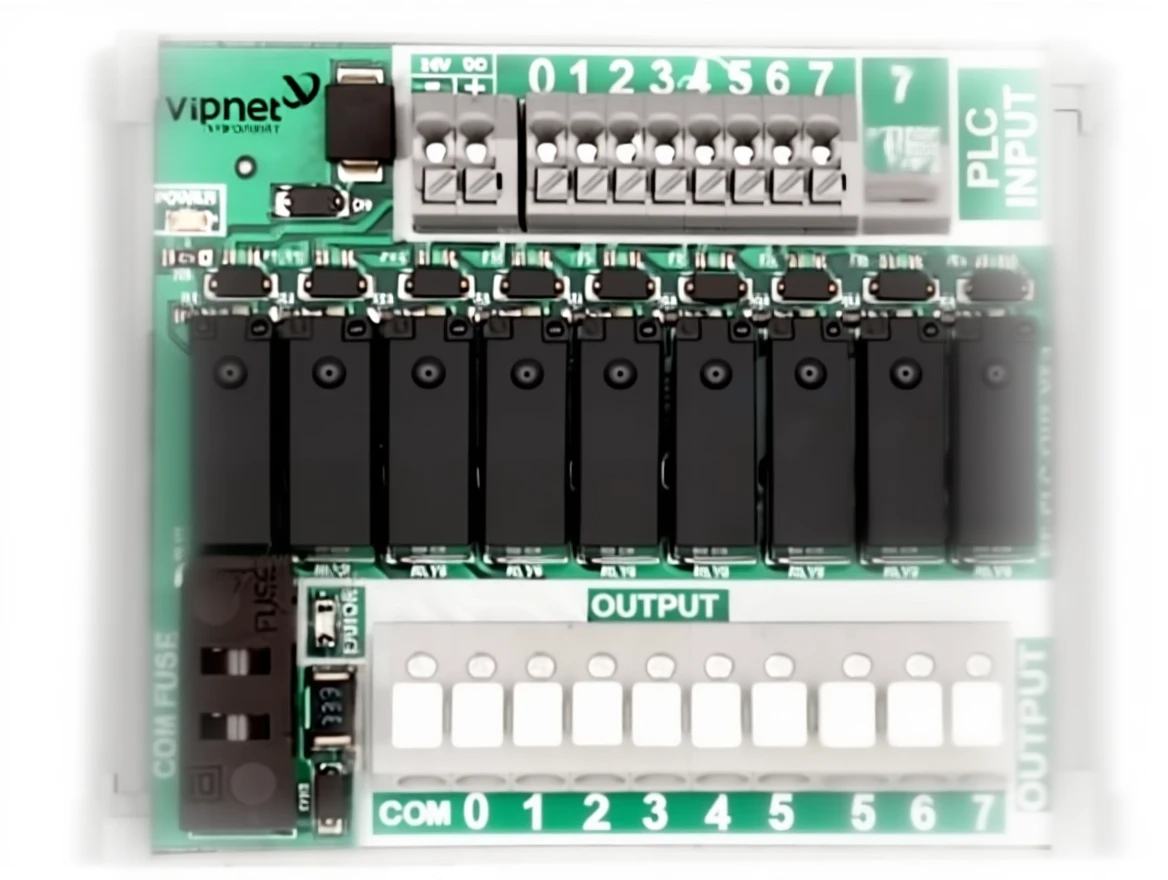

8-Way Plc Output Card
| Brand | Vipnet Elektronik |
|---|---|
| Model Type |
VP-PLC-OUT-V5.0 |
Description
• The PLC Output card activates the outputs of the PLC through an independent relay providing full isolation.
• It acts as an isolator between low power and high control power.
• Quick conductive connection of the terminal point with a screwdriver due to spring connection.
• Relay status can be monitored with LEDs dedicated to relays.
• Relay groups and 24V DC power input are protected by a 2A fuse.
• COM terminal is common in relay outputs.
• Suitable for smart home systems, remote control systems, industrial systems, and hobby projects.
• It acts as an isolator between low power and high control power.
• Quick conductive connection of the terminal point with a screwdriver due to spring connection.
• Relay status can be monitored with LEDs dedicated to relays.
• Relay groups and 24V DC power input are protected by a 2A fuse.
• COM terminal is common in relay outputs.
• Suitable for smart home systems, remote control systems, industrial systems, and hobby projects.
|
Specifications: |
|
|
Product Code |
VP-PLC-OUT-V5.0 |
|
Operating Voltage |
24V DC |
|
Control Voltage |
24V DC |
|
Input Pin Socket |
5.08mm Spring Terminal |
|
Number of Output Pins |
8 |
|
Relay Contact Voltage (NO) |
5A-250VAC 5A-30VDC |
|
Relay Contact Voltage (NC) |
3A-250VAC 3A-30VDC |
|
Relay Output-Connection Terminals |
5.08mm Spring Terminal |
|
Nominal Cable Section Area |
2.5 mm² |
|
Operating Temperature |
-40 °C / 80 °C |
|
Protective Element |
Fuse (2A) |
|
Output Signal Monitoring |
LED |
|
Mounting Type |
DIN-Rail Mounting |
