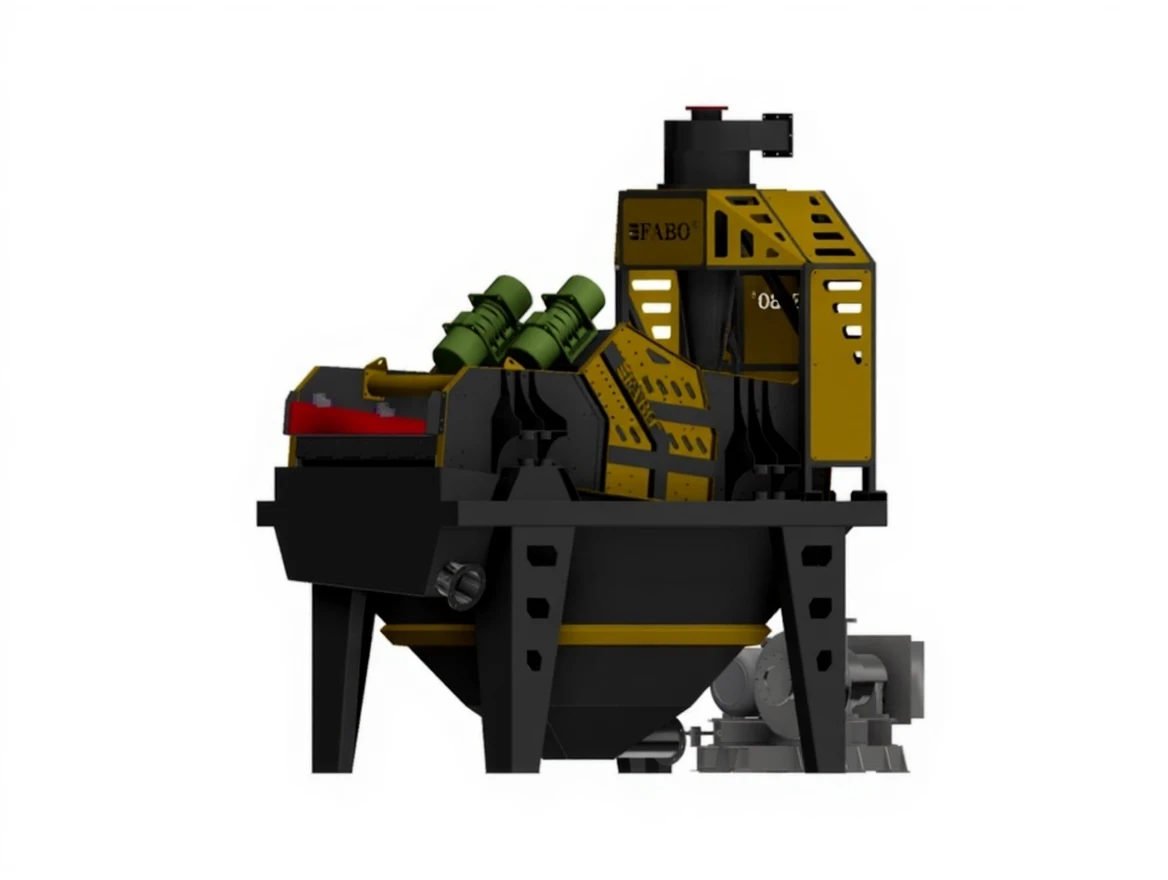

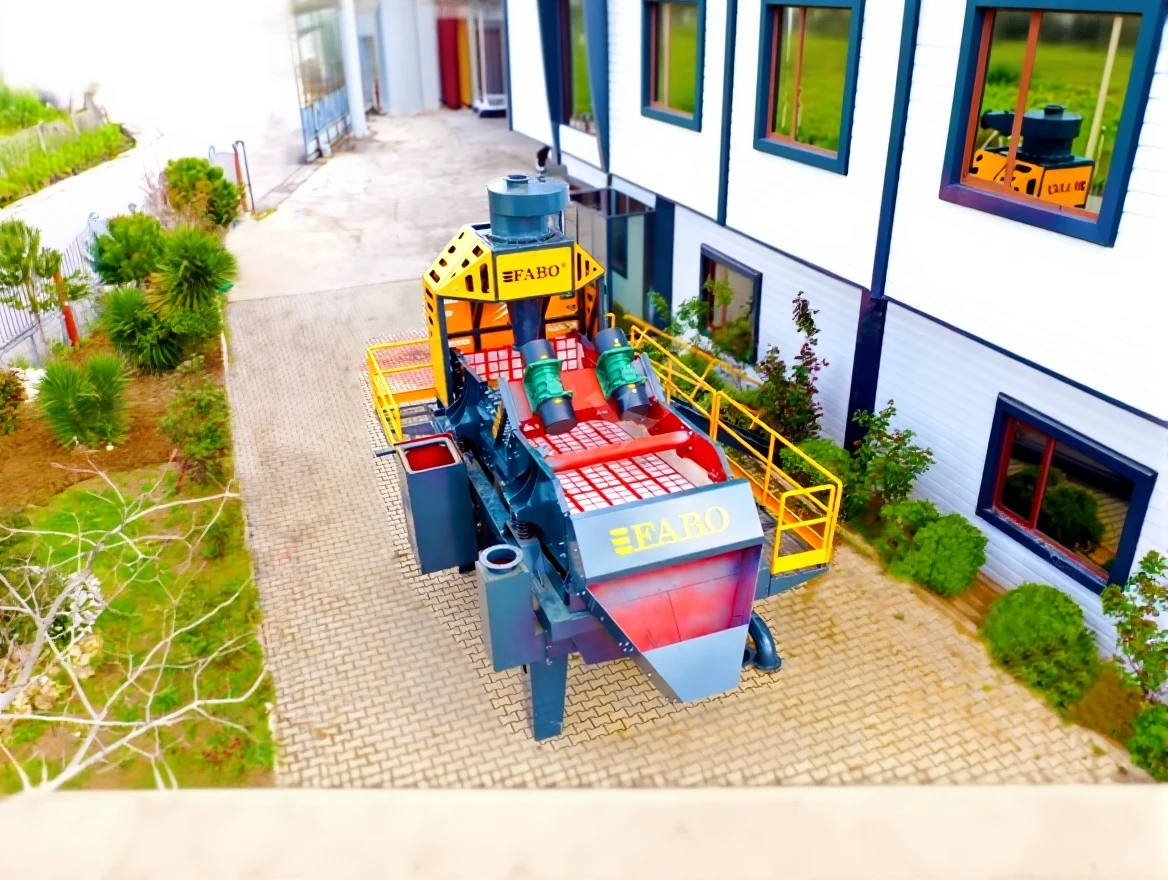

80-120 Ton / Hour Dewatering Screen

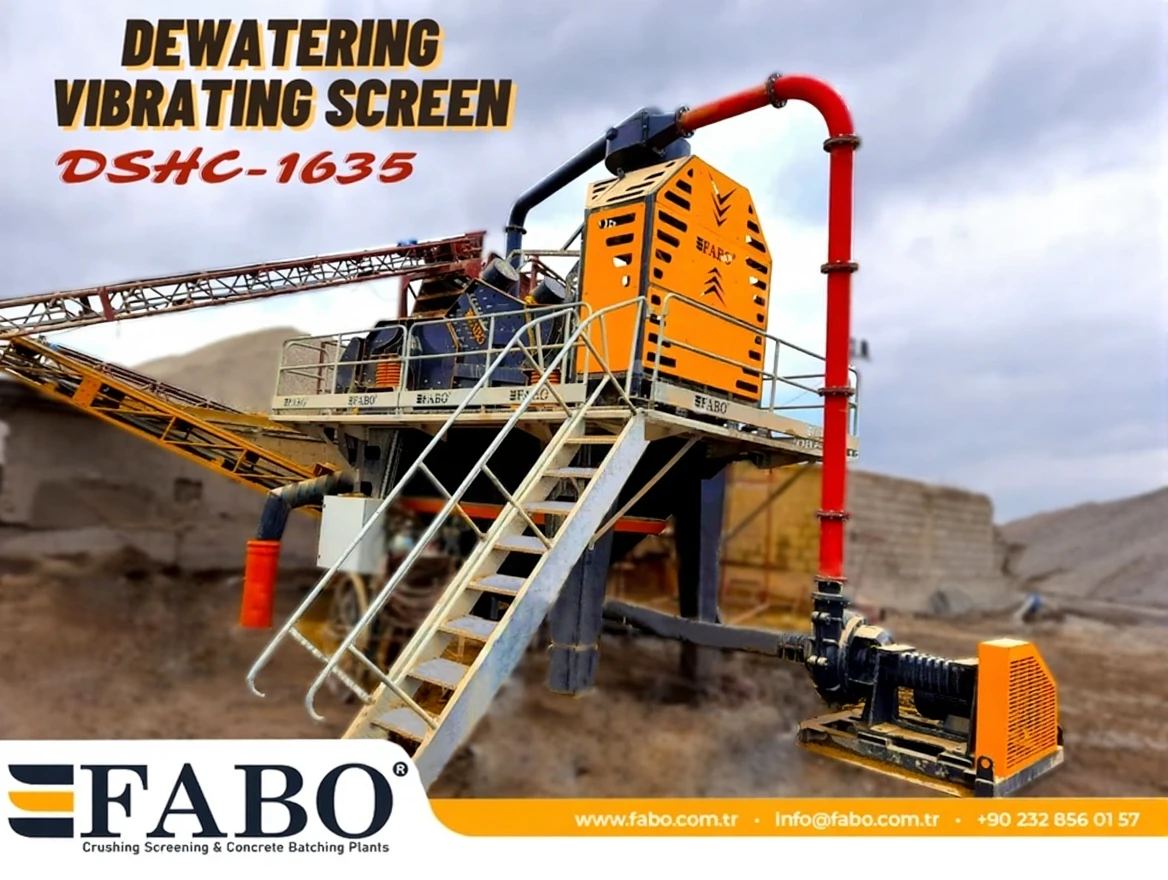

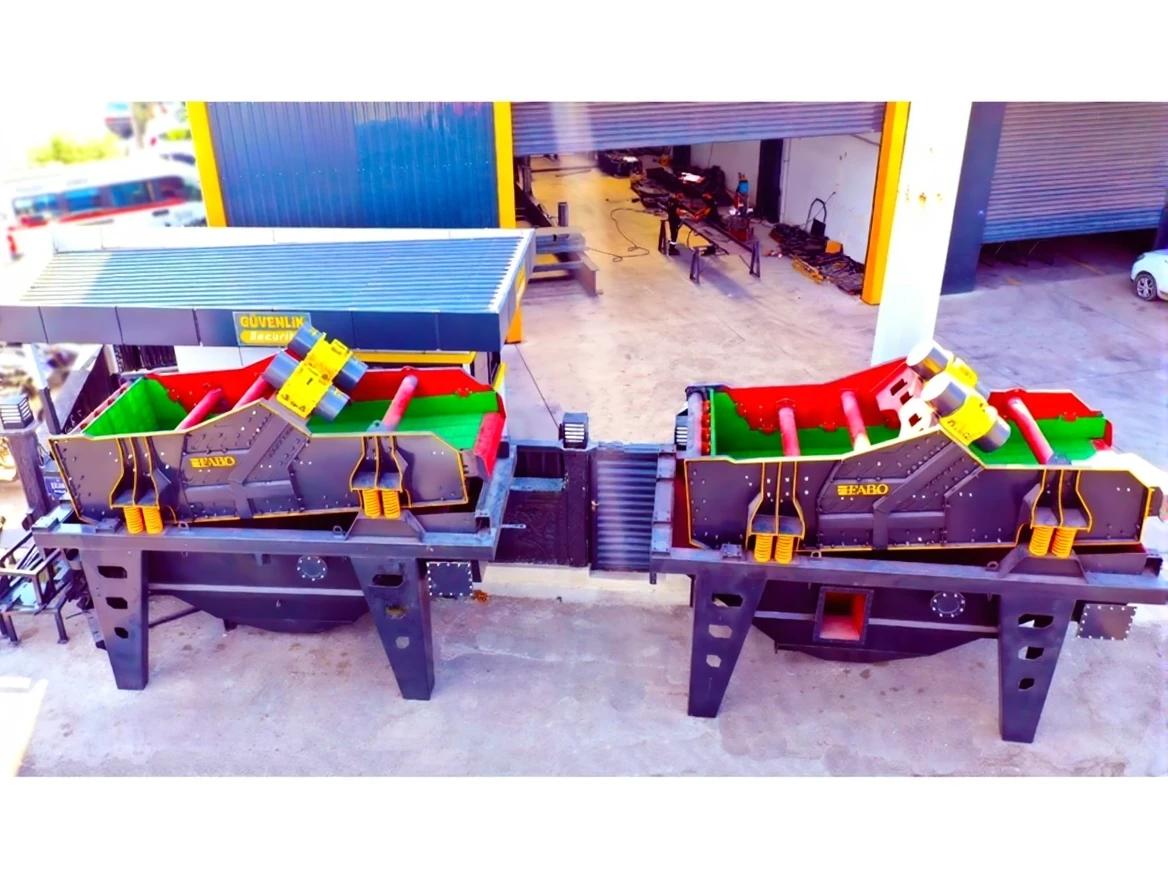

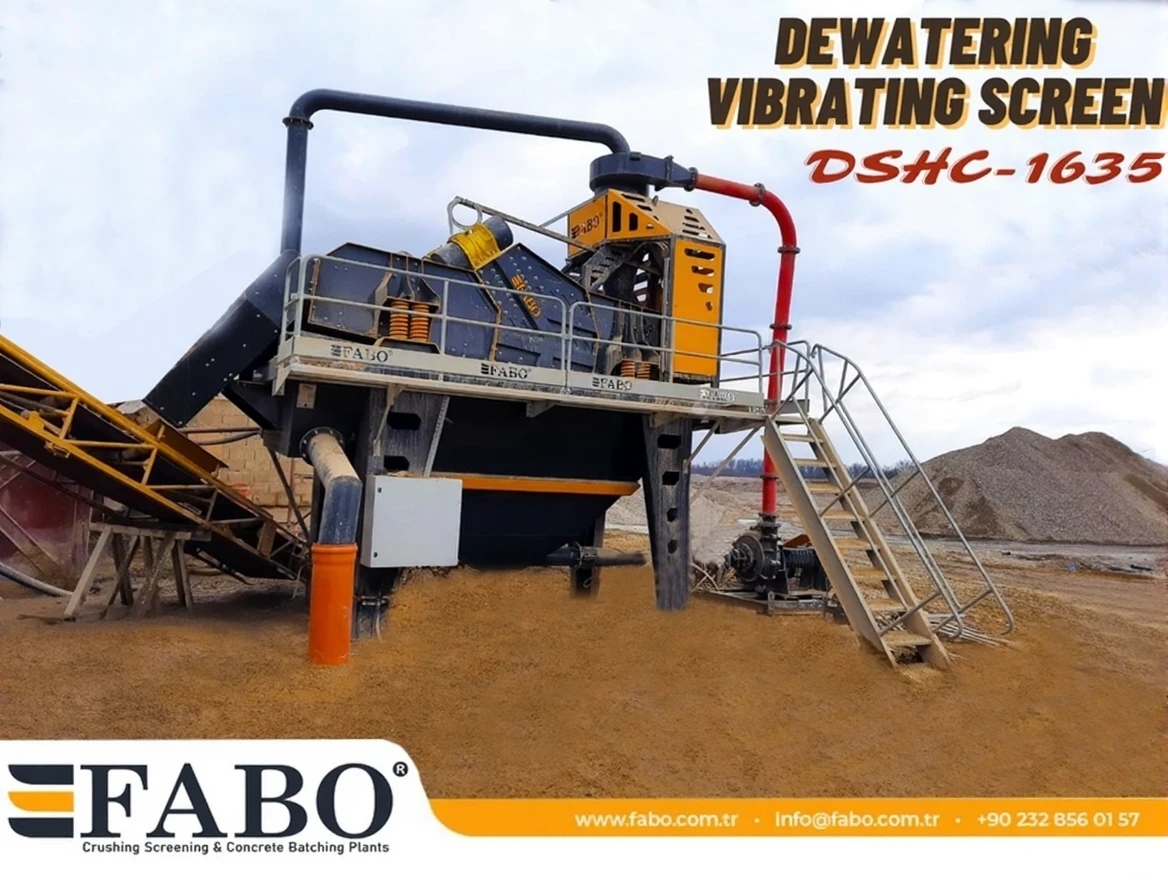

Fabo Makina DSHC-1635 80-120 Ton / Hour Dewatering Screen

* All of our products are produced with care and are covered by a 1-year warranty!

* Installation and Operator Training will be provided free of charge.

Concrete required for the construction and building sectors; It is a component obtained by mixing sand, cement and water in certain proportions. Sand, which is the basic material required for cement making, is produced in stone crushing and screening facilities, also called crusher plants. In order for the sand obtained by crushing large-sized stones to be of quality that can be used in cement production, it must meet certain standards.

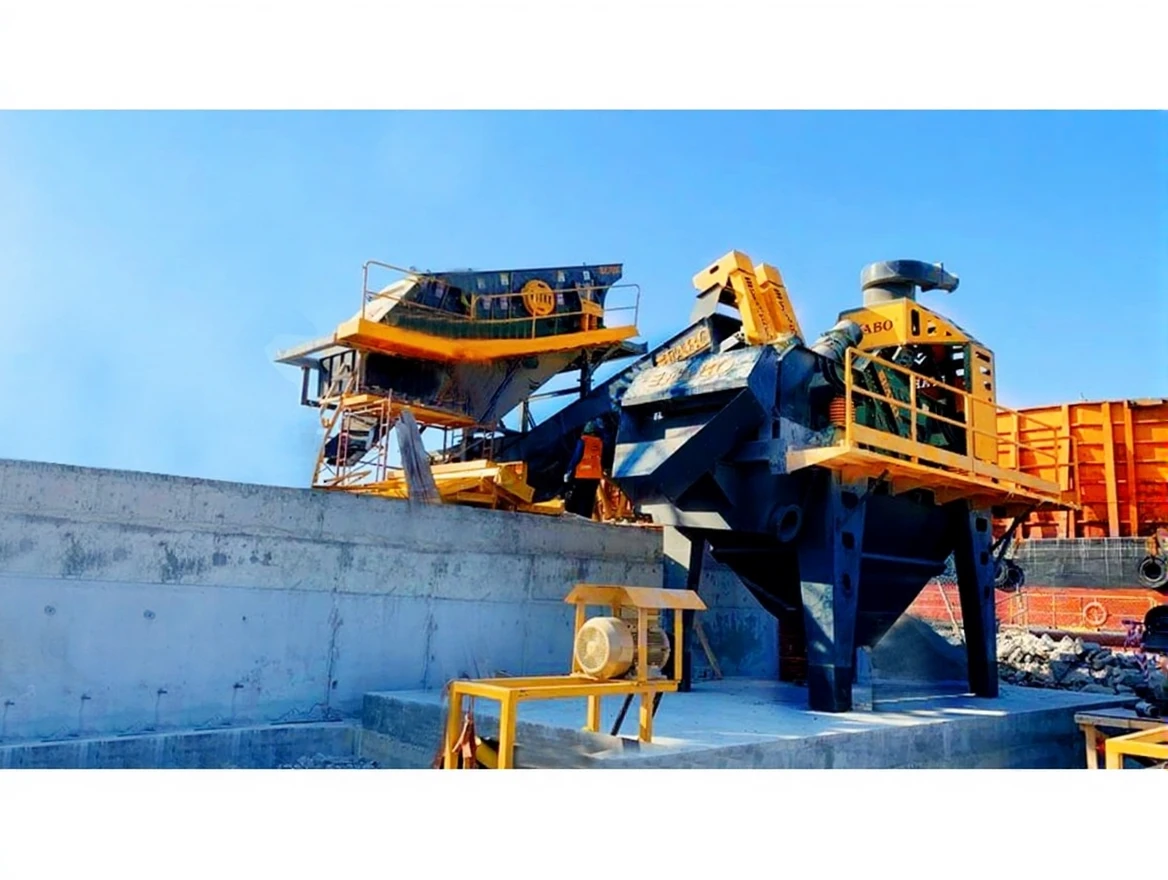

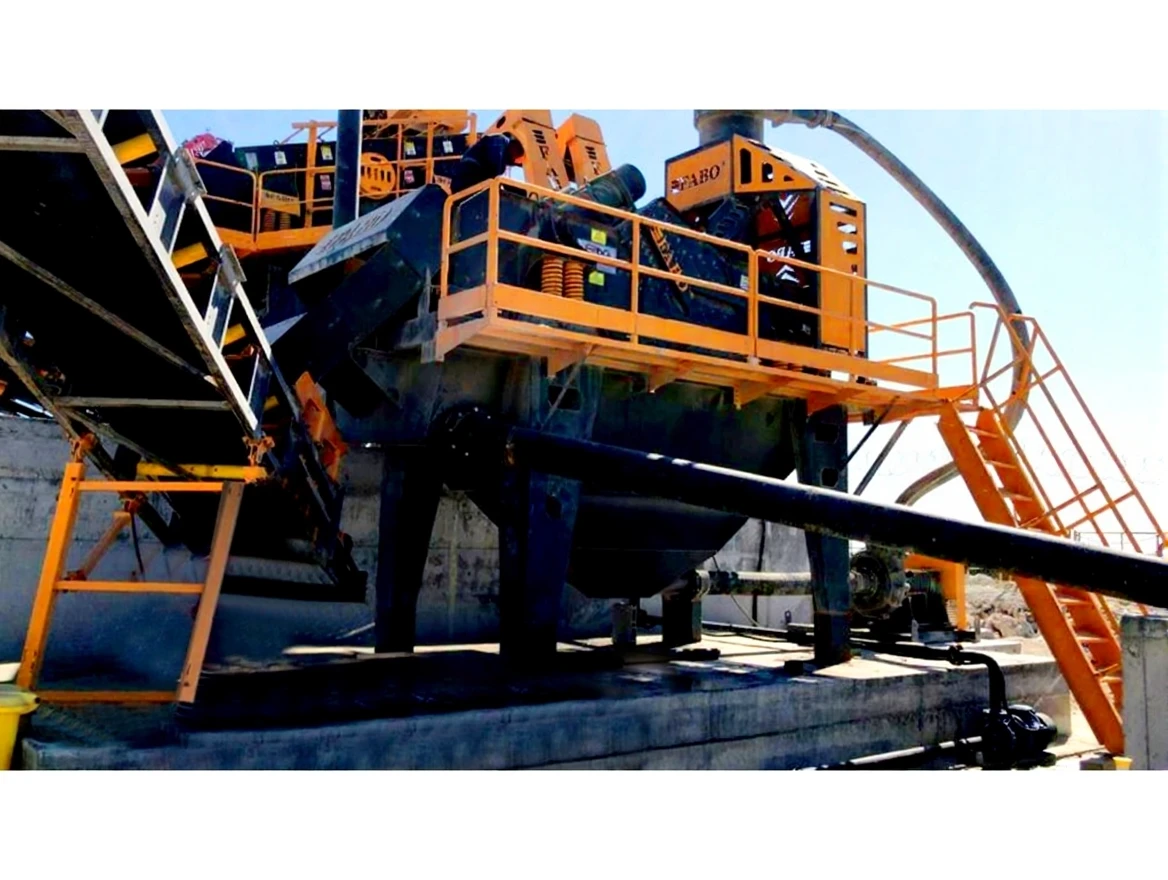

In order to meet these standards, the sand must pass through some stages. In addition to breaking the sand suitable for concrete making into small pieces, it also needs to be sifted and cleaned. Here, the equipment that increases the quality of the sand in crusher plants by drying it after washing is the dewatering screen.

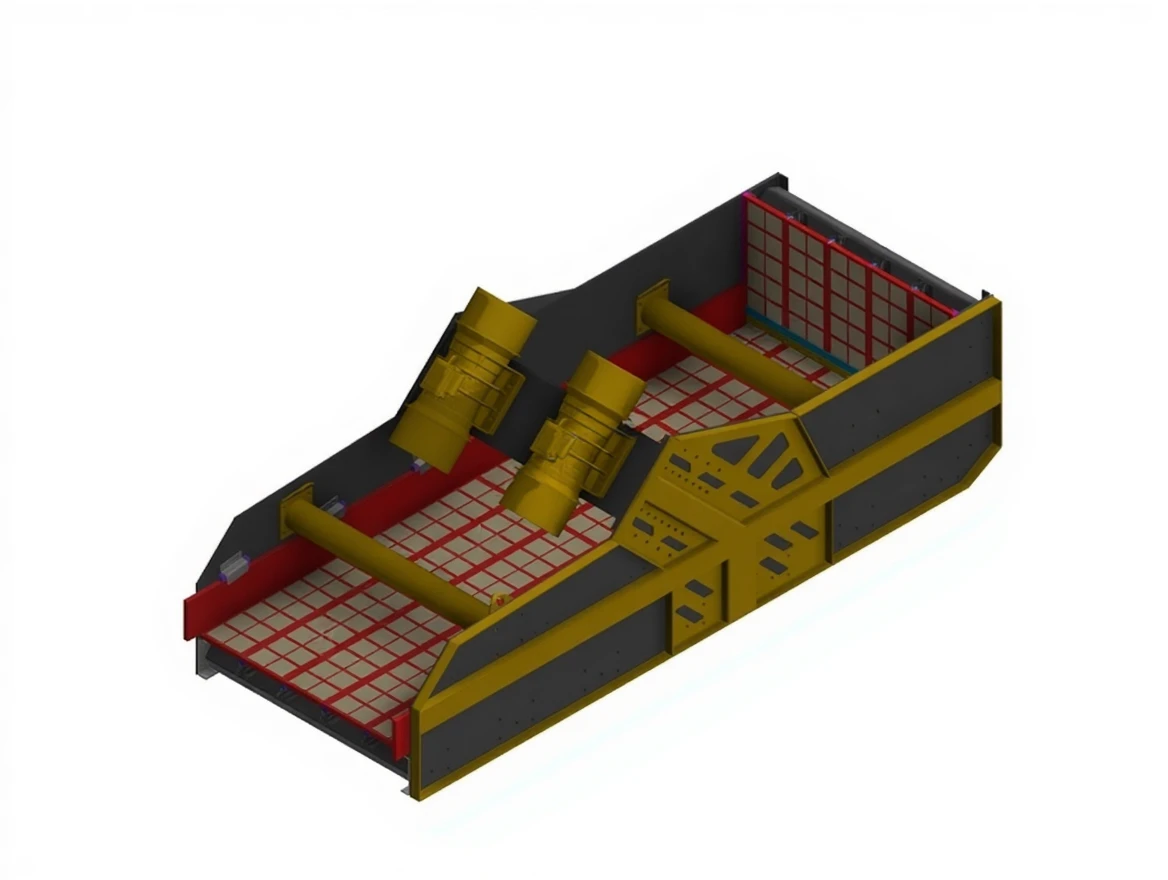

TECHNICAL SPECIFICATIONS:

– Capacity: 80-120 T/Hour

– Size: 1650 x 3500mm

– Sieve Platforms: 1 Layer 0.250 micron Polyurethane Sieve

– Curtain Surface: 5.60 m2

– Screen Power/Spin: 2 x 7.5 kW 1000 rpm Vibro Motor

– Sieve tilt angle: 8°

– Stroke: 6-9 mm

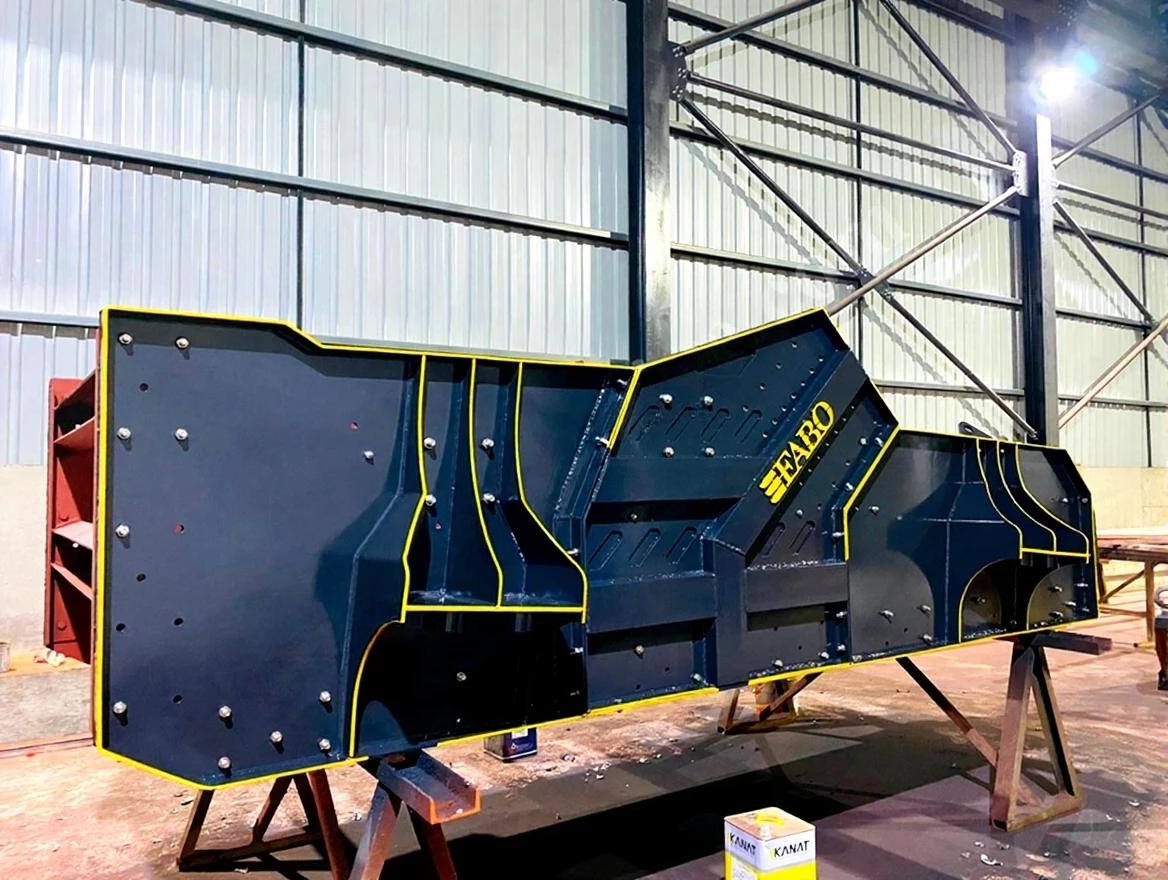

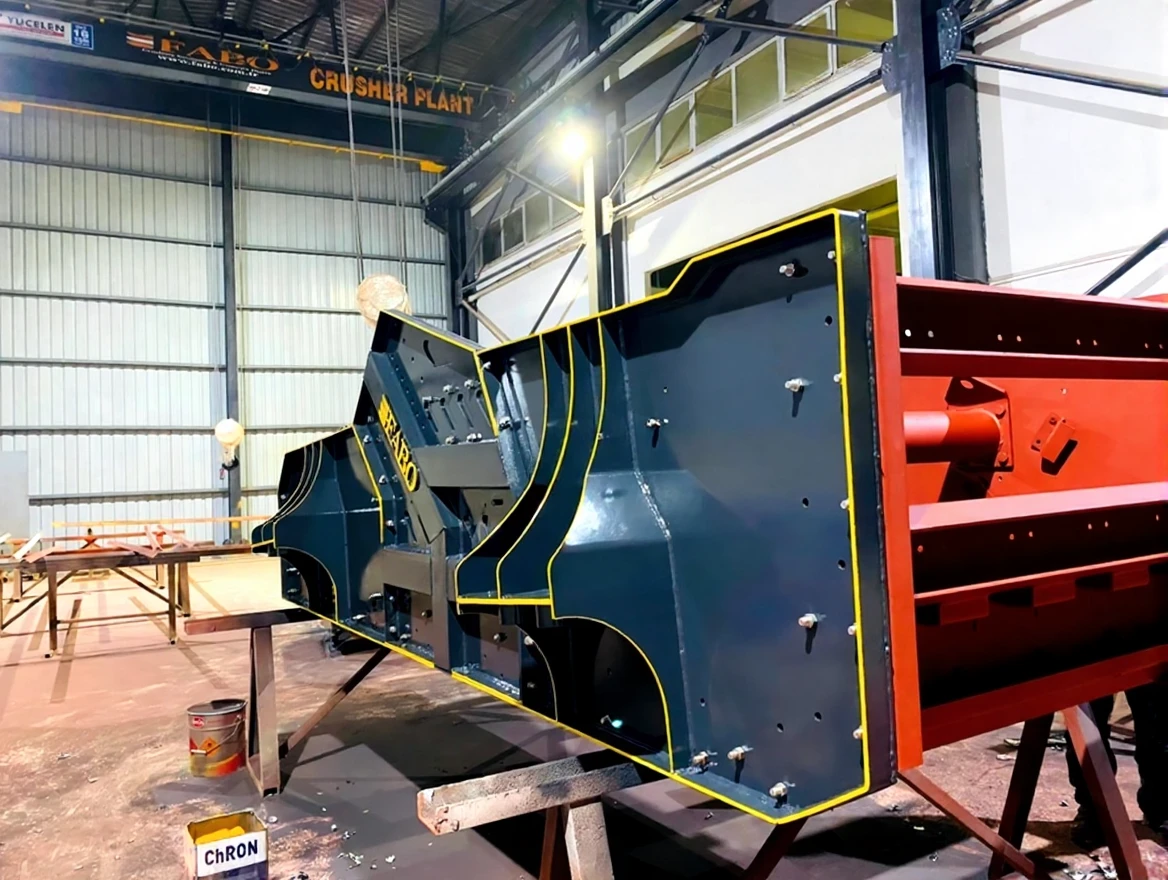

– Screen Side Sheet: ERD A1 Quality 12mm

– Drain pipe: 219 x 10 mm plumbing pipe

– Weight: 7500 kg
