80 Kg/S Semi-Automatic Brittle Bar Production Line

Semi-Automatic Brittle Bar Production Line

We produce semi-automatic or automatic brittle bar production lines depending on the production capacity.

The design of this line is specifically made for the production of products ready for packaging. The products include varieties such as sunflower seeds, pistachio brittle, hazelnut brittle, sesame brittle, puffed rice brittle, corn brittle, and soft brittle.

Contents of the Line:

• Roasting Oven: A specially designed oven.
• Syrup Cooking Kettle: A kettle used for preparing the syrup that provides the structure of the brittle.
• Mixer: A mixer used for homogenously mixing the ingredients.

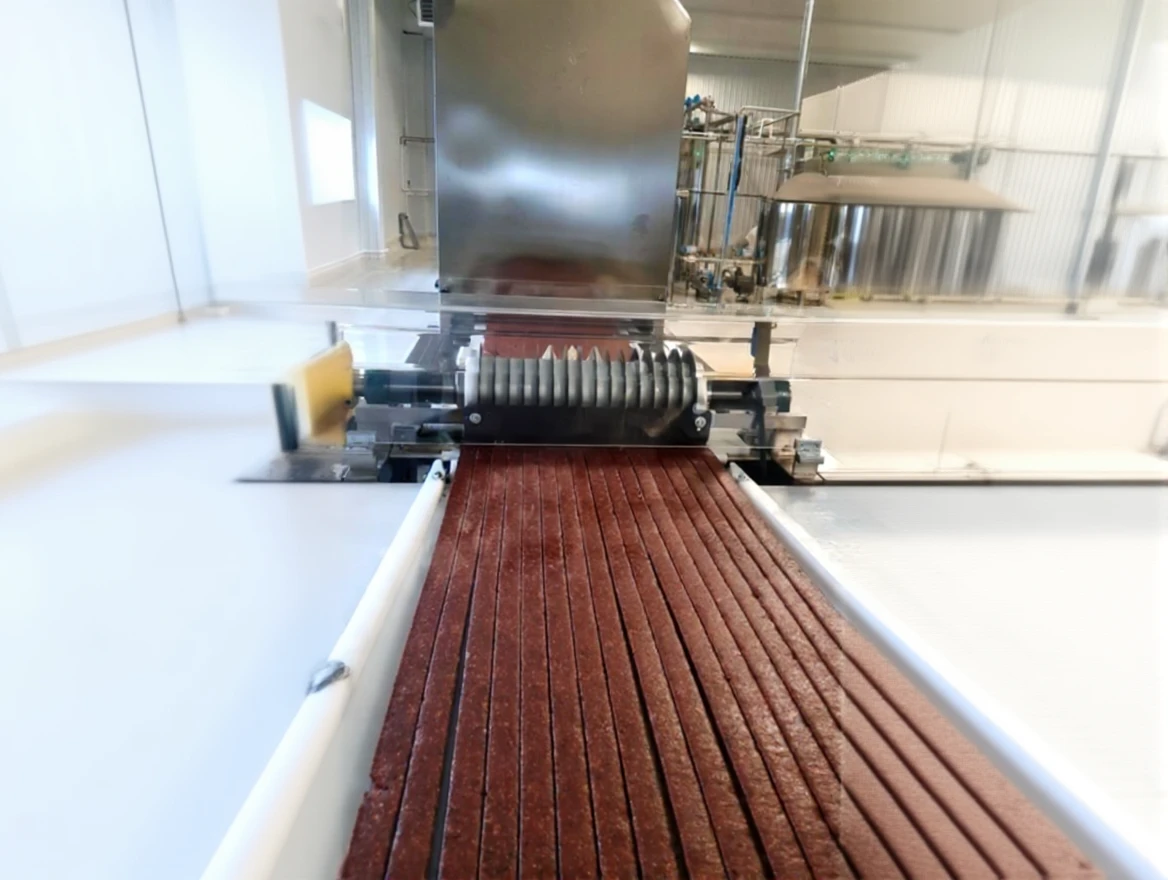

• Cutting Line: A cutting line that allows the brittle to be cut into desired sizes.

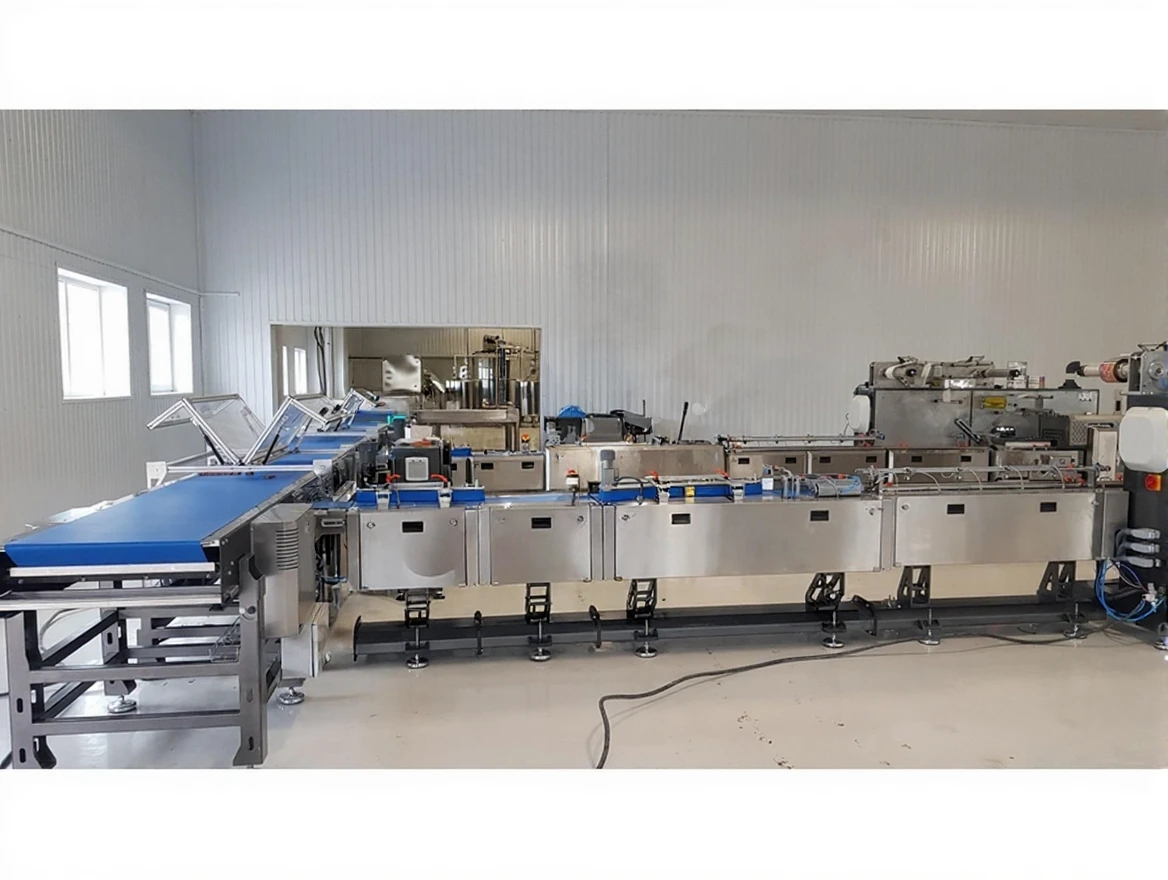

• Packaging Line: A packaging line used for packing the products.
• Optional Automatic Raw Material Feeding Systems: Optional systems that provide automatic raw material feeding.

All equipment necessary for the production of these products is designed to optimize the production process of brittle bars and increase efficiency.

Brittle bar production lines enable the fast and effective production of high-quality products. They offer suitable solutions for both small-scale businesses and large production facilities.

Technical Specifications:

Semi-Automatic Line 80 kg/S

Shaping Line

• Energy Type: Electricity
• Installed Capacity, kW: 20
• Power Consumption, kW: 13
• Overall Dimensions (Length, Width, Height), mm: 10500x1200x1400
• Number of Service Personnel: 3

Kitchen

• Energy Type: Electricity, Steam, Gas
• Installed Capacity, kW: 25
• Power Consumption, kW: 15
• Overall Dimensions (Length, Width, Height), mm: 4000x3000x1200
• Number of Service Personnel: 1

Packaging

• Energy Type: Electricity
• Installed Capacity, kW: 8
• Power Consumption, kW: 5
• Overall Dimensions (Length, Width, Height), mm: 7500x1000x1200
• Number of Service Personnel: 2
