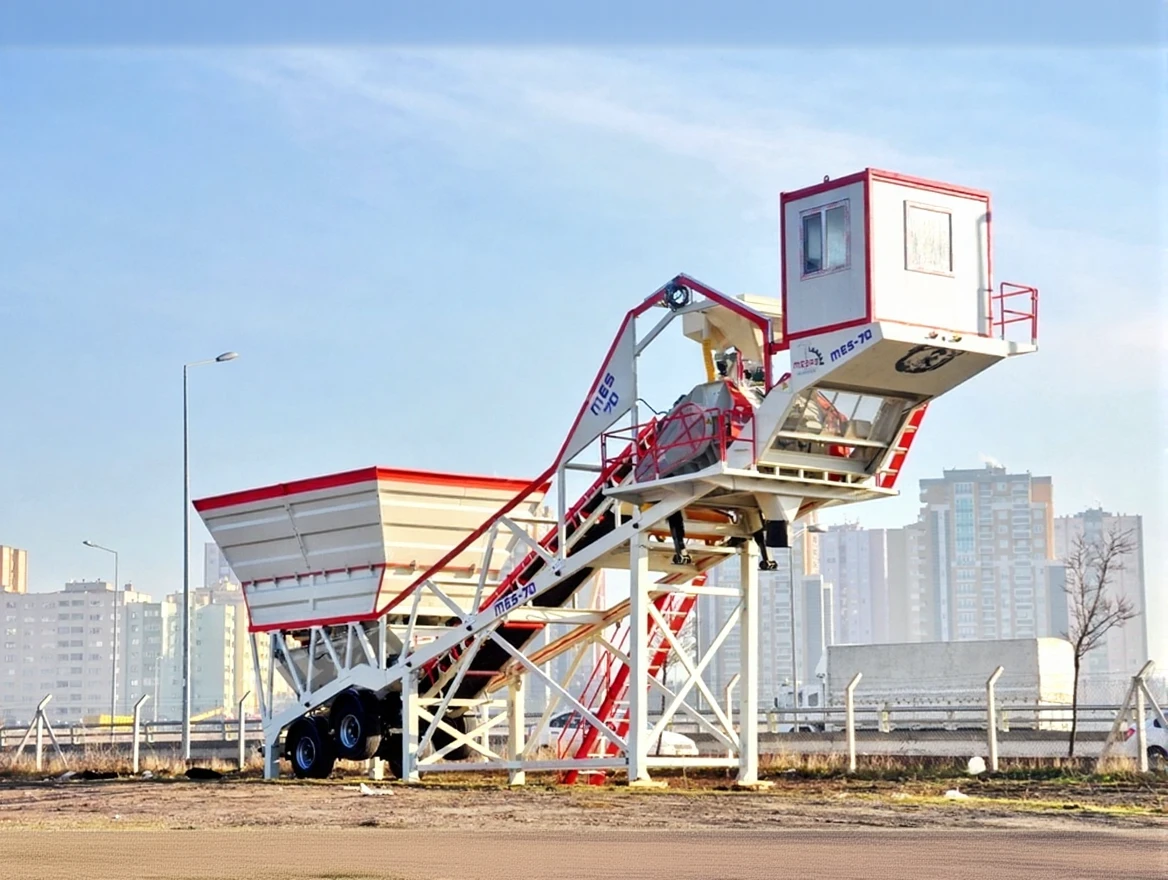

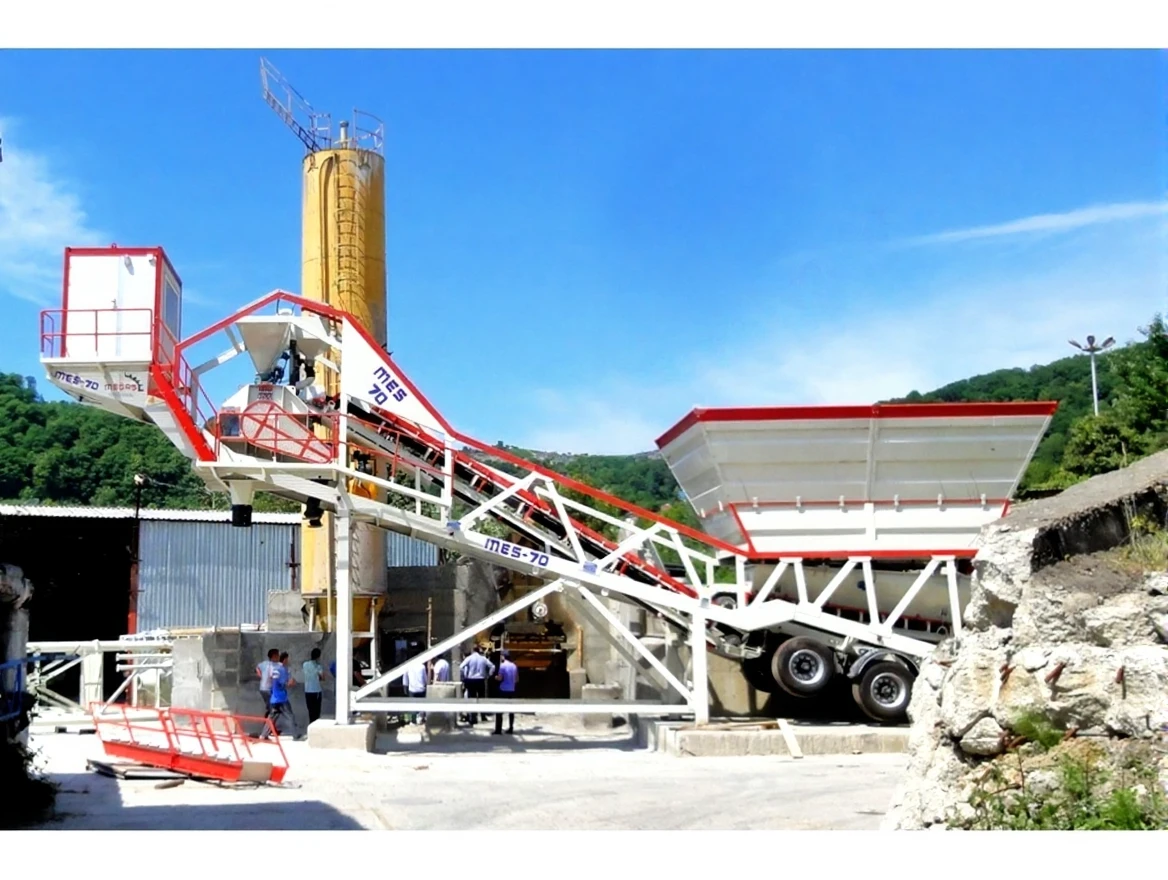

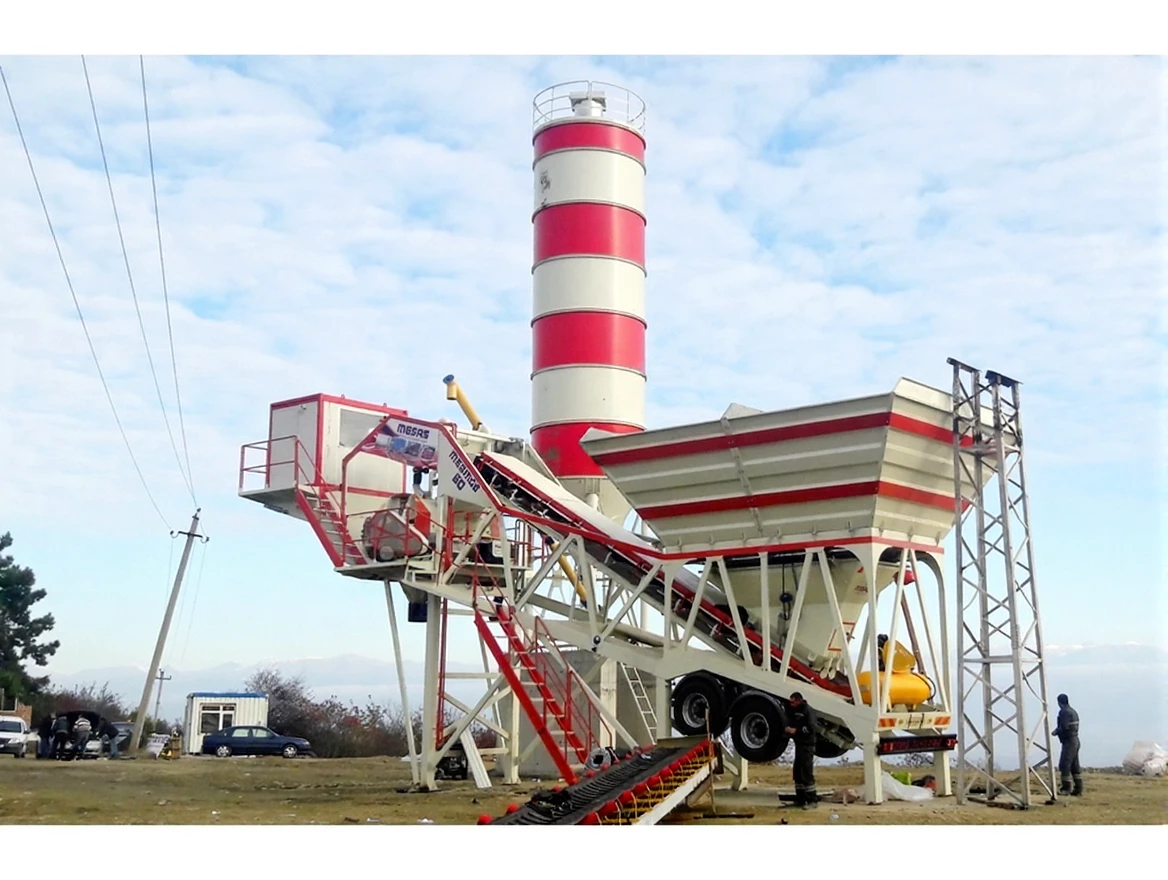

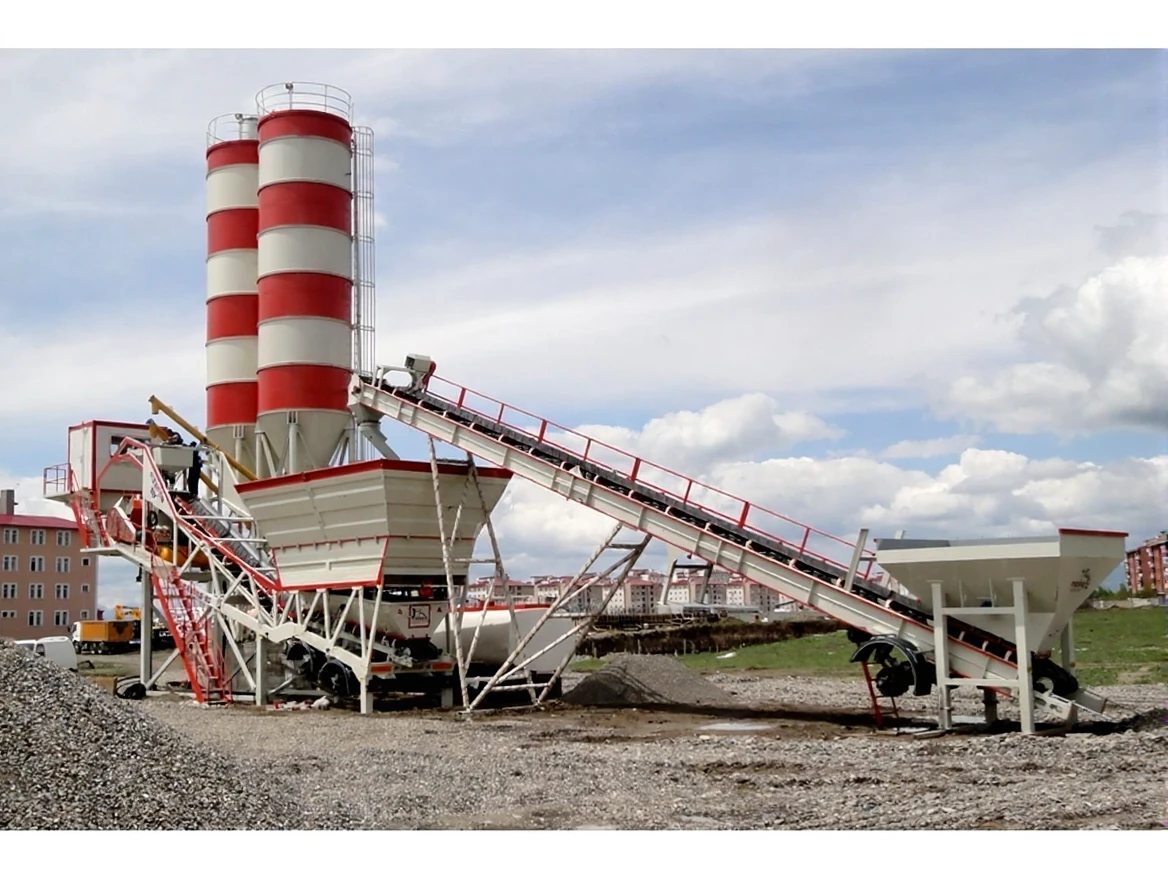

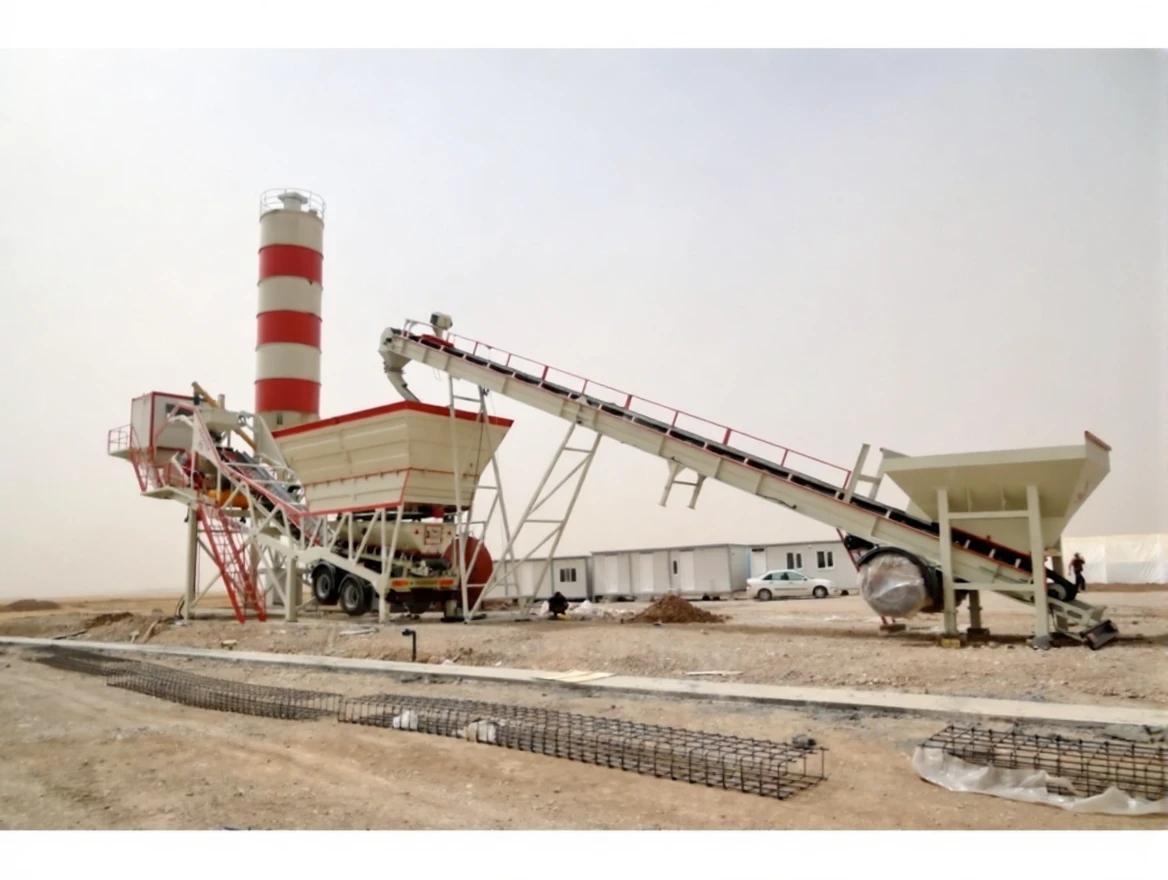

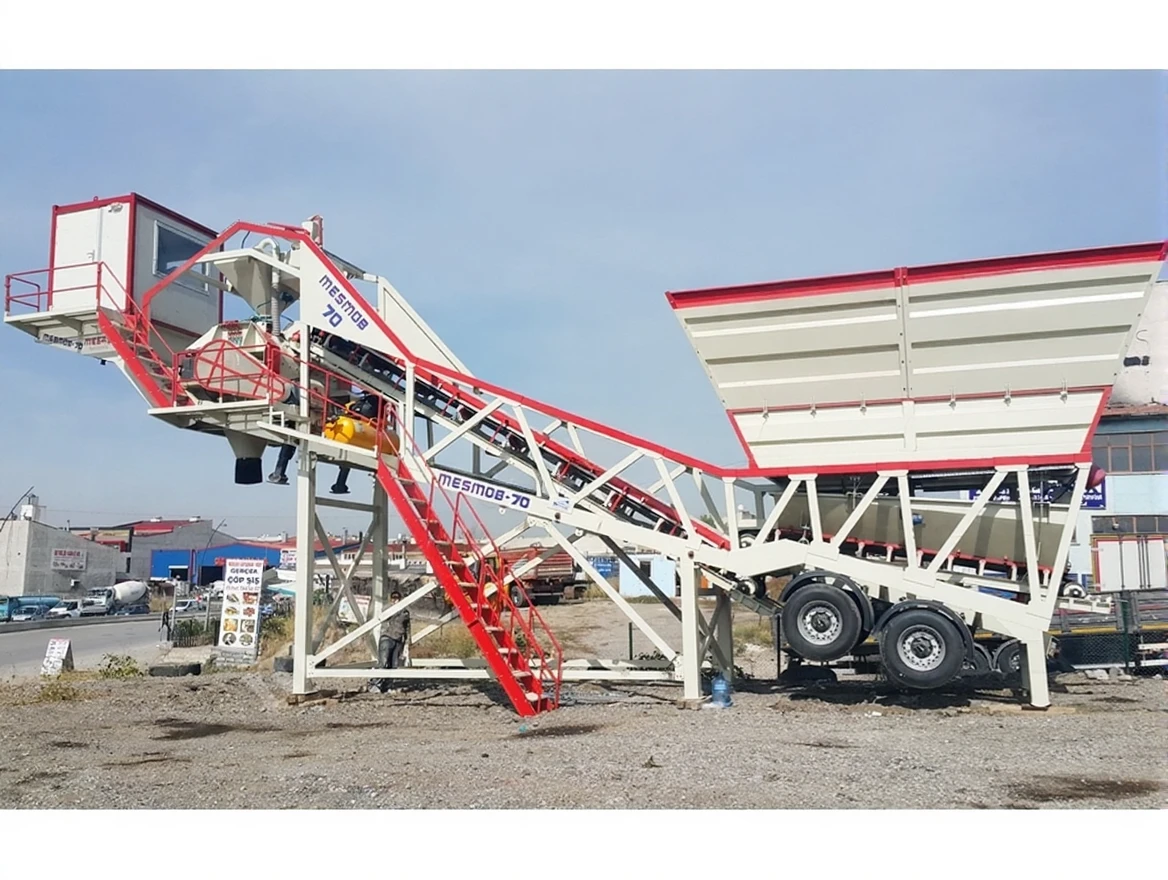

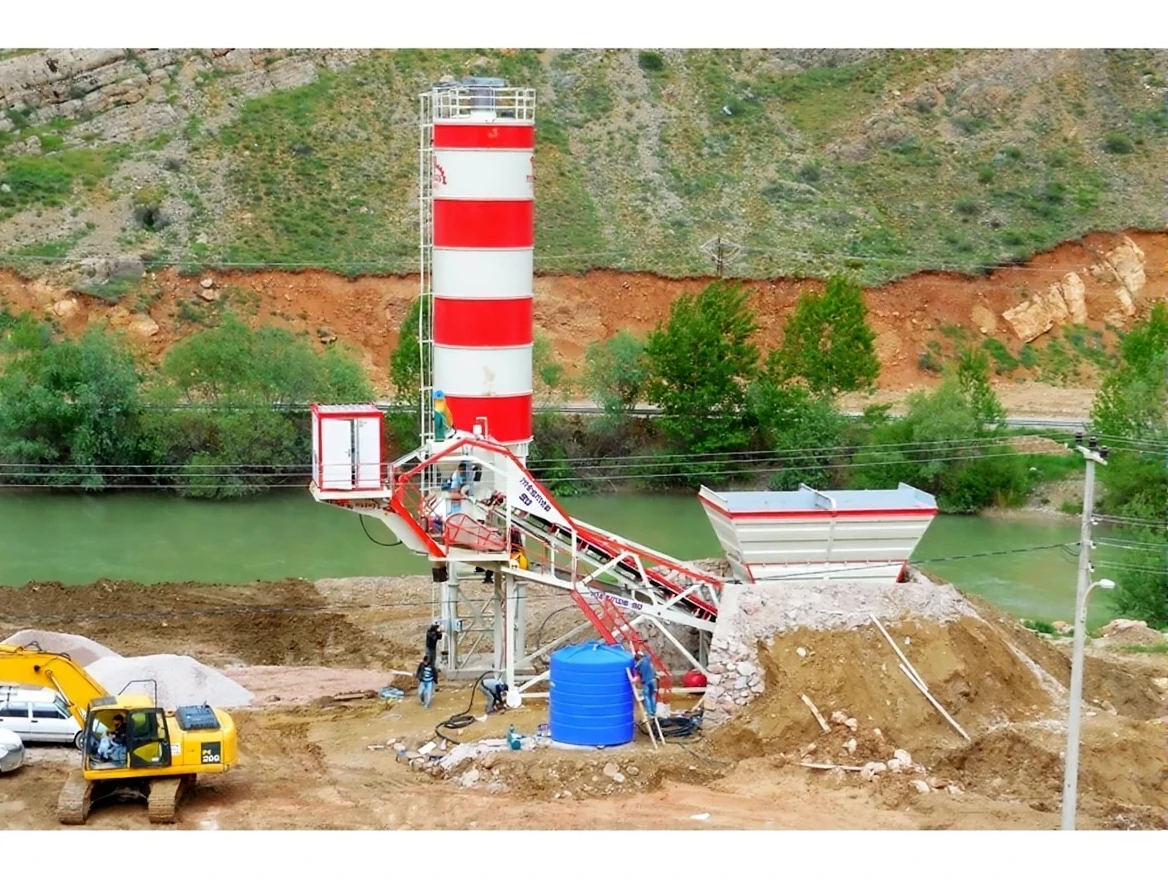

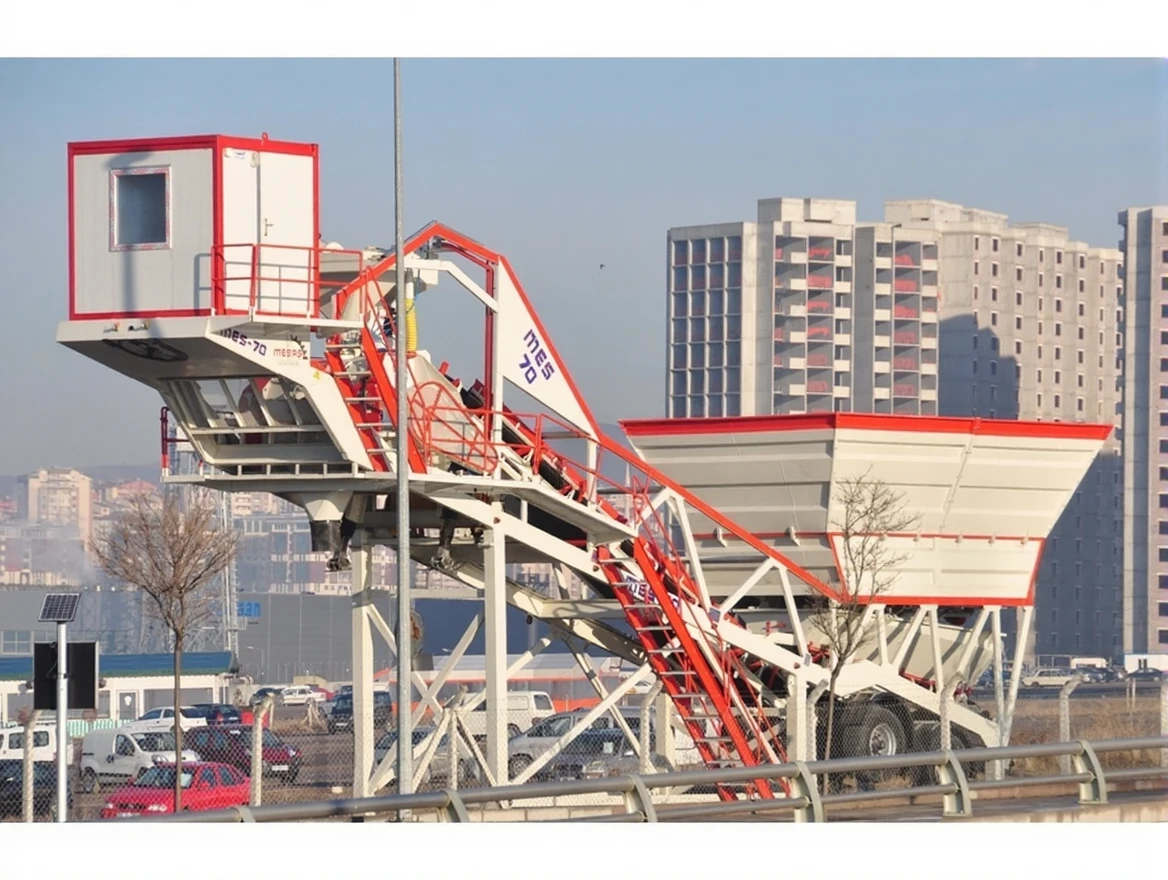

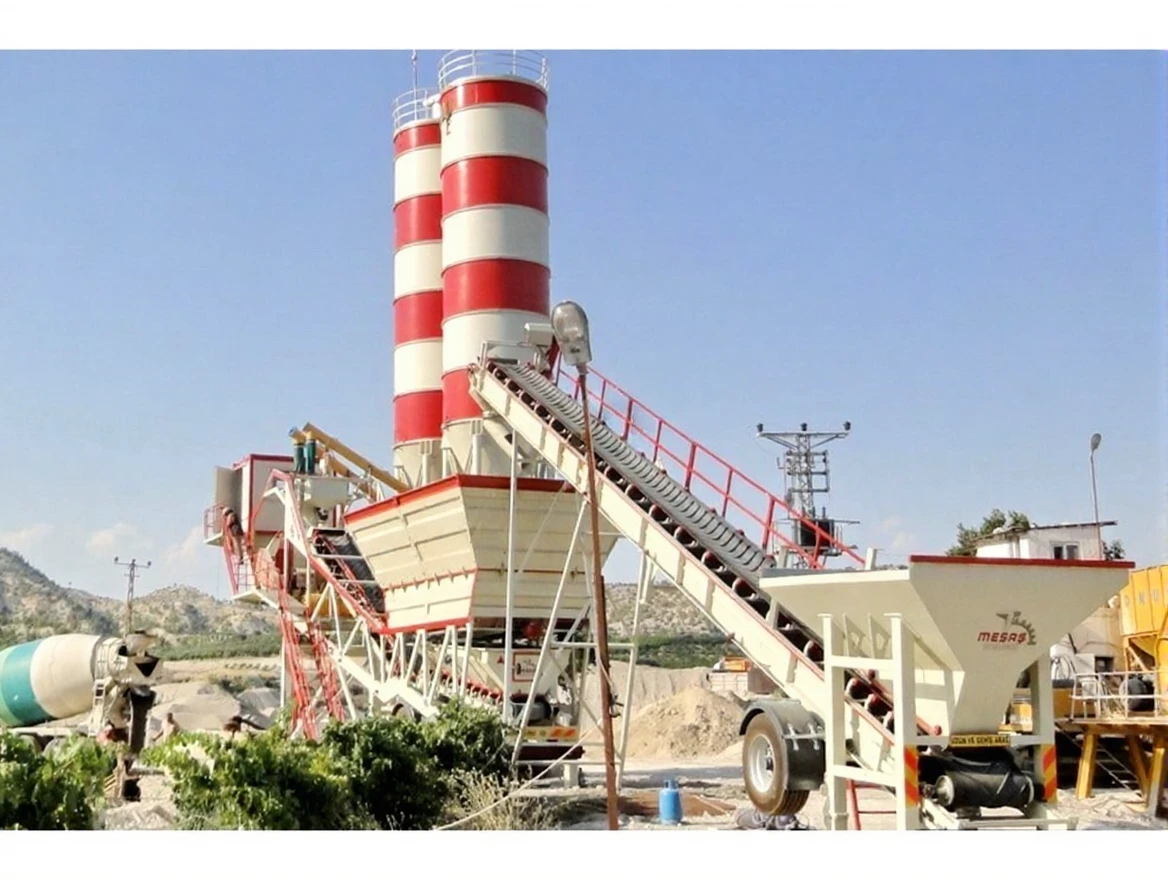

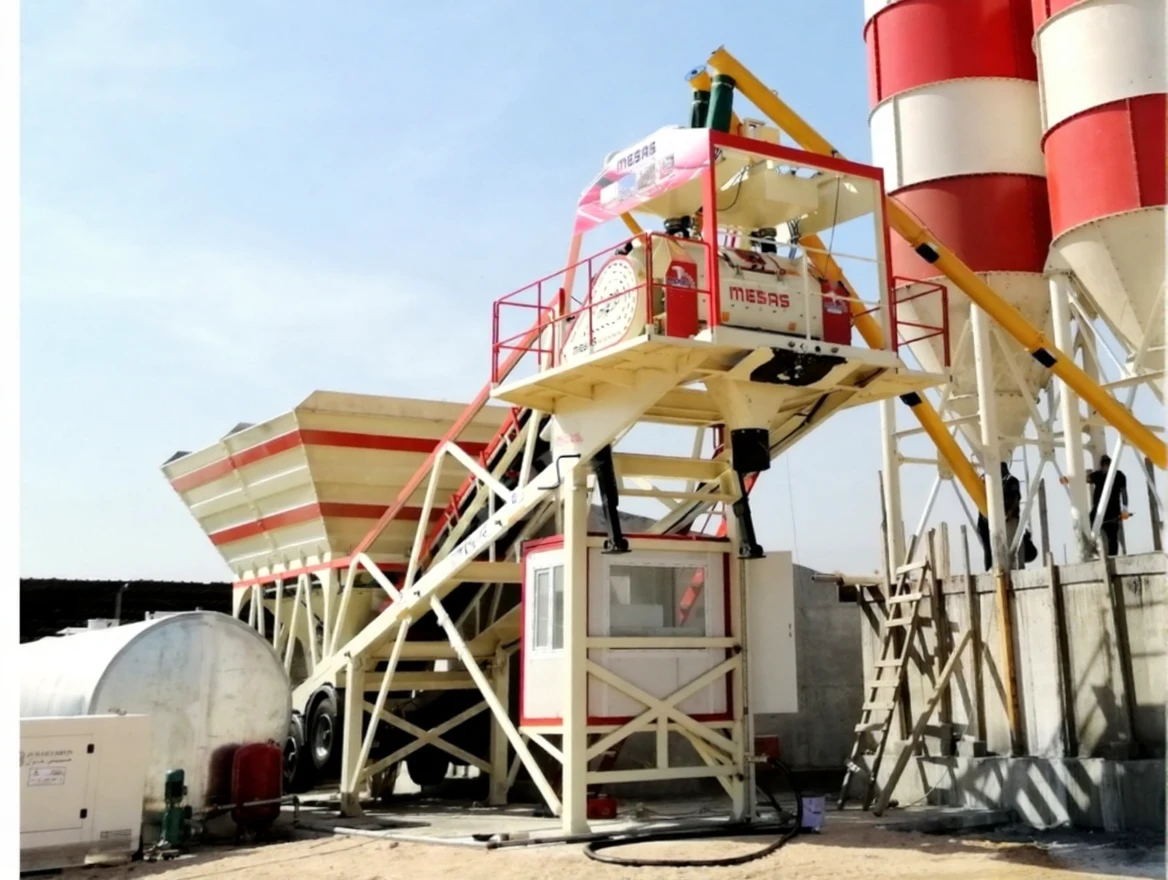

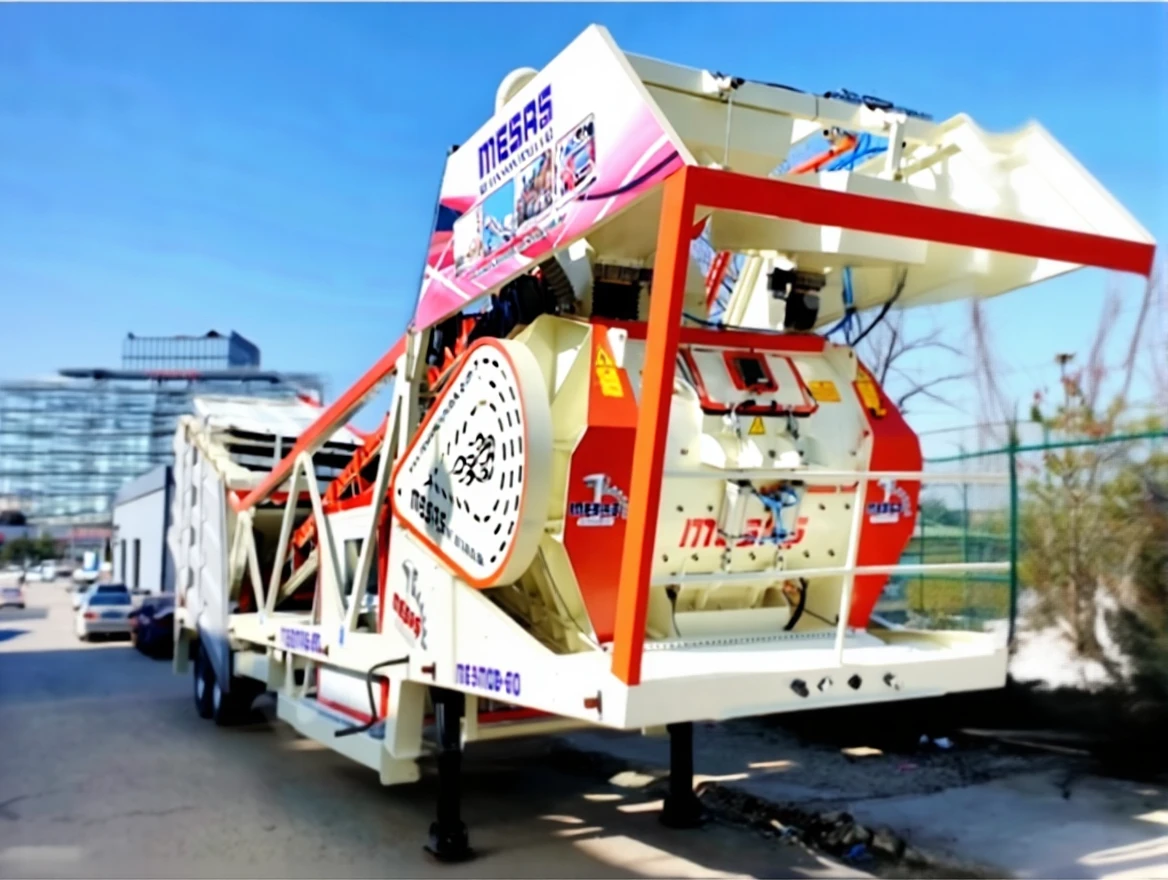

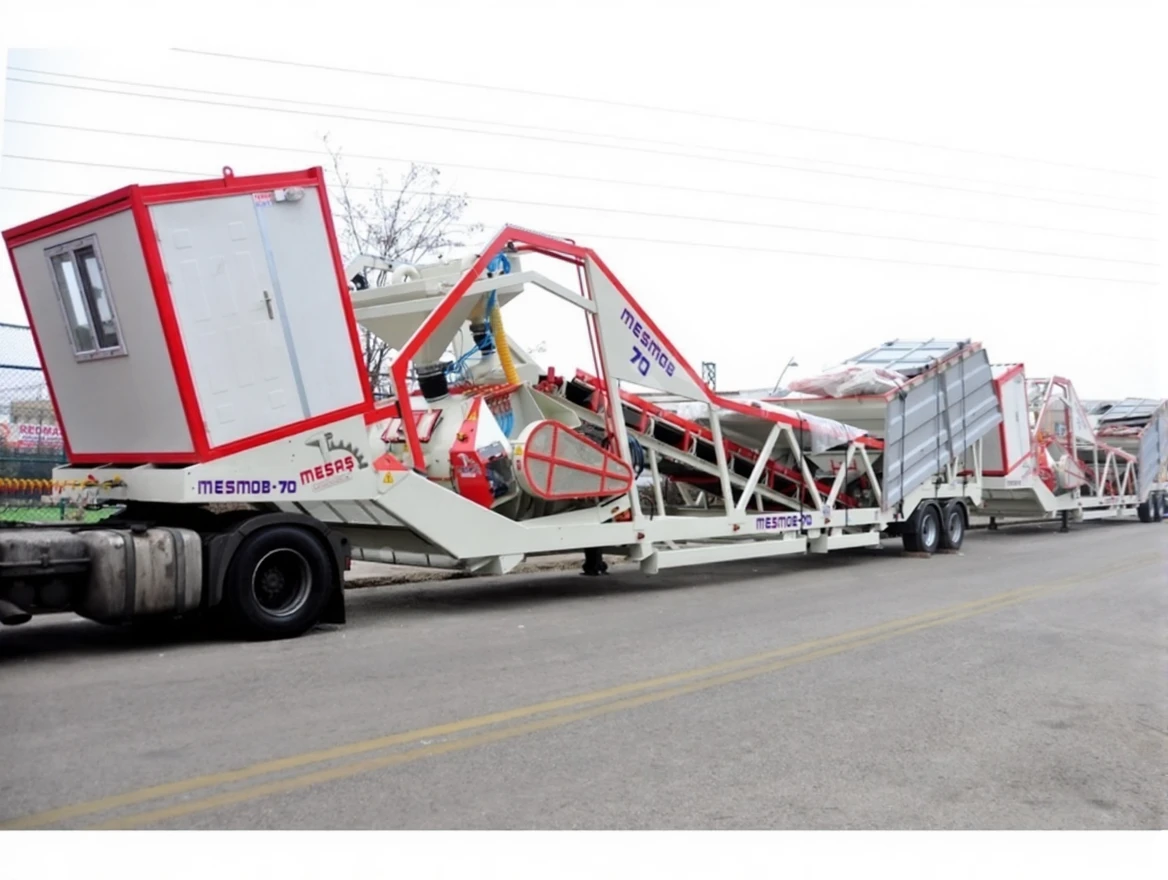

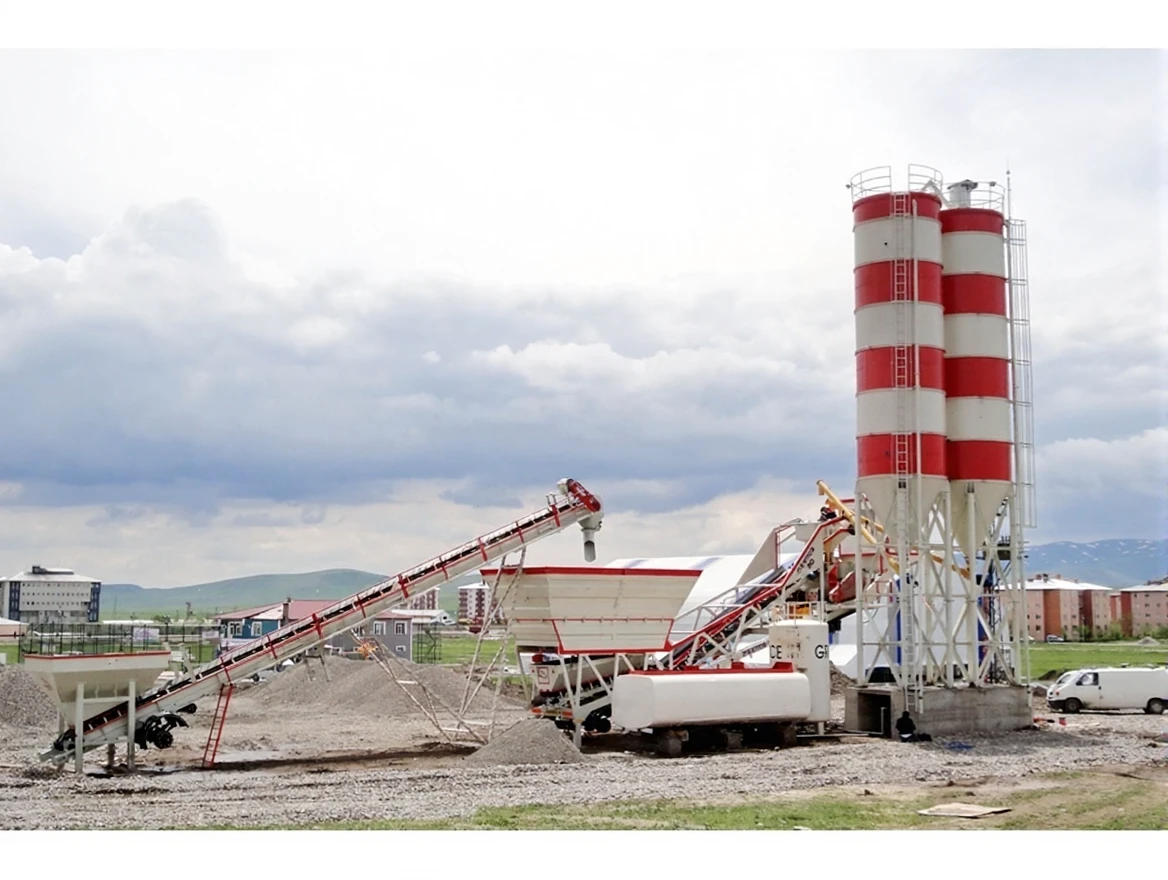

80 m3 / Hour Mobile Concrete Plant

MESAŞ ENGINEERING

    Since its establishment, our company has been meeting the needs of the industry without compromising on quality and providing employment to hundreds of people. In 2000, seeing the increasing demand for concrete plants, it opened the machinery production facility located in Ankara Ostim.

  In the branch it opened, our company initially produced concrete plants to be used in its own road and bridge works, and later developed this production further, exporting many facilities both domestically and abroad. The main countries to which the company exports are Iraq, Turkmenistan, Libya, Kyrgyzstan, Russia, and Azerbaijan.

  Our company, which continues to build roads and bridges, is working tirelessly to become a brand in the sector by utilizing the advantages of coming from within this sector in the production of concrete plants in the branch it has opened.

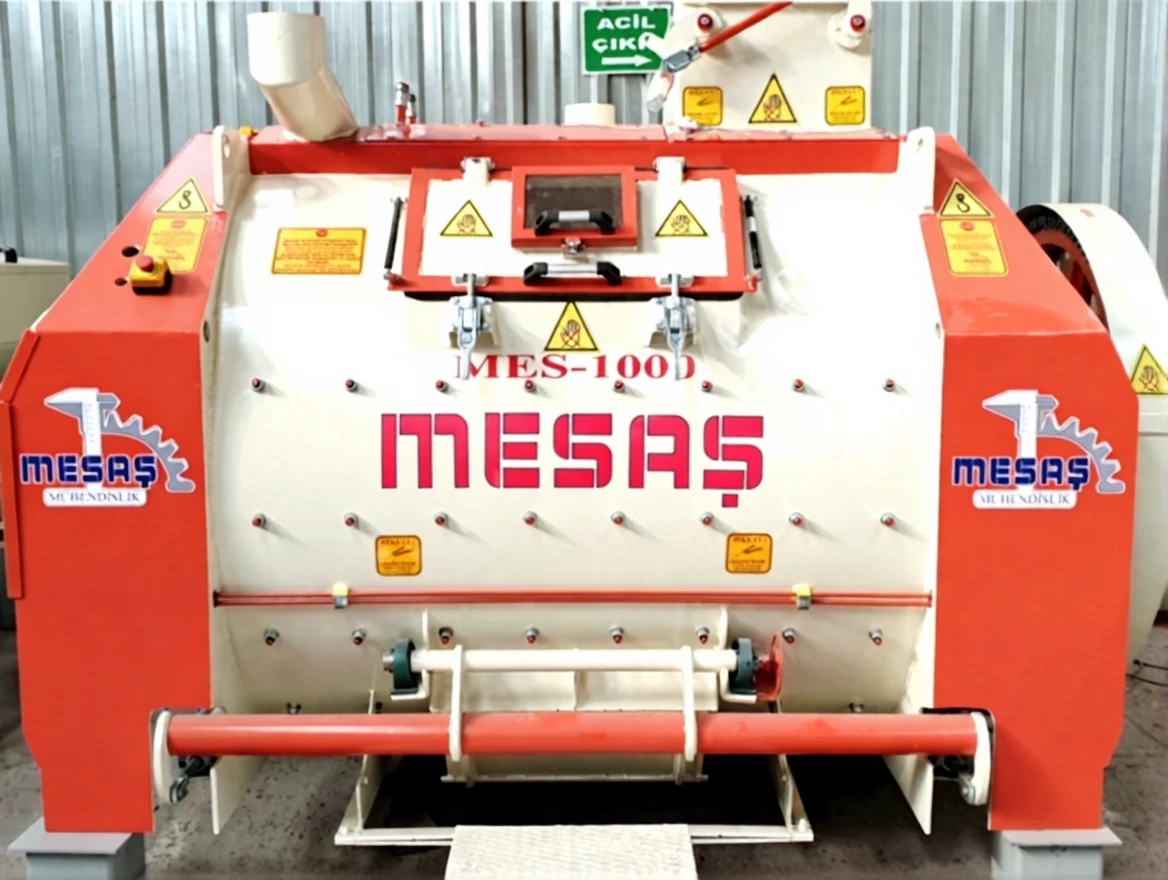

Mesaş Engineering;uses 100% self-manufactured Single-Shaft Mixers in all its concrete plants:

Note:You can watch the working videos of our plants from the ‘Watch Video’ link below the large image.

80 m3/h MOBILE CONCRETE PLANT FEATURES

50 m3 AGGREGATE BUNKER

Capacity                            :4 compartments x 12.5 m3 =50 m3

Discharge valve                     :1 piece (for each compartment)

Pneumatic piston                  :4 pieces  (FMS)

Vibrator                             :2 pieces (Imported OLİ)

Load cell                            :4 pieces  (ESİT – ZEMİC)

Air Conditioner                :1 piece

AGGREGATE FEEDING BELT

Type                                  :10 mm 4-layer woven belt (DERBY – KALE)

Belt Size                        :width=800 mm Length=8.500 mm

Electric motor                  :11 kw 1500 rpm (GAMAK)

Reducer                            :KR – 473 (YILMAZ Reducer)

Drums                          :Ring-Spring – Drive Drums 10 mm Rubber Coating

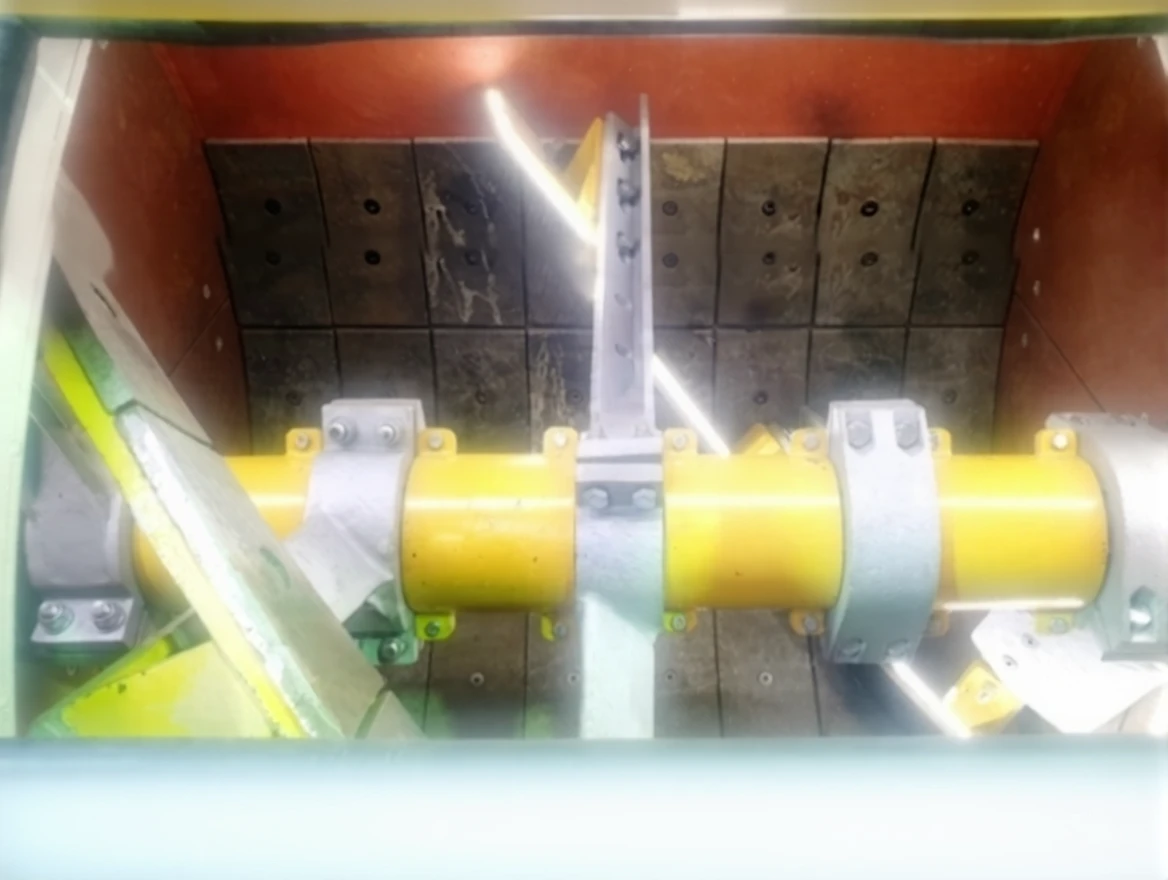

CONCRETE MIXER   (1.5 m3  )

Origin                               :Turkey

Brand                                :MESAŞ Engineering (MES – 1500)

Mixer Capacity                 :1.5 m3

Mixer Type                      :Single-Shaft

Drive Type                          :Double-Sided Drive

Motors                             :2 x 22 Kw  (Gamak – Yılmaz Reducer)

Mixer Arm Shape               :HELIX

Rotation Speed                          :12-14 rpm

Body Wear Plates          :16-18 Double Chrome MANGANESE

Mixer Blades               :16-18 Double Chrome MANGANESE

Side Wear Plates            :Hardox 400

Automatic Lubrication System  :1 piece (ALFETT – LUBRİMAC)

Discharge type                       :Pneumatic Discharge door

Emergency Stop Switch 1                :1 piece

CEMENT SILOS

Capacity                              :100 Tons / Piece

Sheet Thickness                         :4 – 6 mm

Filling pipe                      :4 ”

Construction type                :Welded

Silo Auxiliary Equipment

Brand                                 :Wam – Özbekoğlu

                                          :24 m2 Top Filter

Equipment                              :Silo Safety Valve

                                          :Min and Max Level indicators

                                         :Cement fluidizing jets

CEMENT SCREWS

Brand                                :Wam – Özbekoğlu

Size                                  :Q 273 x 8000 mm

Motor                                :11 Kw

CONCRETE PLANT AUTOMATION

Type                                   :Computer Controlled Fully Automatic (Computer + SCADA control Panel)

Plant Automation           :MAKRO Automation

AUTOMATION FEATURES

* The plant automation operates fully automatically with a computer.
* The operator can adjust all parameters and calibration settings via the computer.
* Desired number of recipes can be prepared, customer information can be entered, and production information can be retrieved for at least one year back.
* The recorded raw material stocks are updated as production is made, and remaining material tracking can be done.
* The operator can monitor all current and voltage values from the digital displays on the panel.
* In case of a malfunction that may occur on the computer, the operator can manually control the entire system from the buttons on the control panel.
* From the operator panel; it is possible to pause production, wait for the mixture, or resume production after a power outage.
* Since remote maintenance and intervention can be done via the internet, the need for service is at a minimum level.
* To prevent unauthorized use and determine authorization levels, encryption can be done.
* All our electrical components use original SIEMENS.


CONTROL CABINET

Dimensions                              :1,800 mm x 2,400 mm

COMPRESSOR

Brand                                :AYDIN Compressor

Volume                                :400 lt

Motor                                :5.5 Kw

HYDROFOR AND EQUIPMENT

Brand                                :DOMAK Hydrofor

Capacity                             :25 m3/h

Motor                                 :7.5 Kw

​
