80 Ton Conventional Turning System

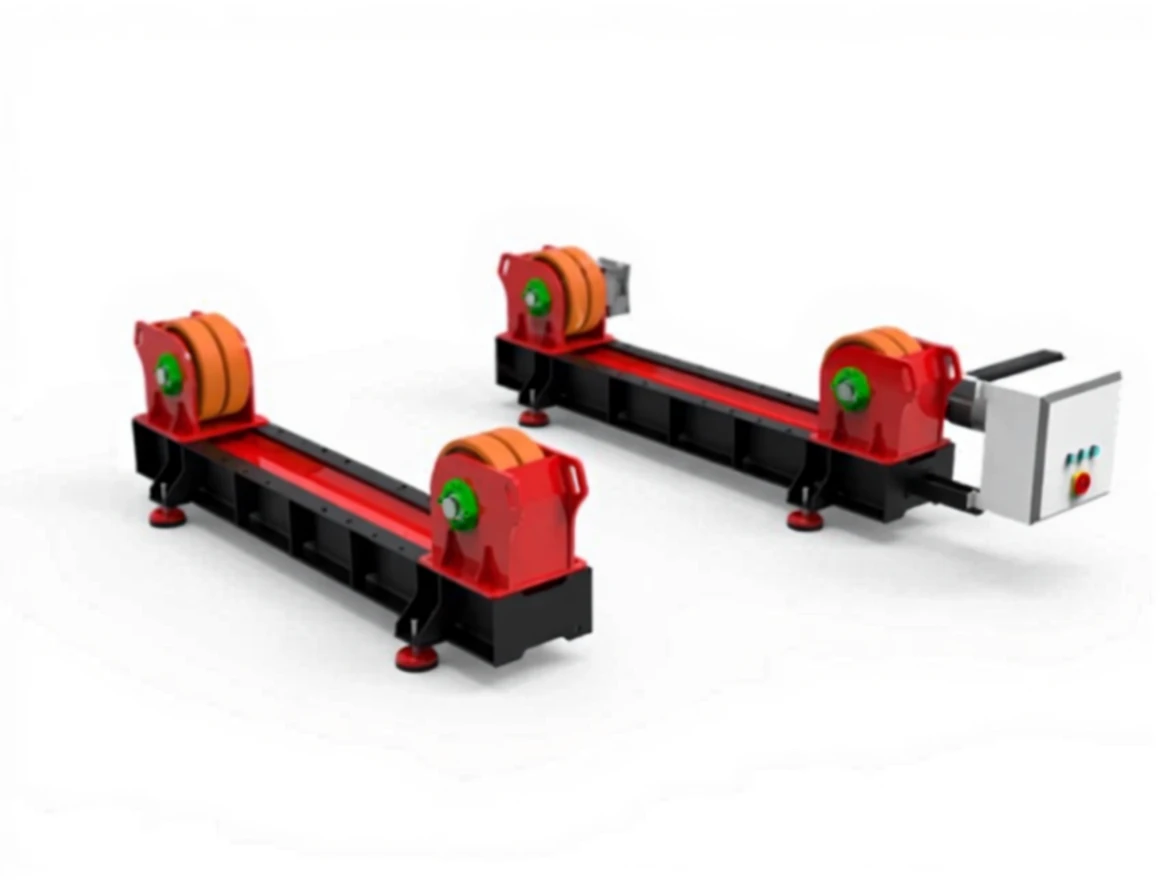

YKS BSRROT 070-080 Conventional Rotation System

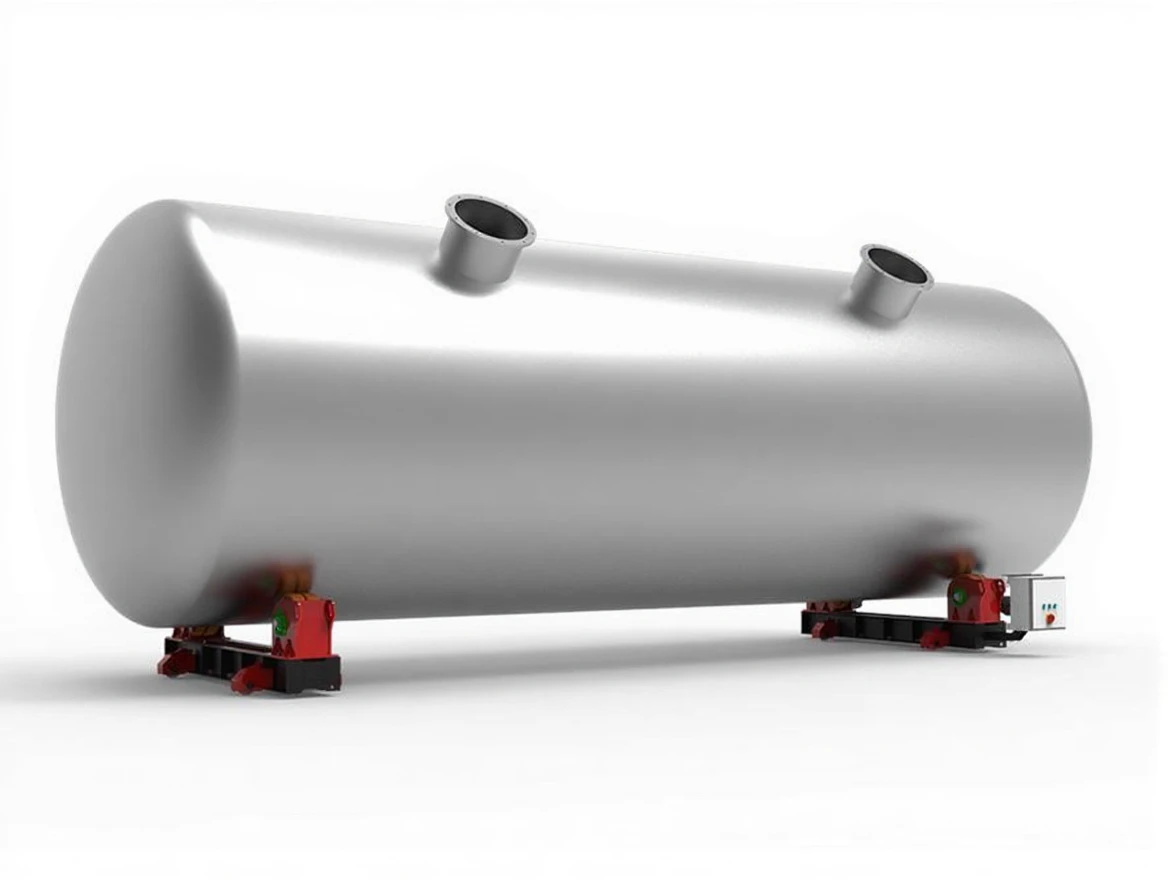

YKS BSRROT 070-080 is a powerful conventional rotating system developed for the controlled rotation of tanks, barrels, pressure vessels and all industrial workpieces with cylindrical bodies. Offering a turning capacity of up to 80 tons, this model significantly facilitates welding processes by providing speed, safety and efficiency in production.

These rotation systems; It ensures stable rotation of the part in automatic and manual welding applications, reduces the use of cranes and accelerates the workflow. Operator; It can precisely control the rotation direction, rotation speed and working pattern. Thanks to its solid wheel structure and balanced mechanism, it ensures smooth, vibration-free and controlled rotation of even large diameter parts.

YKS’s conventional converter series is offered as standard in capacities between 5 tons and 150 tons. Production up to 250 tons capacity is possible upon special requests.

YKS BSRROT 070-080 Standard Features

• Durable wheels with PU coating

• Bolted diameter adjustment system

• Adjustable rotation speed

• 5 meter cable hand control

• Digital speedometer on dashboard

• Powerful AC motor system

• Stop group that prevents axial movement of the part

YKS BSRROT 070-080 Optional Features

• Special wheel design for high temperature regions

• Motorized wheel axis distance (diameter) adjustment

• Manual diameter adjustment system

• Motorized walking system (Driver motorized – Idler manual)

• Chassis – brush group

• Fully synchronous operation with column-boom systems

These options make it easy to configure the system according to the operating environment and fully adapt to production lines.

YKS BSRROT 070-080 Technical Specifications

The table below shows all technical values ​​of the BSRROT series from 5 tons to 100 tons.
The 80-ton YKS BSRROT 070-080 model is marked boldly in the table.

Featured Advantages

• 80 tons high turning capacity

• Superior stability and reliability over conventional system

• Precise turning control with digital speedometer

• Durable wheel system with polyurethane coating

• Adjustment mechanism compatible with diameter differences

• Safety stop preventing axial slippage

• Easy positioning with motorized walking system

• Strong performance in heavy industrial applications
