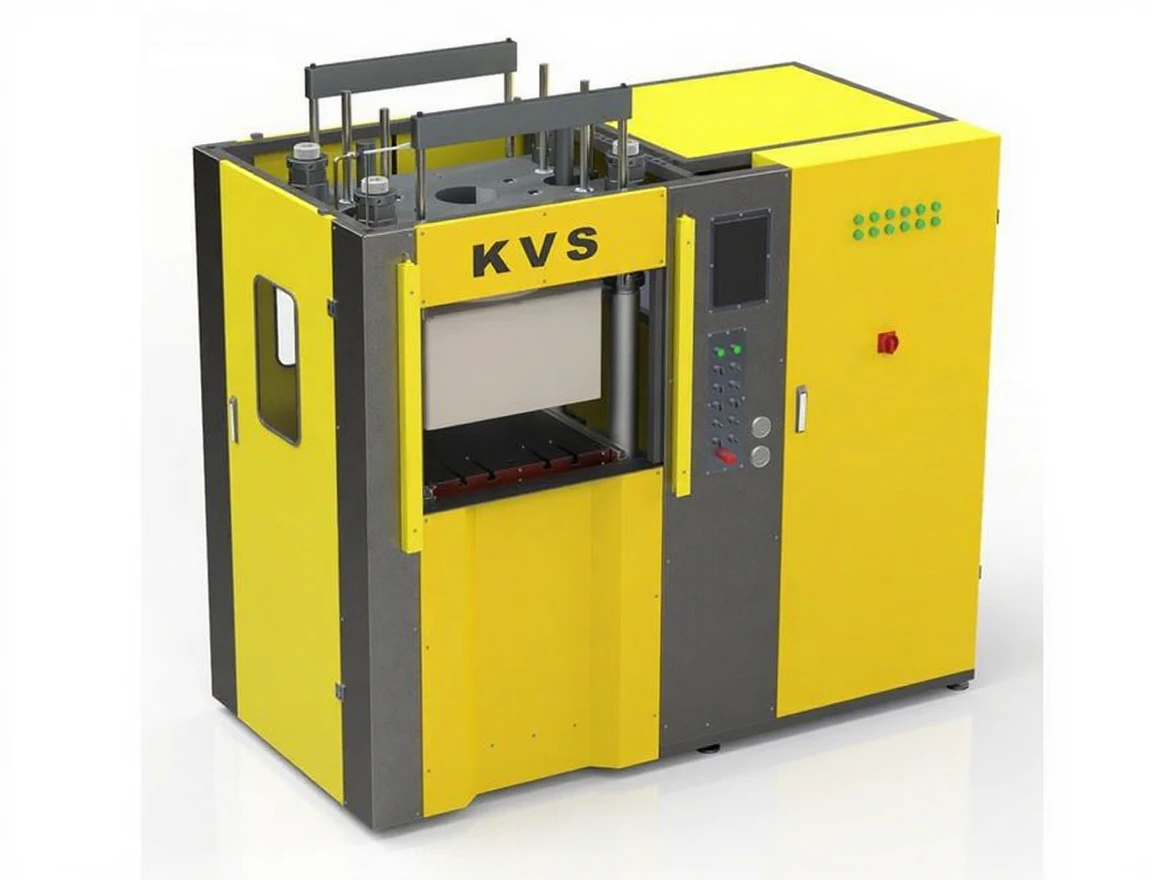

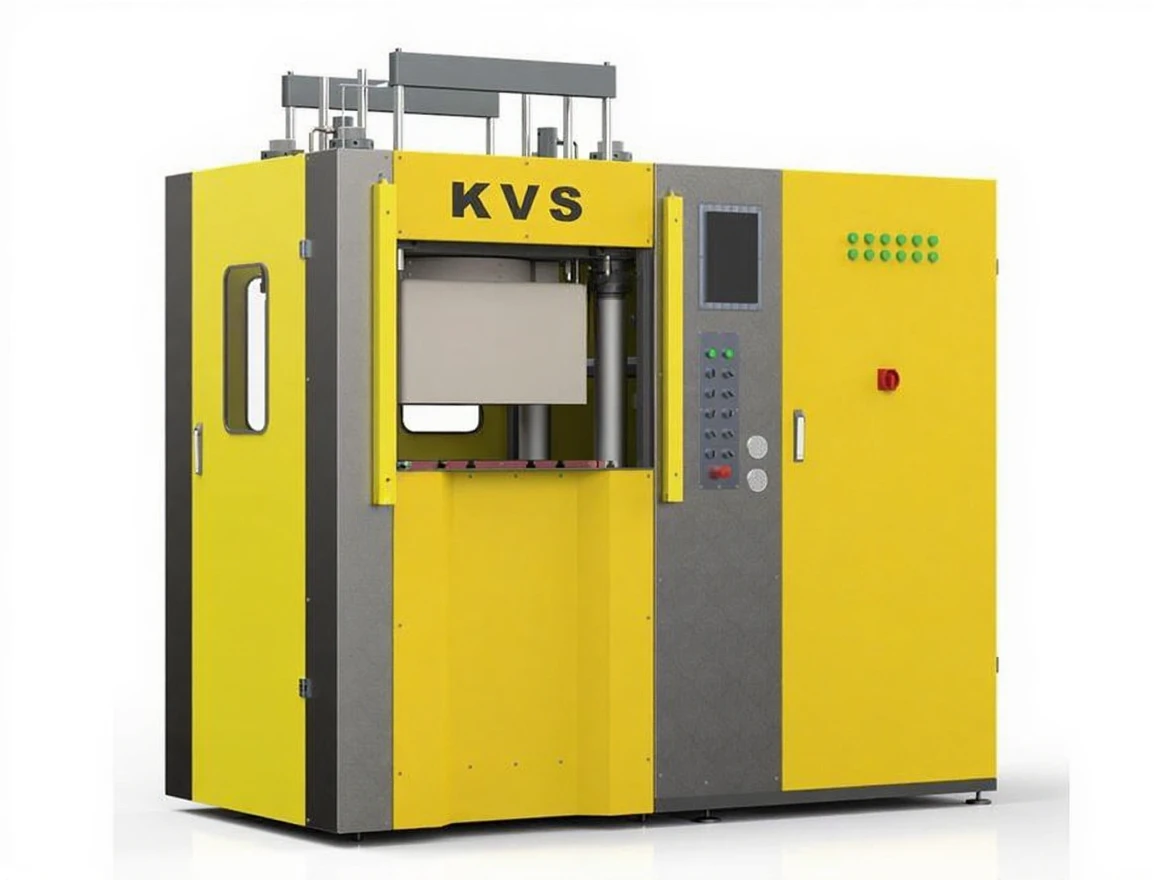

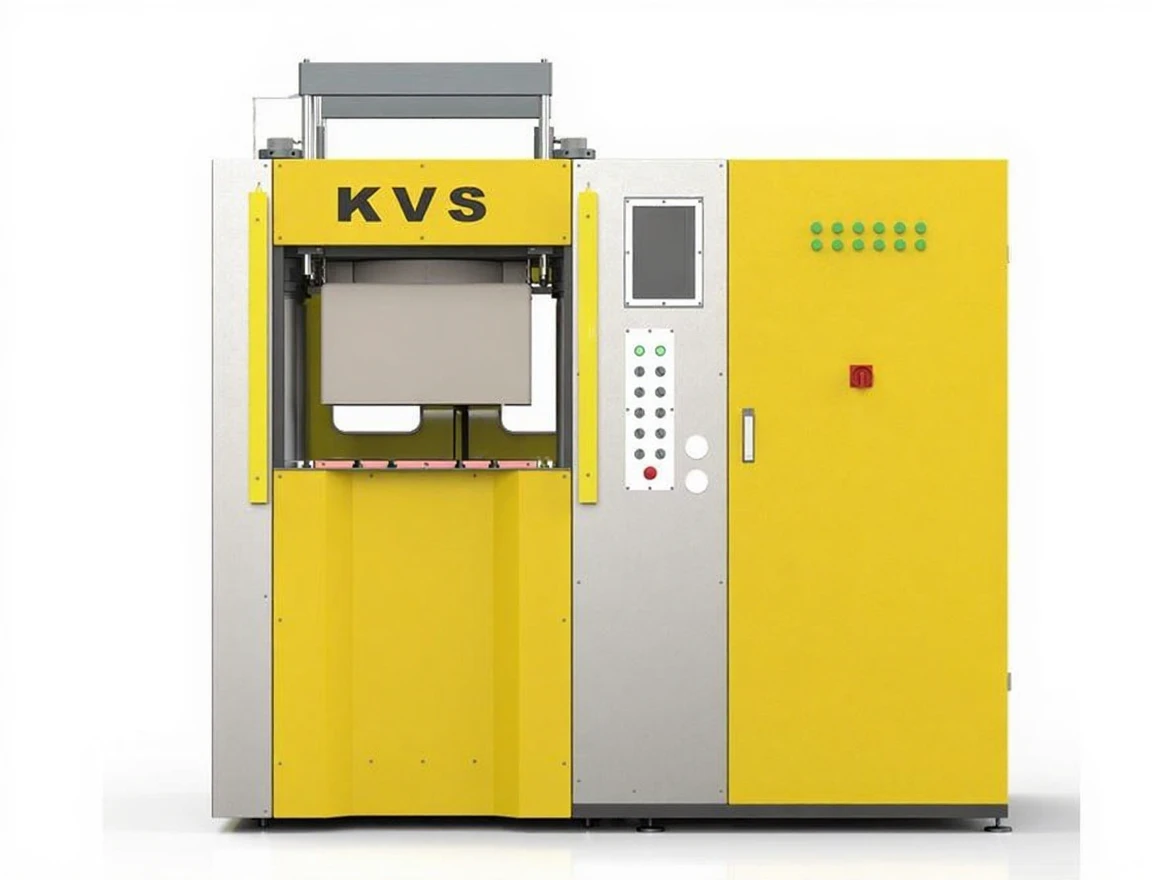

80 Ton Vacuum Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
VKM / V-80 |
Description
80 Ton Vacuum Rubber Vulcanization Machine
| MODEL | TYPE | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ |
| V-50 | V-80 | V-100 | V-150 | V-200 | V-250 | V-300 | V-400 | V-500 | ||
| Clamping Force | Tons | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 250*250 | 350*350 | 400*400 | 450*450 | 550*550 | 600*600 | 650*650 | 700*700 | 950*950 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 5 | 10 | 12 | 12 | 13 | 15 | 20 | 30 | 35 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 200 | 200 | 200 | 250 | 250 | 400 | 400 | 500 |
| Pump Type | Pallet | |||||||||
| Dimensions W/H | Mt | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | Kg | 5000 | 5500 | 5500 | 5500 | 6500 | 7000 | 7500 | 9500 | 13000 |
| Height | Mt | 2.3 | 2.3 | 2.4 | 2.5 | 2.4 | 2.6 | 2.6 | 2.6 | 2.6 |

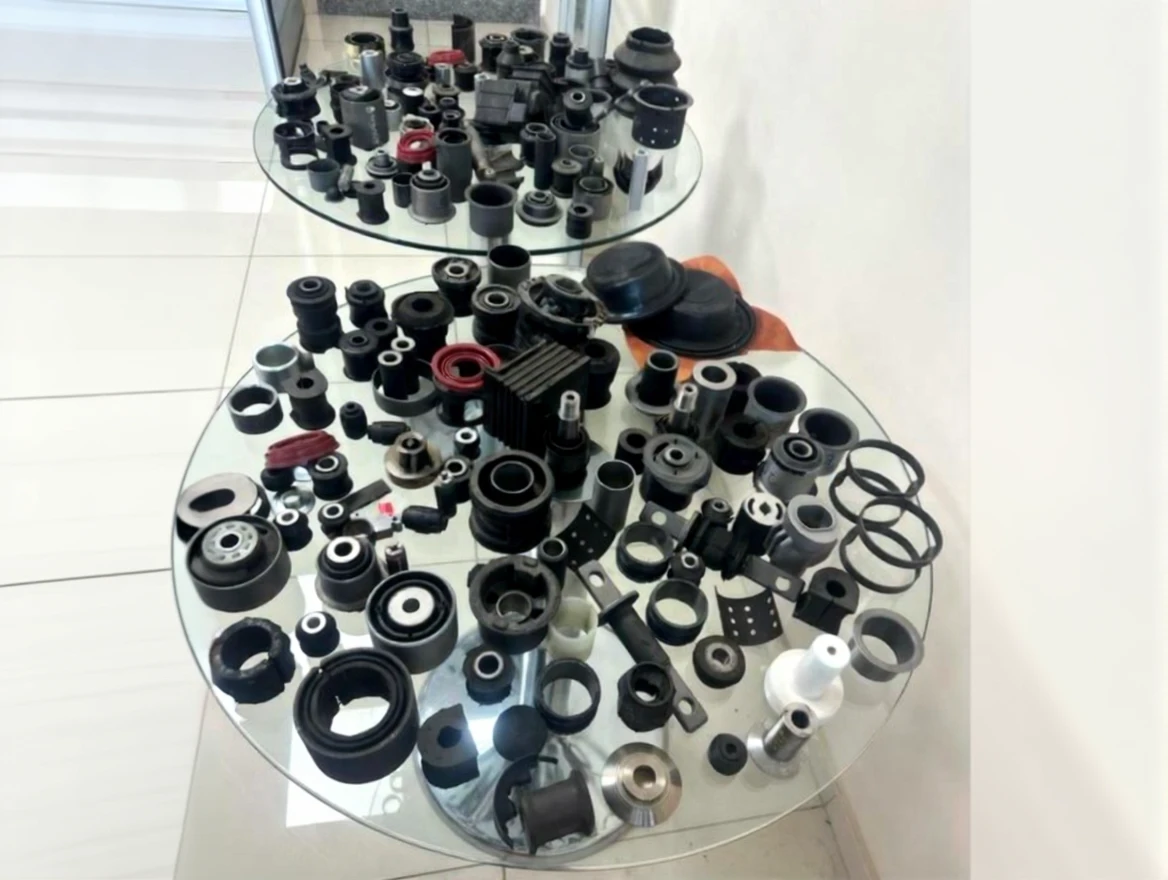

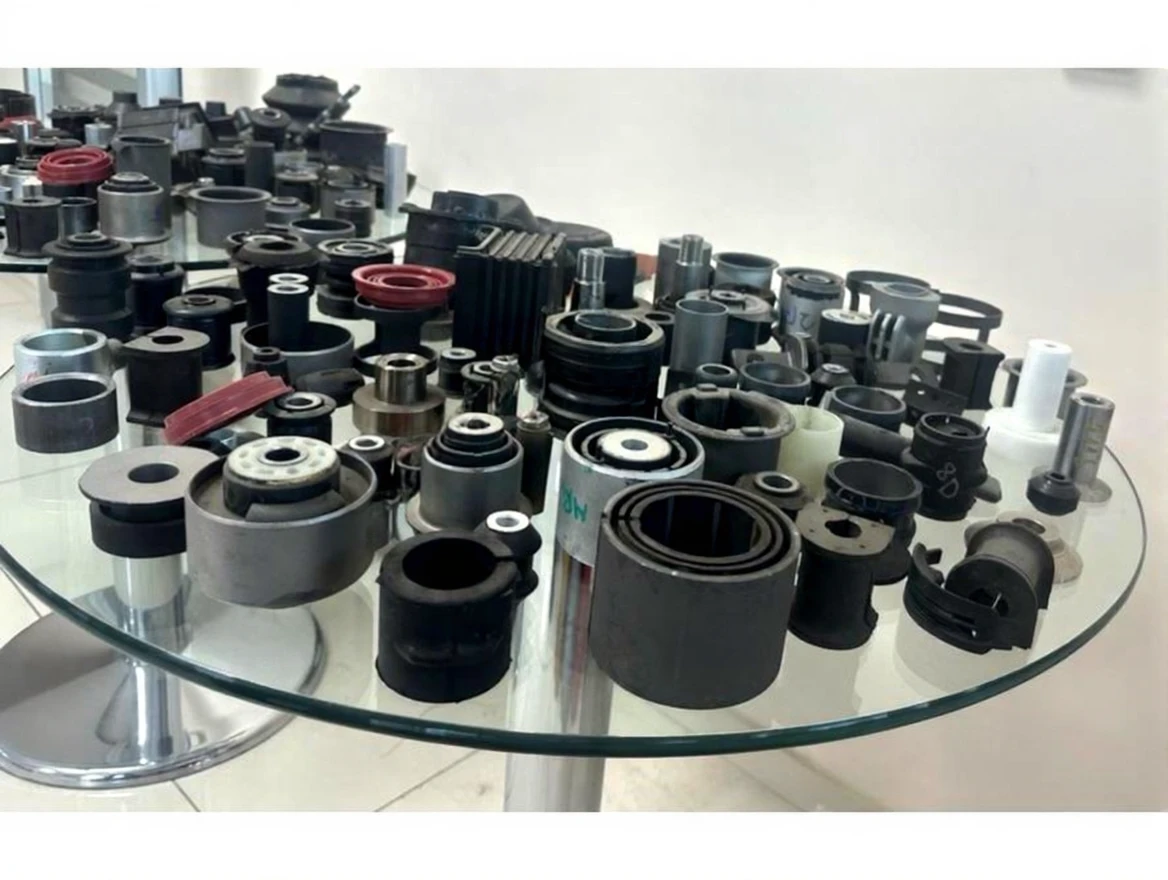

Machines that enable the easiest production of rubber products.
As Kavis Makine, we manufacture machines ranging from 50 tons to 5,000 tons.

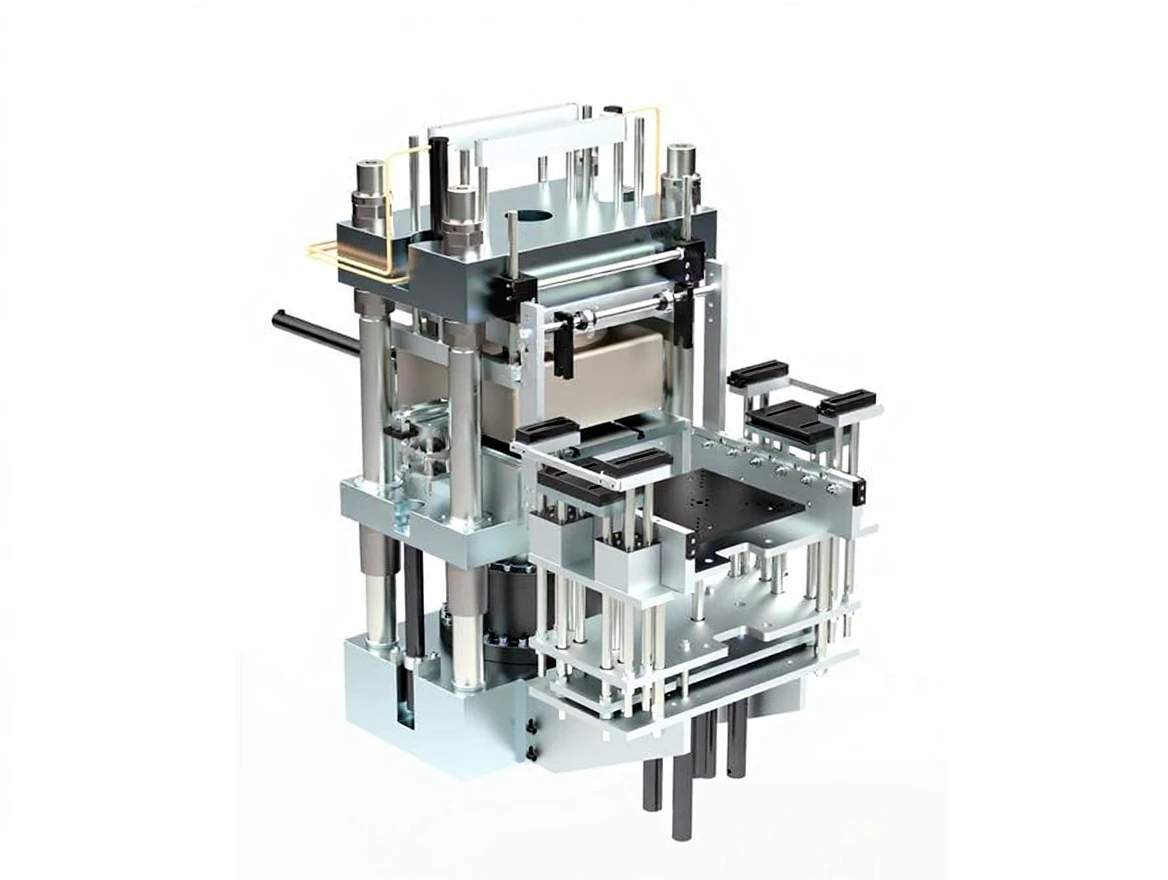

The 2RT, 3RT, 4RT mold separation systems used in other machines can also be easily used in this machine, providing a highly efficient production process with high security.
Complies with CE safety procedures with a fully enclosed cabin.
Options:
- Top Plate Lifter
- Bottom Plate Lifter
- Product ejector
- 2RT / 3RT / 4RT
- External top and bottom ejectors
- Mold Plate rotation 180 degrees
