800 Diameter 3 Meter 105 Spindle Universal Lathe

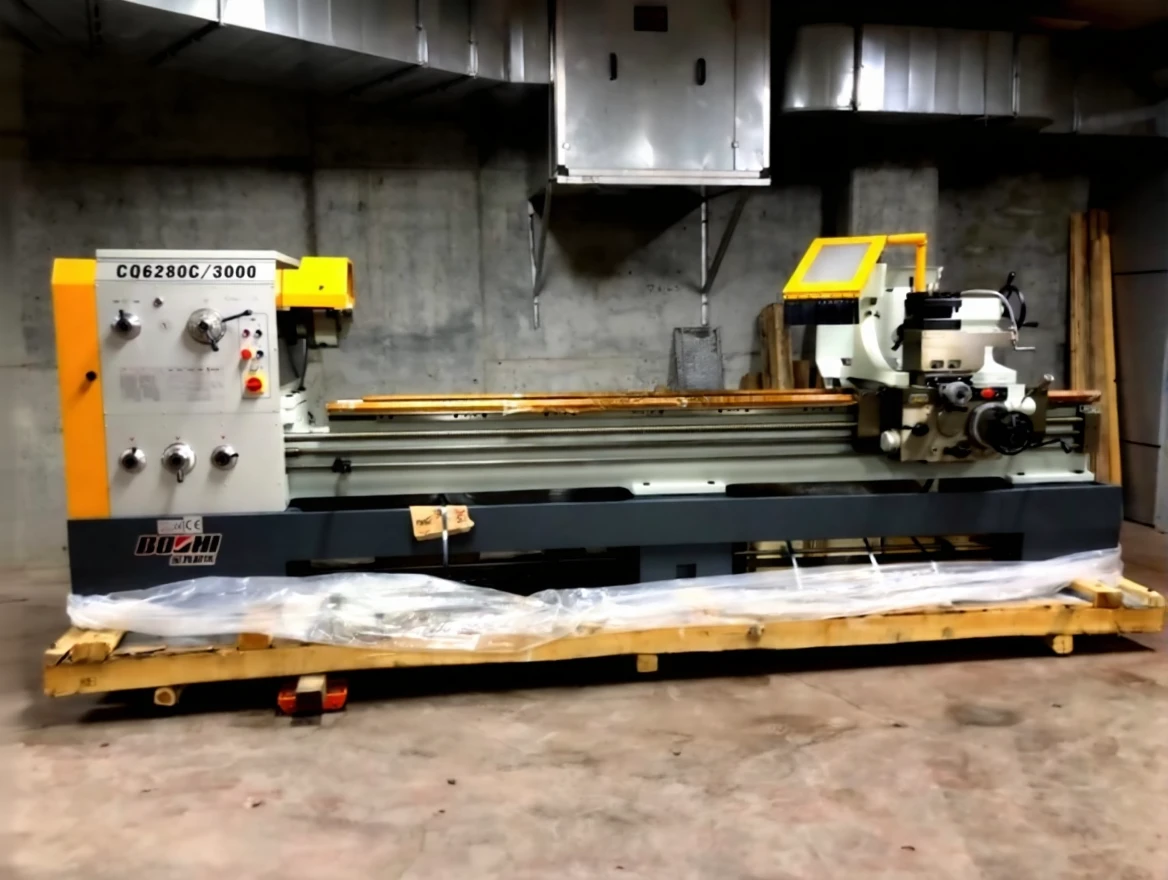

Baoji CQ6280C Universal Lathe

Baoji CQ6280C Universal Lathe Capacity

It has a processing capacity of 800mm over the bench, 560mm over the support, and 10000mm in the bridge gap. The spindle is 105mm, and the distance between centers is 3000mm.

Baoji CQ6280C Universal Lathe Standard Accessories

3-jaw chuck Ø 315 mm, 4-jaw chuck Ø 500 mm, Flat chuck 500 mm, Fixed bed, Movable bed, MK5 rotating center, MK6 fixed center, Thread gauge, 4-way tool holder, Halogen lamp, Change gears, Foot brake, Cooling system, Tool holder.

Technical Specifications  Baoji CQ6280C Universal Lathe

TECHNICAL SPECIFICATIONS             UNIT  CQ 6280 C

CAPACITY

Turning Diameter Over Bed    mm      800

Turning Diameter Over Support   mm      560

Turning Diameter When Workpiece is Out mm      1000

Workpiece Length     mm      240

Distance Between Centers mm      [ PHONE HIDDEN ]

SPINDLE

Spindle Nose             mm      ISO702/II No:8 camlock

Spindle Hole Diameter               mm      ø 105

Spindle Taper        metric 113

Spindle Speed Range              rev/min            30 – 1400

Number of Spindle Speeds                12

FEEDS

Longitudinal Feed Range         mm/rev           0.063 ~ 2.52 ; (65 types)

Cross Feed Range             mm/rev           0.027 ~ 1.07 ; (65 types)

Metric mm      1 ~ 14 ; (22 types)

Inch      t.p.i       28 ~ 2 tpi ; (25 types)

Module mm      0.5 ~ 7 ; (18 types)

DP         DP         56 ~ 4 DP ; (24 types)

SLIDE

Cross Feed Distance        mm      320

Tool Holder Feed Distance mm      145

Slide Size mm      25 x 25

CENTER

Center Pin Diameter         mm      90

Center Pin Movement mm      150

Center Pin Taper                   Morse No:5

OTHER

Main Motor       kw         7.5

Fast Motor and Water Motor Power           kw         0.3 – 0.12

Length            mm      [ PHONE HIDDEN ]

Width            mm      1610

Height         mm      1930

Net Weight     kg          3900
