800 Kg Electric Suspended Scaffold
| Brand | Bmunit |
|---|---|
| Model Type |
STM 800 |

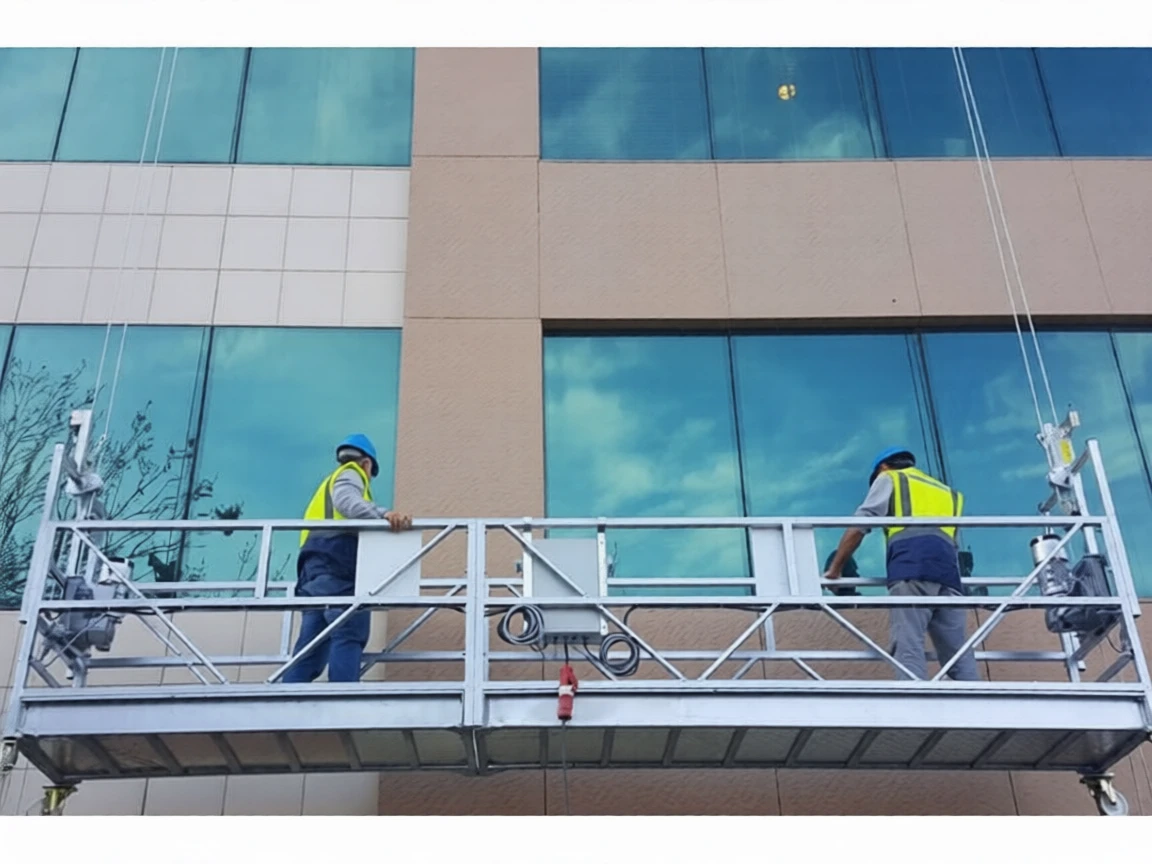

800 Kg Electric Gondola
It has the opportunity to be used for tasks such as cladding, painting, plastering, and repair on the exterior of buildings. Gondolas provide time and labor saving with their practical installation and easy repositioning features. Electric gondolas are modular platforms that can be divided between 1 – 6 meters according to the building facade. Lifting speed is 7 meters per minute.
Due to the system walking on the rope, endless working distance is provided. Special work platforms suitable for your building are produced according to your request. Platforms are protected with motor brakes and block stop brake system.
There is a second rope system for the safety of the worker and the platform. It can be manually lowered in case of a power failure. Our products are guaranteed for 2 years. All our products comply with European standards and have CE conformity certificates.
Safety Standards
• Parachute brake system sensitive to speed
• Electromagnetic brake system
• Emergency stop button
• Platform lower and upper limit stopping system
• Stopping system at the final mast for stopping at the last height
• Audible warning system during up and down movement
• Stop working while the door is open system
• Warning system for telescopic extensions
• Motor fault warning system
• Phase error warning system
• Connect with anchor every 6 meters system
• Railing and edge safety system
• Automatic balance system in dual use
• Manual lowering system in case of emergency
• Balance system with moving legs
• Easy transportation system thanks to polyamide wheels
• 220 V socket opportunity on the panel
• Air and fixed chassis production is carried out upon your request
• Mechanical movements occurring during the use of all our platforms are provided by the driver (speed control system)
• Balance switches are used for dual platforms to prevent mechanical contractions and balance disruptions
• Control and inspections of all our products are provided online from our production center
• Mobile chassis production is carried out as standard on demand
• Prevention of rusting system thanks to hot dip galvanizing
Technical Specifications:
| TECHNICAL SPECIFICATIONS | STM 300 | STM 500 | STM 800 | STM[ PHONE HIDDEN ]-2500 |
|---|---|---|---|---|
| Lifting Capacity | 300 | 500 | 800 | [ PHONE HIDDEN ] |
| Motor Power and Quantity | 1,1 kW (1 PCS) | 2,2 kW (2 x 1,1 kW) | 2,5 kW (2 x 1,25 kW) | 3 – 5 kW (2 x 1,5 kW) |
| Climbing Speed | 7 Mt/Min | 7 Mt/Min | 7 Mt/Min | 7 Mt/Min |
| Platform Dimensions (Cm) | 100 x 66 x 110 / 600 x 66 x 110 | 200, 300, 400, 500, 600, 700 x 66 x 110 | 200, 300, 400, 500 | 200, 300, 400, 500, 700 |
| Safety System | Electromechanical Brake / 1 Block Stop | Electromechanical Brake / 2 Block Stop | Electromechanical Brake / 2 Block Stop | Electromechanical Brake / 2 Block Stop |
| Rope Thickness & Length | 8 Mm (6 x 19) Galvanized | 8 Mm (6 x 19) Galvanized | 10 Mm (6 x 19) Galvanized | 10 – 12 Mm (6 x 19 – 5 x 26) Galvanized |
| Voltage | 380 V | 380 V | 380 V | 380 V |
