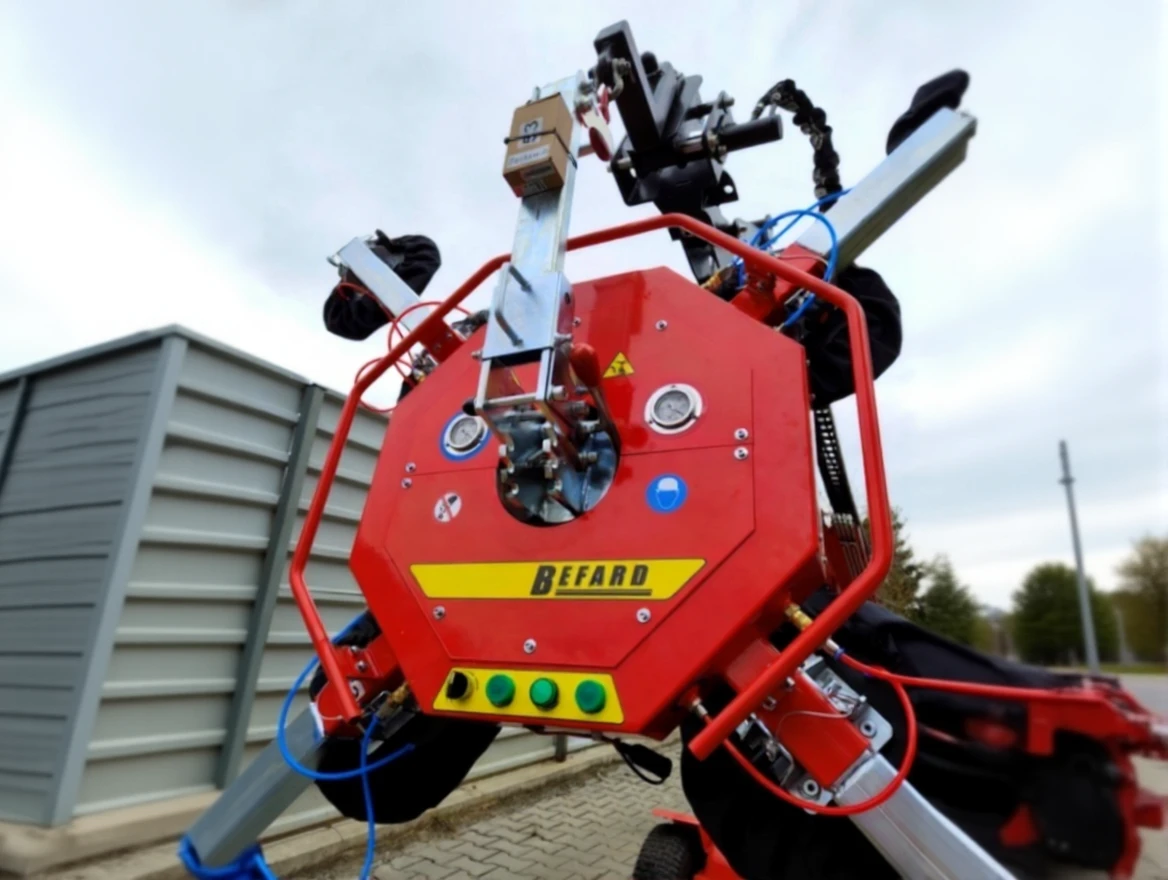

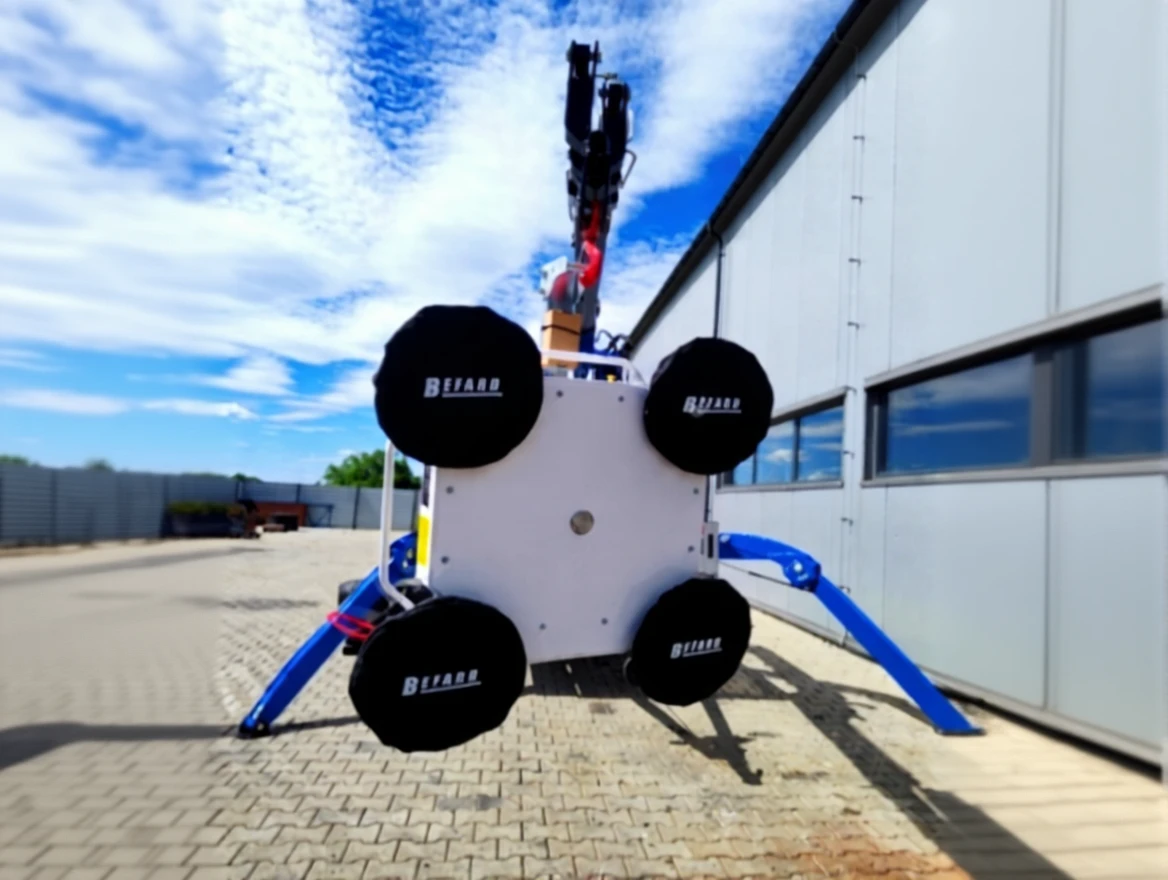

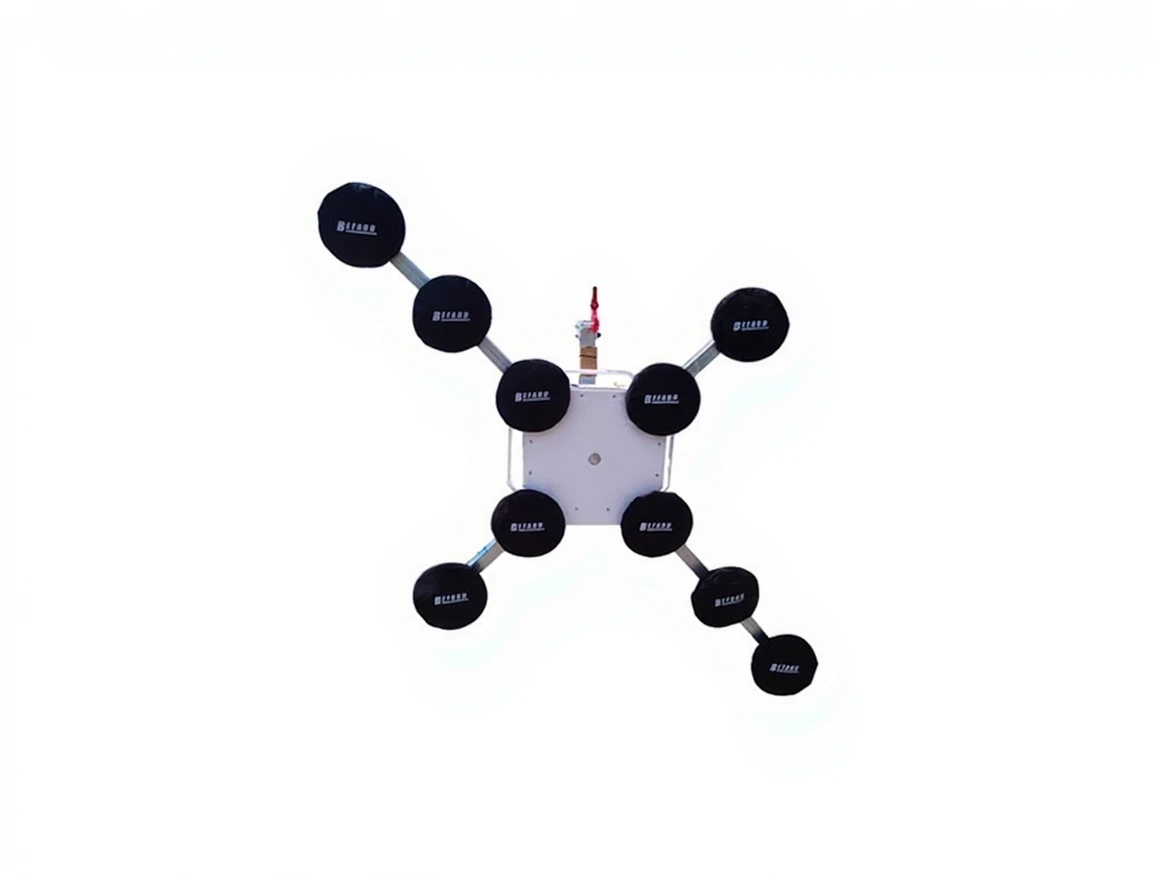

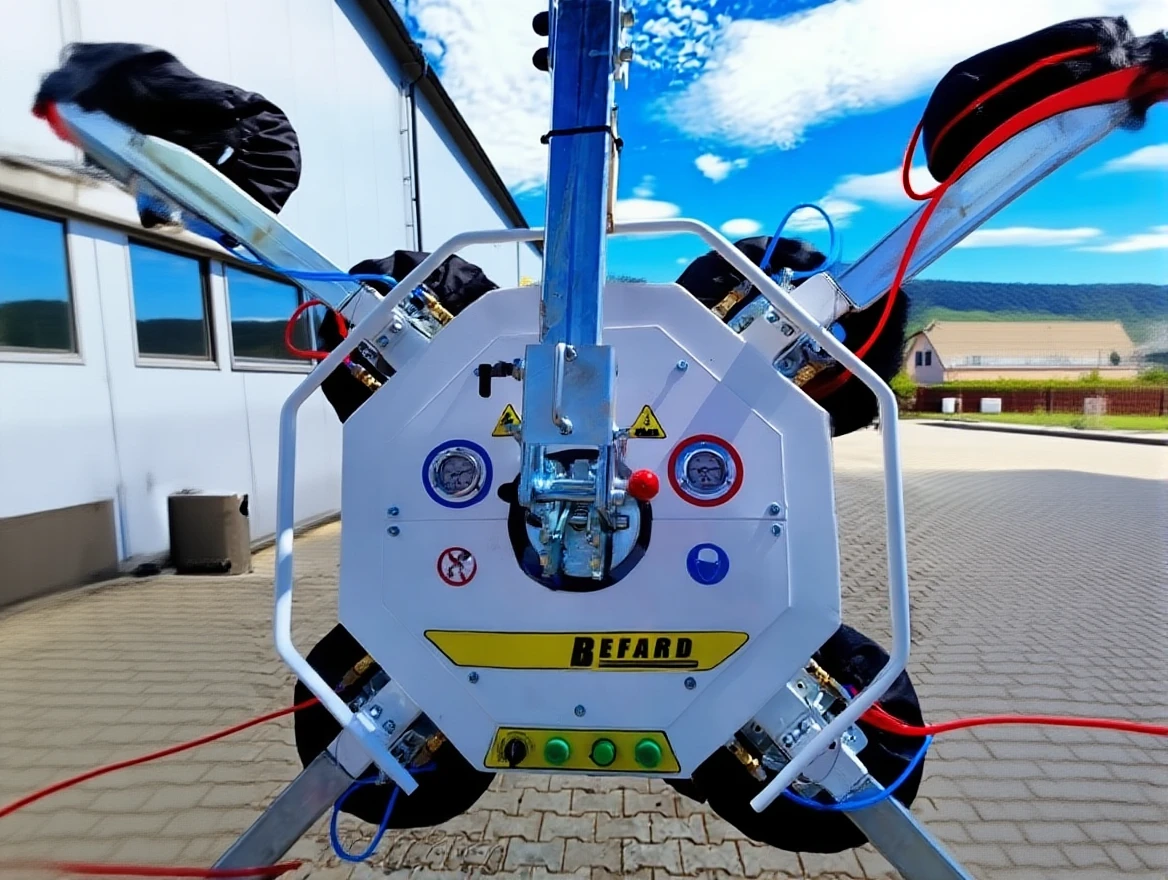

800 Kg Lifting Capacity Glass Lifting Suction Cup

Befard XP 802 is a glass lifting suction cup with a lifting capacity of 800 kg, designed for use in the glass industry. This suction cup provides an effective solution for safely transporting and placing large and heavy glass panels. The maximum lifting capacity of 800 kg allows for easy lifting of heavier glass panels, which increases work efficiency and optimizes workflow.

The suction cup consists of 10 suction cups, each measuring 310 mm. This provides a strong grip spread over a wide surface area of the glass panels, ensuring a safe lifting operation. Additionally, the min/max vacuum values of the suction cup range from -0.6 / 0.8 bar, allowing the suction cup to apply a strong vacuum to the glass panels for a secure grip.

Befard XP 802 operates with 12 V power, ensuring that lifting operations are carried out safely and efficiently. With its durable construction and reliable performance, it offers an effective solution for industrial business owners. This suction cup allows business owners in the glass industry to complete their work more efficiently and enhances workplace safety.

Befard XP 802 Technical Specifications

Lifting Capacity: 800 kg

Number of Suction Cups: 10 Pieces

Suction Cup Size: 310 mm

Min/Max Vacuum: -0.6 / 0.8 bar

Power: 12 V
