Ø800 mm Parcel Bracelets Concrete Chimney Machine

Brand Koyuncular Makina
Description

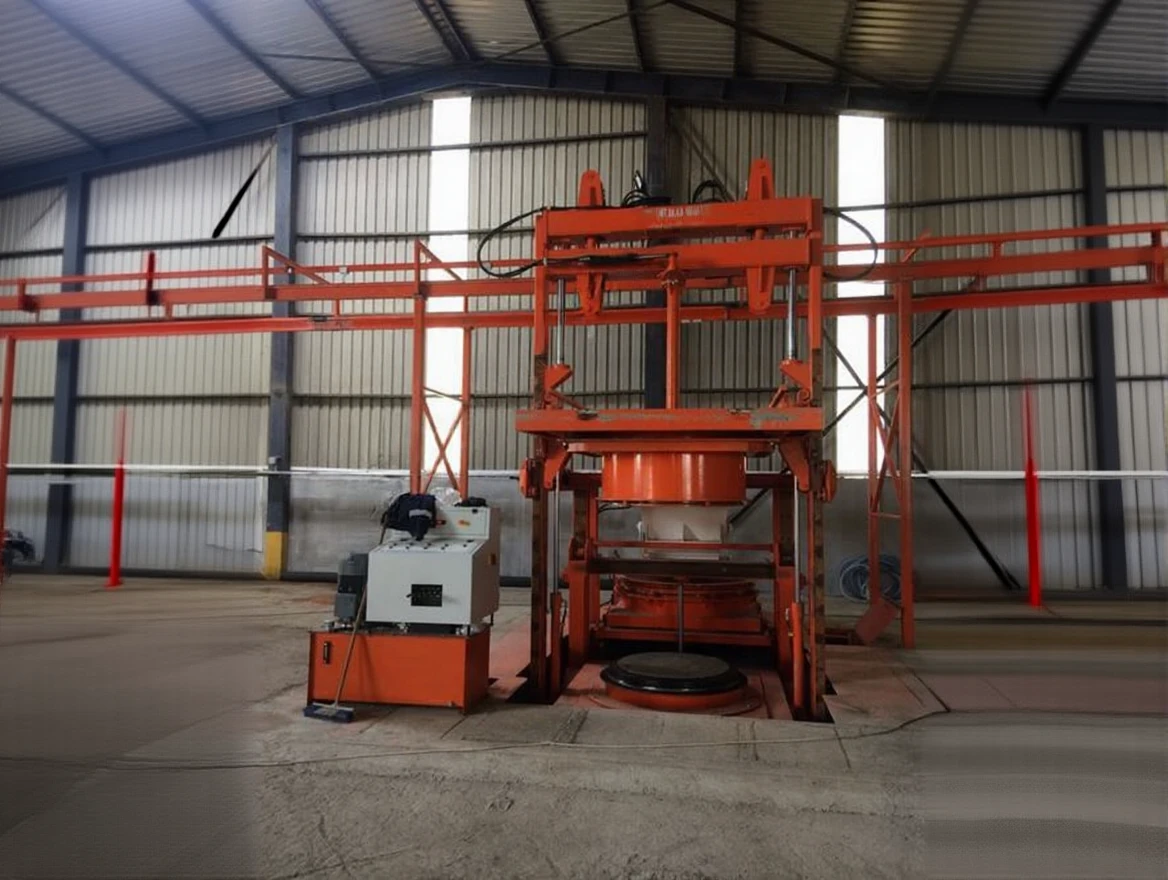

Ø800 mm Parcel Bracelets Concrete Chimney and Base Machine

•Our Chimney Bracelet Machine produces Ø800 Parcel Bracelets, Ø620, Ø1000 and Ø1200 Inspection Chamber Bracelets, Ø620/1000- Ø620/1200 Chimney Top Conicals.
•The concrete products manufactured are lifted to ground level and transported to the site via the New Generation Elevator System.
•The manufactured Chimney Elements are transported to the drying area by Forklift.
•Thanks to the New Generation Elevator System, the production speed of the manufactured products has doubled. Our Chimney Bracelet Machine is designed for mold connections to be the simplest and fastest to change, and the vibration is done using a pipe-type oily vibrator or a centrifugal adjustable vibrator connected to the inner mold.
•As a result of Koyuncular Machine’s quality and safety policy, our manufactured machines operate smoothly for many years.
•The biggest feature that creates awareness in the field for Koyuncular Machine is its ability to respond instantly to all kinds of requests and needs such as technical support from our valued customers even after installation, and to keep its relationships always alive.

Product Size (mm) Daily Production Quantities (8 hours/day)
Ø800mm Parcel Bracelets 250/1000mm 80 Pieces
Ø620mm Inspection Chamber Collar 250/1000mm 90 Pieces
Ø1000mm Inspection Chamber Collar 250/1000mm 70 Pieces
Ø1200mm Inspection Chamber Collar 250/1000mm 60 Pieces
Ø620/1000mm Chimney Top Conical 650/1000mm 60 Pieces
Ø620/1200mm Chimney Top Conical 650/1000mm 60 Pieces
Feature Specification
Working System Manual / Semi-Automatic
Motor Power 18 kW
Hydraulic Pressure 200 Bar
Mortar Bucket 1.5 m³
