800 mm Universal Lathe

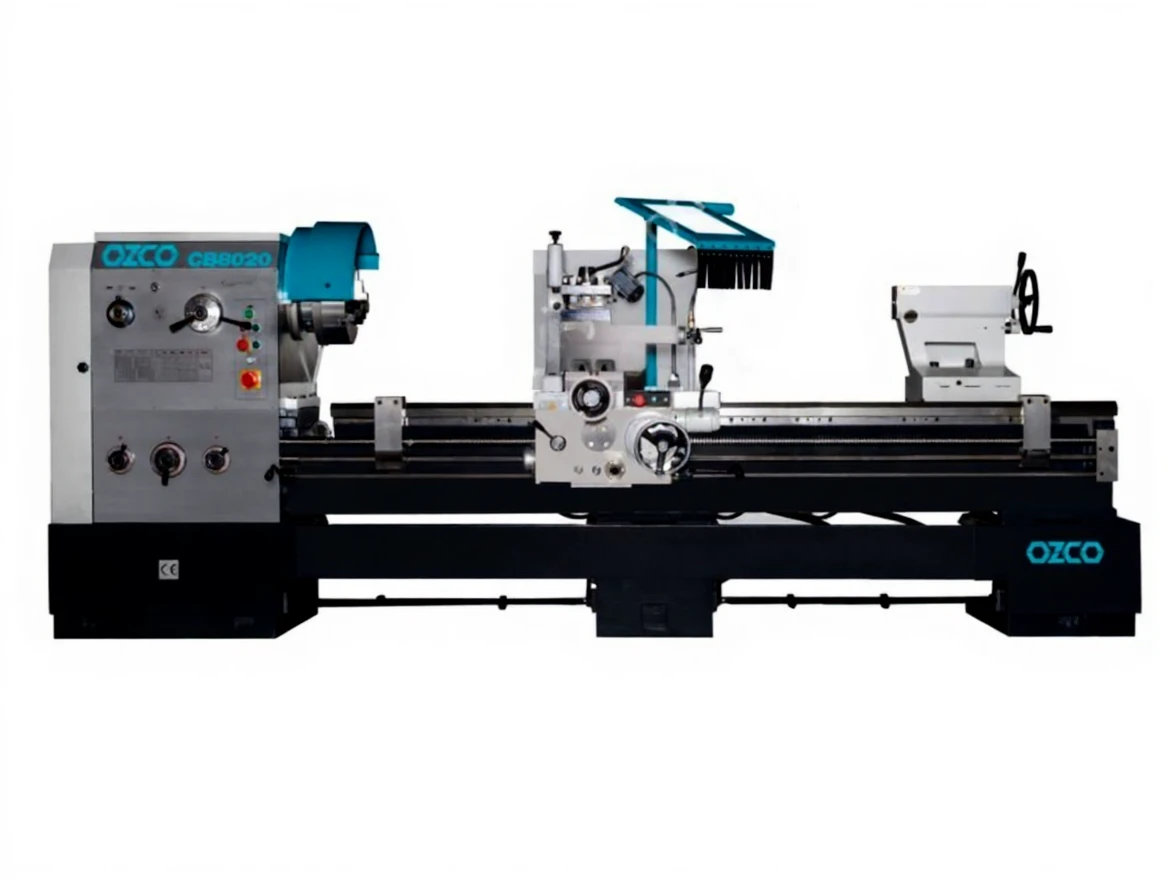

OZCO CB8020 Universal Lathe

OZCO CB8020 Universal Lathe Capacity

It has a processing capacity of 800 mm over the bench, 560 mm over the support, and 1000 mm in the bridge gap. The spindle diameter is 105 mm, and the distance between centers is 2000 mm.

OZCO CB8020 Universal Lathe Shipment Includes

3-jaw chuck Ø 315 mm, 4-jaw chuck Ø 500 mm, Flat chuck 500 mm, Fixed bed, Movable bed, MK5 rotating center, MK5 fixed center, Thread gauge, 4-way tool holder, Halogen lamp, Change gears, Foot brake, Chuck and tool holder guard, Cooling system, Tooling.

OZCO CB8020 Universal Lathe General Features

Compliant with CE standards, Mechanical clamping system / clutch, Emergency stop button, Safety switch chuck guard, Joystick for easy movement, SIEMENS electrical system, Cooling system, and foot brake.

Technical Specifications OZCO CB8020 Universal Lathe
Motor Power 7.5 kW, 400 V

Bench Diameter 800 mm

Carriage Diameter 560 mm

Bench Width 510 mm

Distance Between Centers 2000 mm

Speed 30-1400 rev/min

Steps 12

Spindle Taper MK-7

Spindle End D1-8

Spindle Diameter 105 mm

Cross Support Movement 320 mm

Diagonal Support Movement 145 mm

Movable Center Taper MK5

Movable Center Diameter 75 mm

Movable Center Movement 150 mm

Linear Feed [ PHONE HIDDEN ] mm/rev

Cross Feed [ PHONE HIDDEN ] mm/rev

Metric Thread and Ratio 1-14mm (22 pieces)

Inch Thread and Ratio 20-2 TPI (20 pieces)

Module Thread Ratio 0.5-7 (18 pieces)

Diametric Thread Ratio 56-4 DP (24 pieces)

Tool Holder Size 25×25 mm

Machine Dimensions (LxWxH) 3370x1350x1500 mm

Weight 3300 kg
