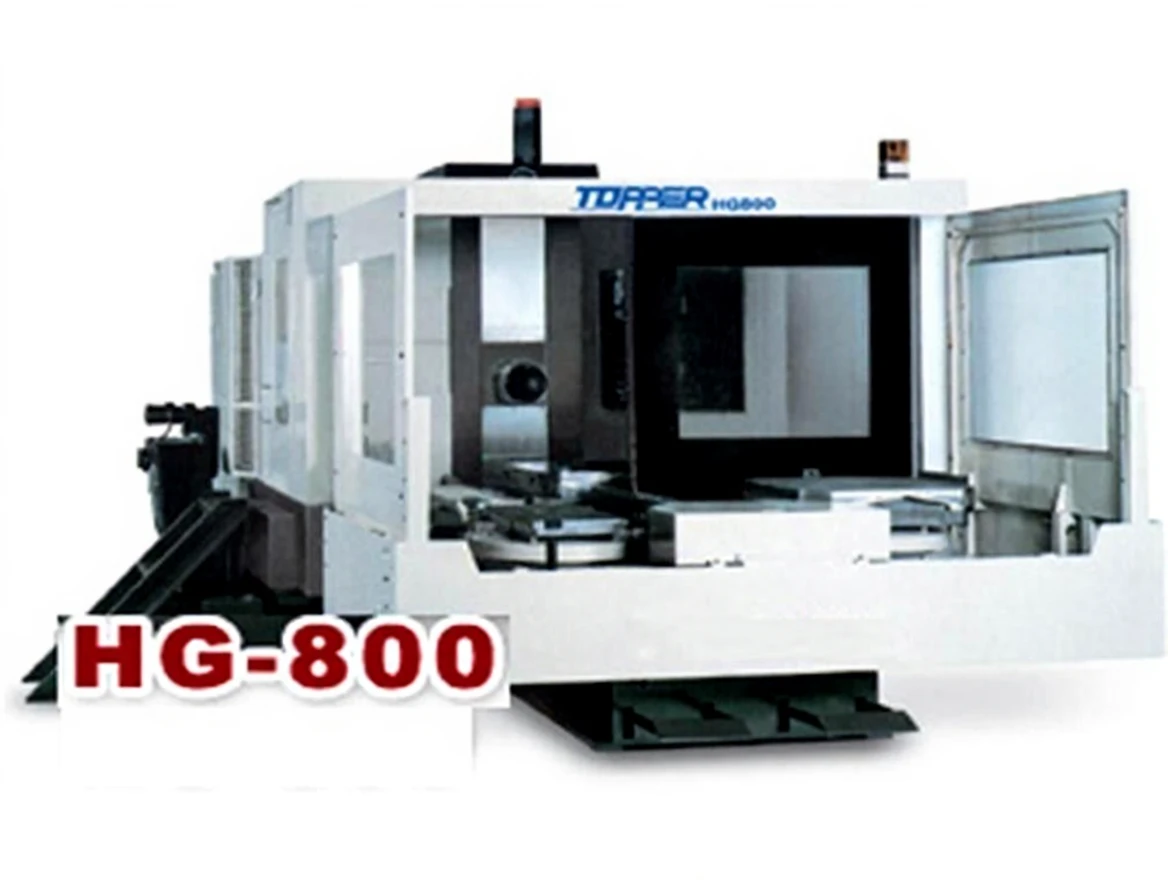

800×800 mm CNC Horizontal Machining Center

Pallet Size (WidthxDepth) (2 Pieces) mm 800X800

Maximum Workpiece Weight kg 1600

WORKING AREA

X Axis Travel mm 1120

Y Axis Travel mm 950

Z Axis Travel mm 850

Distance from Spindle Center to Table mm 25-925

Distance from Spindle Face to Table Center mm 250-1100

SPINDLE

Spindle Taper ISO 7/24 NO.50

Spindle Diameter mm 110

Spindle Speed rpm [ PHONE HIDDEN ] opt.)

Spindle Motor Power (50% Duty) kw 22/18.5

Rapid Traverse Speed m/min 15

Cutting Feed Rate mm/rev. 1-5000

AUTOMATIC TOOL CHANGE (ATC)

Number of Tools   60

Tool Change Method   Specified

Tool Number Tool Holder   BT50/CAT50

Max. Tool Length mm 600

Max. Tool Weight kg 20

Changing Method   Rotary

Max. Tool Diameter (with adjacent tool) mm 110

Max. Tool Diameter (without adjacent tool) mm 250

MACHINE DIMENSIONS

Width x Depth mm 4483×4709

Height mm 2942

Net Weight kg 14000
