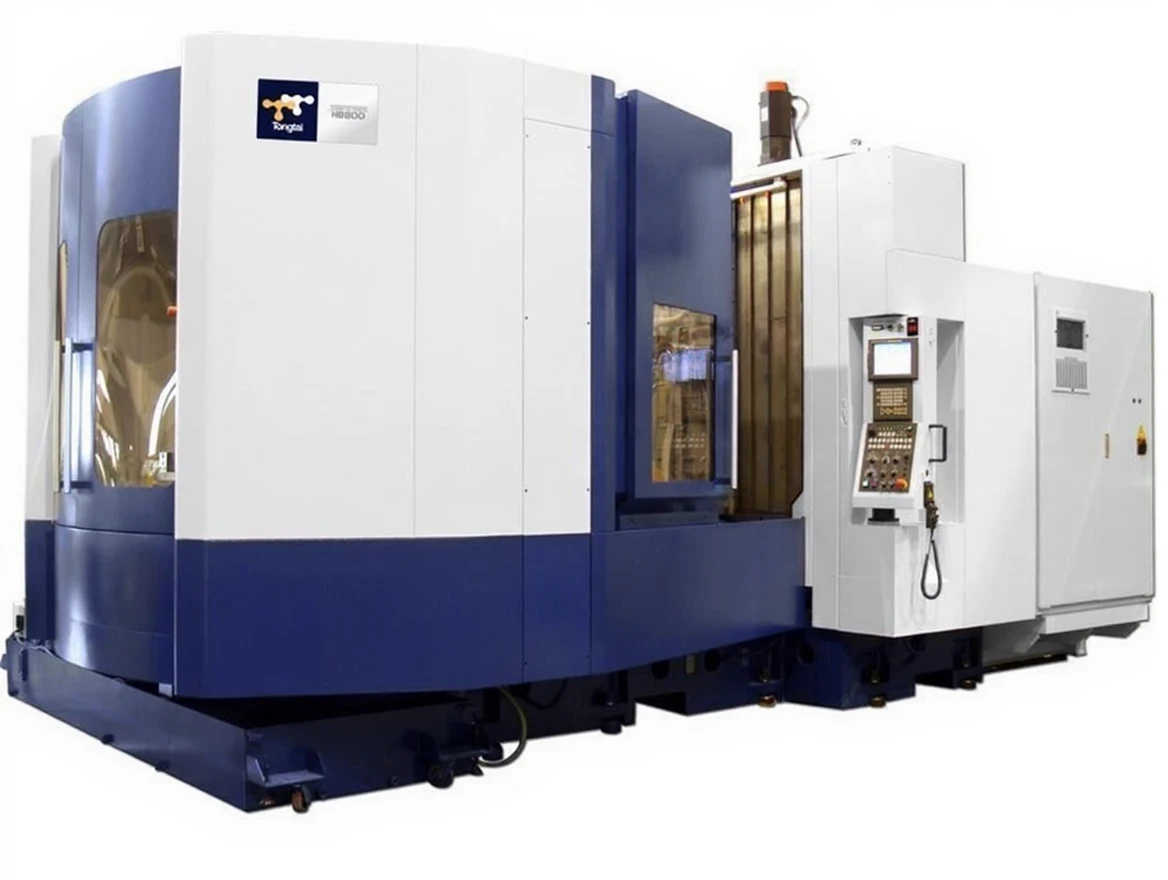

800×800 mm CNC Horizontal Machining Machine

PALETTE     Palette Size (WidthxLength) (2 pieces) mm 800×800 Palette Type   M16-25 holes Maximum Workpiece Weight  kg 1800 Palette Changing System   Rotary type

WORKING AREA     X-Axis Travel mm 1200 Y-Axis Travel mm 1000 Z-Axis Travel mm 1000 Spindle Center to Table Distance mm 100-1100 Spindle Nose to Table Center Distance mm 200-1200 Table Working Height mm 1350 X/Y/Z Servo Motor kw 7/6/7

SPINDLE HEAD     Spindle Taper ISO 7/24 BT.50 Spindle Speed rpm 10,000 (12,000 opt.) Spindle Taper   7/24 No.50 Spindle Bearing Inner Diameter mm 100 Spindle Motor Power  kw 22/15 (Low Speed) 30/25 (High Speed) Rapid Traverse Rates m/min 50 Cutting Feed Rate mm/rev. 1-20,000

AUTOMATIC TOOL CHANGER (ATC)

Number of Tools   60 Tool Change Method   Specified Tool Number Tool Holder   BT50 Maximum Tool Length mm 610 Maximum Tool Weight kg 25 Changing Method   Rotation Maximum Tool Diameter (with adjacent tool) mm 125 Maximum Tool Diameter (without adjacent tool) mm 250

MACHINE GENERAL

Hydraulic Pump Motor kw 2.2 Lubrication Pump Motor kw 0.017 Cooling Pump Motor kw 4 Spindle Cooling Motor kw 1.6 Table Indexing Motor kw 1.2 Electrical Power kVA 63 Hydraulic Unit Tank liter 25 Lubrication Tank liter 1.3 Cooling Tank liter 850 Width x Length mm 4933×6500 Height mm 3635 Net Weight kg 21400

Equipped with Fanuc OiMD and Standard Accessories.
