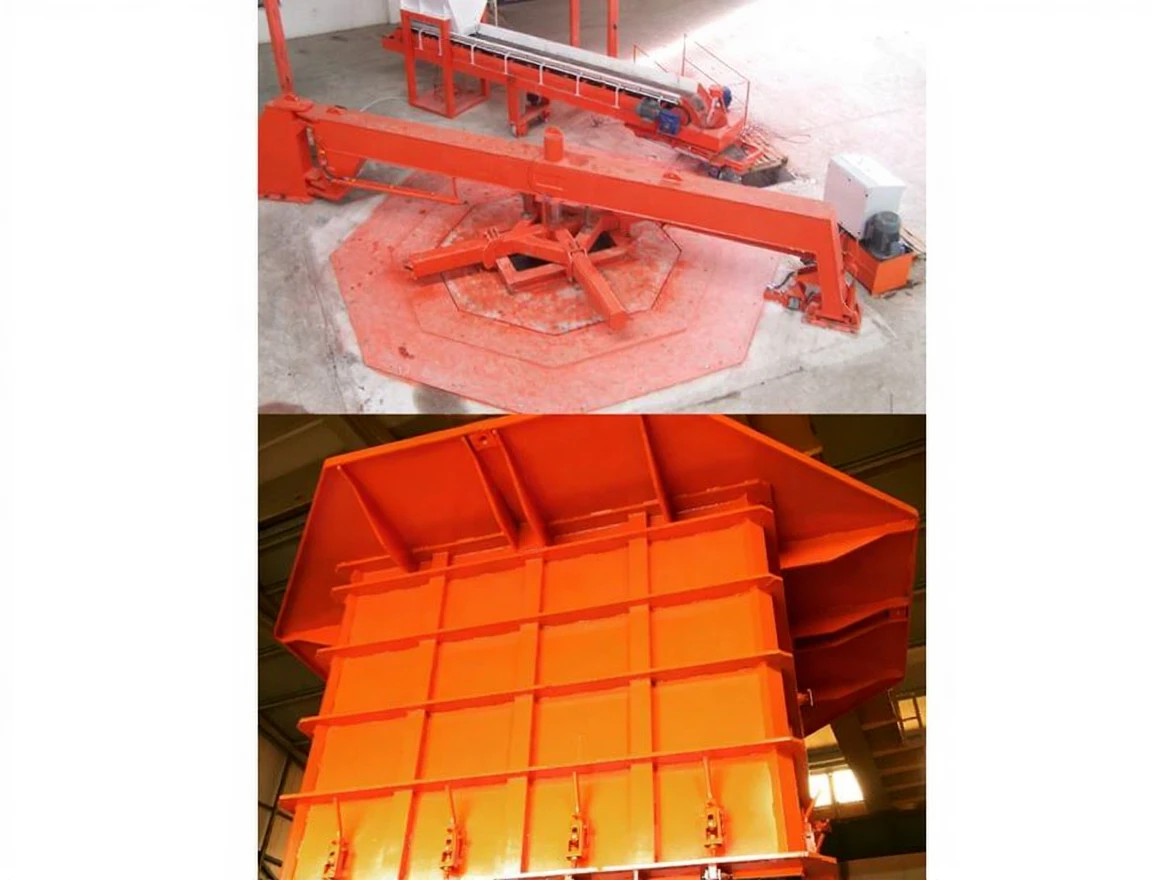

Ø800×800 mm Concrete Pipe Manhole Machine
| Brand | Koyuncular Makina |
|---|
Description
Ø800×800 mm Concrete Pipe Manhole Machine
• KMS 800 Concrete Pipe and Box Manhole Machine; produces Concrete Manholes between 1000mm minimum and 2000mm maximum lengths, compliant with the İller Bankası TSE 821 specification, for diameters ranging from Ø800 to Ø3000mm.
• Production is done by connecting a single mold in all sizes.
• The machine’s vibration system is a liquid-oiled closed circulation system. The automatic lubrication system is activated with the operation of the machine. High-speed and heat-resistant bearings are used in the vibrator.
| Özellik / Feature | Değer / Specification |
|---|---|
| Çalışma Sistemi / Working System | Manual / Semi-Automatic |
| Üretim Kapasitesi / Production Capacity | Ø800mm-3000mm |
| Motor Gücü / Motor Power | 30 kW 3000 rpm |
| Hidrolik Basıncı / Hydraulic Pressure | 120 Bar |
| Harç Kovası / Mortar Bucket | 1.5 m³ |
| Üretim Ölçüsü | Parça Adedi (Bir Baskıda) | Boyut (mm) | Günlük Üretim (8 Saat) |
|---|---|---|---|
| Ø800mm x 800mm | 1 Piece | 1000/2000 | 25 Pieces |
| Ø1000mm x 1000mm | 1 Piece | 1000/2000 | 25 Pieces |
| Ø1000mm x 1500mm | 1 Piece | 1000/2000 | 20 Pieces |
| Ø1500mm x 1500mm | 1 Piece | 1000/2000 | 20 Pieces |
| Ø1500mm x 2000mm | 1 Piece | 1000/2000 | 15 Pieces |
| Ø2000mm x 2000mm | 1 Piece | 1000/2000 | 15 Pieces |
| Ø2000mm x 2500mm | 1 Piece | 1000/2000 | 10 Pieces |
| Ø2500mm x 2500mm | 1 Piece | 1000/2000 | 10 Pieces |
| Ø2500mm x 3000mm | 1 Piece | 1000/2000 | 5 Pieces |
| Ø3000mm x 3000mm | 1 Piece | 1000/2000 | 5 Pieces |
