85 Ton Hydraulic Double Piston Combined Shears

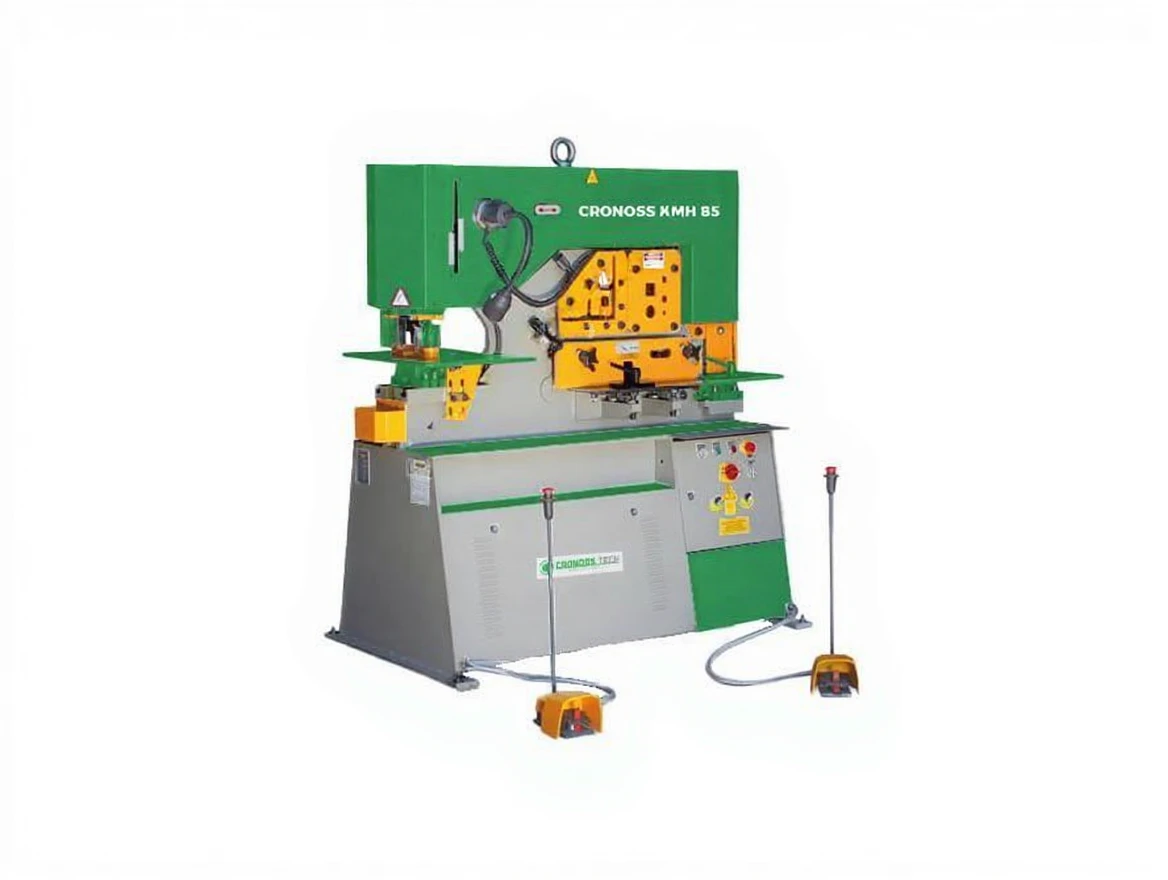

KMH 85 – HYDRAULIC DOUBLE PISTON COMBINED SHEARS

STANDARD EQUIPMENT

PUNCHING DIE

• Maximum thickness diameter: Ø 33 × 20 mm

• Diameter × thickness (Ø × t): Ø 57 × 12 mm

• Maximum diameter thickness: Ø 110 × 4 mm

• Stroke length: 80 mm

• Number of strokes: 25

• Groove depth: 355 mm

• Working height: 1080 mm

FULL MATERIAL SHEARS

• Round / Square: Ø 50 / 50 mm

ANGLE IRON CUTTING SHEARS

• Vertical angle iron (90°): 150 × 150 × 15 mm

• Angled angle iron (45°): 80 × 8 mm

• Working height: 1200 mm

SHEET METAL SHEARS (BLADE CUTTING)

• Flat sheet: 380 × 20 mm

• Flat sheet: 480 × 15 mm

• Blade length: 482 mm

• Angled cut: 120 × 15 mm

• Working height: 940 mm

NOTCHING

• Material thickness: 13 mm

• Width: 52 mm

• Depth: 100 mm

• Working height: 940 mm

OPTIONAL EQUIPMENT

SPECIAL DIES

• U–I profile blades (UPN–IPN): 160 × 74 mm

• T profile blades: 100 × 11 mm

SPECIAL NOTCHING TOOL

• 100 × 100 × 13 mm

V BENDING

• Blade bending (max.): 250 × 20 mm

• Sheet bending (max.): 500 × 4 mm

NOTCHING SECTION PUNCH

• Jaw depth: 125 mm

• Sheet punching: Ø 38 × 10 mm

TECHNICAL SPECIFICATIONS (KMH 85)

• Motor power: 7.5 kW

• Pressure: 85 tons

• Machine weight: 2315 kg

• Machine dimensions (W × D × H): 1920 × 950 × 2040 mm

GENERAL EQUIPMENT AND STRUCTURE

• 2 separate hydraulic pistons and 2 separate foot controls allowing two people to work simultaneously

• Possibility of serial operation with adjustable piston stroke distance

• Central lubrication system

• Electric switchable rear support

• Working lamp

• On the same body, 5 separate workstations:

  • Ø22 mm punch and die / standard hole drilling apparatus

  • Full round and full square cutting blade set

  • Angle iron cutting blade set

  • Blade and sheet cutting blade set

  • U-notching blade set
