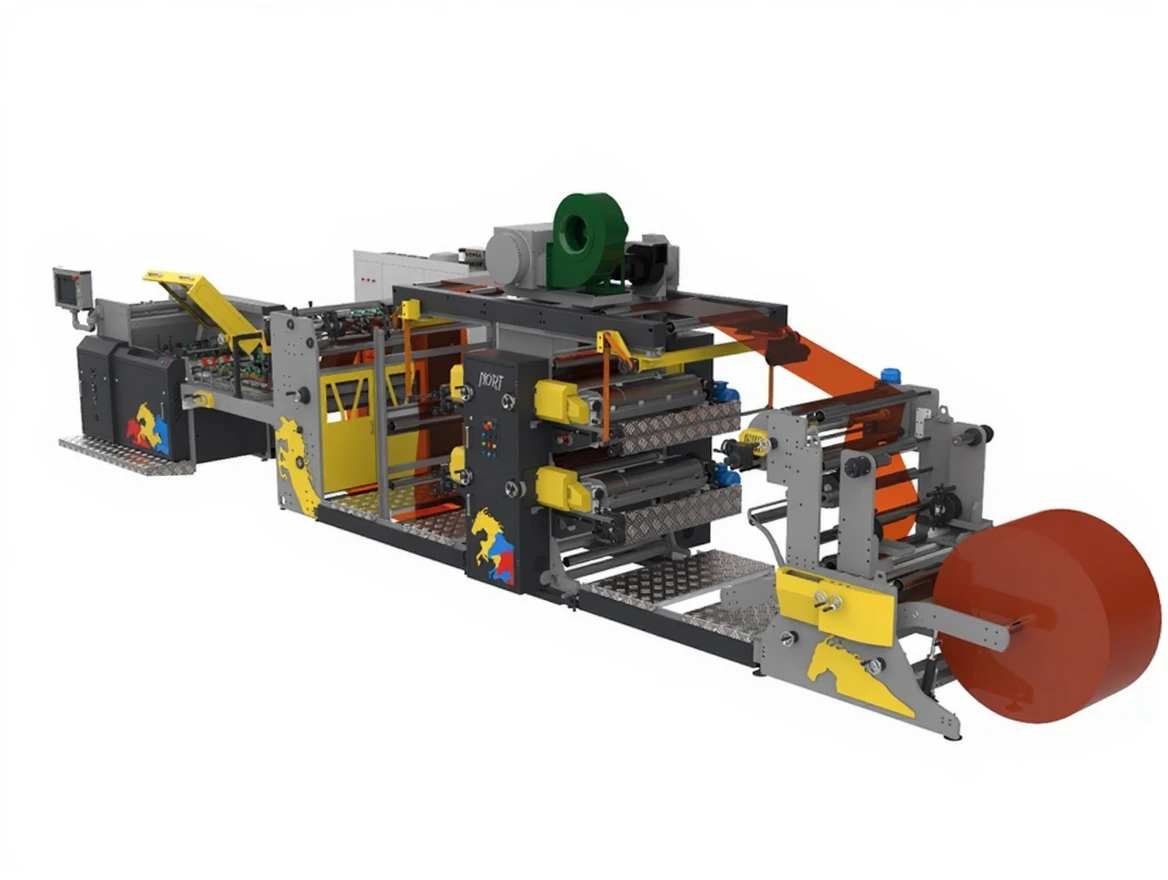

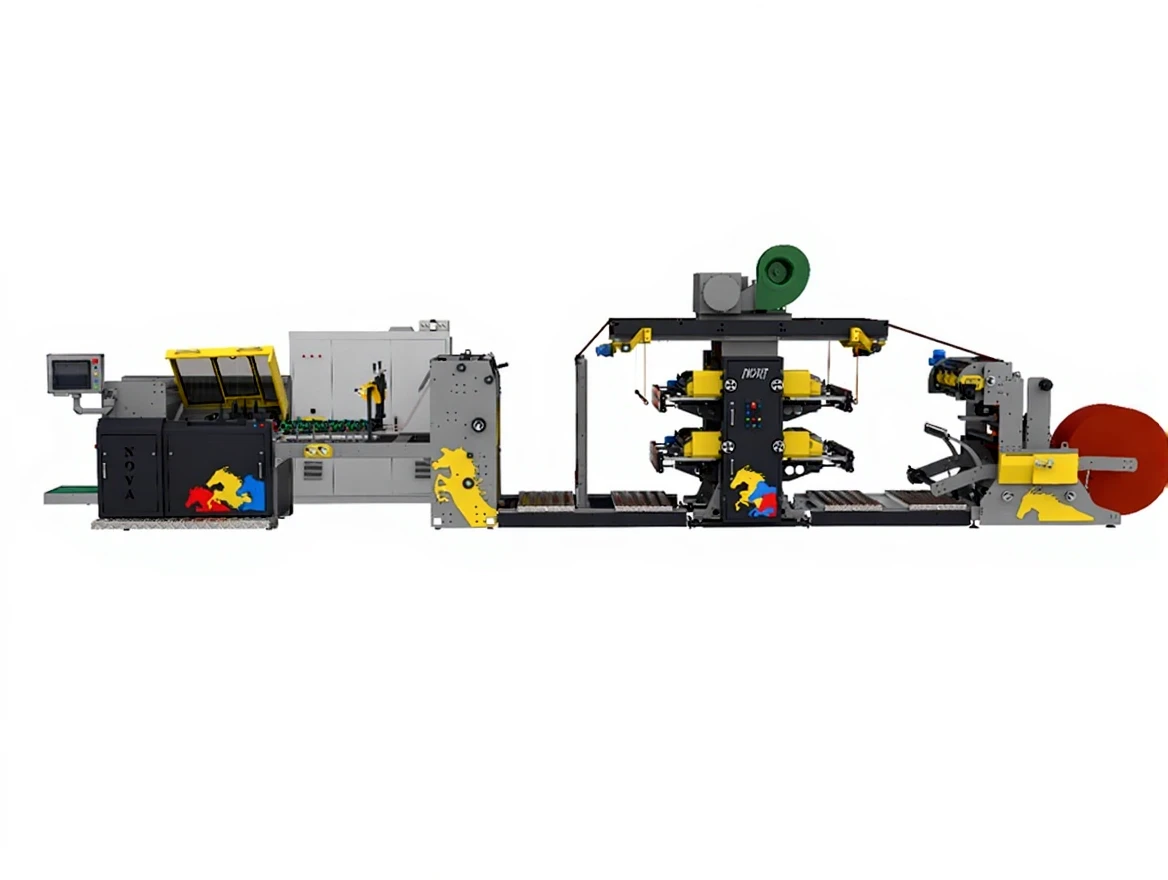

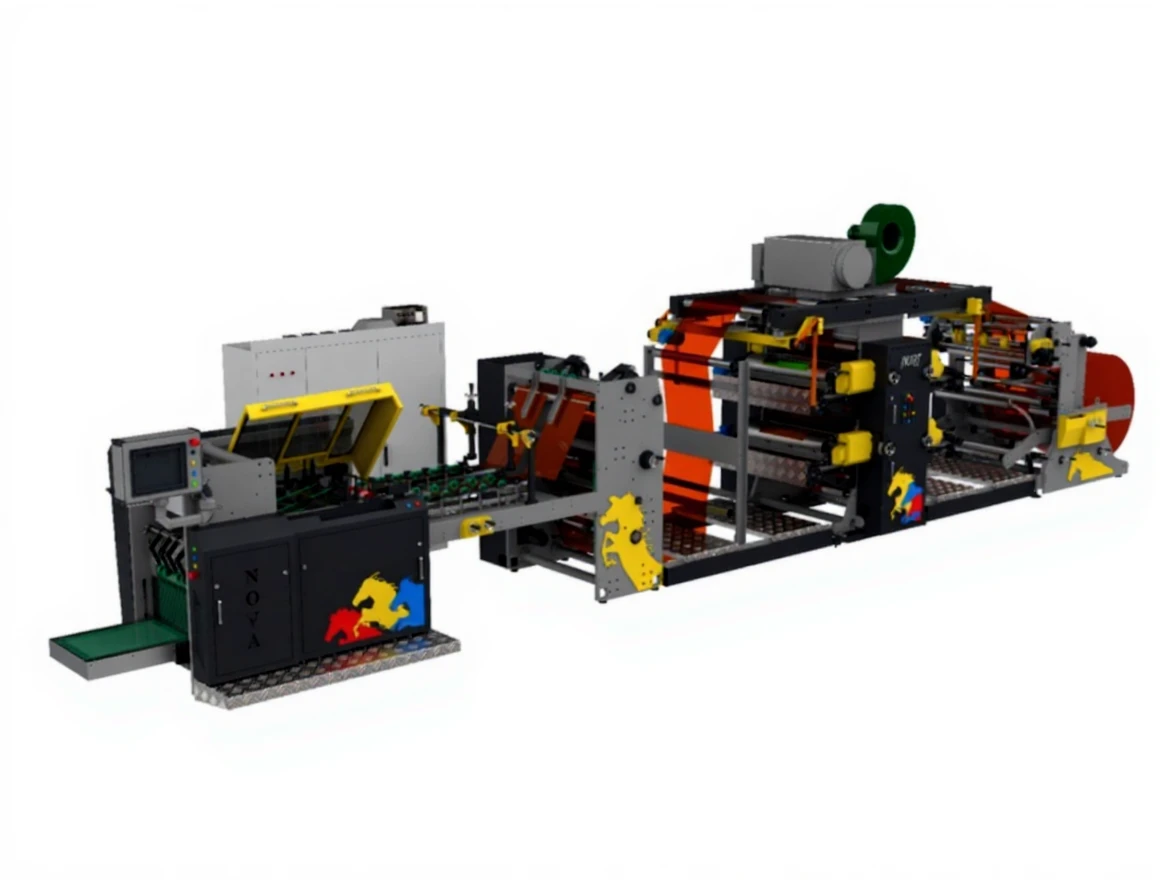

850 Pieces/Min 4 Color Endless Bag Paper Machine

Technical Details

PAPER THICKNESS

:

25 – 100 g / m²

PRODUCTION SPEED

:

850 Pieces / Min. ( SINGLE LINE )

PAPER LINE SPEED

:

250 m / min.

MAX. PAPER WIDTH

:

1300 mm

PAPER ROLL LOADING DIAMETER

:

Ø 1200 mm

FLEXO PRINTING UNIT

:

4 COLOR FLEXO 360° COLOR REGISTER

BAG CUTTING LENGTH

:

100 – 720 mm

BAG PAPER LENGTH

:

90 – 700 mm

BAG PAPER WIDTH

:

70 – 450 mm

DEPTH OF CUTTING

:

12 – 50 mm (Standard) – 80mm (Optional)

BAG PAPER WINDOW UNIT

:

AVAILABLE

AIR-SHAFT

:

AVAILABLE

CONTROL SYSTEM

:

10 AXIS SERVO CONTROL

PLC CONTROL

:

AVAILABLE

TOUCH SCREEN

:

AVAILABLE

BAG PAPER LENGTH ADJUSTMENT

:

SERVO MOTOR

BAG PAPER PERFORATED CUTTING

:

SERVO MOTOR

DOUBLE LINE FOLDING UNIT

:

AVAILABLE

PAPER TENSION CONTROL

:

3 ZONE

ROLL WEB CONTROL

:

AVAILABLE

CUTTING UNIT FOR SOLVING UPPER LAYER

:

AVAILABLE

WINDER UNIT (SECOND SOLVER) TENSION CONTROL

:

AVAILABLE
