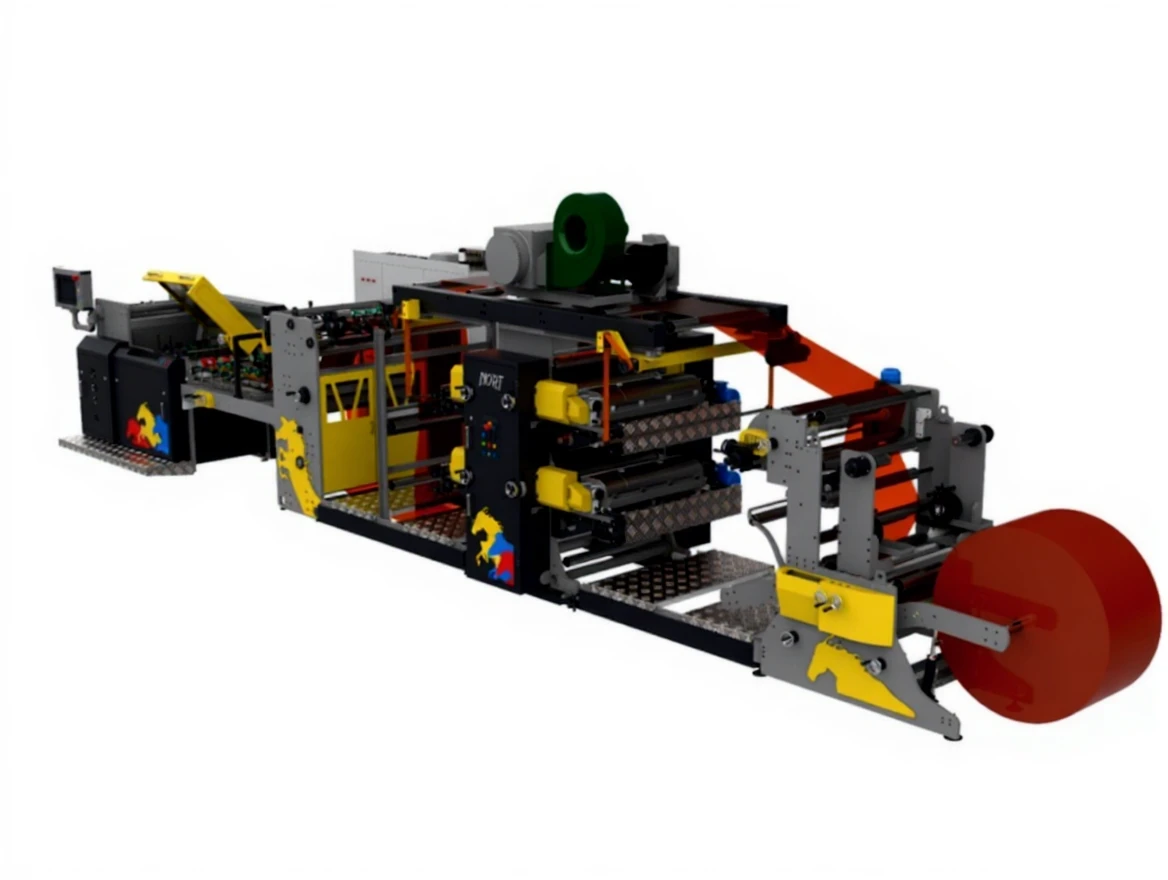

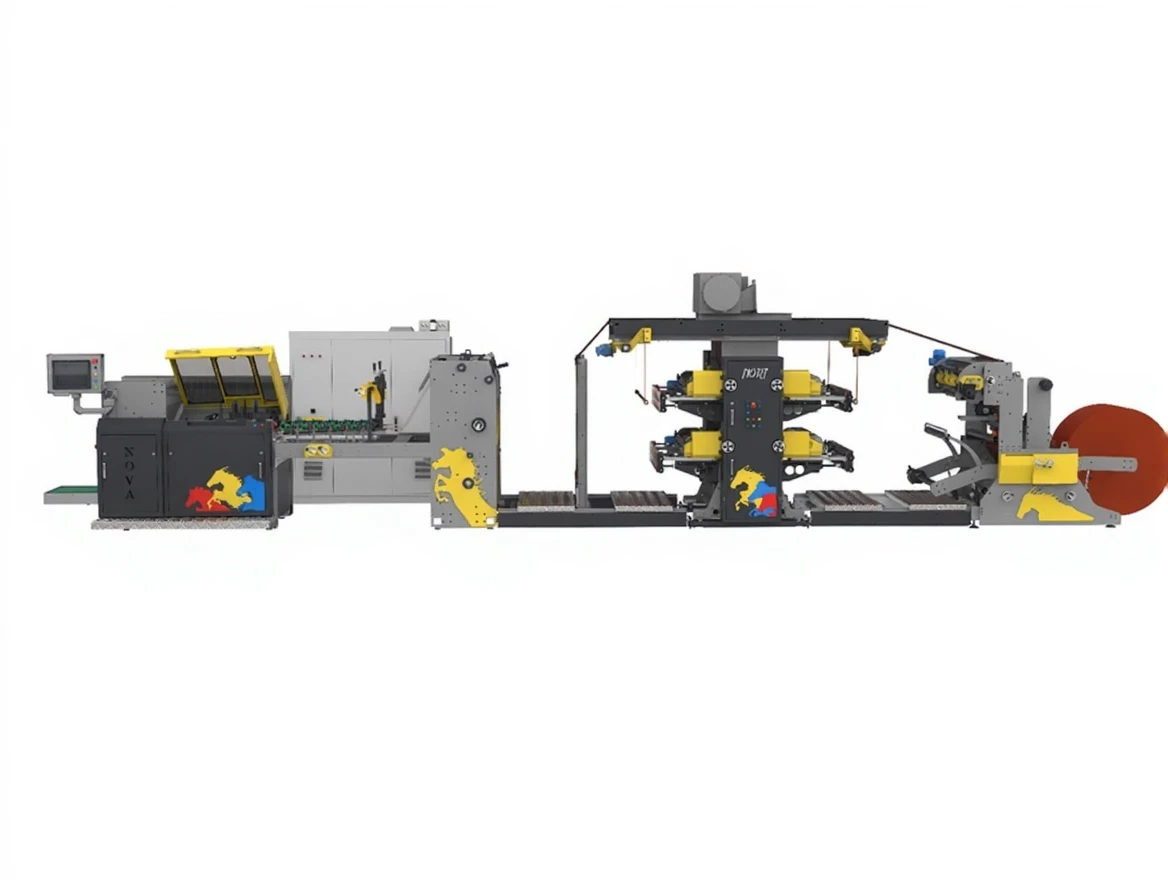

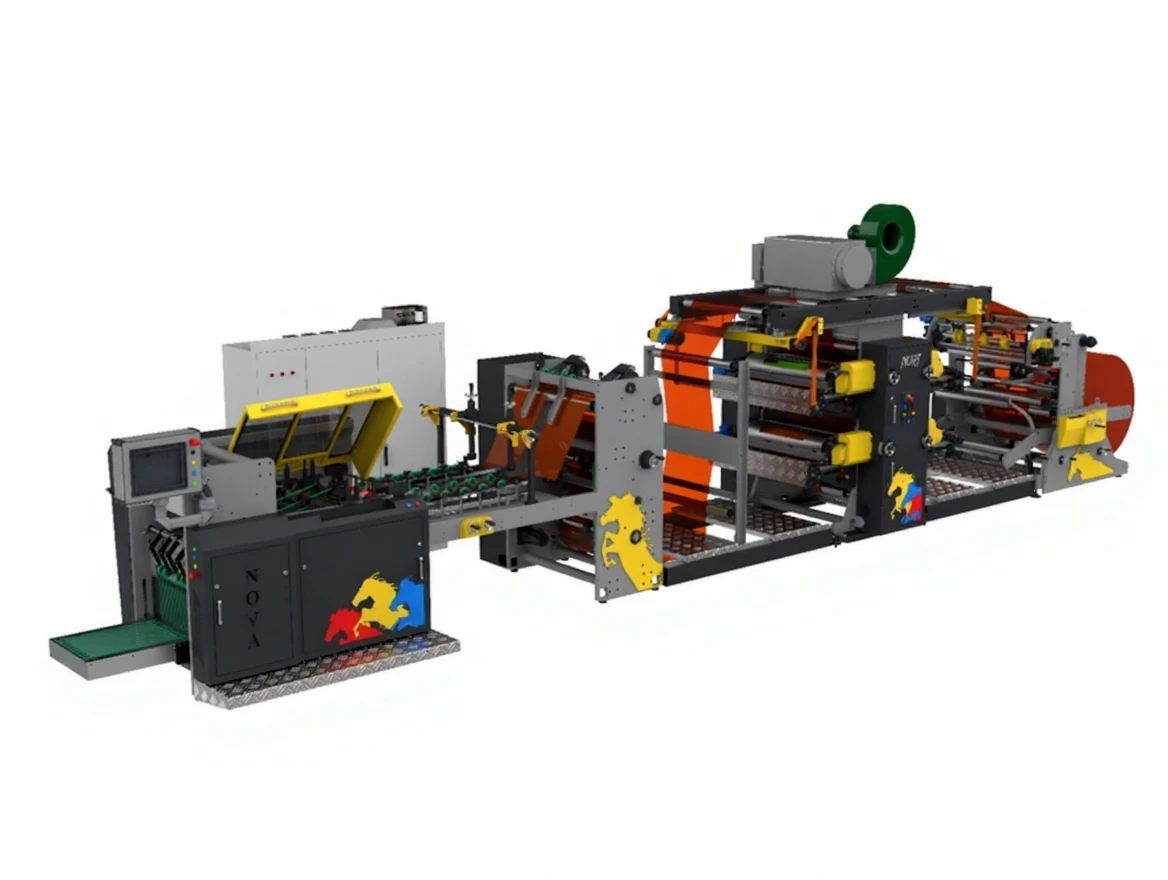

850 Pieces/min 4 Colors Bottomless Paper Bag Machine

Technical Details

PAPER THICKNESS

:

25 – 100g/m²

PRODUCTION SPEED

:

850 Pieces / min. ( SINGLE LINE )

PAPER LINE SPEED

:

250 m/min.

MAX. PAPER WIDTH

:

1300mm

PAPER REBEL LOADING DIAMETER

:

Ø 1200 mm

FLEXO PRINTING UNIT

:

4 COLOR FLEXO 360° SIZE REGISTER

POUCH CUTTING LENGTH

:

100 – 720mm

PAPER BAG SIZE

:

90 – 700mm

PAPER BAG WIDTH

:

70 – 450mm

BELLOWS DEPTH

:

12 – 50mm (Standard) – 80mm (Optional)

PAPER BAG WINDOW UNIT

:

AVAILABLE

AIR-SHAFT

:

AVAILABLE

CONTROL SYSTEM

:

10 AXIS SERVO CONTROL

PLC CONTROL

:

AVAILABLE

TOUCH SCREEN

:

AVAILABLE

PAPER BAG SIZE SETTING

:

SERVO-MOTOR

PAPER BAG PERFORATED CUTTING

:

SERVO-MOTOR

DOUBLE LINE FOLDING UNIT

:

AVAILABLE

PAPER TENSION CONTROL

:

3 REGIONS

COIL WEB CONTROL

:

AVAILABLE

SOLVER TOP SLICING UNIT

:

AVAILABLE

WINDING UNIT ( SECOND UNWINDING ) TENSION CONTROL

:

AVAILABLE
