89 Kn Bending Force Measurement Sensor

Piezo quartz sensors are used to measure bending force in the production process of bending joints. These sensors are available in different versions and can be mounted on a pressing machine or attached to a press frame.

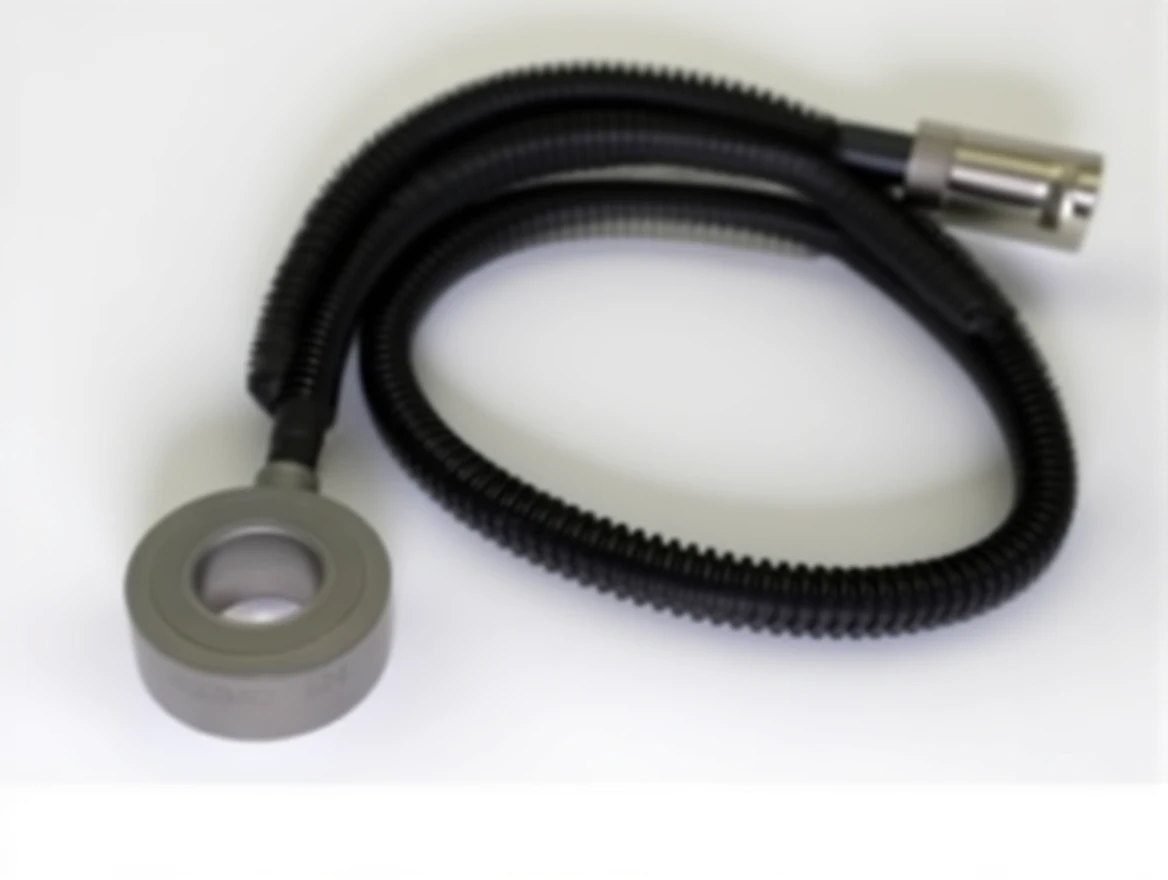

The piezo force ring sensor RH203M42 can be mounted on a pressing machine and is suitable for forces up to 89 kN.

Performance Features of RH203M42
-Measurement range: up to 89 kN
-Sensitivity 56.2 mV /kN
-Wide linear dynamic measurement range
-Robust and sturdy construction
-Exceptional stability and repeatability
-Sensor with screw cable
-BNC connector
-Includes SC-40 connection cable.
