9″-28″ Fully Automatic Tire Changer Machine

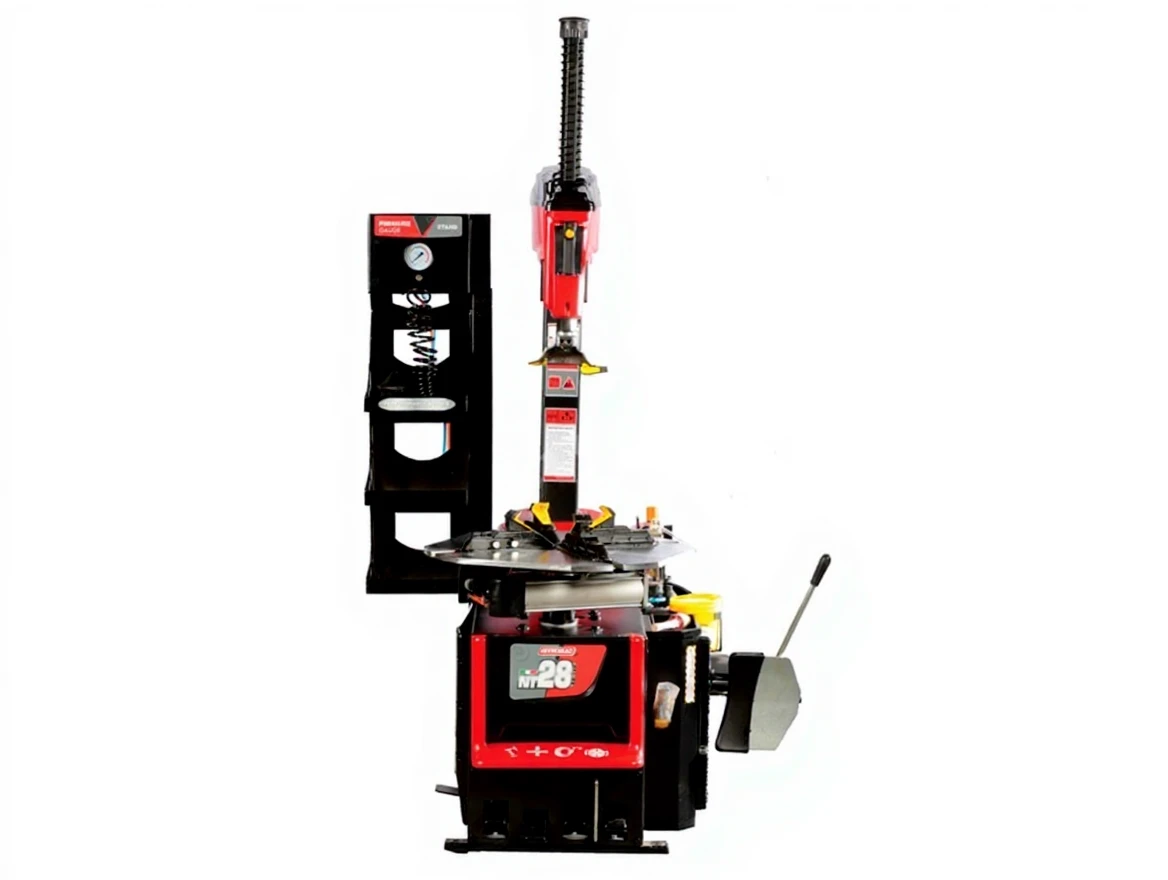

9″ – 28″ Fully Automatic Tire Changer Machine – Nitromac NT28

Standard Accessories

Tire claw plastics
Tire sidewall drop plastics
Tire jaw plastics

Technical Specifications

Tire diameter range 9″ – 28″
Max. tire weight 75kg
Max. tire diameter 43″
Power 1.1kw / 380V (optional 220V)
Table rotation speed 6-16rpm
Operating pressure 8-10bar
Maximum pressure force 6000N horizontal – 3000N vertical arm
Dimensions 1150x1000x1900k mm
Weight 325kg

Description

– High torque rotary table with 1200 Nm that does not strain RFT and UHP tires.
– Strong sidewall drop system (11 tons) controlled by arm with pneumatic control thanks to Ergo control for safer operation on UHP and RFT type tires.
– Quick and strong sidewall drop system designed for intensive use. – New generation G-frame reinforced mounting arm and head.
– Mounting head that can move backwards pneumatically.
– Speed control from the pedal thanks to the motor with frequency feature.
– New generation easy-to-use auxiliary arm system.
– Fast operation without damaging the rims and tires thanks to special long-life Teflon nail guard plastics.
