9" – 28" Fully Automatic Tire Changer Without Lever

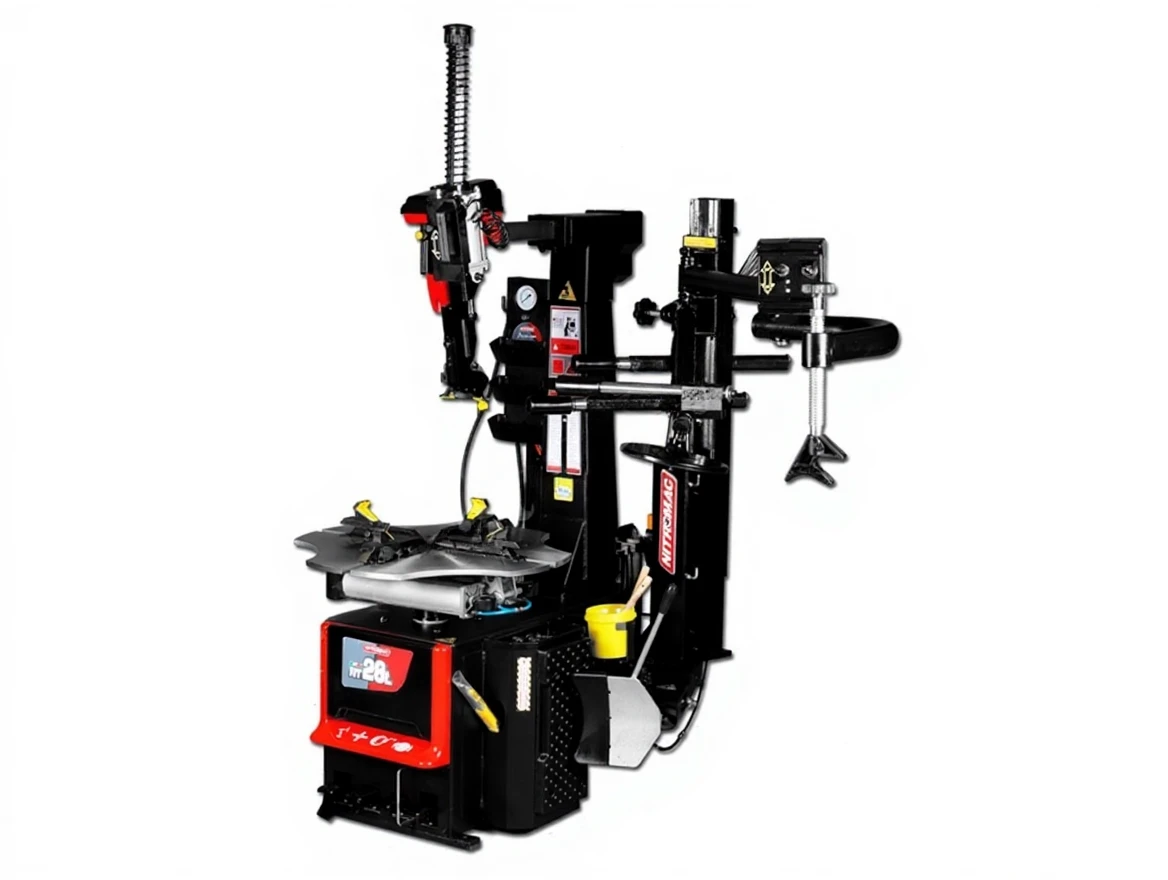

9˝ – 28˝ Fully Automatic Tire Changer Machine Without Lever – Nitromac NT28L

Technical Specifications

Tire diameter range: 9” – 28”
Max. tire weight: 75 Kg
Max. Tire Diameter: 43″
Power: 1.1 kW / 380 V optional 220 V
Table rotating speed: 6 – 16 rpm
Operating pressure: 8 – 10 bar
Max pressing force: 6000 N horizontal – 3000 N vertical arm
Gross weight: 345 Kg
Packing dimensions: 1150x1000x1900 h mm

Standard Accessories

Tire claw plastics
Tire sidewall dropping plastics
Tire jaw plastics

– High torque rotating table 1200 Nm that does not strain RFT and UHP tires.
– Pneumatically controlled very powerful sidewall dropping system (11 tons) that provides safer operation for UHP and RFT type tires thanks to Ergo control.
– Fast and very powerful sidewall dropping system designed for intense use.
– New generation G-frame reinforced mounting arm and head.
– Pneumatic mounting head that can move backwards.
– Speed control from pedal thanks to frequency-controlled motor.
– New generation easy-to-use assistant arm system.
– Quick work without damaging rims and tires thanks to special long-lasting teflon claw protection plastics.
