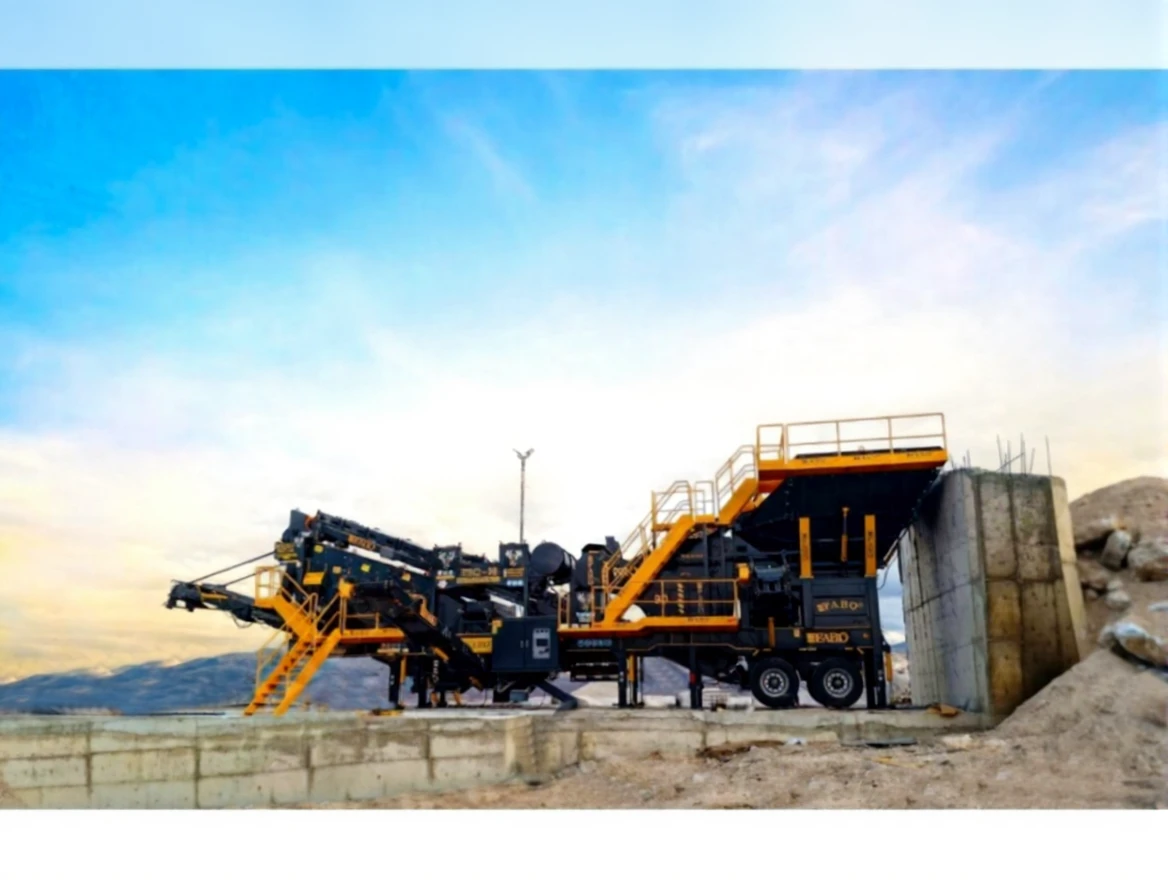

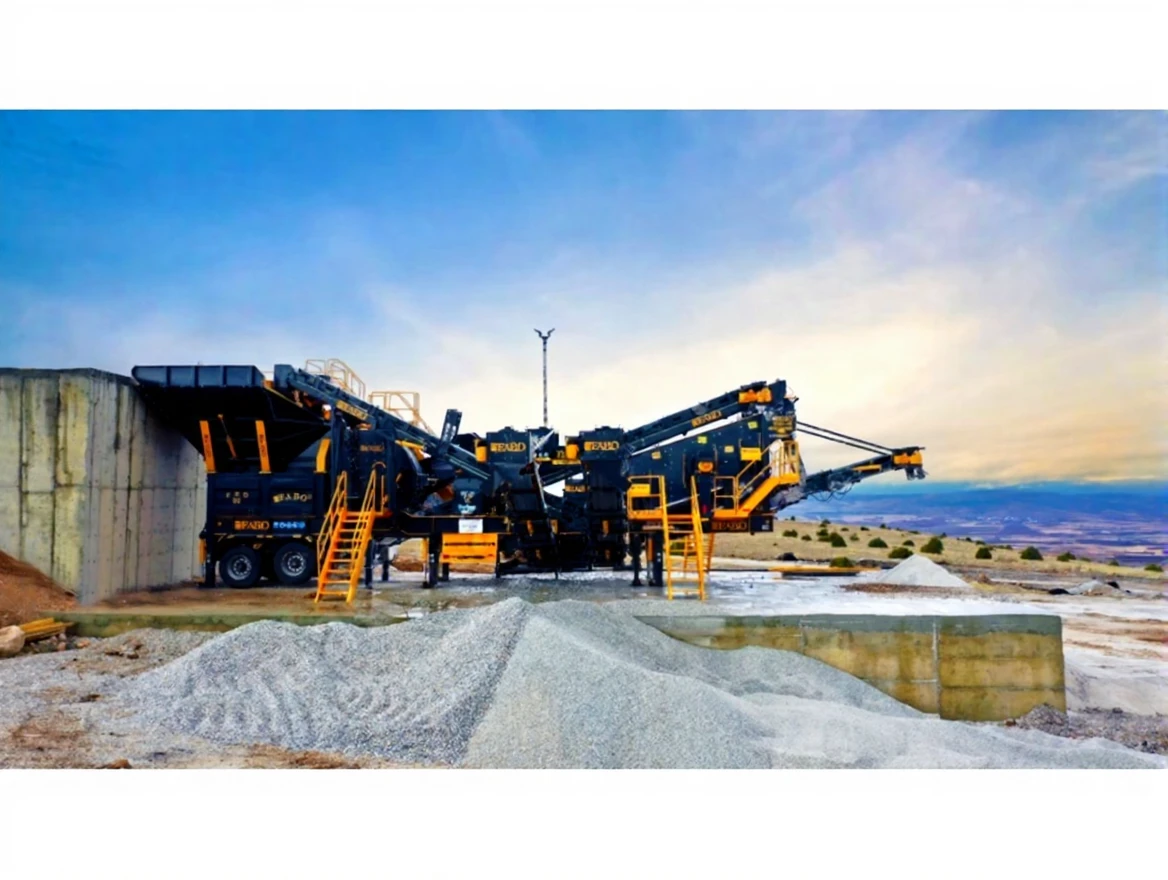

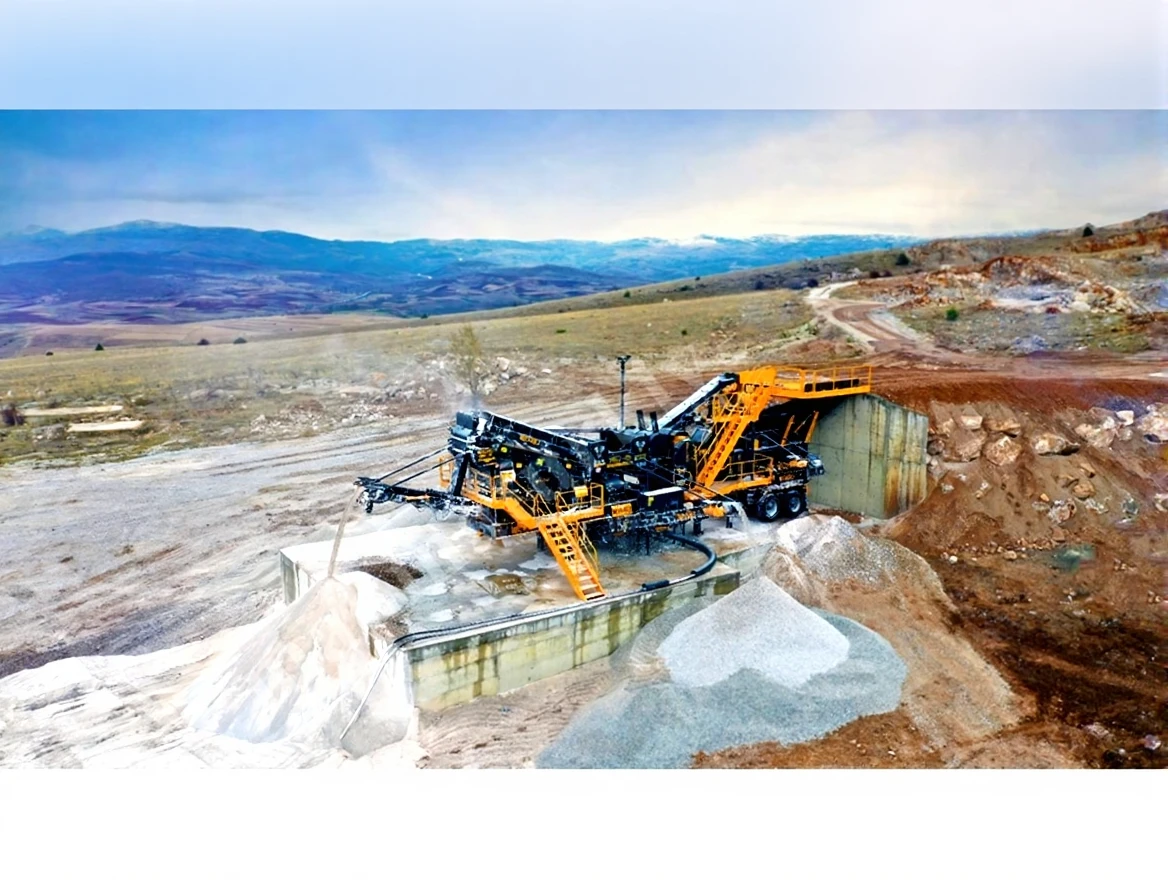

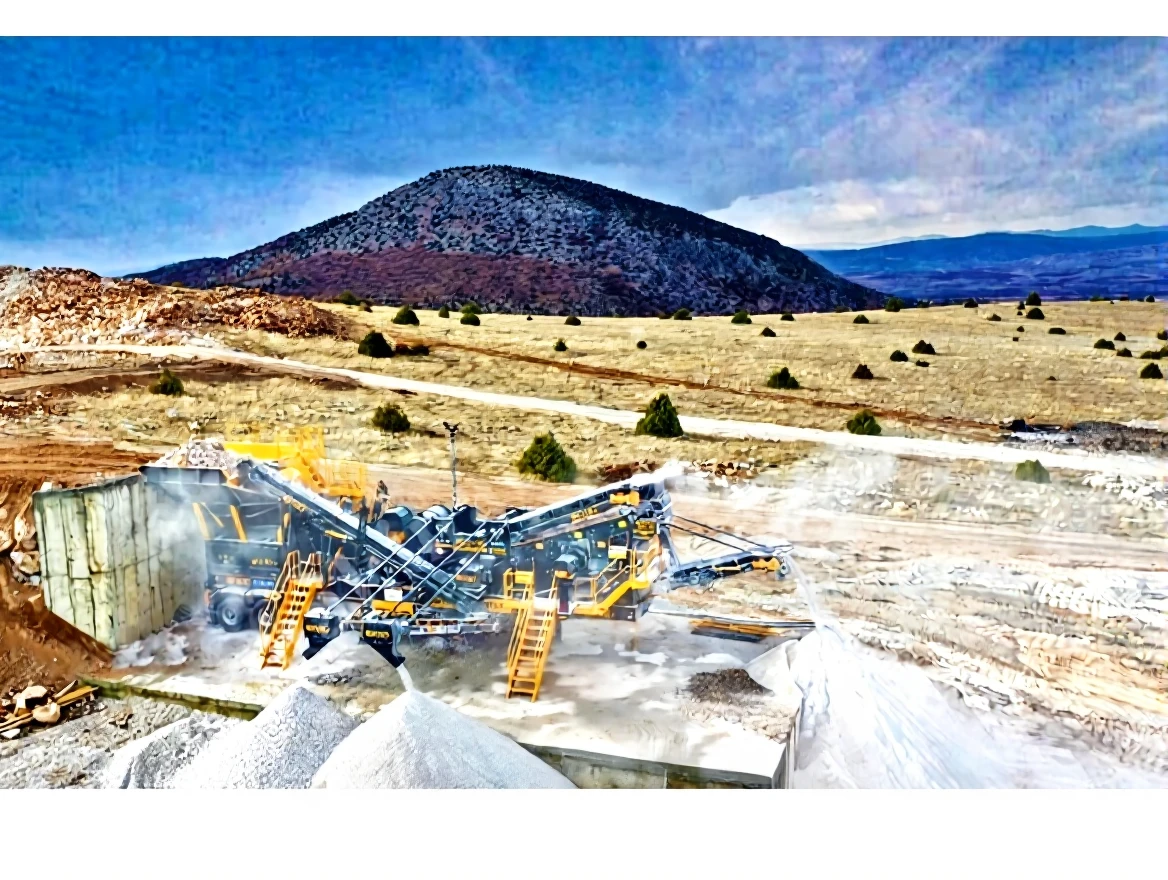

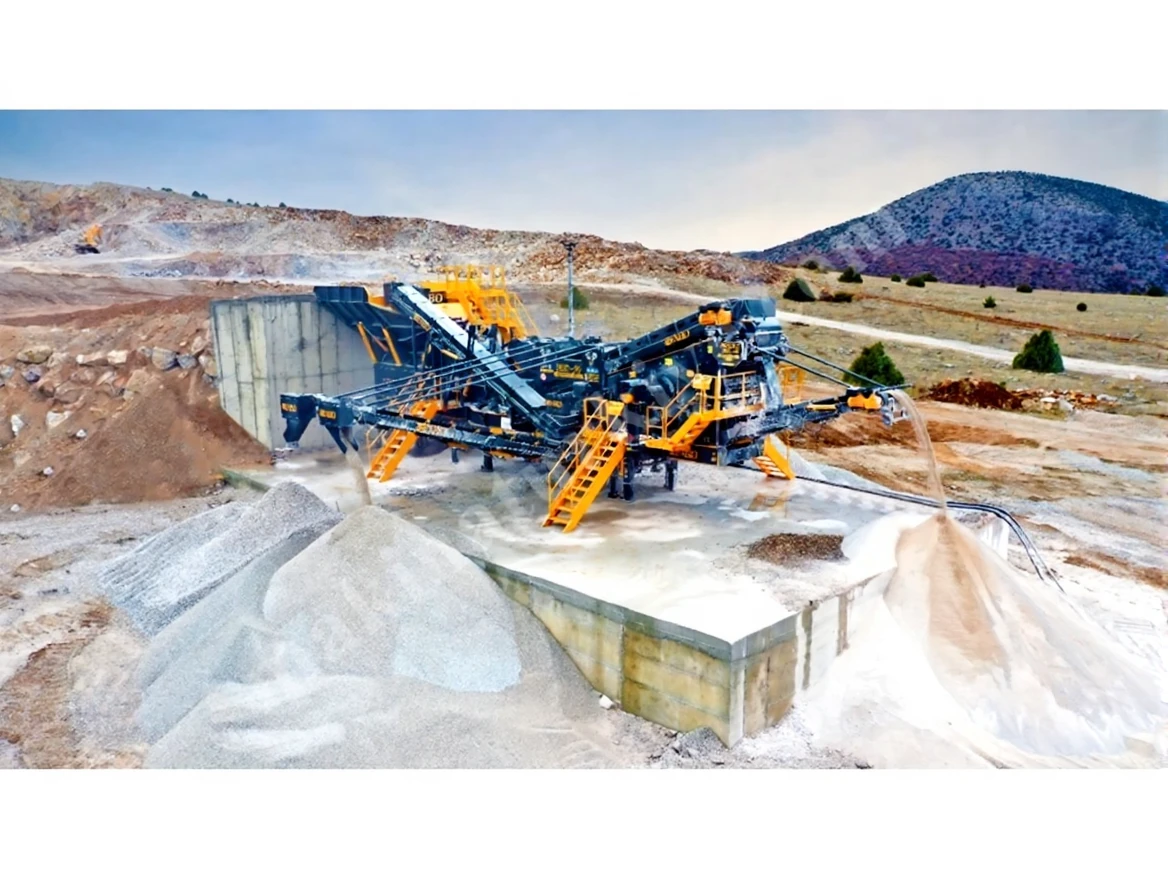

90-130 Ton / Hour Mobile Crushing and Screening Plant

Fabo Makina PRO-90 90-130 Ton / Hour Mobile Crushing and Screening Plant

* All of our products are produced with care and are covered by a 1-year warranty!

* Installation and Operator Training will be provided free of charge.

FABO PRO Series is a mobile type closed circuit crushing plant, especially suitable for limestone and other stone types with soft or medium hardness levels.

MAIN FEATURES:

* Closed circuit crushing until the desired size product is obtained.

* Capacity varies depending on the material to be crushed feeding and final product dimensions.

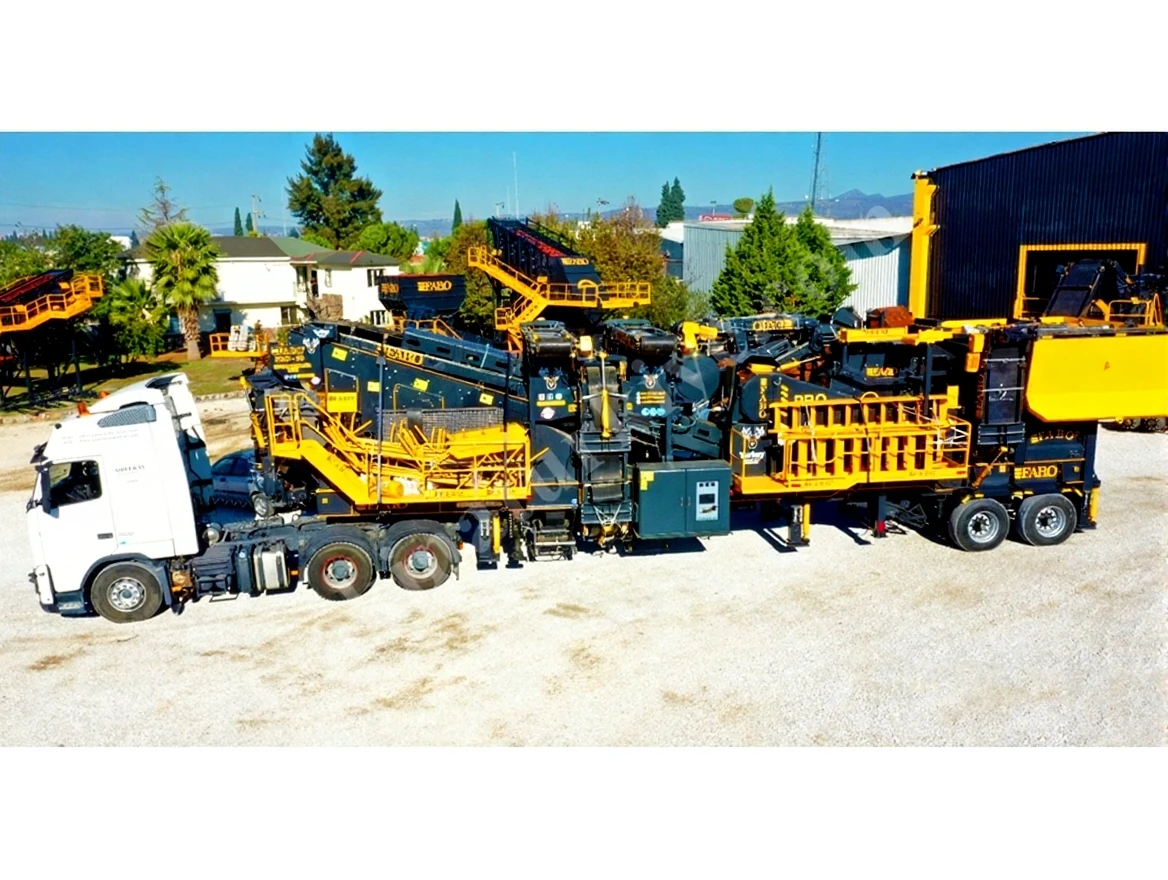

* All equipment is mounted on a single special heavy-duty construction site chassis and transported by a single tractor.

* Conveyors are FOLDABLE type.

* Since the entire facility is built on a single frame, it has the advantage of the fastest production line.

* PRO Series Mobile Crusher Plant can be used with a single operator and can be fed with a truck, loader or excavator.

* With the special heavy duty construction chassis, the facility can be established in 2 days.

* You can crush different product sizes with high capacity with the multi-functional primary impact crusher.

* Equipped with 3 axles, pneumatic brake system and signaling system.

* Hydraulic system is controlled by remote system

* All engines are protected by Sheet Metal Covers.

* Dust suppression control system prevents dust formation by transmitting high pressure water.

* The Mobile System has a complete Full Automation system and includes Android Samsung Galaxy Tablet which operates the system with a single staff member.

TECHNICAL SPECIFICATIONS:

Bunker: 20 m3

Production Capacity: 90-130 Tons per Hour

Crusher type: Turbo Impact – 1100×900 mm

Maximum Feed Size: 500 mm

Vibrating Screen Size and Body: 1400×4000 mm

Total Engine Power: 196 Kw

Generator (optional): 400 Kw

PRO-90 is the combination of:

• Bunker

• Vibrating Grid Feeder (Bypass)

• Wobbler Feeder (optional)

• Turbo Impact Crusher

• High Stroke Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic system (optional)

• Valve system (optional)

• Mobile Chassis with axles and tires

• Full Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
