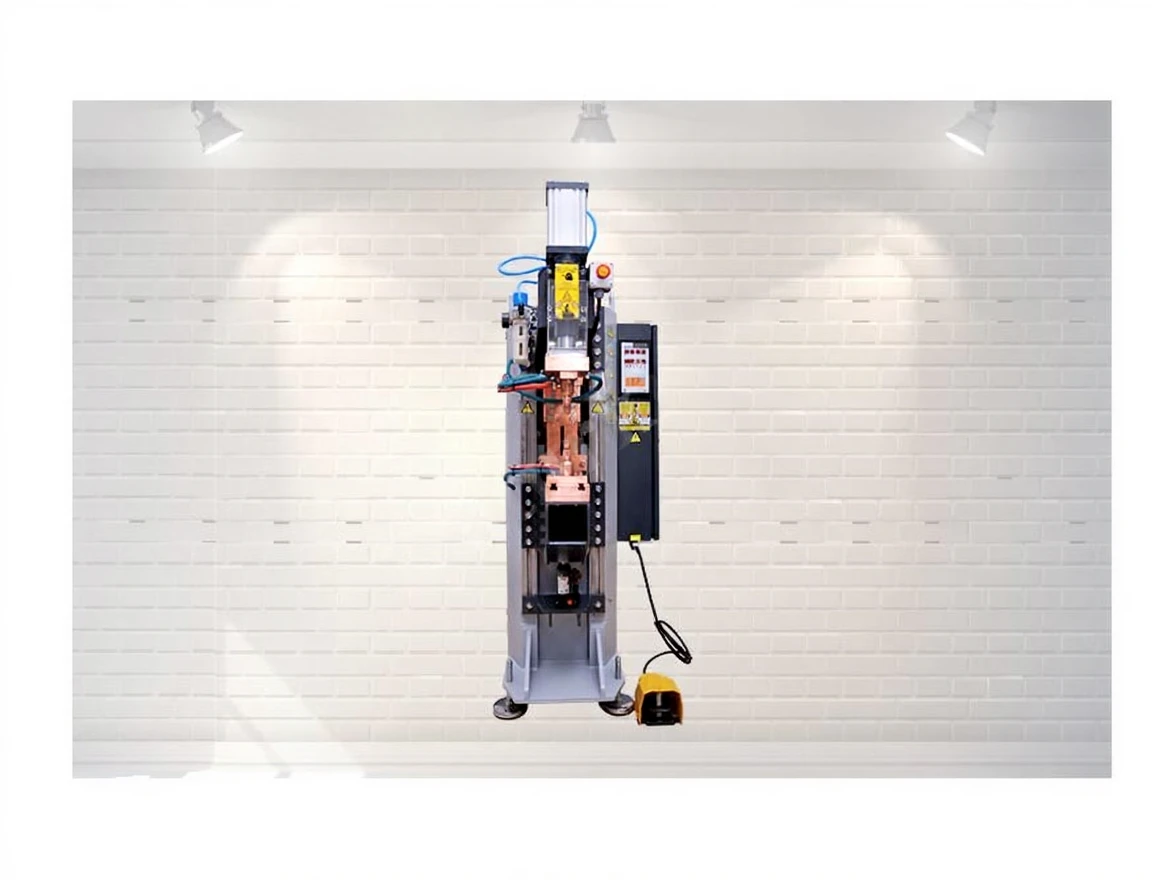

90 kVA Vertical Seam Welding Machine
| Brand | Fast Makina |
|---|---|
| Model Type |
FMP – 90KVA |
Fast Makina FMP – 90 KVA 90 kVA Vertical Seam Welding Machine
Pneumatic, microprocessor, water-cooled 2 phase 400v/50Hz Standard Vertical Spot Welding Machines
Usage areas:
Automotive
Household appliances
Defense industry
Electricity and lighting
billboard makers
shelf industry
* Fixtures and molds are made on the machine according to the work situation.
FMP – 90KVA Technical Specifications:
|
FMP – 90KVA |
|
|
|---|---|---|
|
Rated power |
90 KVA |
|
|
Rated current |
225 A |
|
|
Secondary voltage |
7.2 V |
|
|
Arm size |
300/500 mm |
|
|
Piston diameter |
ø125 |
|
|
Electrode pressure force |
850 daN |
|
|
Air pressure |
2/8 bar |
|
|
Cooling water inlet pressure |
2/5 bar |
|
|
Cooling water inlet temperature |
15/25 §C |
|
|
Cooling water inlet flow rate |
15 lt/dk |
|
|
Delayed mains fuse |
160 A |
|
|
Supply cable (up to 5 meters) |
2×50+6 |
|
|
Machine dimensions(WxLxH) |
720X1280X2000 |
Standard Machine Features
Microprocessor control card
air conditioner
Air tank
T electrode
Protected foot pedal
Emergency stop button
Piston with special bearing
Bottom table lifting jack
Optional Features
Control unit with current reading
proportional pressure regulator
double hand button
Burr protection curtain
light barrier
special molds
Approach piston
special electrodes
